Output Shaft Ring Gear and Hub Shaft Assembly: Disassembly

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

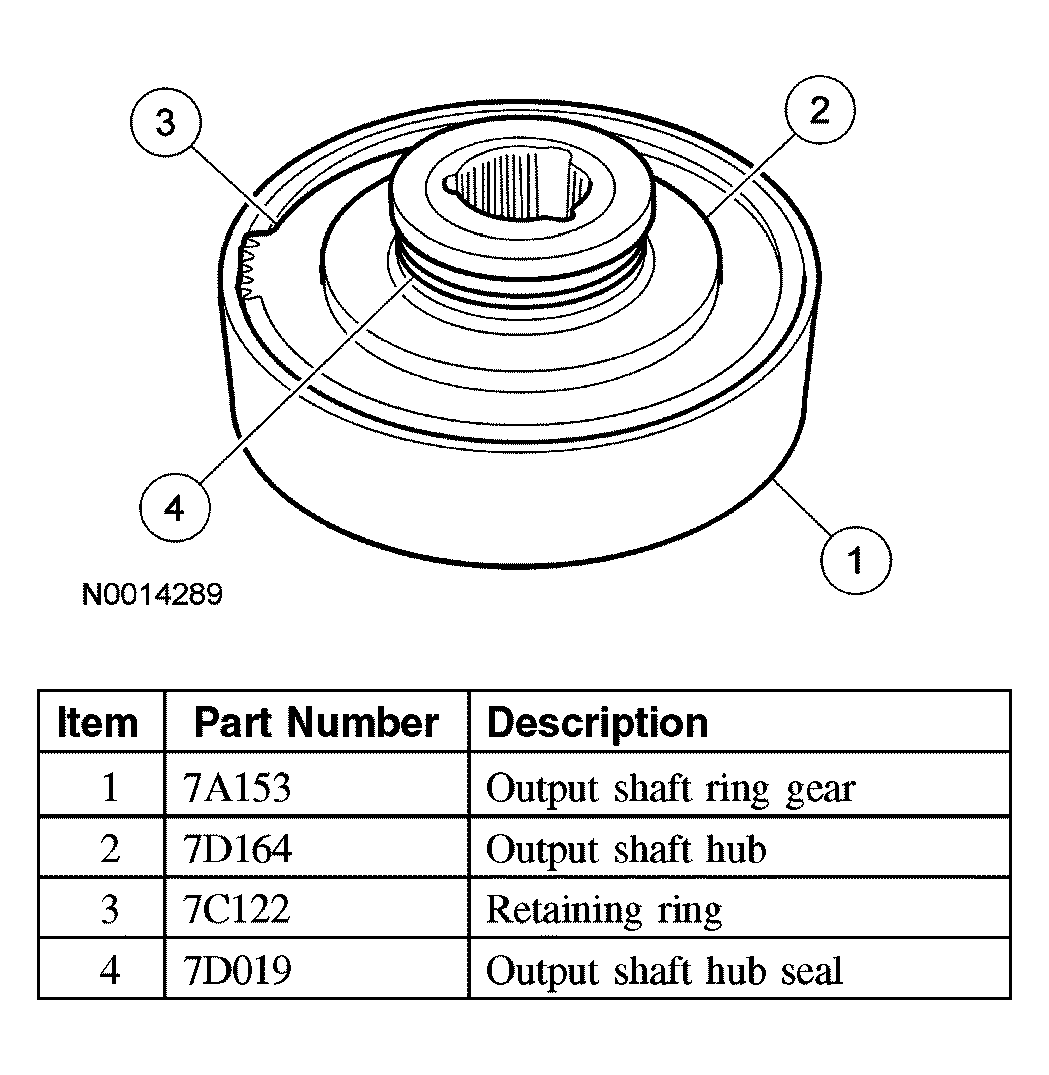

Fig 1: Disassembling Output Shaft Ring Gear And Hub Shaft Assembly
G03949057Courtesy of FORD MOTOR CO.
  1. Inspect the output shaft ring gear and hub shaft assembly for damage. If repair is necessary, use the following procedure.
  2. Remove the seal.
    Fig 2: Identifying Seal
    G03949058Courtesy of FORD MOTOR CO.
  3. Remove the output shaft ring gear from the output shaft hub.
    1. Remove the retaining ring.
    2. Remove the output shaft ring gear.
      Fig 3: Removing Output Shaft Ring Gear
      G03949059Courtesy of FORD MOTOR CO.
