Pinpoint Test C: Digital Transmission Range (Tr) Sensor

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

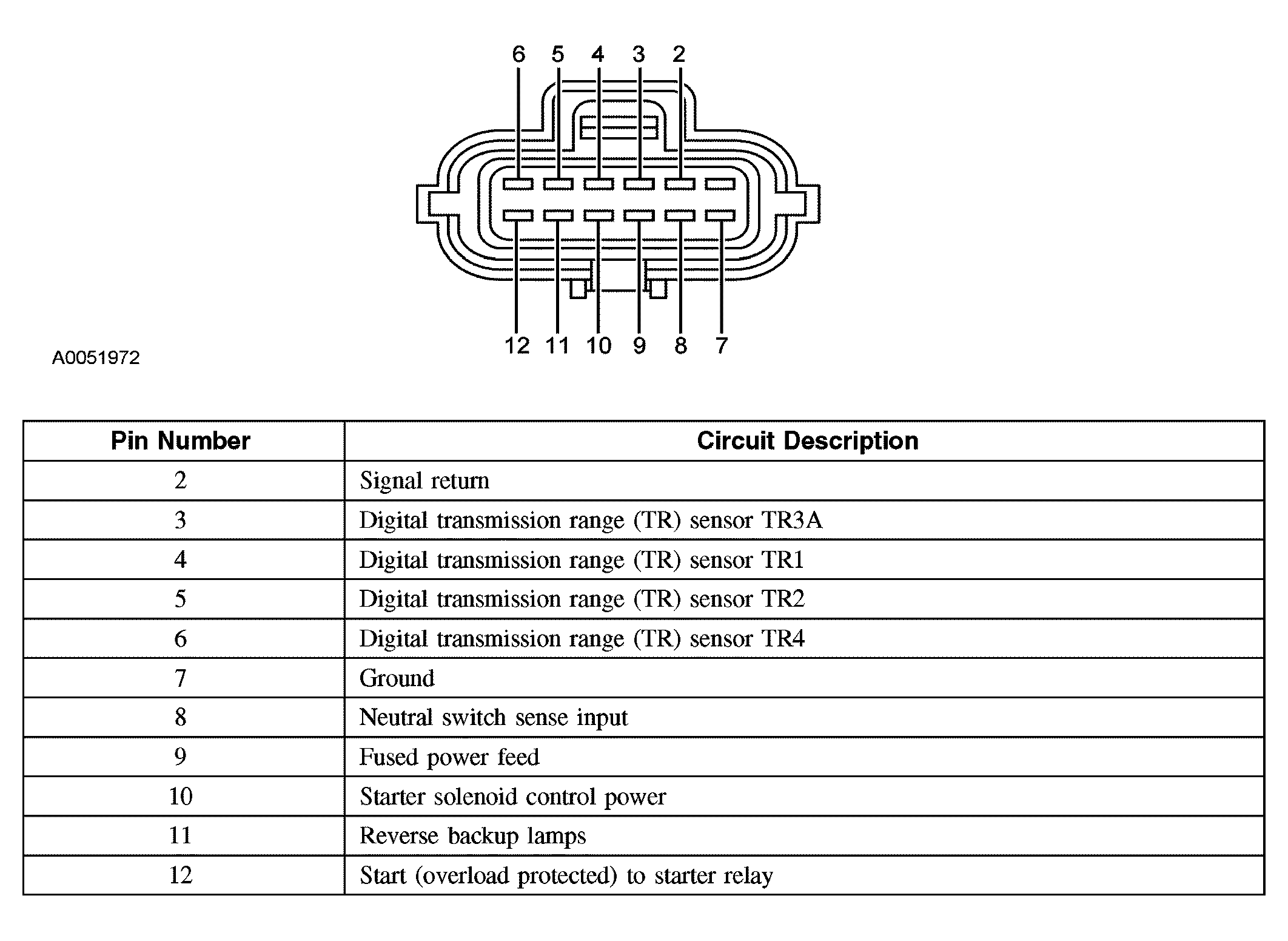

NOTE: Refer to Figure and DIGITAL TRANSMISSION RANGE (TR) SENSOR DIAGNOSIS CHART  preceding these pinpoint tests.
  1. C1 VERIFY DIAGNOSTIC TROUBLE CODES
    • Key in OFF position.
    • Select PARK.
    • Carry out On-Board Diagnostic Test.
    • Are only DTC codes P0705 or P0708 present?
    • Yes  : GO to  C4.
    • No  : GO to C2.
  2. C2 VERIFY DIGITAL TRANSMISSION RANGE SENSOR ALIGNMENT
    • Key in OFF position.
    • Select PARK.
    • Check to make sure the digital TR sensor harness connector is fully seated, terminals are fully engaged in connector and in good condition before proceeding.
    • Apply the parking brake.
    • Select NEUTRAL.
    • Disconnect the shift cable/linkage from the manual lever.
    • Verify that the TR Sensor Alignment Gauge fits in the appropriate slots.
    • Is the digital TR sensor correctly adjusted?
  3. C3 VERIFY SHIFT CABLE/LINKAGE ADJUSTMENT
  4. C4 CHECK THE ELECTRICAL SIGNAL OPERATION
    • Select PARK.
    • Disconnect: Digital TR Sensor.
      CAUTION: Do not pry on connector. This will damage the connector and result in a transmission concern.
    • Inspect both ends of the connector for damage or pushed out pins, corrosion, loose wires and missing or damaged seals.
    • Is there damage to the connector, pins or harness?
    • Yes  : REPAIR as necessary. CLEAR DTCs and RERUN OBD Tests.
    • No  : If diagnosing a DTC, GO to C5.

      If diagnosing a starting concern or a backup lamp concern, GO to  C10.

  5. C5 CHECK ELECTRICAL SYSTEM OPERATION (TR AND PYGMY)
    • Key in OFF position.
    • Connect the scan tool.
    • Connect: Digital TR Sensor.
    • Key in ON position.
    • Enter the following diagnostic mode on the scan tool: TR PIDS TR__D, TR__V.
    • Move the transmission range selector lever into each gear and stop.
    • Observe the PIDs, TR__D and TR__V (vehicle-dependent) while wiggling harness, tapping on sensor or driving the vehicle. Use PIDs TR__D for DTCs P0705, P1704 and P1705. Use PIDs TR__V for DTC P0708.
    • Compare the PIDs to the Digital Transmission Range (TR) Sensor Diagnosis Chart.
    • Do the PIDs TR__D and TR__V match the Digital Transmission Range (TR) Sensor Diagnosis chart and does the TR__D PID remain steady when the harness is wiggled, the sensor is tapped ON or the vehicle driven?
    • Yes  : The problem is not in the digital TR sensor system. REFER to DIAGNOSIS BY SYMPTOM  for further diagnosis.
    • No  : If TR__D changes when wiggling harness, tapping on the sensor or driving the vehicle, the problem may be intermittent. GO to C6.
  6. C6 CHECK THE DIGITAL TRANSMISSION RANGE SENSOR OPERATION
    • Disconnect: Digital TR Sensor.
    • Connect: TR-E Cable to Transmission Tester.
    • Connect: TR-E Cable to Digital TR Sensor.
    • Place the digital TR overlay onto the Transmission Tester.
    • Carry out the Sensor Test as instructed on the digital TR overlay.
    • Does the status lamp on the tester TRS-E cable match the selected gear positions?
    • Yes  : Concern is not in the digital TR sensor. GO to C7.
    • No  : INSTALL a new digital TR sensor and ADJUST. REFER to DIGITAL TRANSMISSION RANGE (TR) SENSOR . CLEAR DTCs and RERUN OBD Tests.
  7. C7 CHECK THE PCM HARNESS CIRCUITS FOR OPENS
    • Key in OFF position.
    • Disconnect: 150 Pin PTEC Module Connector "B".
    • Disconnect: Digital TR Sensor.
      CAUTION: Do not pry the connector. This will damage the connector and result in a transmission concern.
    • Measure the resistance between TR pin 2 harness side and signal return PCM pin 41 harness side.
      Fig 1: Measuring Resistance Between TR Pin 2 Harness Side And Signal Return PCM Pin 41 Harness Side
      G03948522Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM pin 16 and TR pin 4 harness side.
      Fig 2: Measuring Resistance Between PCM Pin 16 And TR Pin 4 Harness Side
      G03948523Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM pin 17 and TR pin 5 harness side.
      Fig 3: Measuring Resistance Between PCM Pin 17 And TR Pin 5 Harness Side
      G03948524Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM pin 28 and TR pin 6 harness side.
      Fig 4: Measuring Resistance Between PCM Pin 28 And TR Pin 6 Harness Side
      G03948525Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM pin 27 and TR pin 3 harness side.
      Fig 5: Measuring Resistance Between PCM Pin 27 And TR Pin 3 Harness Side
      G03948526Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
    • Yes  : GO to C8.
    • No  : REPAIR the circuits. TEST the system for normal operation.
  8. C8 CHECK THE PCM HARNESS CIRCUITS FOR A SHORT TO GROUND OR POWER
    • Measure the resistance between PCM pin 41 and TR pins 10 and 12 harness side and ground.
      Fig 6: Measuring Resistance Between PCM Pin 41 And TR Pins 10 And 12 Harness Side And Ground
      G03948527Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM pin 16 harness side and ground; and between PCM pin 41 harness side and ground.
      Fig 7: Measuring Resistance Between PCM Pin 16 Harness Side, PCM Pin 41 Harness Side And Ground
      G03948528Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM pin 17 harness side and ground; and between PCM pin 41 harness side and ground.
      Fig 8: Measuring Resistance Between PCM Pin 17, PCM Pin 41 Harness Side And Ground
      G03948529Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM pin 28 harness side and ground; and between PCM pin 41 harness side and ground.
      Fig 9: Measuring Resistance Between PCM Pin 28, PCM Pin 41 Harness Side And Ground
      G03948530Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM pin 27 harness side and ground; and between PCM pin 41 harness side and ground.
      Fig 10: Measuring Resistance Between PCM Pin 27, PCM Pin 41 Harness Side And Ground
      G03948531Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    • Yes  : GO to C9.
    • No  : REPAIR the circuits. TEST the system for normal operation. CLEAR DTCs. RERUN OBD Tests.
  9. C9 CHECK FOR A SHORT BETWEEN TR/PCM INPUT SIGNAL CIRCUITS
    • Measure the resistance between PCM pin 27 harness side and PCM pins 16, 17 and 28 harness side.

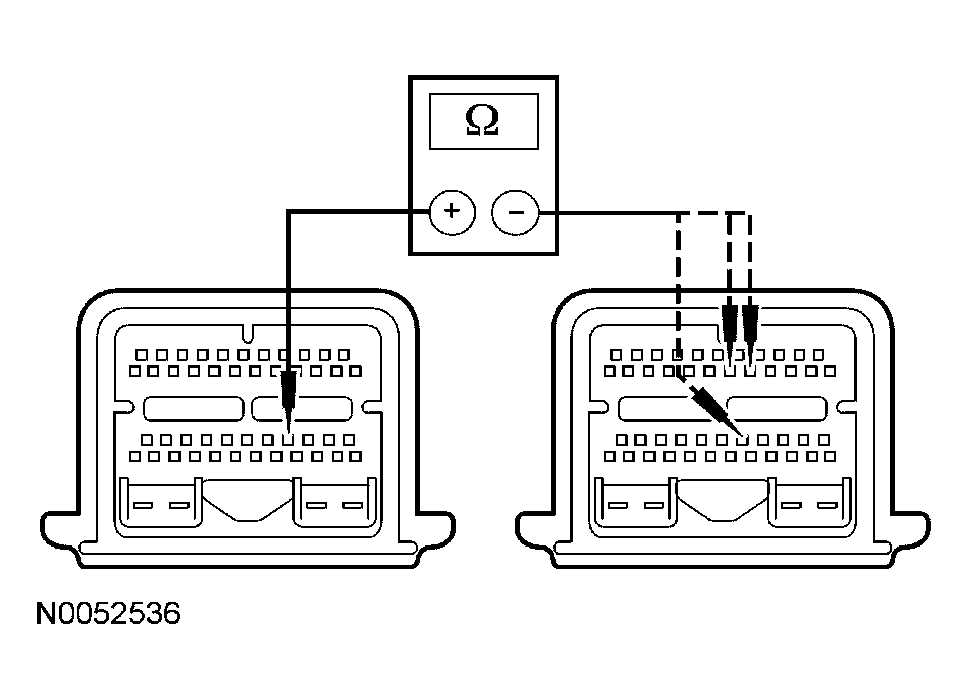

      Fig 11: Measuring Resistance Between PCM Pin 27 Harness Side And PCM Pins
      G03948532Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM pin 16 harness side and PCM pins 27, 17 and 28 harness side.

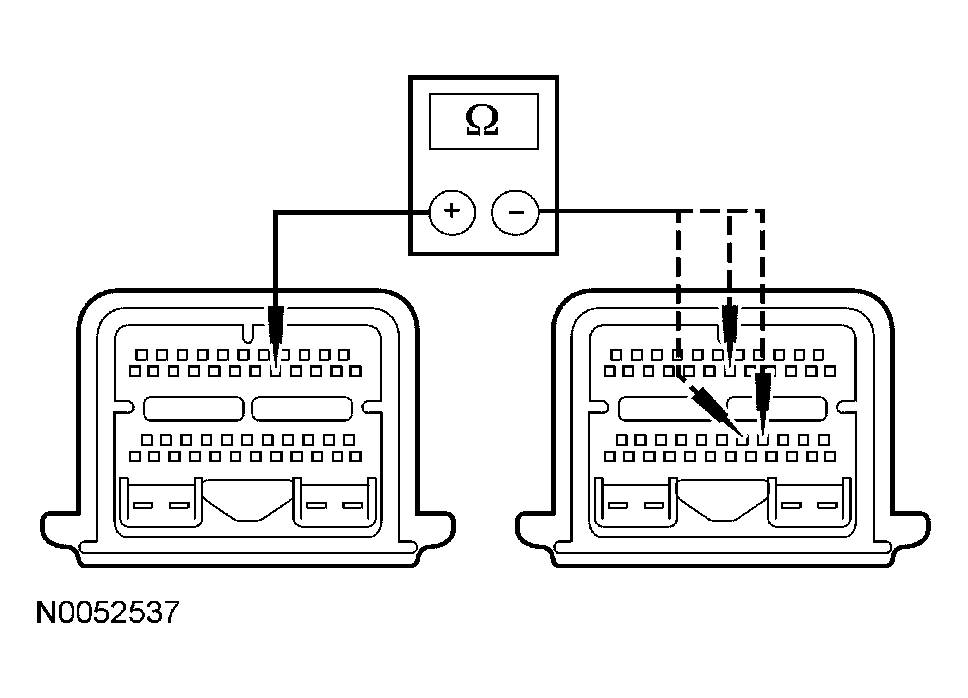

      Fig 12: Measuring Resistance Between PCM Pin 16 Harness Side And PCM Pins
      G03948533Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM pin 17 harness side and PCM pins 16, 27 and 28 harness side.

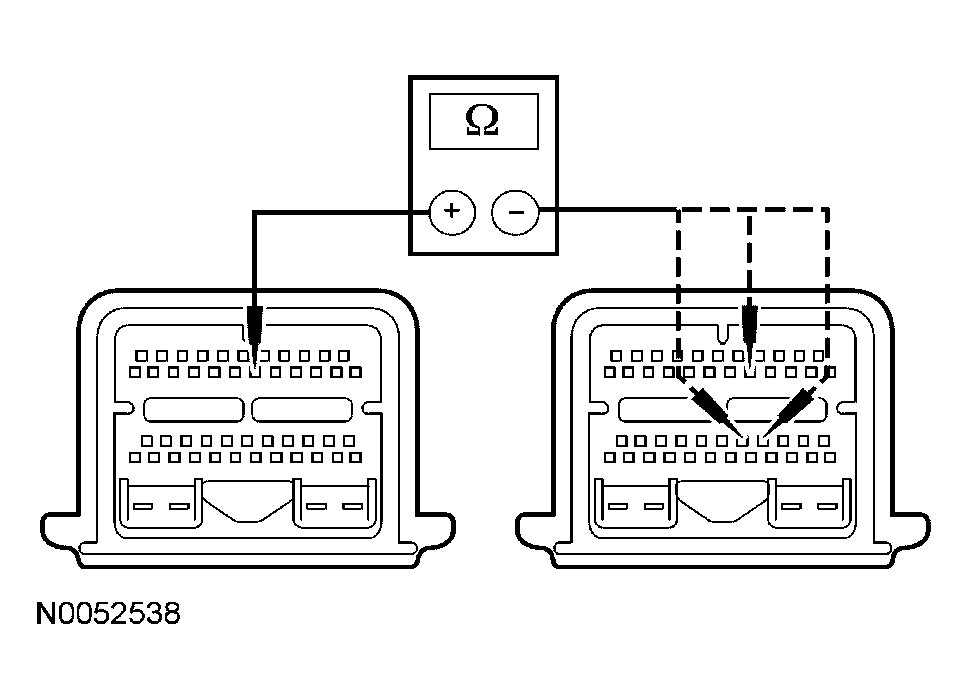

      Fig 13: Measuring Resistance Between PCM Pin 17 Harness Side And PCM Pins 16, 27 And 28 Harness Side
      G03948534Courtesy of FORD MOTOR CO.
    • Measure the resistance between PCM pin 28 harness side and PCM pins 16, 17 and 27 harness side.

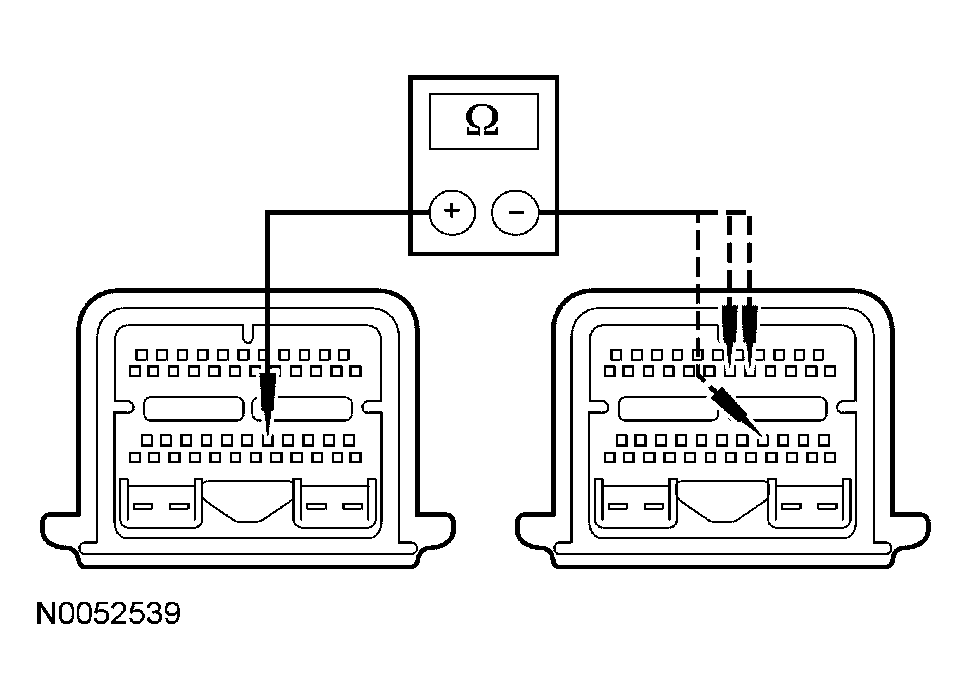

      Fig 14: Measuring Resistance Between PCM Pin 28 Harness Side And PCM Pins 16 17 And 27 Harness Side
      G03948535Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    • Yes  : INSTALL a new PCM. TEST the system for normal operation.
    • No  : REPAIR the circuit. TEST the system for normal operation.
  10. C10 CHECK THE NON-PCM INTERNAL CIRCUITS OF THE SENSOR
    • Connect: TRS-E Cable to Transmission.
    • Connect: TRS-E Cable to Digital TR Sensor.
    • Place the Digital TR Overlay onto the Transmission Tester.
    • Carry out the Switch Test as instructed on the Digital TR Overlay.
    • Does the status lamp on the tester indicate RED for the correct gear position?
