Valve Seals: Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The 3 rearmost valve seals on the RH side must use special tool 303-567 in same manner as is shown in Fig 1.
    NOTE: Make sure the garter spring is present in the valve seal.
    NOTE: Lubricate the valve seals with clean engine oil.

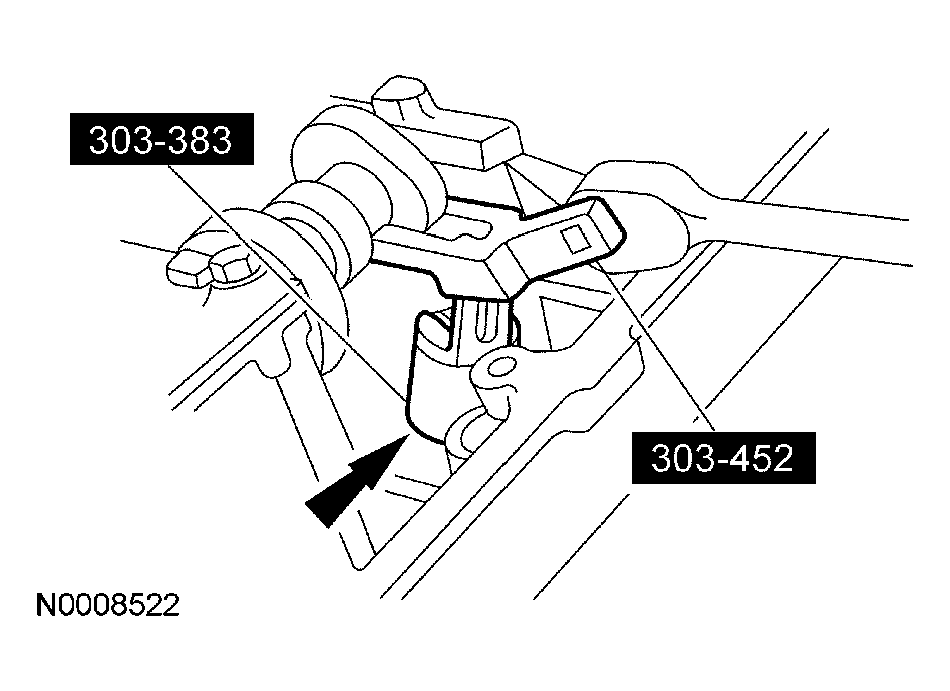

    Fig 1: Installing Valve Seals
    G03947669Courtesy of FORD MOTOR CO.
  1. Using the special tools, install the valve seals.
  2. Install the valve springs. For additional information, refer to VALVE SPRINGS .
