Valve Cover - RH: Notes

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL CHART

Item Specification
Motorcraft Silicone Gasket Remover ZC-30 -
Motorcraft Metal Surface Prep ZC-31 -
Silicone Gasket and Sealant TA-30 or equivalent WSE-M4G323-A6
Instant Gel Adhesive TA-19 or equivalent WSK-M2G402-A4

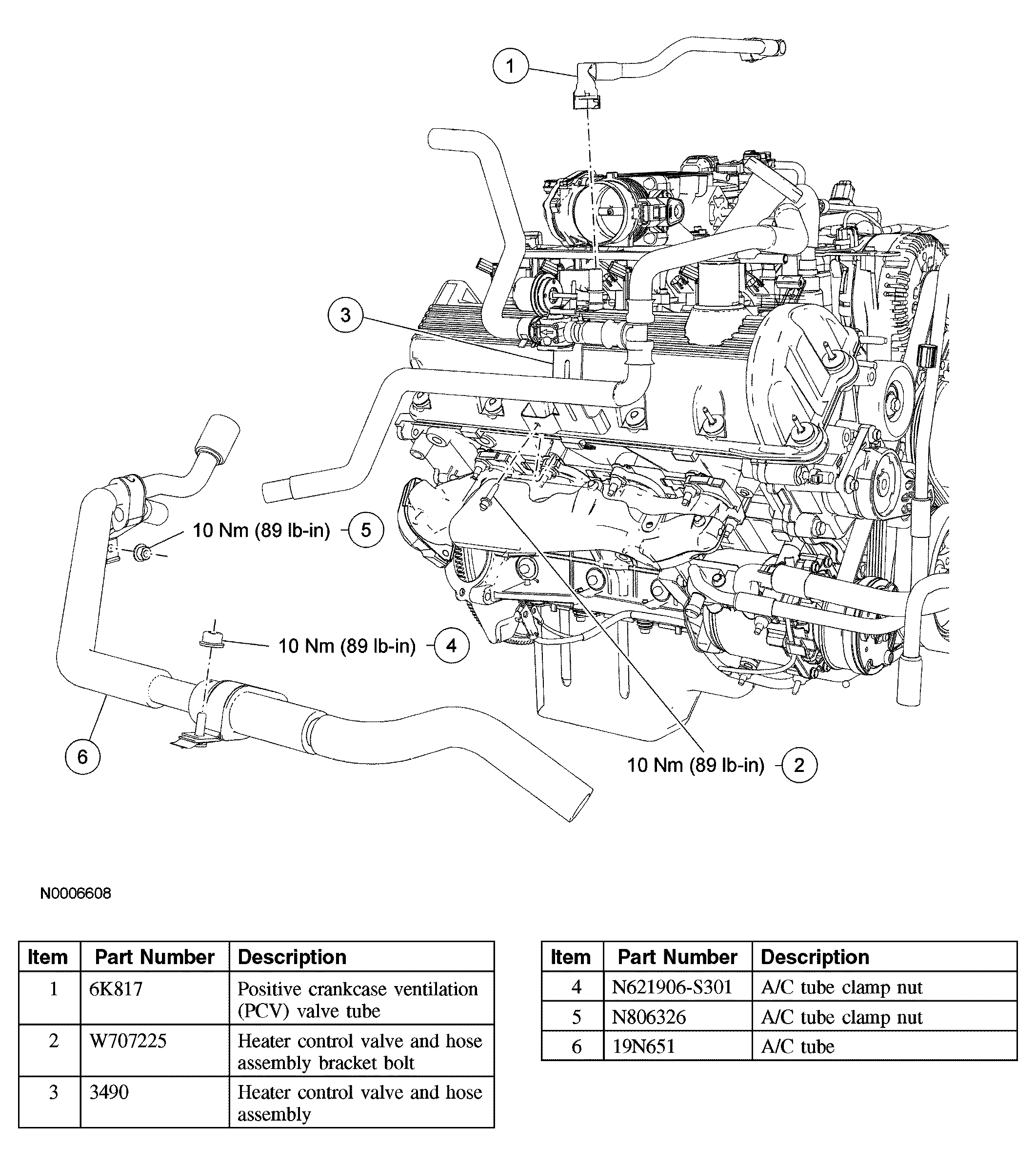

Fig 1: Identifying Valve Cover - RH (1 Of 2)
G03947583Courtesy of FORD MOTOR CO.

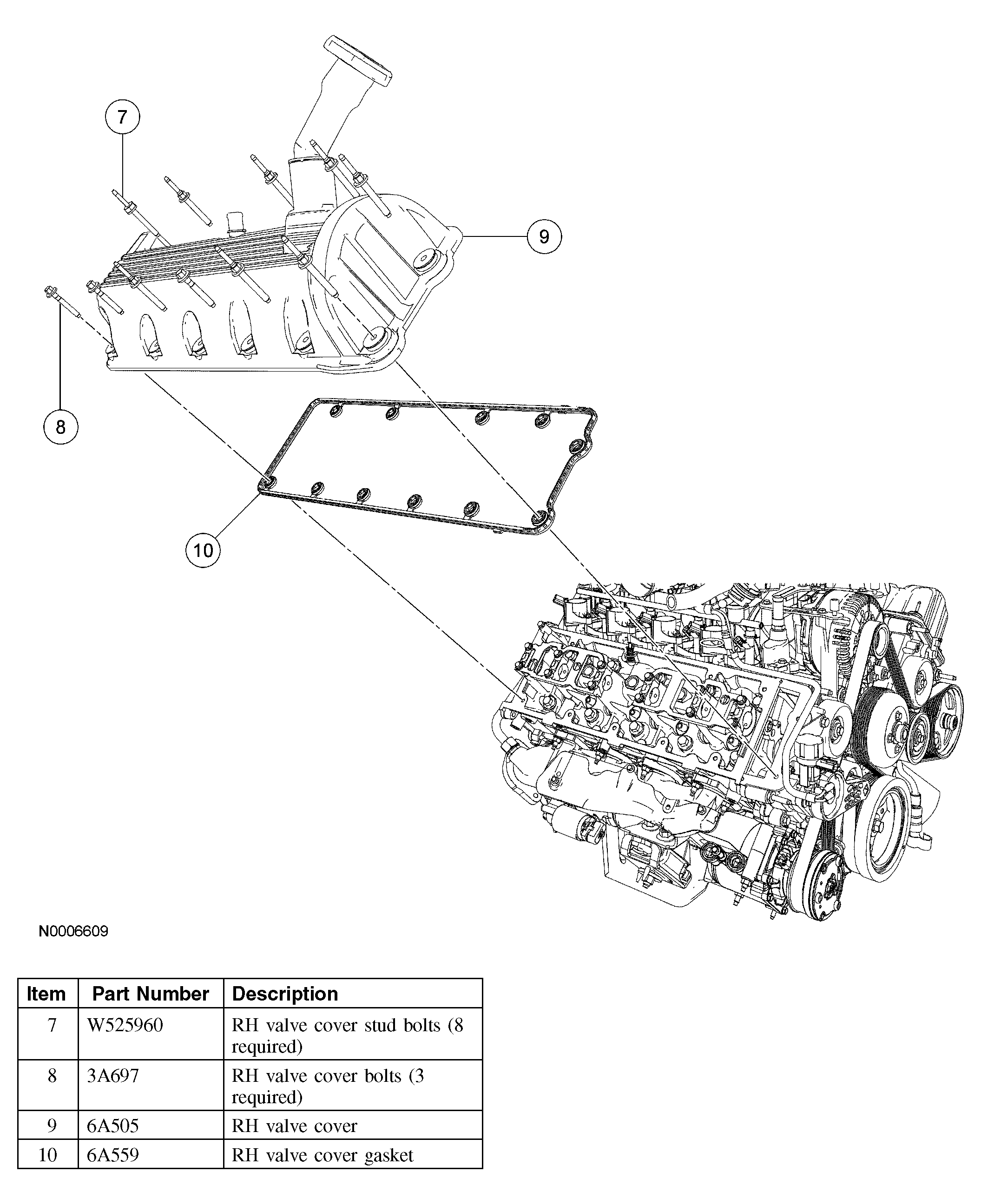

Fig 2: Identifying Valve Cover - RH (2 Of 2)
G03947584Courtesy of FORD MOTOR CO.
