Valve Cover - RH: Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
  1. Clean and inspect the valve cover mating surface of the cylinder head with silicone gasket remover and metal surface prep and a plastic scraping tool. Follow the directions on the packaging.
  2. Inspect the valve cover gasket. If the gasket is damaged, remove and discard the gasket. Clean the valve cover gasket groove with soap and water or a suitable solvent.
    Fig 1: Identifying Proper Valve Cover Gasket Sealant Application
    G03948210Courtesy of FORD MOTOR CO.
  3. If a new gasket is being installed, apply instant gel adhesive completely around the gasket groove in the valve cover.
  4. NOTE: If the valve cover is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned with silicone gasket remover and metal surface prep. Follow the directions on the packaging. Failure to follow this procedure can cause future oil leakage.
    Fig 2: Applying Silicone Gasket And Sealant In 2 Places
    G03947588Courtesy of FORD MOTOR CO.
  5. Apply the silicone gasket and sealant in 2 places where the engine front cover meets the cylinder head.
  6. Position the valve cover and install the 8 stud bolts and 3 bolts finger tight.
  7. Tighten the 8 stud bolts and 3 bolts in the sequence shown in Fig 3 to 10 Nm (89 lb-in).
    Fig 3: Tightening Stud Bolts And Bolts In Sequence
    G03947589Courtesy of FORD MOTOR CO.
  8. Connect the RH engine wiring harness retainers to the valve cover studs.

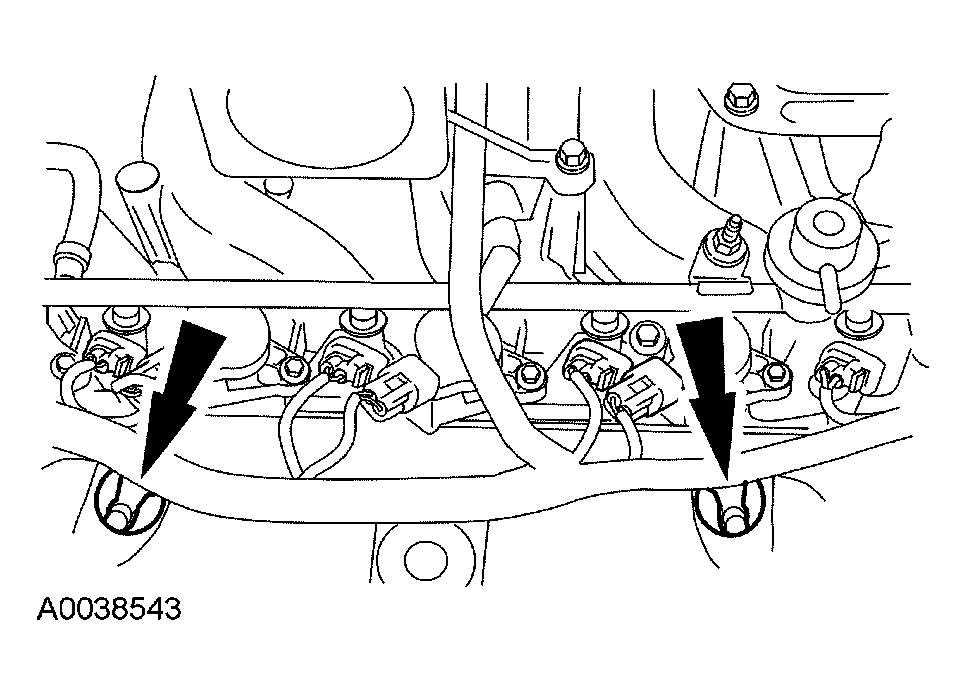

    Fig 4: Connecting RH Engine Wiring Harness Retainers
    G03947586Courtesy of FORD MOTOR CO.
  9. Position the A/C tube and install the 2 clamp nuts.
    • Tighten to 10 Nm (89 lb-in).
  10. Position the heater control valve and hose assembly, connect the vacuum connector and install the bolt.
    • Tighten to 10 Nm (89 lb-in).

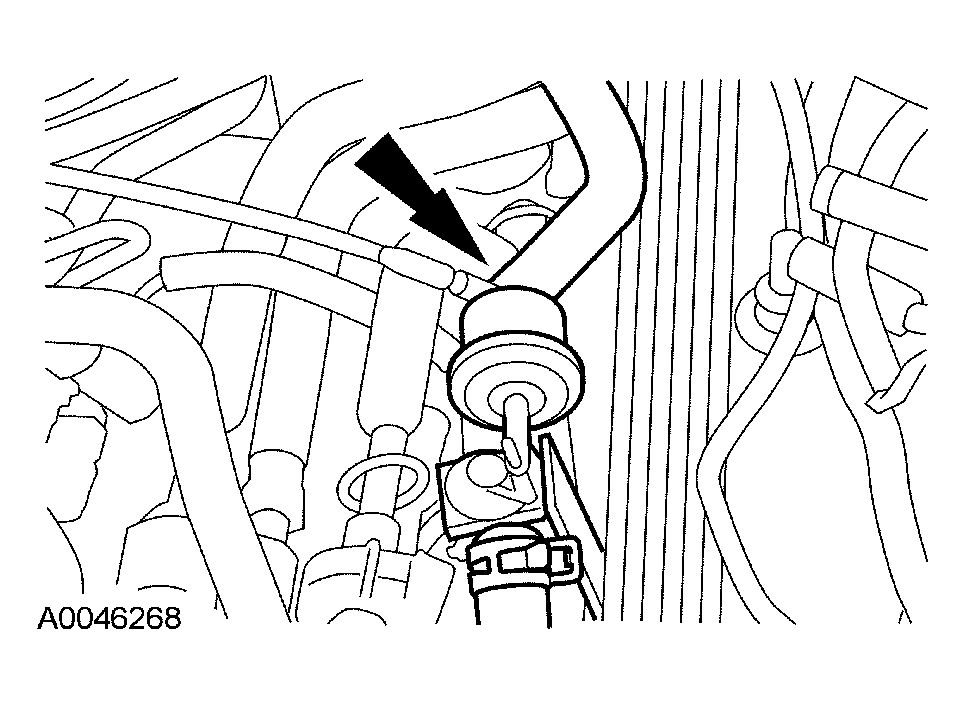

      Fig 5: Positioning Heater Control Valve And Hose Assembly
      G03947591Courtesy of FORD MOTOR CO.
  11. Connect the PCV valve tube to the PCV valve.
