Valve Cover - LH: Removal

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the crankcase breather tube from the valve cover.
  2. Remove the bolt and position the oil level indicator tube aside.

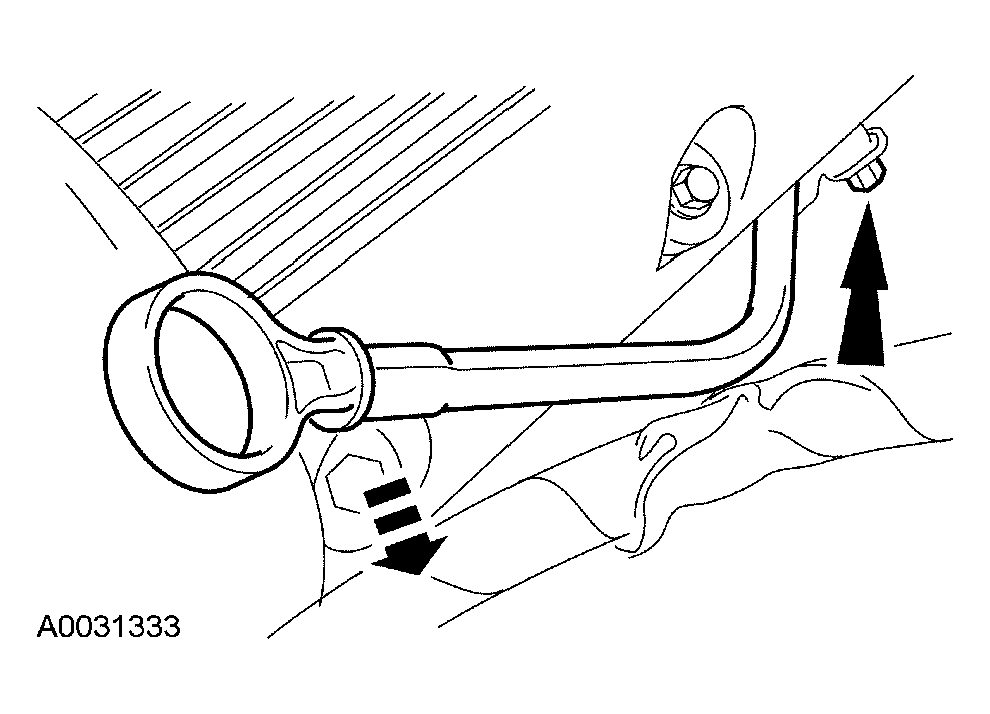

    Fig 1: Disconnecting Crankcase Breather Tube From Valve Cover
    G03947577Courtesy of FORD MOTOR CO.
  3. Detach the wiring harness retainers from the valve cover studs.
    Fig 2: Removing Wiring Harness Retainers From Valve Cover Studs
    G03947578Courtesy of FORD MOTOR CO.
    4. NOTE: Note the locations of the bolts and stud bolts for installation reference.
    NOTE: To prevent stretching the valve cover gasket, loosen silicone gasket and sealant from the cylinder head by sliding a flat knife between the valve cover gasket and cylinder head.
  4. Loosen the bolts and stud bolts and remove the valve cover.
