Timing Drive Components: Notes

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL CHART

G03886455
 Holding Tool, Crankshaft 303-448 (T93L-6303-A)
MATERIAL CHART

Item Specification
Hydraulic Chain Tensioner Retaining Clip 1L3Z-6P250-AA -

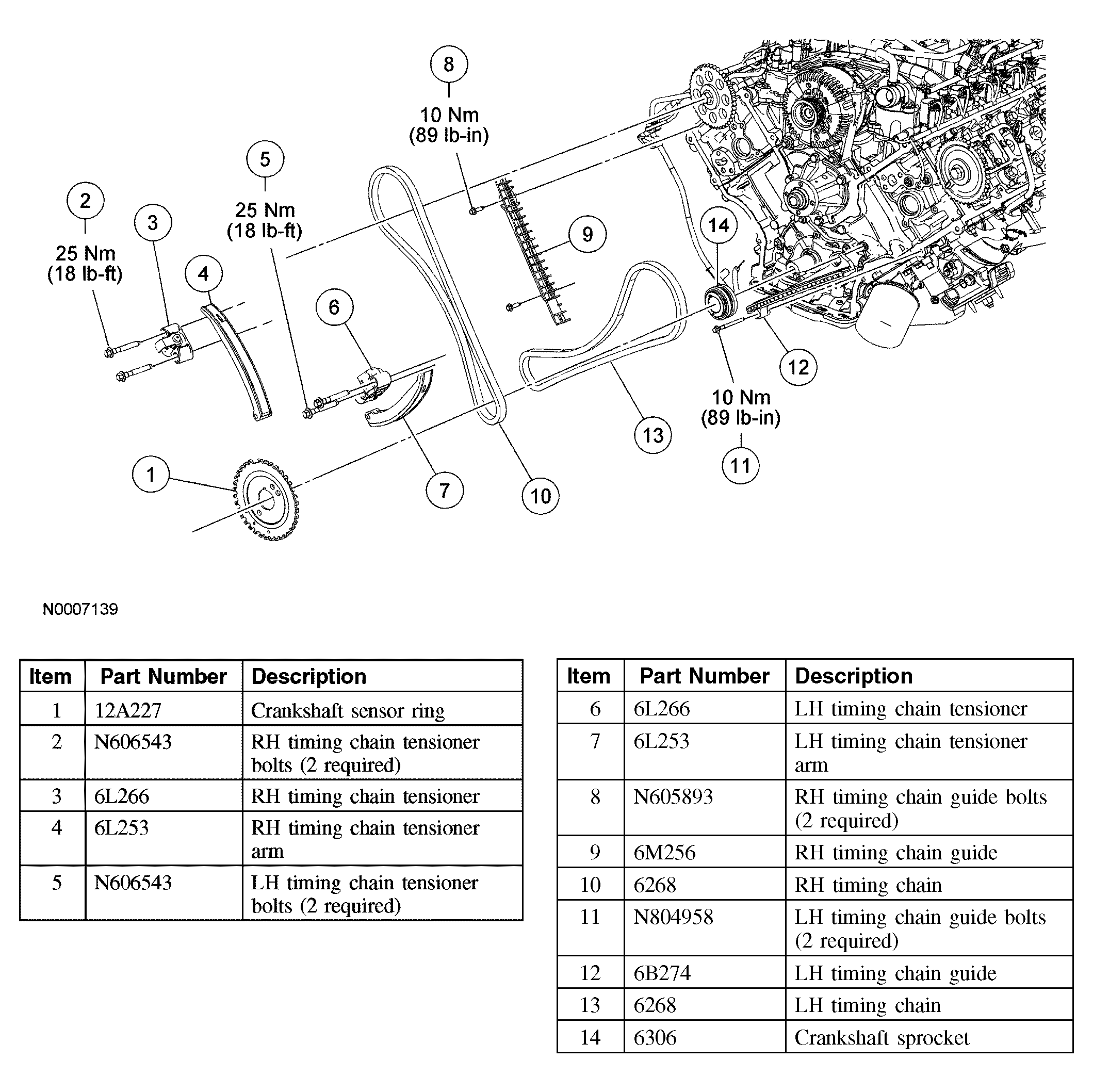

Fig 1: Exploded View Of Timing Drive Components With Torque Specifications
G03947637Courtesy of FORD MOTOR CO.
