Timing Drive Components: Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Rotate the crankshaft counterclockwise only. Do not rotate past the position shown in Fig 1 or severe piston and/or valve damage will occur.

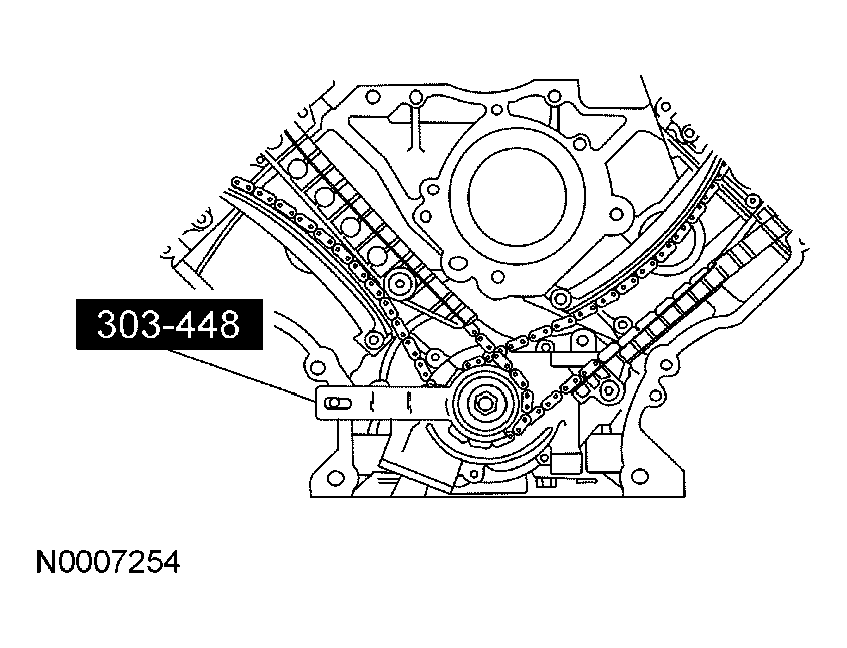

Fig 1: Rotating Crankshaft Counterclockwise

Courtesy of FORD MOTOR CO.

Using the special tool, position the crankshaft.
Install the crankshaft sprocket with the flange facing forward.

Fig 2: Identifying Crankshaft Sprocket Flange
Courtesy of FORD MOTOR CO.
Rotate the LH camshaft timing sprocket until the timing mark is approximately at the 12 o'clock position. Rotate the RH camshaft timing sprocket until the timing mark is at approximately the 11 o'clock position.

Fig 3: Identifying Timing Mark
Courtesy of FORD MOTOR CO.

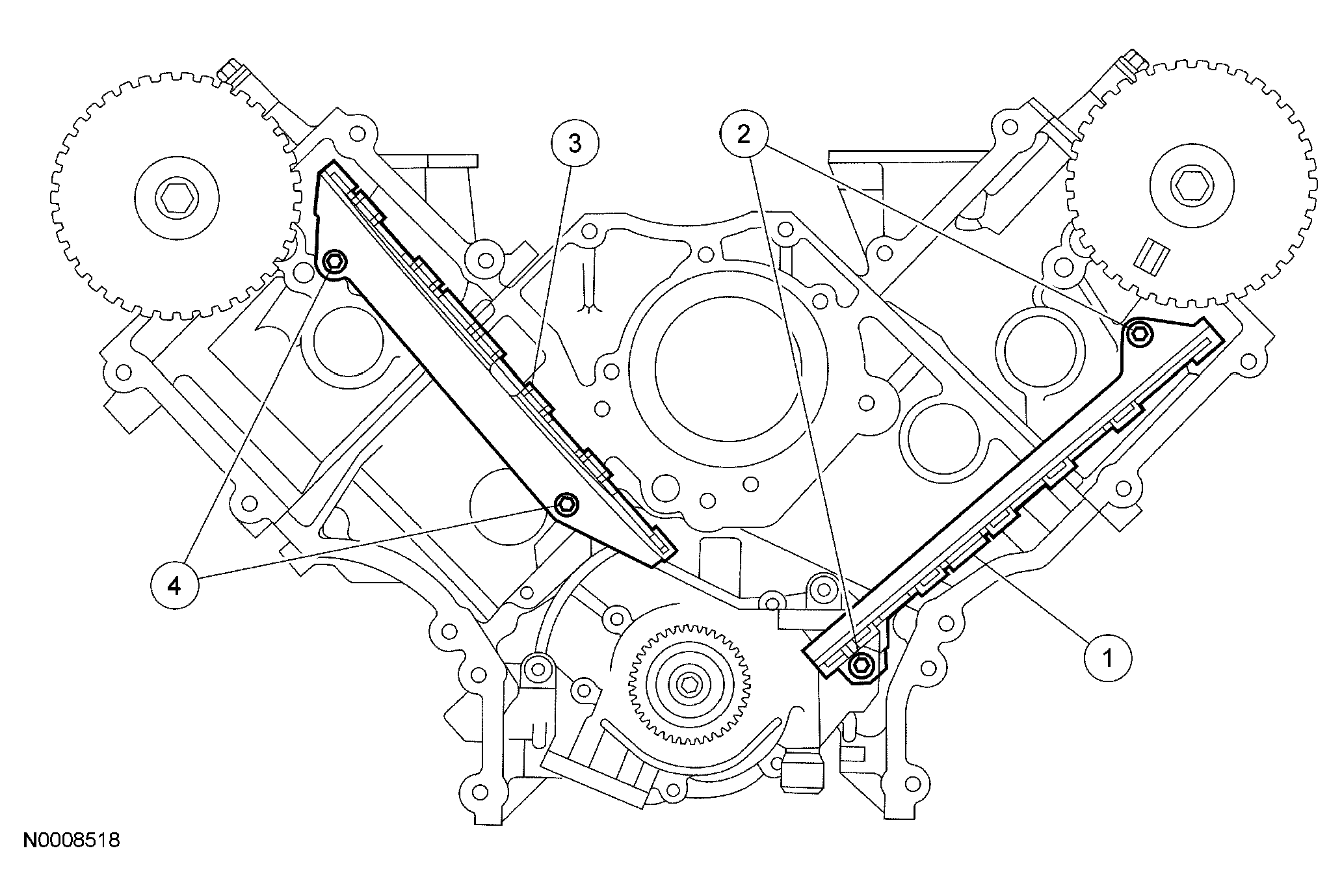

Install the timing chain guides.
1. Position the LH timing chain guide.
2. Install the 2 LH timing chain guide bolts and tighten them to 10 Nm (89 lb-in).
3. Position the RH timing chain guide.
4. Install the 2 RH timing chain guide bolts and tighten them to 10 Nm (89 lb-in).

  Fig 4: Installing RH Timing Chain Guide
  Courtesy of FORD MOTOR CO.
If the copper links are not visible, mark one link on one end and one link on the other end and use as timing marks.

Fig 5: Identifying Timing Chain Copper Links
Courtesy of FORD MOTOR CO.
Position the LH (inner) timing chain on the crankshaft sprocket, aligning the copper (marked) link with the timing mark on the sprocket.

Fig 6: Aligning Copper (Marked) Link With Timing Mark On Crankshaft Sprocket
Courtesy of FORD MOTOR CO.

NOTE: If necessary, adjust the camshaft sprocket slightly to obtain timing mark alignment.

Fig 7: Aligning Copper (Marked) Link With Timing Mark On Camshaft Sprocket

Courtesy of FORD MOTOR CO.

Position the LH timing chain on the camshaft sprocket. Make sure the copper-colored link aligns with the camshaft sprocket timing mark.

CAUTION: Prior to installation, inspect the tensioner-sealing bead for seal integrity. If cracks, tears, separation from the tensioner body or permanent compression of the seal bead is observed, install a new tensioner.

Fig 8: Compressing Tensioner Plunger Using Edge Of Vise

Courtesy of FORD MOTOR CO.

Compress the LH tensioner plunger, using a vise.
Install a retaining clip on the LH tensioner to hold the plunger in during installation.

Fig 9: Installing Retaining Clip On Tensioner
Courtesy of FORD MOTOR CO.

NOTE: The LH timing chain tensioner arm has a bump near the dowel hole for identification.

Position the LH timing chain tensioner arm on the dowel pin and install the LH timing chain tensioner and the bolts.
- Tighten to 25 Nm (18 lb-ft).

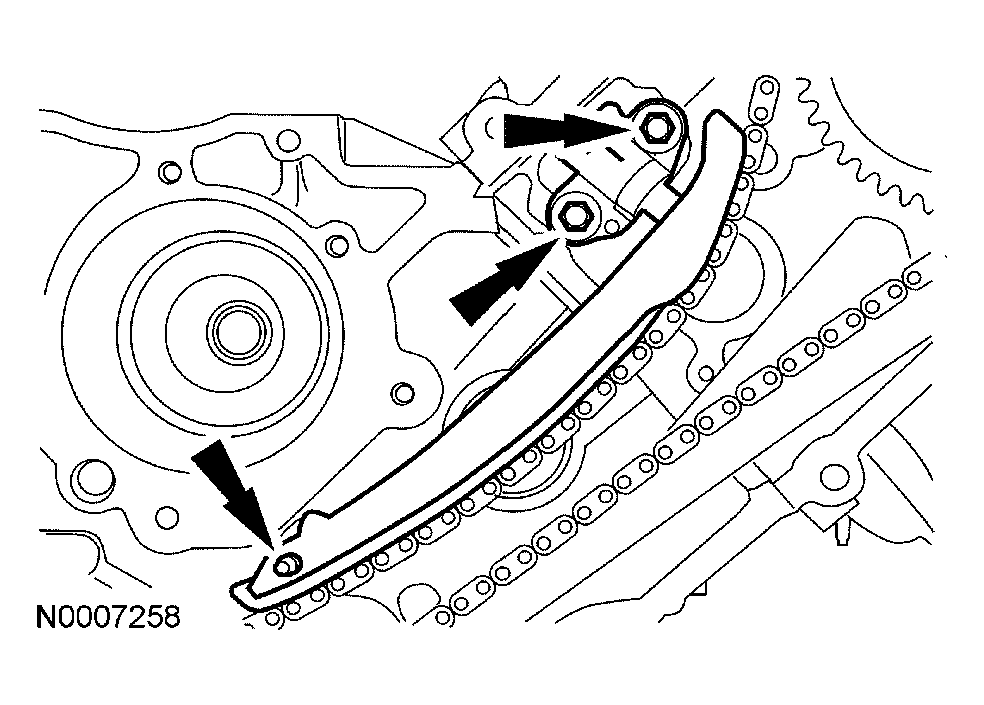

  Fig 10: Positioning LH Timing Chain Tensioner Arm On Dowel Pin
  Courtesy of FORD MOTOR CO.
Remove the retaining clip from the LH timing chain tensioner.

Fig 11: Timing Chain Tensioner Retaining Clip
Courtesy of FORD MOTOR CO.
Position the RH (outer) timing chain on the crankshaft sprocket, aligning the copper (marked) link with the timing mark on the sprocket.

Fig 12: Aligning Copper (Marked) Link With Timing Mark On Sprocket
Courtesy of FORD MOTOR CO.

NOTE: If necessary, adjust the camshaft sprocket slightly to obtain timing mark alignment.

Fig 13: Aligning Copper (Marked) Link With Timing Marks On Sprocket

Courtesy of FORD MOTOR CO.

Position the RH timing chain on the camshaft sprocket. Make sure the copper-colored link aligns with the camshaft sprocket timing mark.

Fig 14: Compressing Tensioner Plunger Using Edge Of Vise

Courtesy of FORD MOTOR CO.

Compress the RH tensioner plunger, using a vise.
Install a retaining clip on the RH tensioner to hold the plunger in during installation.

Fig 15: Installing Retaining Clip On Tensioner
Courtesy of FORD MOTOR CO.
Position the RH timing chain tensioner arm on the dowel pin and install the RH timing chain tensioner and the bolts.
- Tighten to 25 Nm (18 lb-ft).

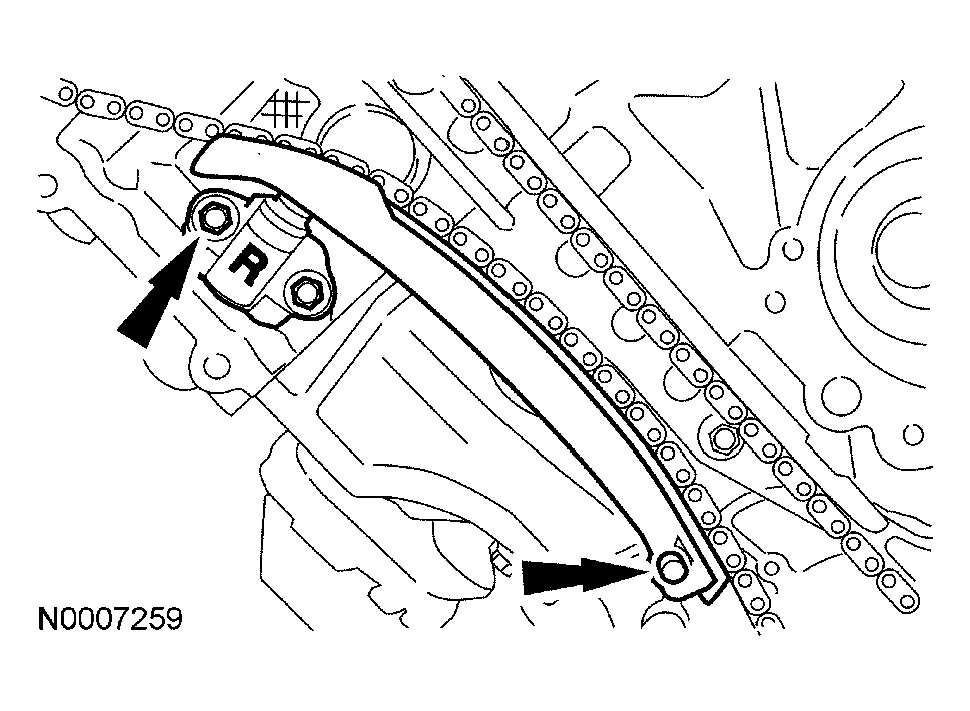

  Fig 16: Positioning RH Timing Chain Tensioner Arm On Dowel Pin
  Courtesy of FORD MOTOR CO.
Remove the retaining clip from the RH timing chain tensioner.

Fig 17: Timing Chain Tensioner Retaining Clip
Courtesy of FORD MOTOR CO.
As a post-check, verify correct alignment of all timing marks.

Fig 18: Checking Timing Marks
Courtesy of FORD MOTOR CO.
Install the crankshaft sensor ring on the crankshaft.

Fig 19: Crankshaft Sensor Ring
Courtesy of FORD MOTOR CO.
Install the camshaft roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
Install the engine front cover. For additional information, refer to ENGINE FRONT COVER .
