WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL CHART
Item
Specification
Silicone Brake Caliper Grease and Dielectric Compound XG-3-A
ESE-M1C171-A

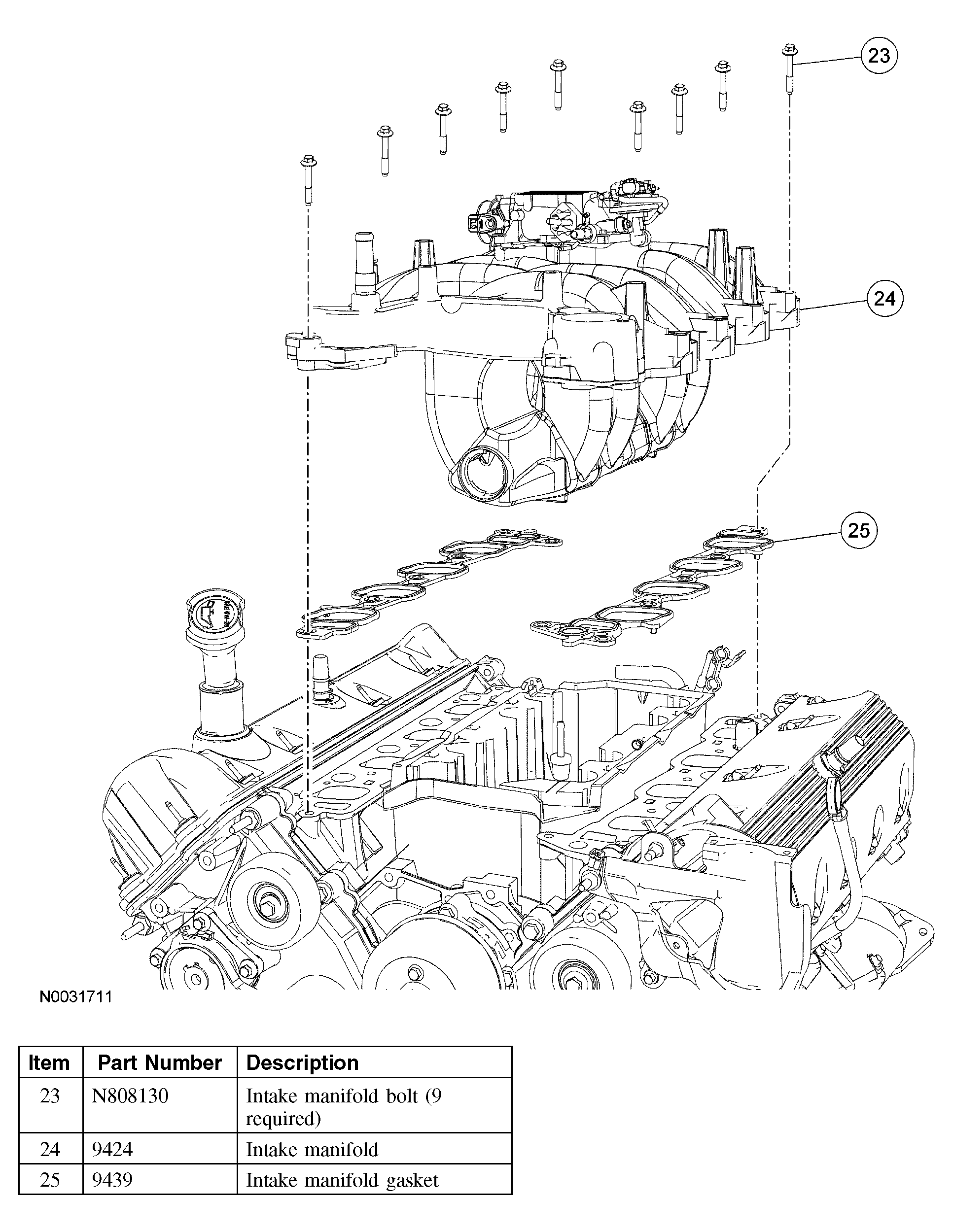

Fig 1: Intake Manifold Replacement Components With Torque Specifications (1 Of 3)
Courtesy of FORD MOTOR CO.

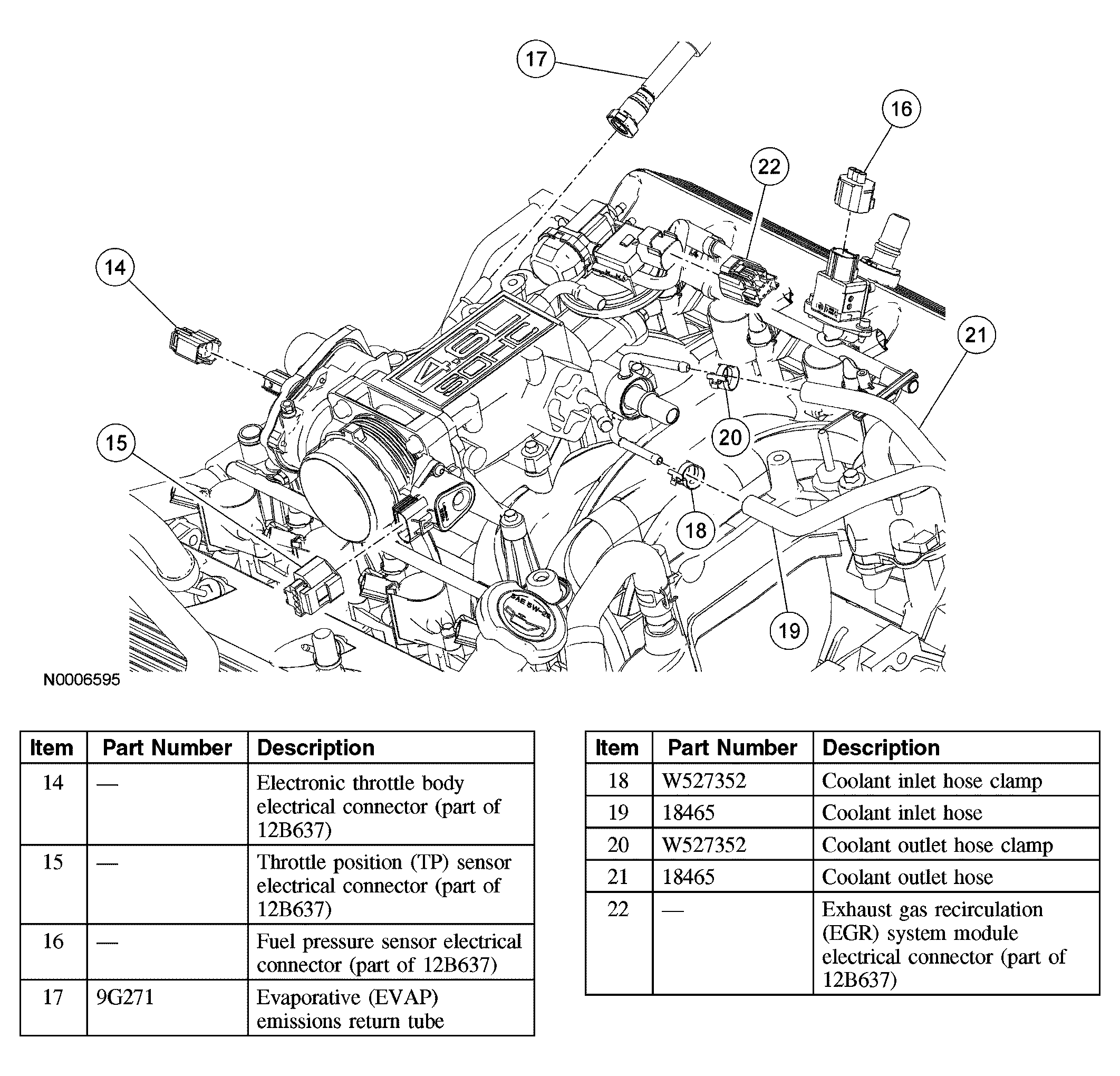

Fig 2: Identifying Intake Manifold Components (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 3: Identifying Intake Manifold Components (3 Of 3)
