Exhaust Manifold - LH: Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position new gaskets and the intake manifold and install the nuts.
  2. Tighten the exhaust manifold nuts in the sequence shown in Fig 1 to 20 Nm (15 lb-ft).
    Fig 1: Identifying Tightening Sequence Of Exhaust Manifold Nuts
    G03947686Courtesy of FORD MOTOR CO.
  3. Install the heat shield and the bolts.
    • Tighten to 10 Nm (89 lb-in).
  4. Attach the Y-pipe to the manifolds and install the 4 nuts.
    • Tighten to 40 Nm (30 lb-ft).
  5. Position the lower steering column shaft and install the pinch bolt.
    • Tighten to 48 Nm (35 lb-ft).

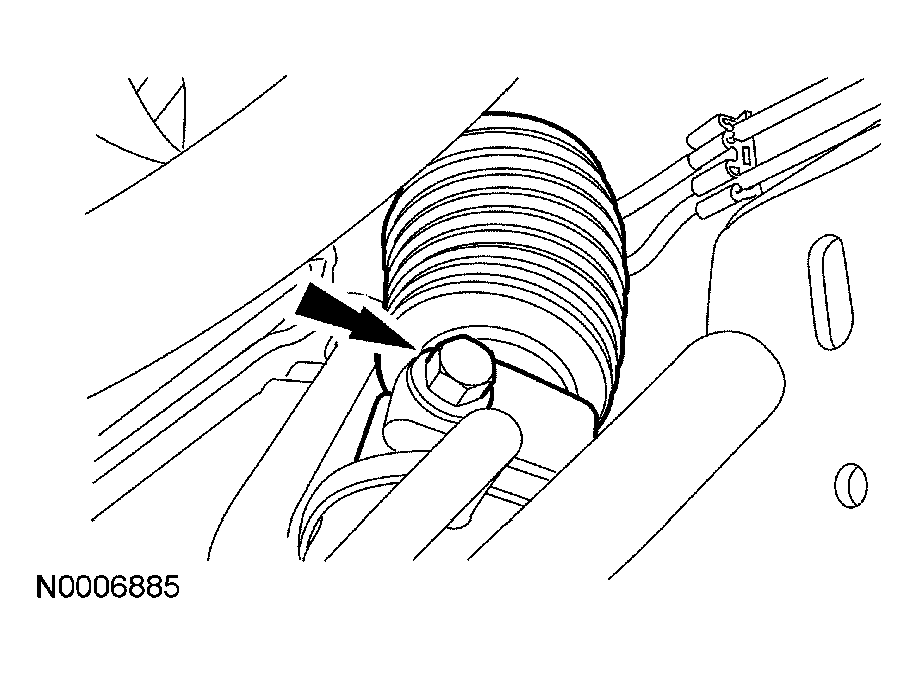

      Fig 2: Positioning Lower Steering Column Shaft
      G03947685Courtesy of FORD MOTOR CO.
  6. Install the LH fender splash shield. For additional information, refer to FRONT END BODY PANELS .
