Engine Support Insulators: Notes

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL CHART

G03950580
 3-Bar Engine Support Kit 303-F072
G03920056
 Engine Support Bracket 303-639

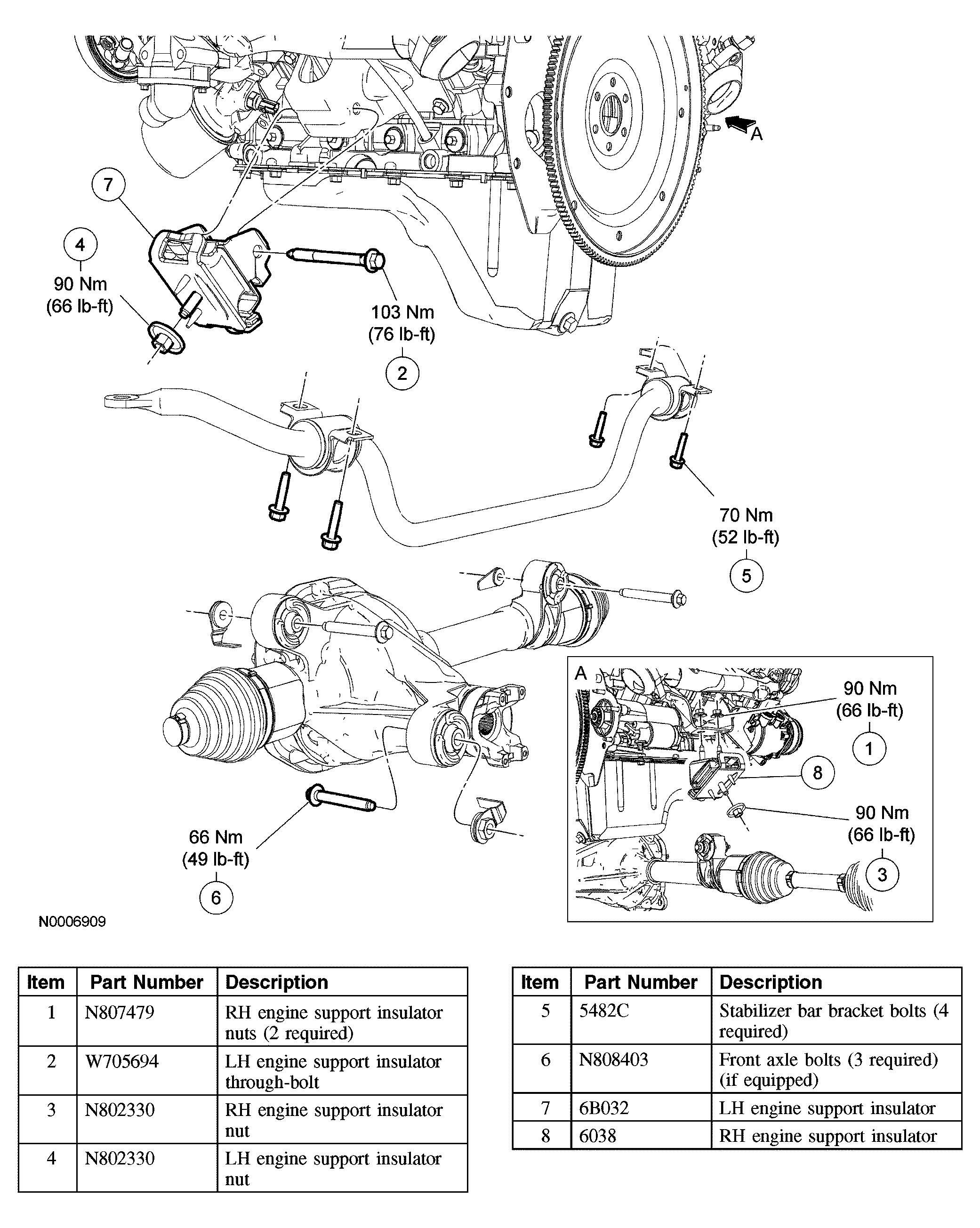

Fig 1: Exploded View Of Engine Support Insulators
G03947723Courtesy of FORD MOTOR CO.
