Engine Front Cover: Removal

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Drain the cooling system. For additional information, refer to ENGINE COOLING .
  3. Remove the crankshaft front seal. For additional information, refer to CRANKSHAFT FRONT SEAL .
  4. Remove the valve covers. For additional information, refer to VALVE COVER - LH  and VALVE COVER - RH .
  5. Remove the drain plug and drain the engine oil. Install the drain plug when finished.
    • Tighten to 14 Nm (10 lb-ft).
      Fig 1: Removing Drain Plug
      G03947615Courtesy of FORD MOTOR CO.
    6. CAUTION: While servicing the power steering system, make sure to plug all open hoses, line fittings and fluid ports to prevent the entry of contaminants or premature failure of power steering components can result.

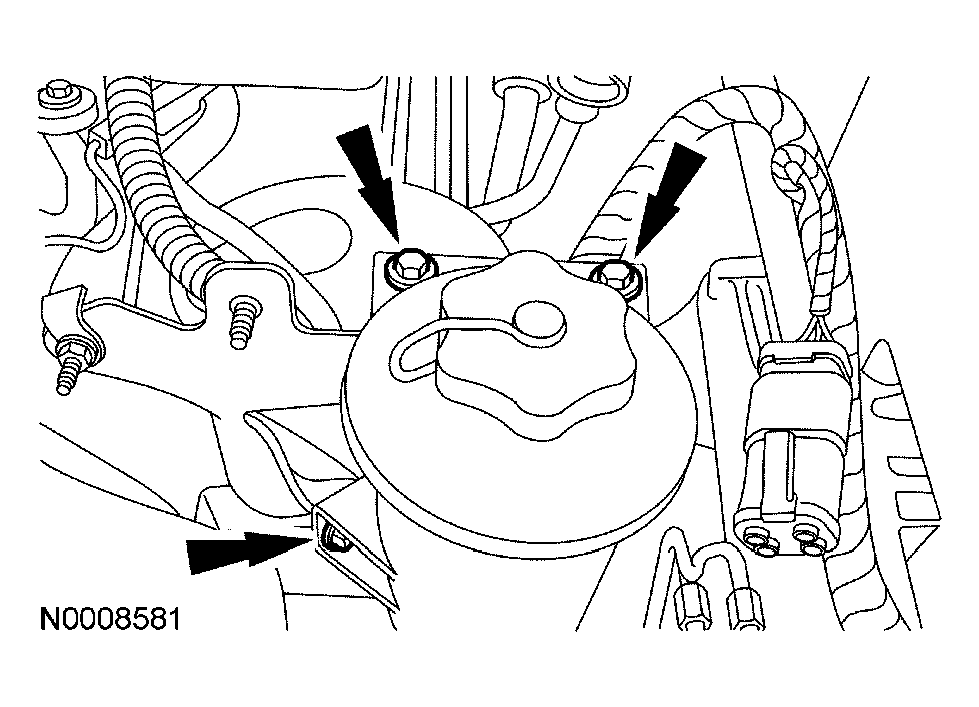

    Fig 2: Removing Power Steering Reservoir Bolts
    G03947616Courtesy of FORD MOTOR CO.
  6. Remove the power steering reservoir bolts.
  7. Loosen the clamps, disconnect the hoses and remove the reservoir.
    • Drain the fluid into a suitable container.

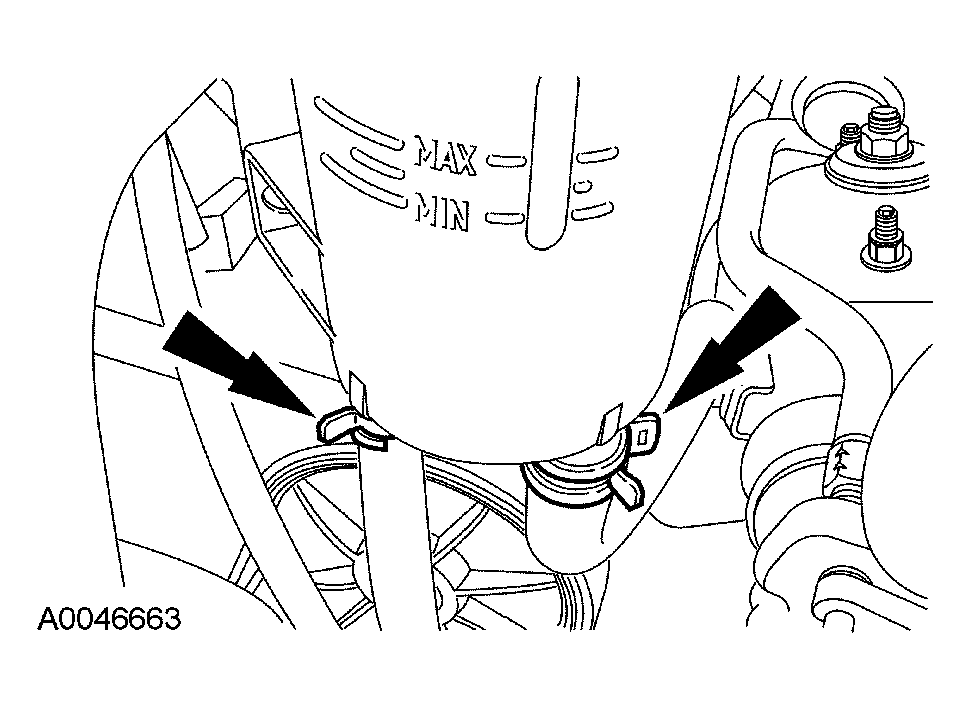

      Fig 3: Disconnecting Hoses
      G03947617Courtesy of FORD MOTOR CO.
  8. Using the special tool, remove the power steering pump pulley.

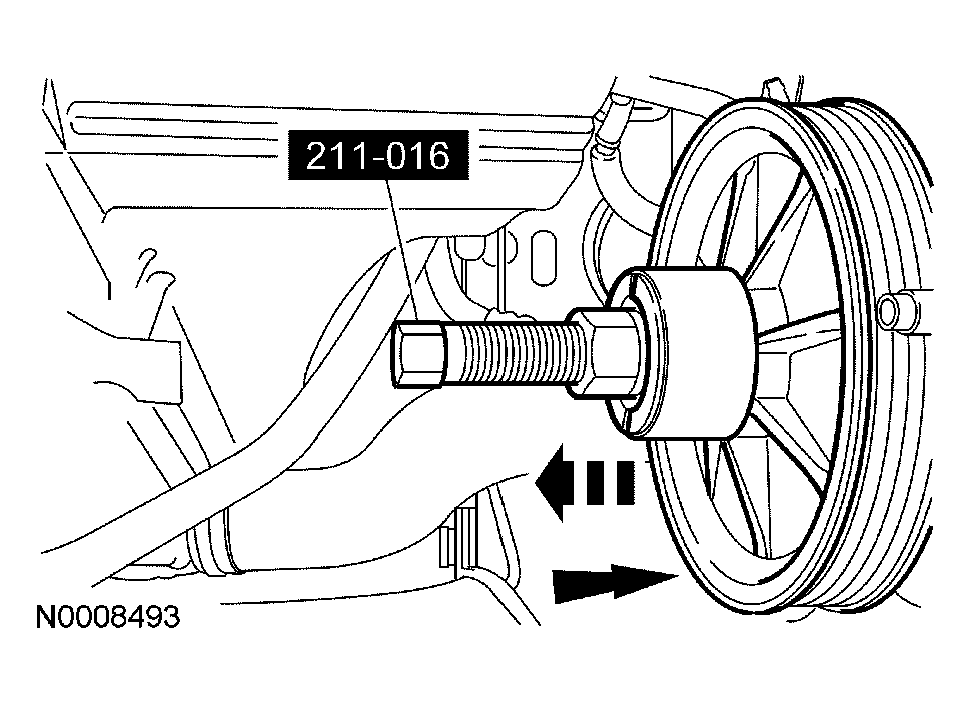

    Fig 4: Removing Power Steering Pump Pulley
    G03947618Courtesy of FORD MOTOR CO.
  9. Remove the nuts and position the wiring bracket out of the way.

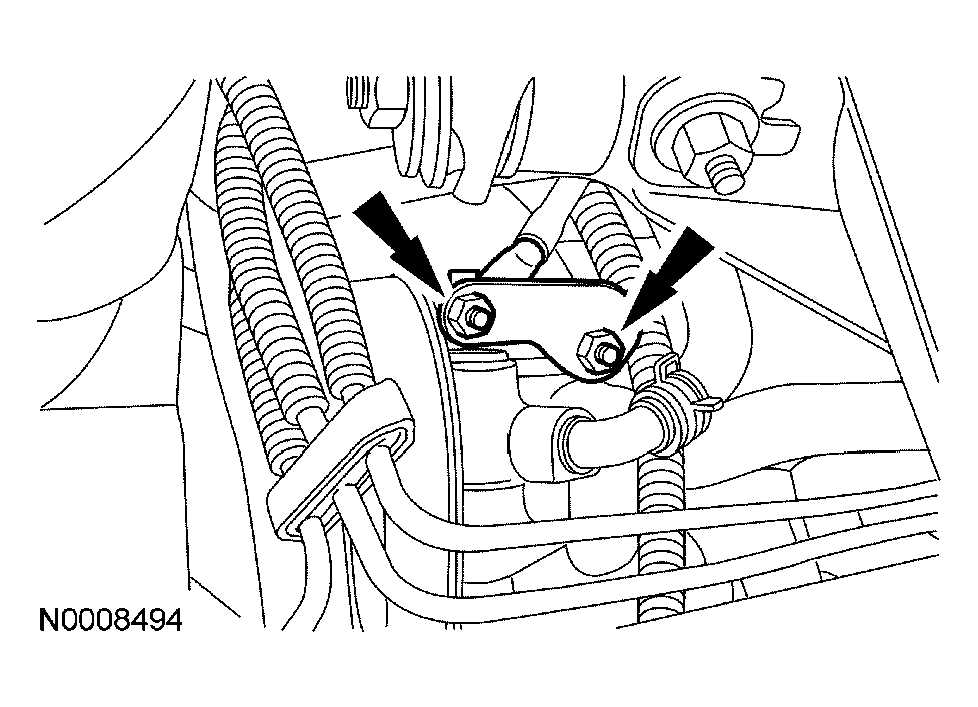

    Fig 5: Removing Nuts
    G03947619Courtesy of FORD MOTOR CO.
  10. Disconnect the power steering pressure hose from the power steering pump.
    • Remove and discard the O-ring seal.
  11. Remove the nuts and detach the brackets.
    Fig 6: Removing Nuts
    G03947620Courtesy of FORD MOTOR CO.
  12. Remove the 3 bolts and the power steering pump.
  13. Remove the nut and the upper radiator hose bracket and position the radio interference capacitor aside.
    Fig 7: Removing Upper Radiator Hose Bracket
    G03947621Courtesy of FORD MOTOR CO.
  14. Remove the nut and the power steering fluid reservoir bracket and position the radio interference capacitor aside.

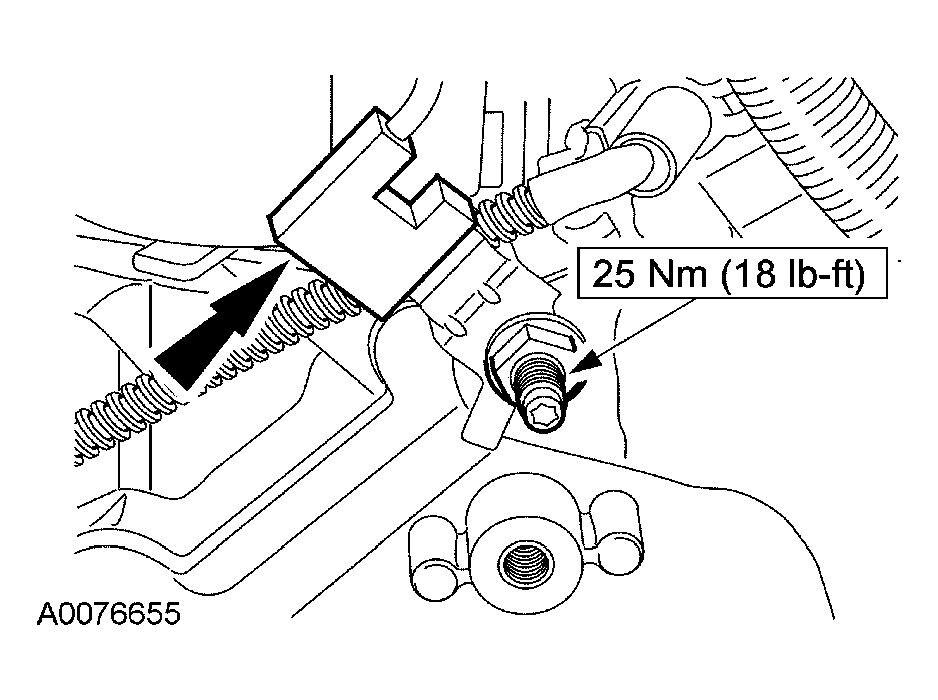

    Fig 8: Removing Power Steering Fluid Reservoir Bracket
    G03947622Courtesy of FORD MOTOR CO.
  15. Disconnect the camshaft position sensor (CMP) electrical connector.
  16. Remove the bolt and the CMP sensor.
  17. Remove the bolt and the LH upper idler pulley.
  18. Remove the bolt and the LH lower idler pulley.
  19. Remove the 4 bolts and the coolant pump pulley.
  20. Remove the bolt and the RH idler pulley.
  21. Remove the 3 bolts and the drive belt tensioner.
  22. Disconnect the crankshaft position (CKP) sensor electrical connector.
  23. Loosen the bolts and lower the A/C compressor approximately 25 mm (1 in).
  24. Remove the bolt and the CKP sensor.
  25. Remove the 4 oil pan-to-front cover bolts.
  26. Remove the transmission cooler tube bracket from the stud.

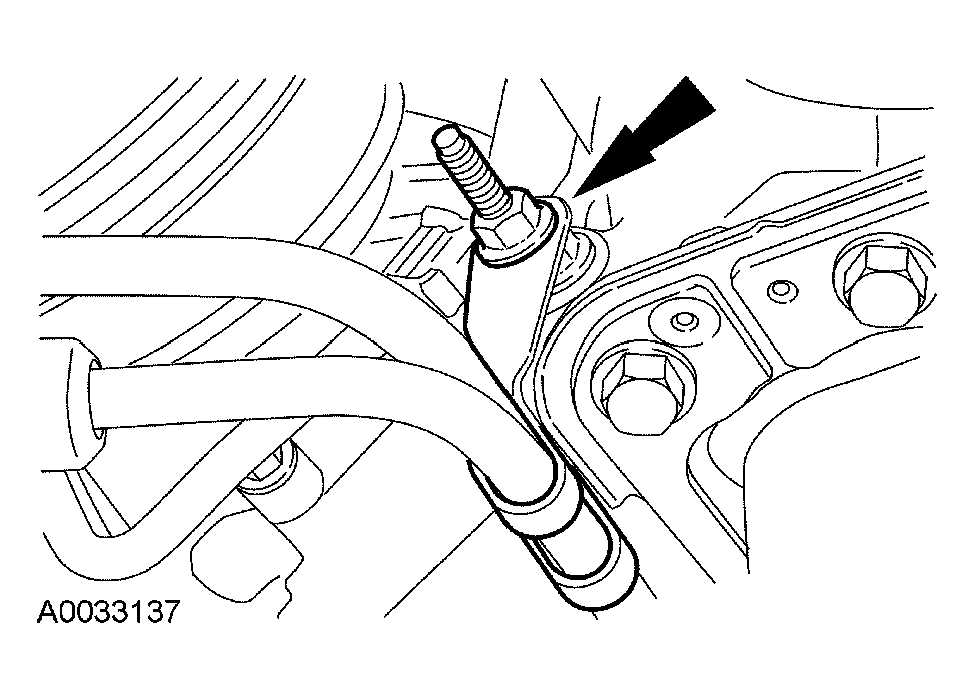

    Fig 9: Removing Transmission Cooler Tube Bracket From Stud
    G03947623Courtesy of FORD MOTOR CO.
  27. Remove the engine front cover fasteners in the sequence shown in Fig 10.

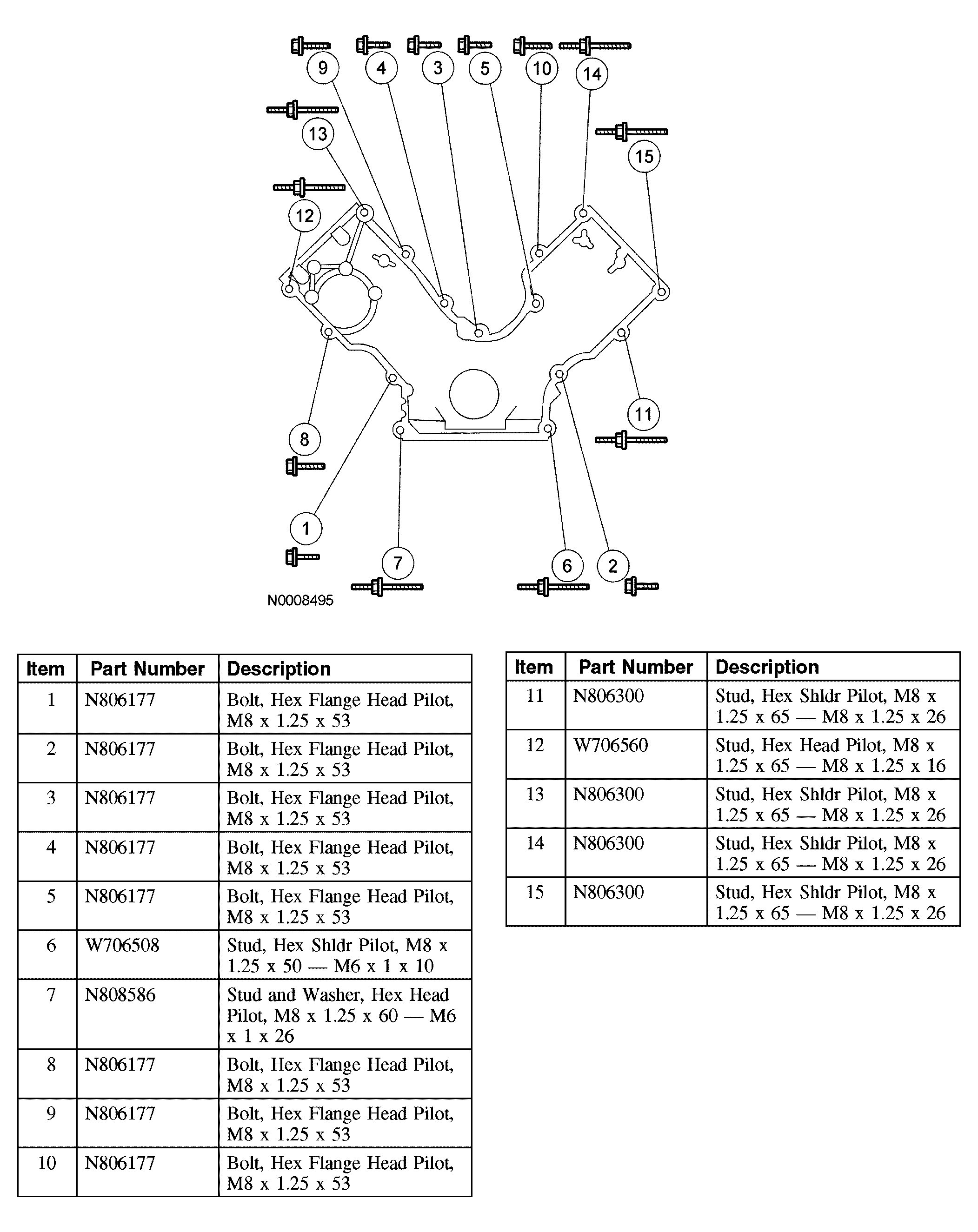

    Fig 10: Removing Engine Front Cover Fasteners In Sequence
    G03947624Courtesy of FORD MOTOR CO.
  28. Remove the front cover and the gaskets. Discard the gaskets.
