Engine Front Cover: Notes

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL CHART

G03963028
 Remover, Power Steering Pump Pulley 211-016 (T69L-10300-B)
G03945465
 Installer, Power Steering Pump Pulley 211-185 (T91P-3A733-A)
G03879006
 Teflon®Seal Replacer Set 211-D027 (D90P-3517-A) or equivalent
MATERIAL CHART

Item Specification
5W-20 Premium Synthetic Blend Engine Oil XO-5W20-QSP or equivalent WSS-M2C930-A
Motorcraft Silicone Gasket Remover ZC-30 -
Motorcraft Metal Surface Prep ZC-31 -
Silicone Gasket and Sealant TA-30 or equivalent WSE-M4G323-A6

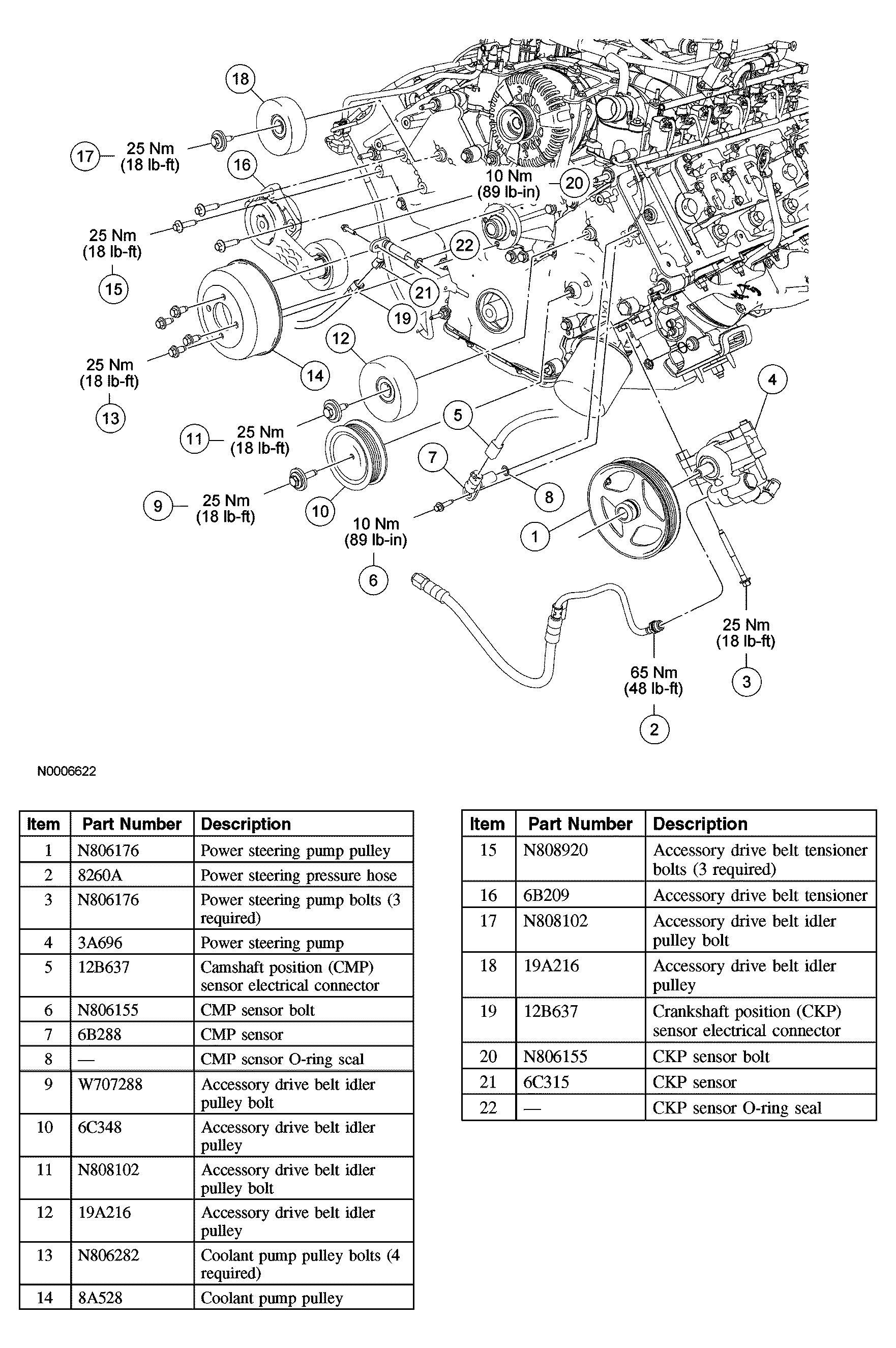

Fig 1: Exploded View Of Engine Front Cover (1 Of 2)
G03947613Courtesy of FORD MOTOR CO.

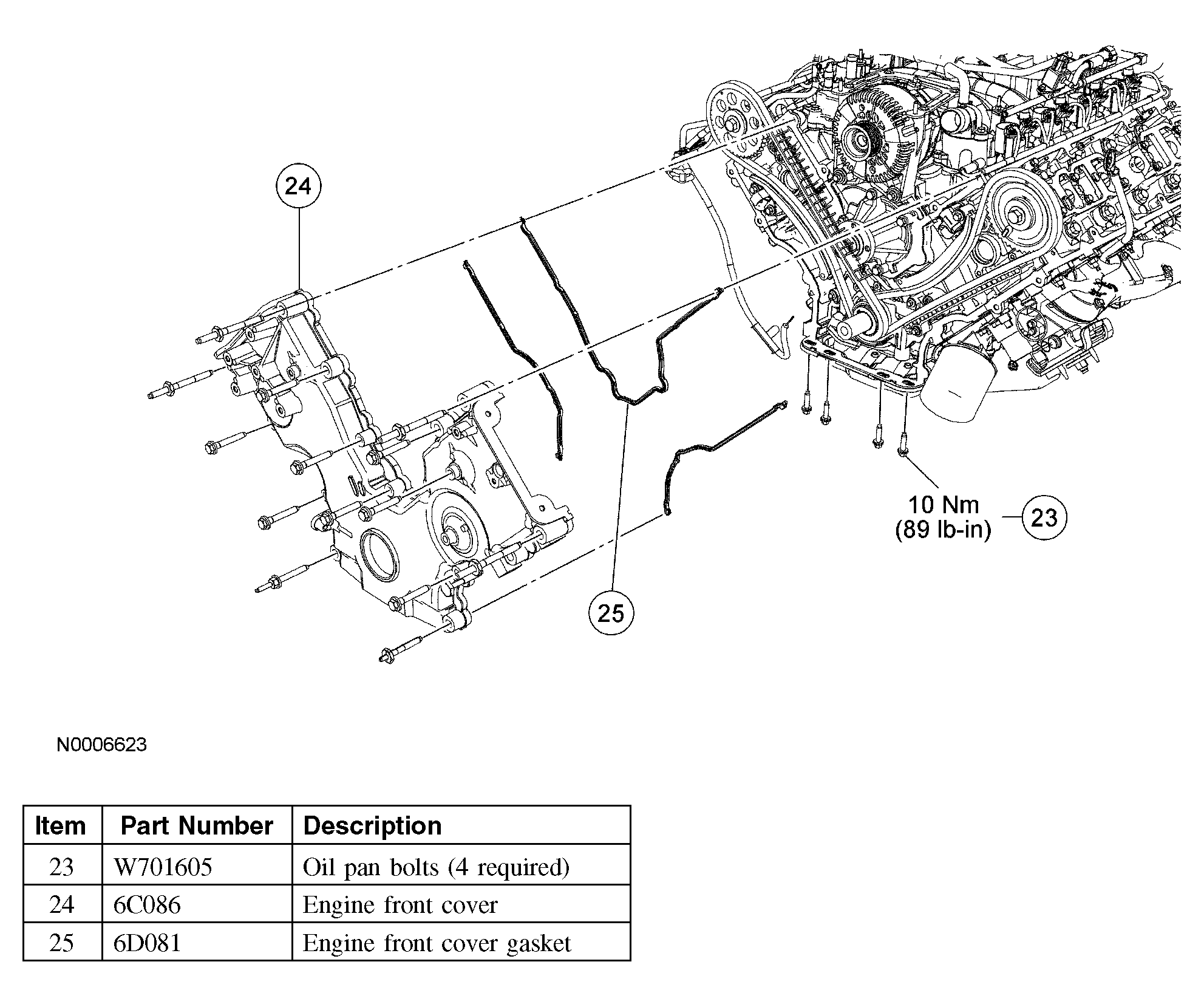

Fig 2: Exploded View Of Engine Front Cover (2 Of 2)
G03947614Courtesy of FORD MOTOR CO.
