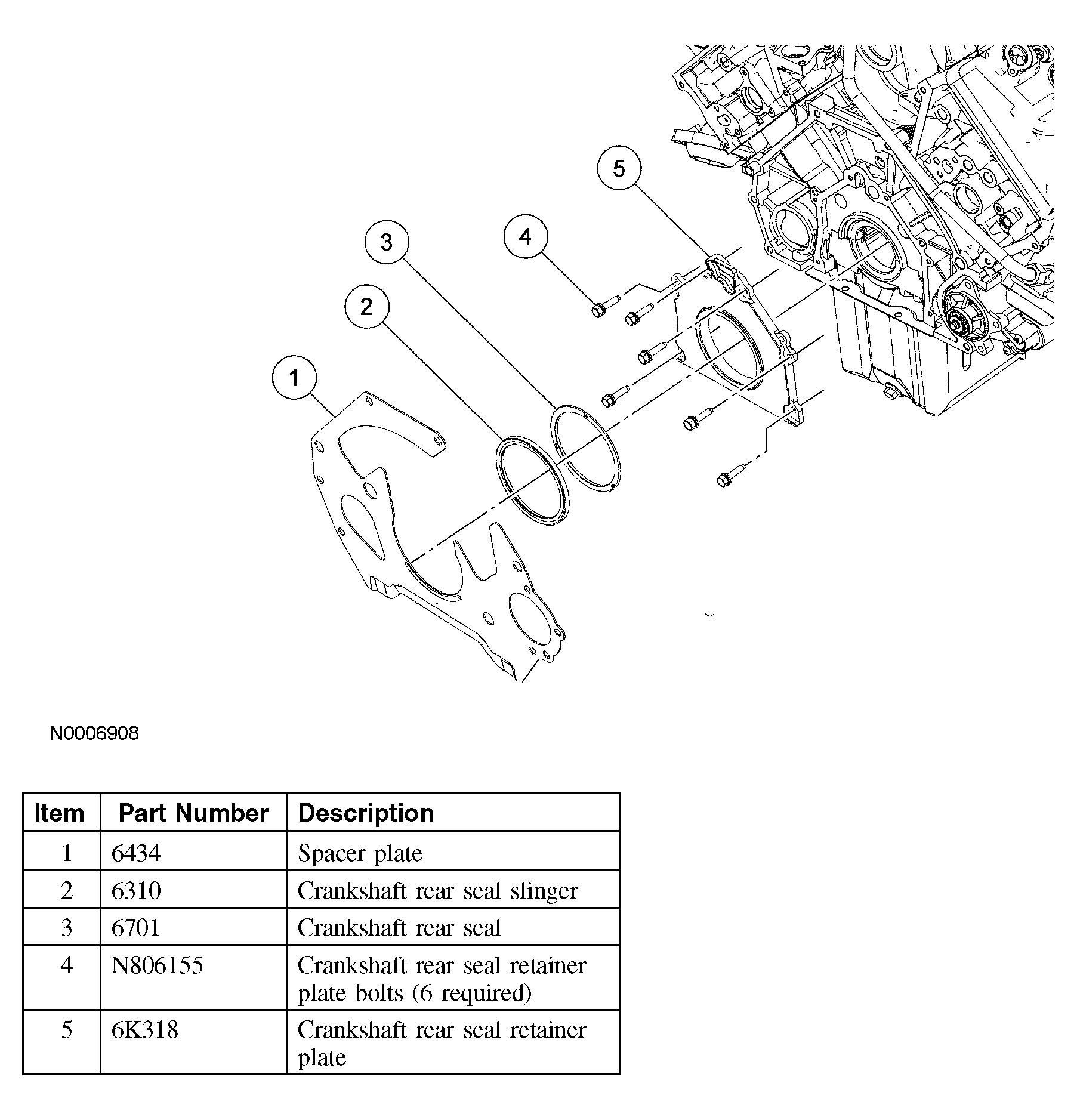

Crankshaft Rear Seal with Retainer Plate: Notes
WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL CHART
| Installer, Crankshaft Rear Seal 303-518 (T95P-6701-DH) | |
| Remover, Crankshaft Rear Seal 303-519 (T95P-6701-DH) | |
| Installer, Crankshaft Rear Seal 303-516 (T95P-6701-EH) | |
| Remover, Crankshaft Rear Oil Slinger 303-514 (T95P-6701-AH) | |
| Installer, Crankshaft Rear Oil Slinger 303-517 (T95P-6701-CH) | |
| Impact Slide Hammer 100-001 (T50T-100-A) |
MATERIAL CHART
| Item | Specification |
|---|---|
| SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP or equivalent | WSS-M2C930-A |
| Motorcraft Silicone Gasket Remover ZC-30 | - |
| Motorcraft Metal Surface Prep ZC-31 | - |
| Silicone Gasket and Sealant TA-30 or equivalent | WSE-M4G323-A4 |
