Camshaft Roller Follower: Removal

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve covers. For additional information, refer to VALVE COVER - LH  and VALVE COVER - RH .
  2. Remove the cooling fan. For additional information, refer to ENGINE COOLING .
  3. Disconnect the electrical connectors and remove the bolts and ignition coils.
    • Tilt the coils away from the fuel rail to remove.
      Fig 1: Disconnecting Electrical Connectors
      G03947673Courtesy of FORD MOTOR CO.
    4. NOTE: Remove any foreign material from the spark plug wells with compressed air before removing the spark plugs.
  4. Remove the spark plugs.

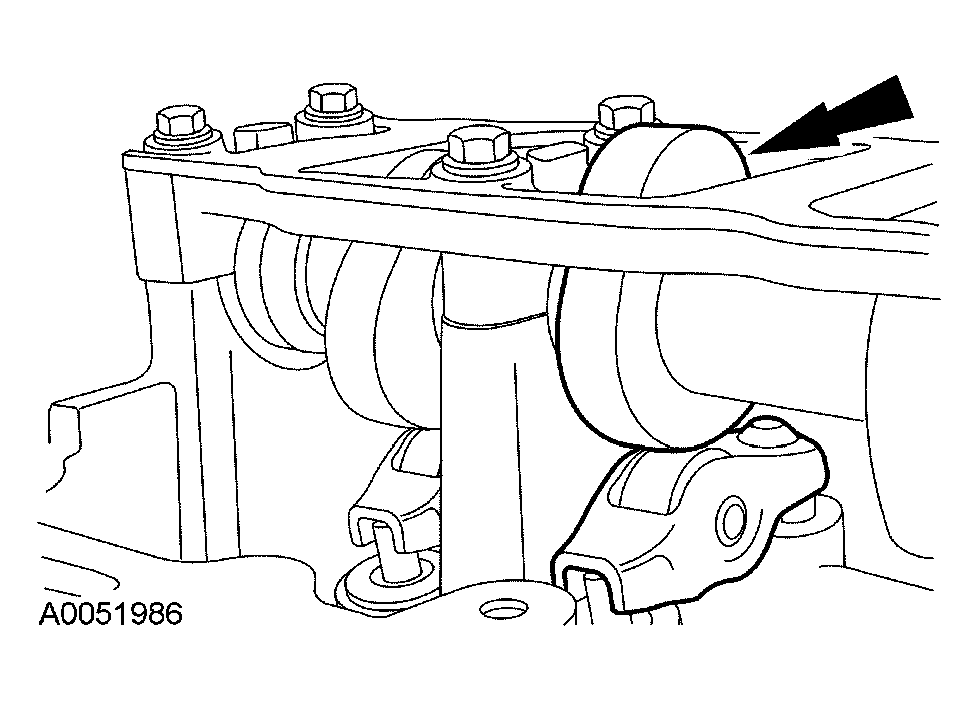

  5. Rotate the crankshaft until the cam lobe is directly away from the roller follower.
    Fig 2: Rotating Crankshaft
    G03947674Courtesy of FORD MOTOR CO.
  6. Install the special tool.
    Fig 3: Installing Special Tool
    G03947664Courtesy of FORD MOTOR CO.
    7. NOTE: The 3 rearmost followers on the RH side must use special tool 303-581 in the same manner as is shown in Fig 4.
    NOTE: The roller followers are positional. Mark the roller followers for installation in their original locations.
    Fig 4: Compressing Valve Springs
    G03947676Courtesy of FORD MOTOR CO.
  7. Using the special tool, compress the valve springs and remove the camshaft roller followers.
