Home >> Ford >> 2000 >> Contour SE, 2.5 L, Standard >> Repair and Diagnosis >> External Pages >> Different car >> Section 1154 (Engine -- 4.6L (2V)) >> Disassembly And Assembly Of Subassemblies >> Piston >> Notes

Disassembly And Assembly Of Subassemblies: Piston: Notes

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL CHART

Item Specification
SAE 5W-20 Premium Synthetic Blend Engine Oil XO-5W20-QSP or equivalent WSS-M2C930-A

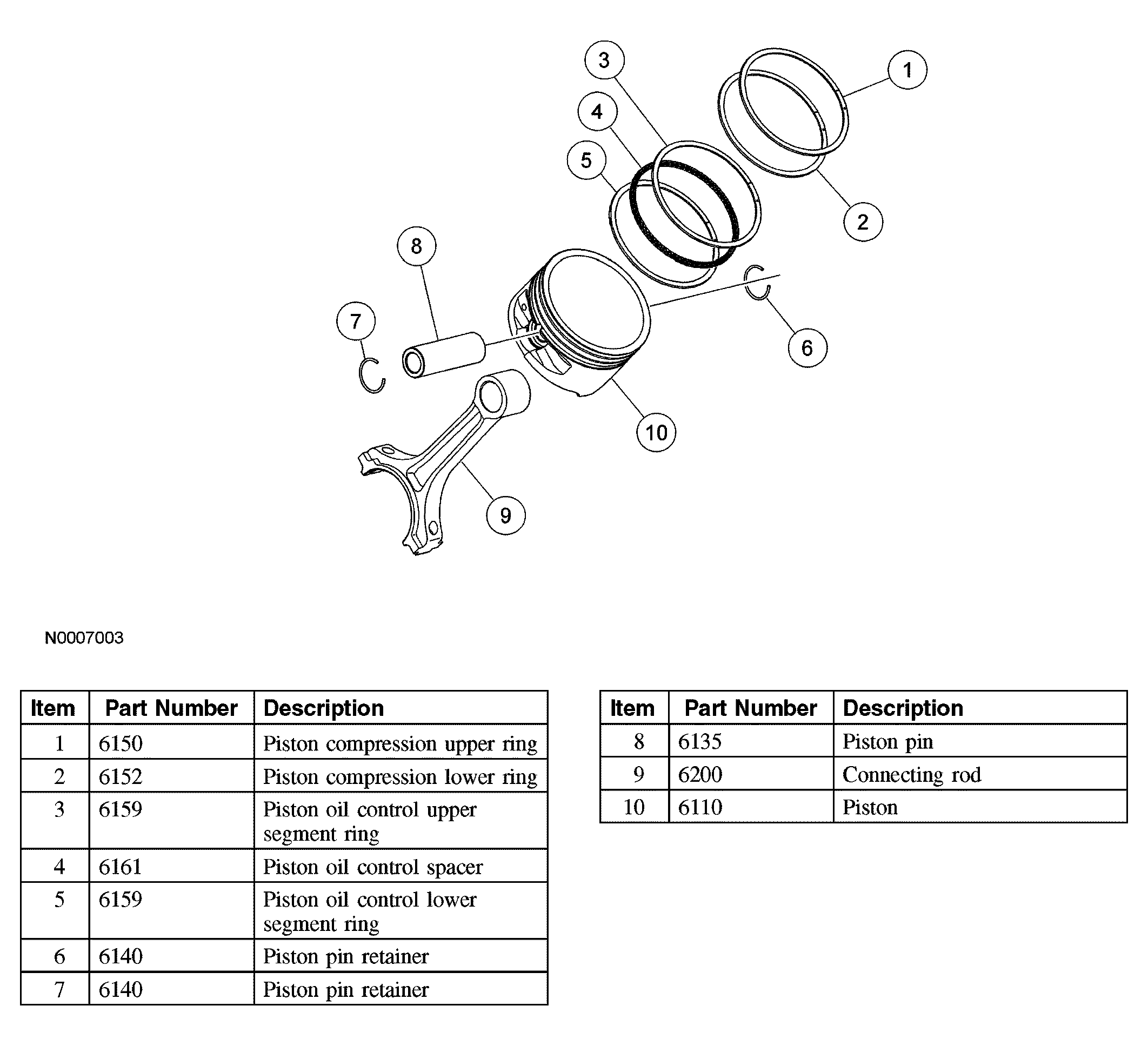

Fig 1: Exploded View Of Piston
G03948012Courtesy of FORD MOTOR CO.
