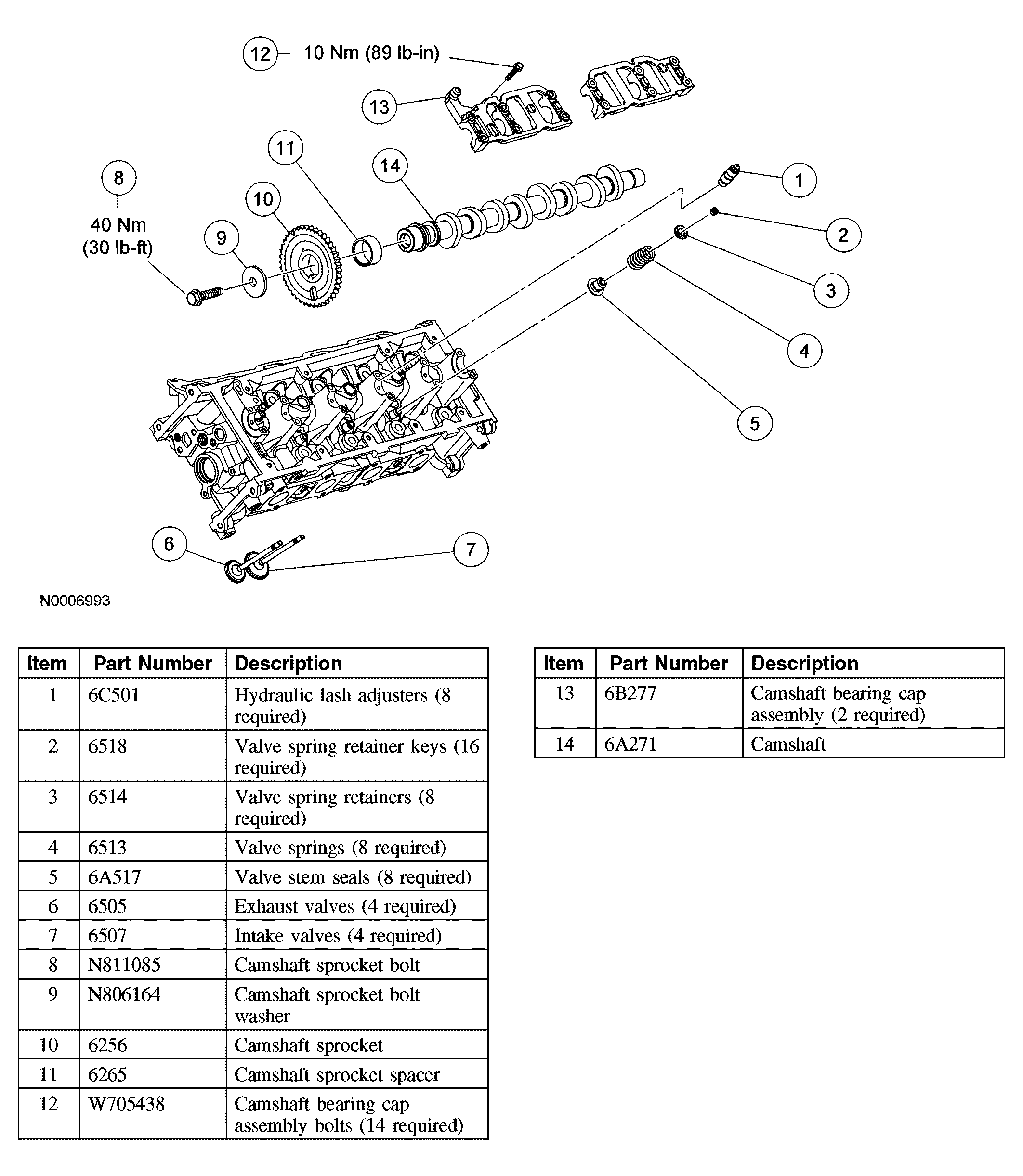

Cylinder Head: Notes
WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL CHART
| Compressor, Valve Spring 303-567 (T97P-6565-AH) | |
| Compressor Spacer, Valve Spring 303-382 (T91P-6565-AH) | |
| Installer, Valve Stem Oil Seal 303-383 (T91T-6571-A) |
MATERIAL CHART
| Item | Specification |
|---|---|
| SAE 5W-20 Premium Synthetic Blend Engine Oil XO-5W20-QSP or equivalent | WSS-M2C930-A |
| Motorcraft Metal Surface Prep ZC-31 | - |
