Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake manifold. For additional information, refer to INTAKE MANIFOLD .
  2. Disconnect the camshaft position (CMP) sensor electrical connector.
  3. Disconnect the ignition coil electrical connector. Detach the wiring harness retainer.
  4. Disconnect the fuel injector electrical connectors. Detach the wiring harness retainers.

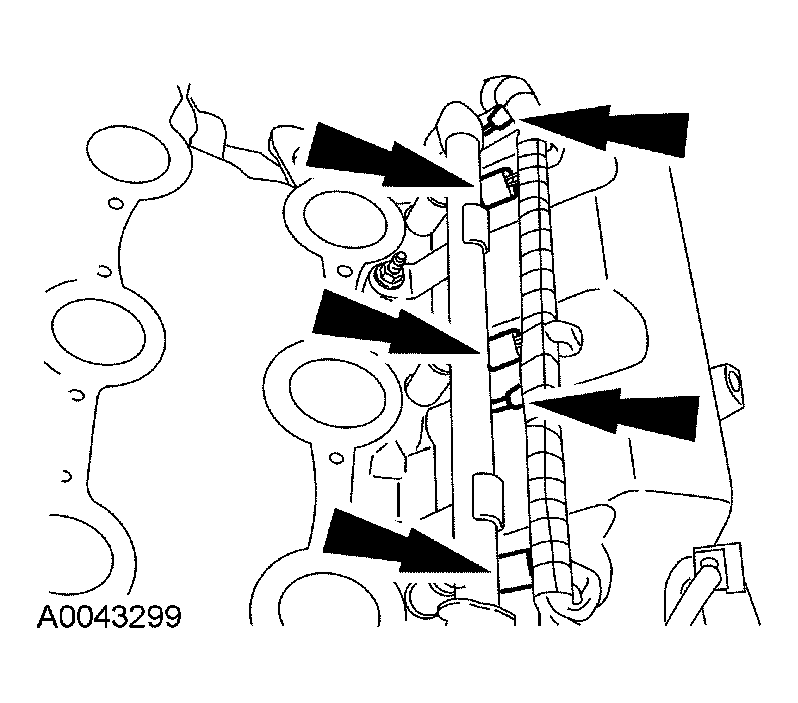

    Fig 1: Disconnecting Fuel Injector Electrical Connectors
    G03946924Courtesy of FORD MOTOR CO.
  5. Remove the positive crankcase ventilation (PCV) valve tube.
  6. Disconnect the PCV valve electrical connector.
  7. Detach the spark plug wire retainers.
  8. Remove the bolts and the valve cover.
    • To install, tighten to 10 Nm (89 lb-in).
    9. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.
  9. Clean and inspect the sealing surfaces and the gasket. Install a new gasket if necessary.
  10. To install, reverse the removal procedure.
