Valve Cover - LH: Notes

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

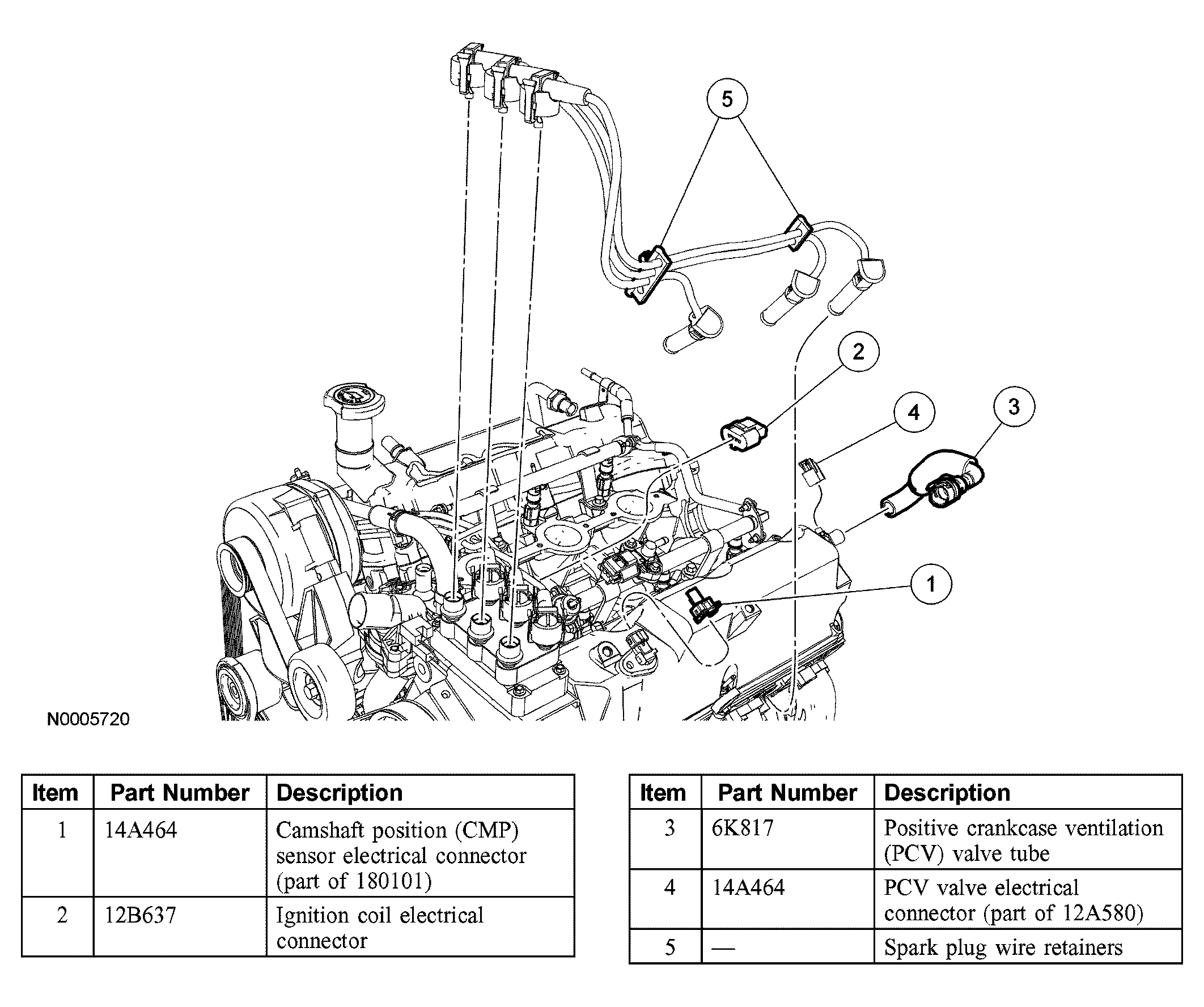

Fig 1: Identifying Valve Cover Components - LH
G03946922Courtesy of FORD MOTOR CO.

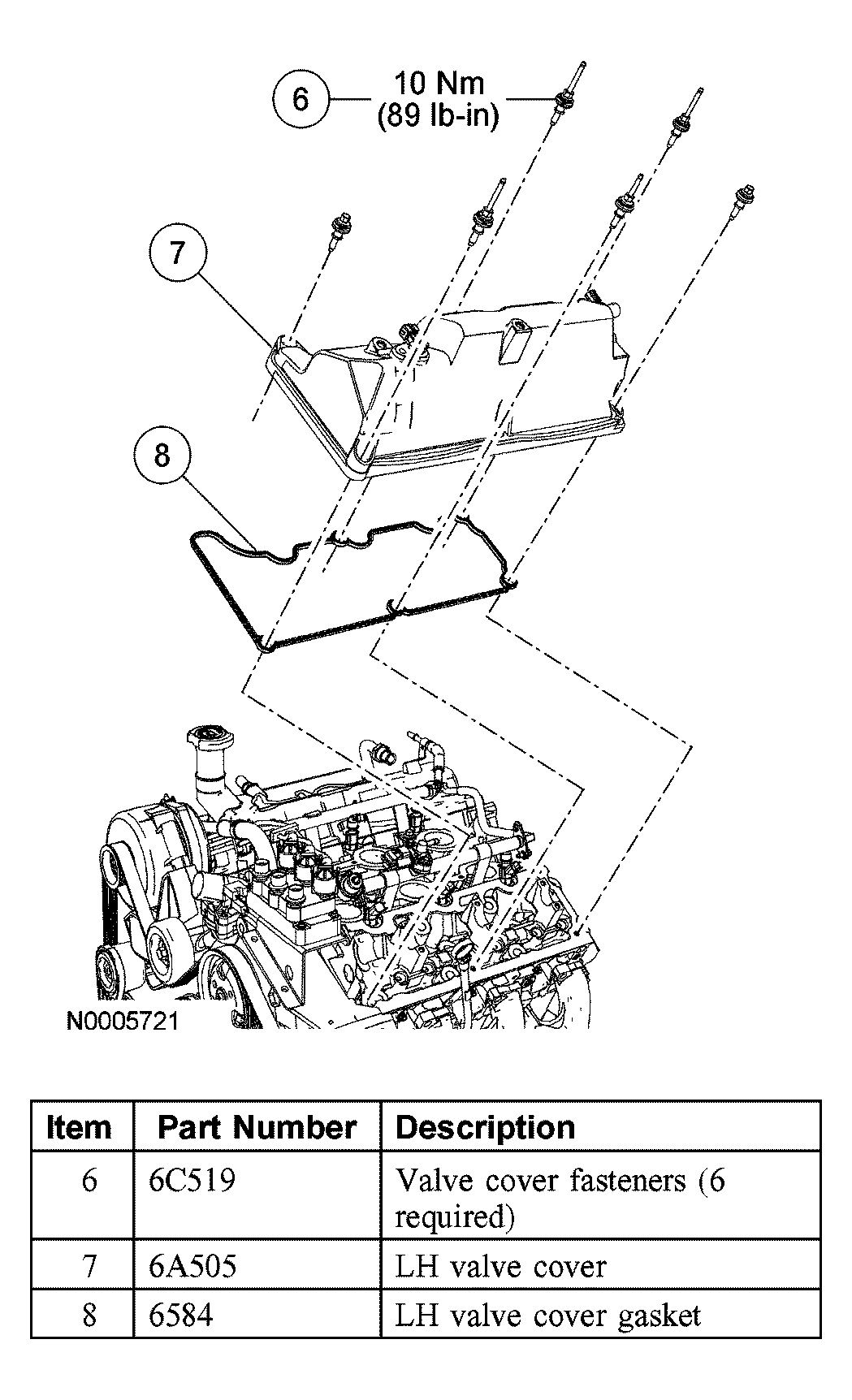

Fig 2: Displaying Valve Cover Components - LH With Torque Specifications
G03946923Courtesy of FORD MOTOR CO.
