Intake Manifold: Notes

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

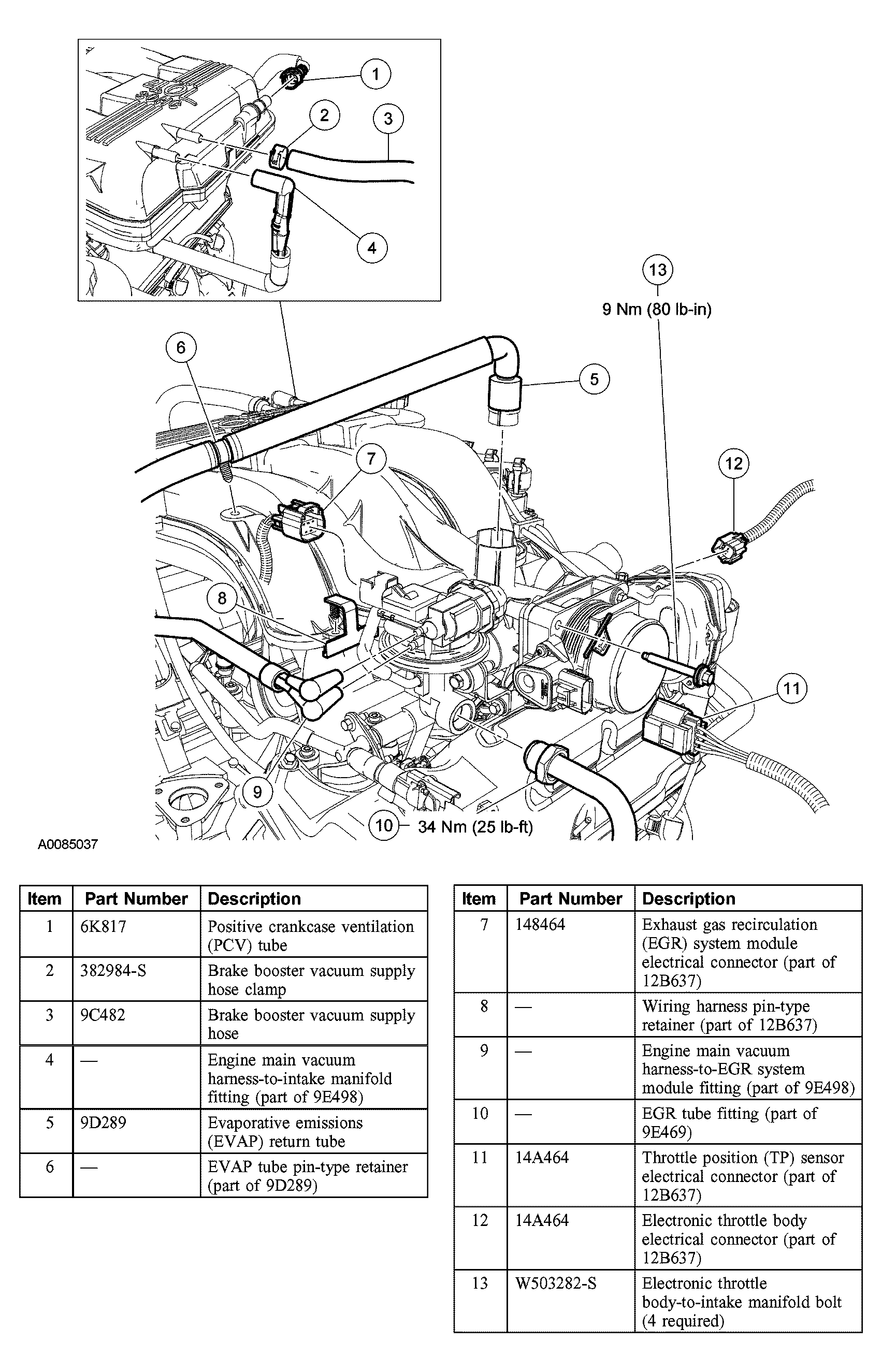

Fig 1: Intake Manifold Replacement Components With Torque Specifications (1 Of 2)
G03946918Courtesy of FORD MOTOR CO.

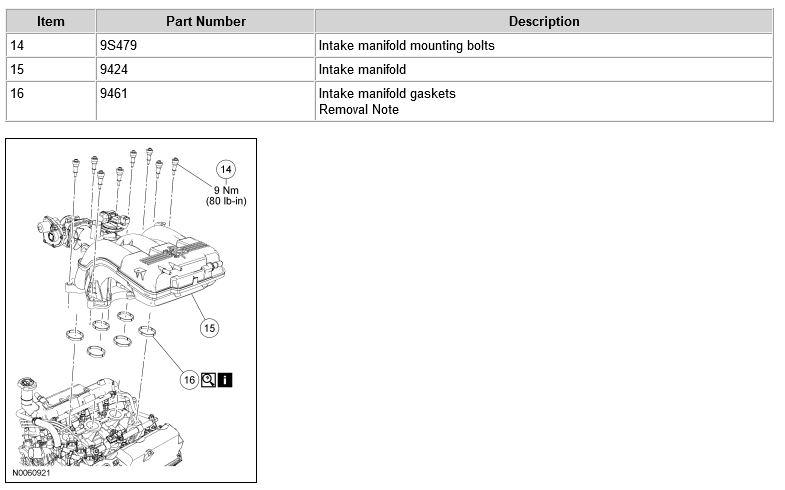

Fig 2: Intake Manifold Replacement Components With Torque Specifications (2 Of 2)
G00562795Courtesy of FORD MOTOR CO.
