Hydraulic Chain Tensioner, RH: Notes

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS

Item Specification
SAE 5W-30 Premium Synthetic Blend Motor Oil XO-5W30-QSP WSS-M2C929-A

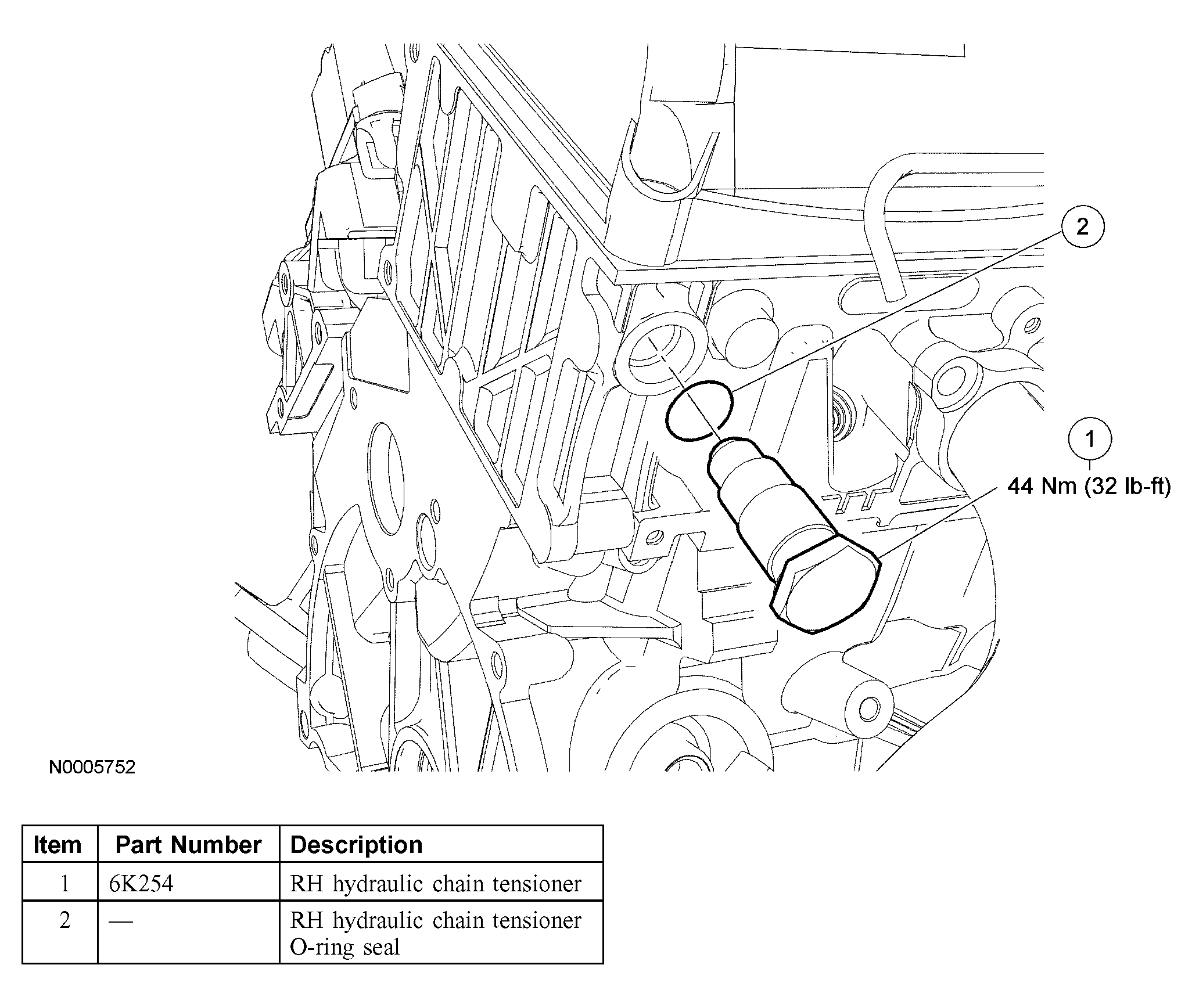

Fig 1: Timing Drive Replacement Components -- Hydraulic Chain Tensioner - RH With Torque Specifications
G03947043Courtesy of FORD MOTOR CO.
