WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL SPECIFICATIONS
Courtesy of FORD MOTOR CO.
Lifting Bracket 303-050 (T70P-6000)
Courtesy of FORD MOTOR CO.
Support Bar, Engine 303-290A
Courtesy of FORD MOTOR CO.
Adapter for 303-290A 303-290-01
Courtesy of FORD MOTOR CO.
Adapter for 303-290A 303-290A-03A
AWD vehicles
Fig 1: Engine Support Insulators Replacement Components With Torque Specifications (AWD Vehicles)
Courtesy of FORD MOTOR CO.
All vehicles

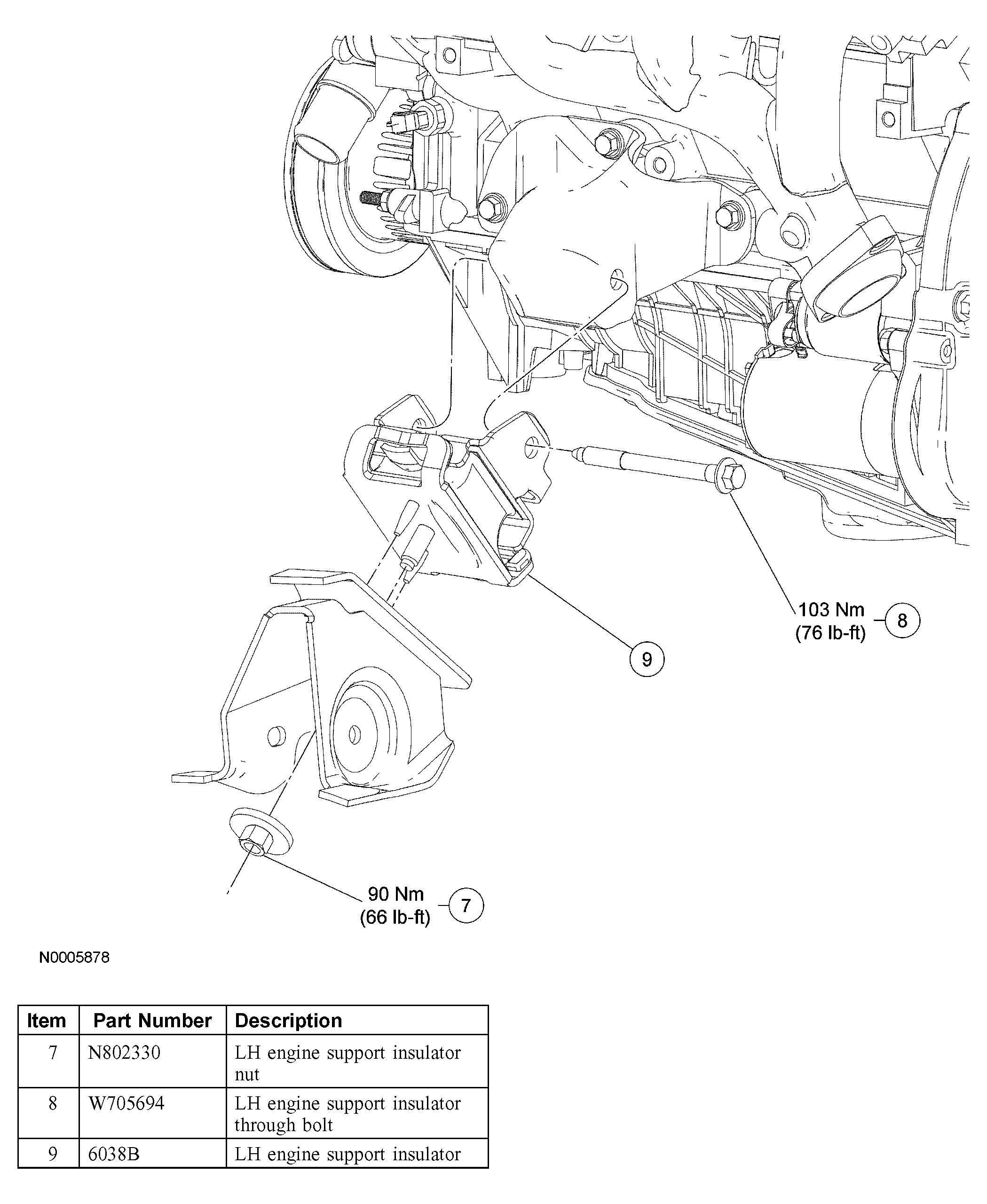

Fig 2: Engine Support Insulators Replacement Components With Torque Specifications (All Vehicles)
Courtesy of FORD MOTOR CO.

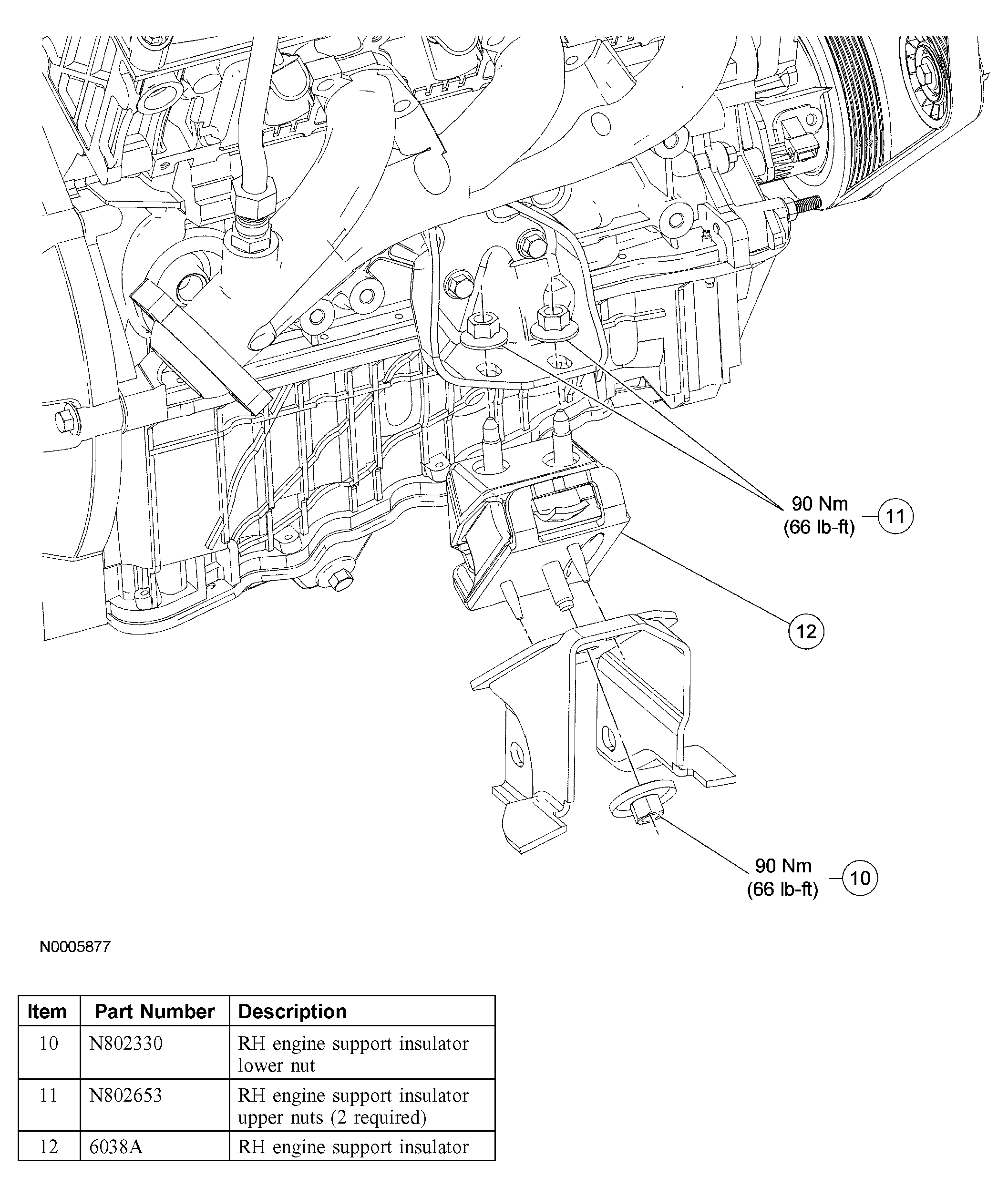

Fig 3: Engine Support Insulators Replacement Components With Torque Specifications (All Vehicles)
