WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
Item
Specification
Silicone Gasket and Sealant TA-30
WSE-M4G323-A4
Motorcraft Silicone Gasket Remover ZC-30
-
Motorcraft Metal Surface Prep ZC-31
-

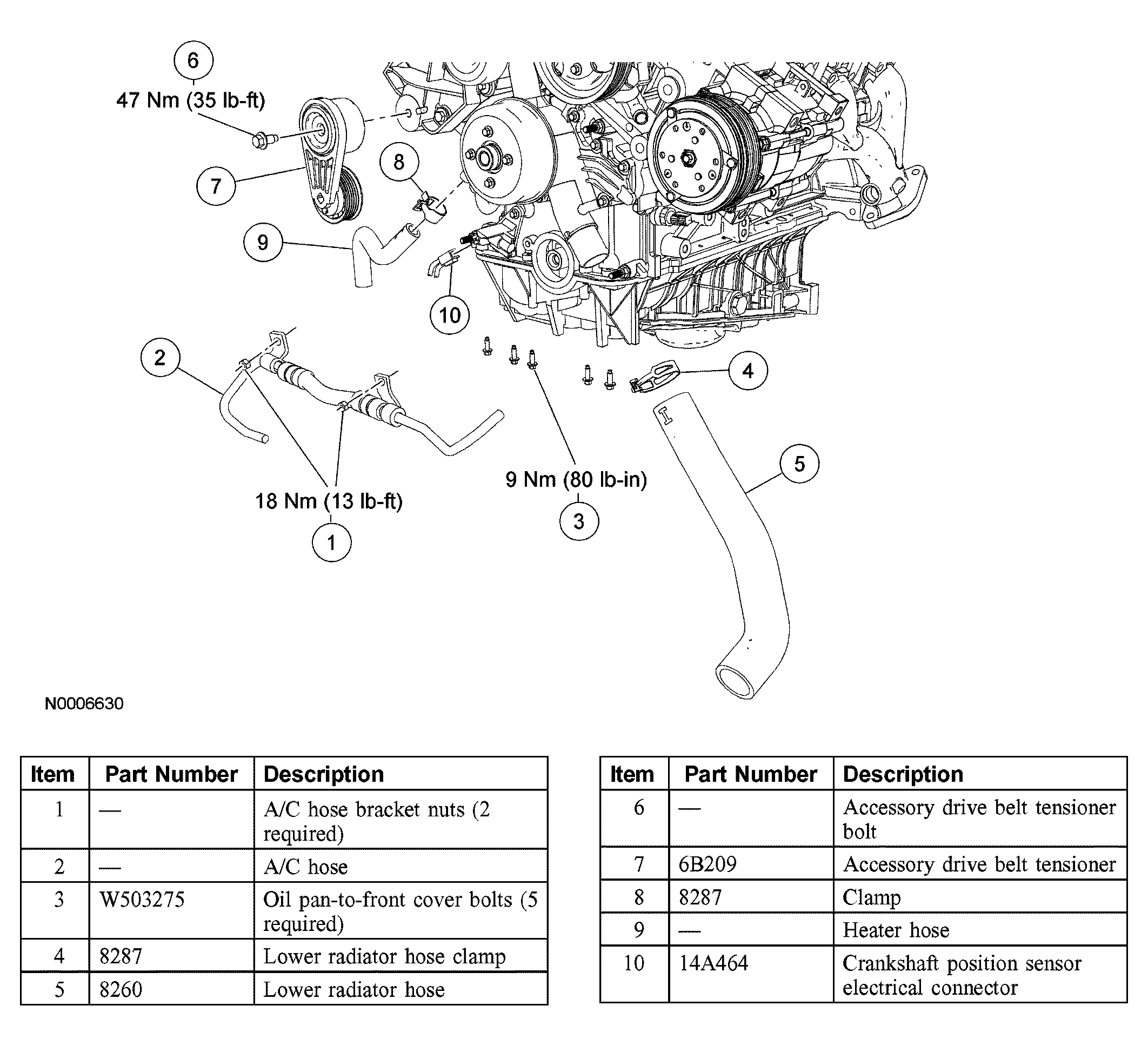

Fig 1: Engine Front Cover Replacement Components With Torque Specifications (1 Of 3)
Courtesy of FORD MOTOR CO.

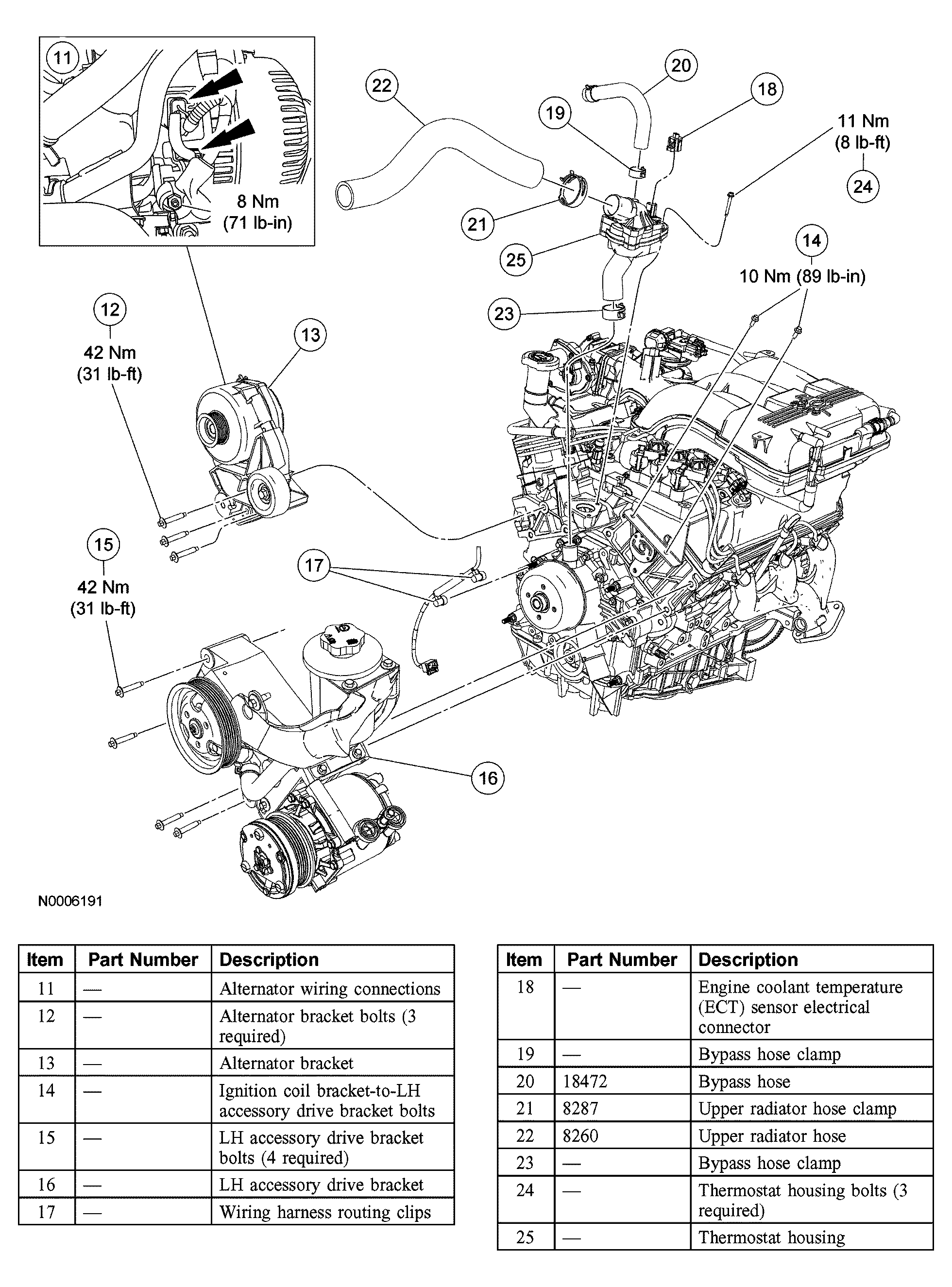

Fig 2: Engine Front Cover Replacement Components With Torque Specifications (2 Of 3)
Courtesy of FORD MOTOR CO.

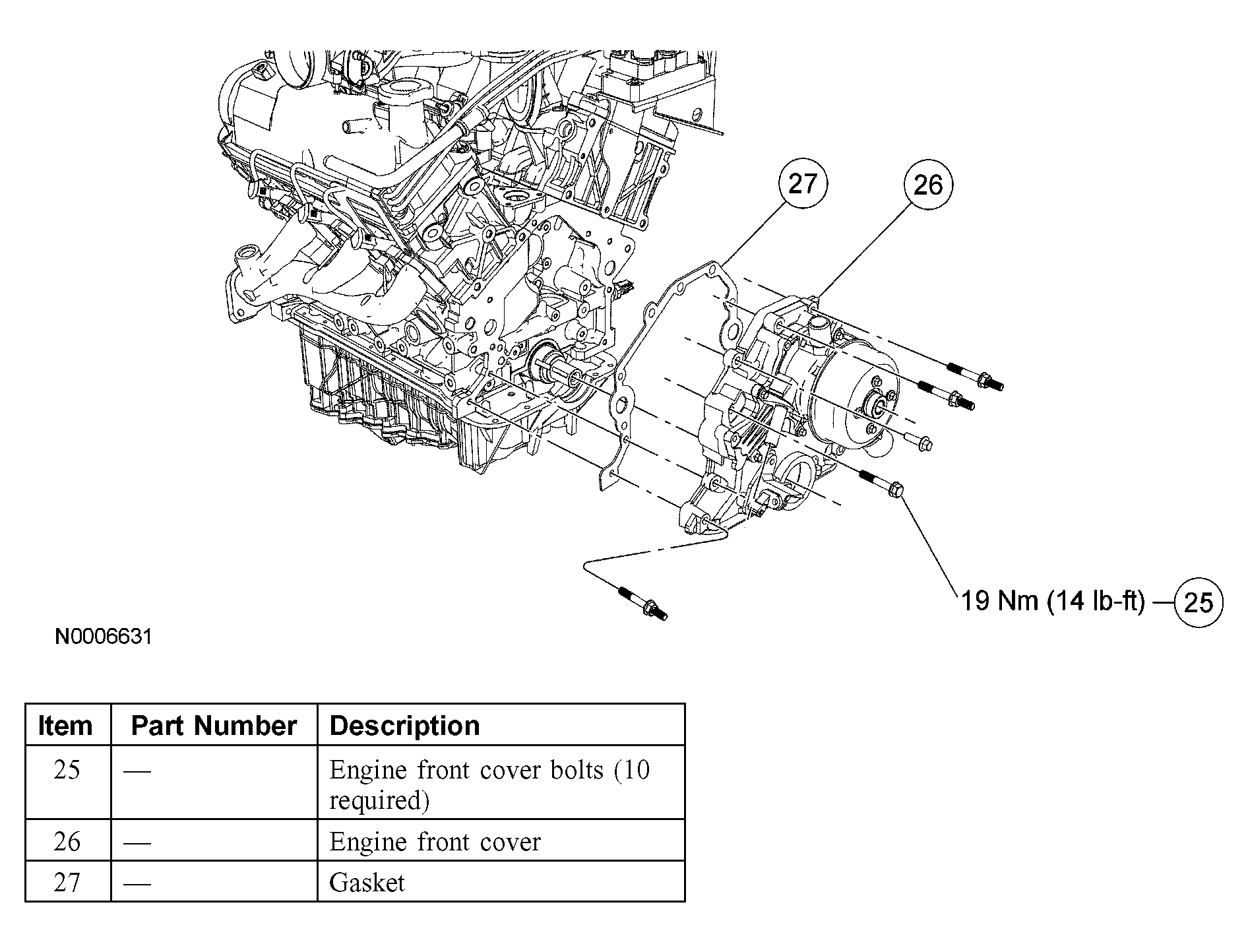

Fig 3: Engine Front Cover Replacement Components With Torque Specifications (3 Of 3)
