Cylinder Block Cradle: Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

    CAUTION: Failure to back off the set screws can result in damage to the cylinder block cradle.
    Fig 1: Removing Cylinder Block Cradle
    G03947087Courtesy of FORD MOTOR CO.
  1. Back the set screws off until they are below the cylinder block cradle boss.
    2. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
    NOTE: Gasket material as well as silicone sealant may be present in the cavities in the main bearing cap. This material must be removed completely prior to assembly.

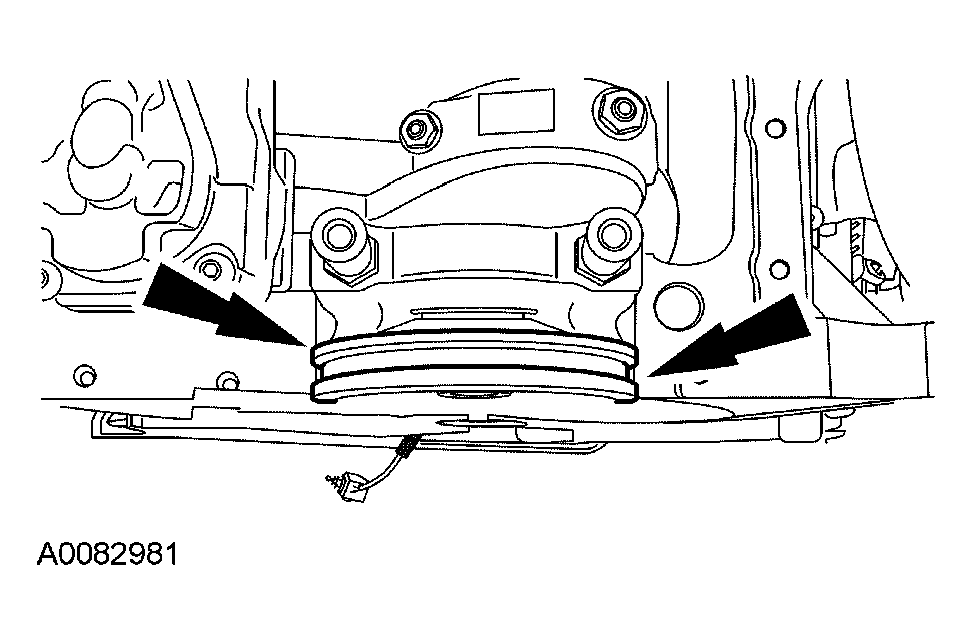

    Fig 2: Cleaning Sealing Area
    G03947088Courtesy of FORD MOTOR CO.
  2. Clean the gasket mating surfaces, making sure all the sealant is removed from the cavities on the rear main bearing cap. To clean the sealing area, use silicone gasket remover and metal surface prep. Follow the directions on the packaging.
    3. NOTE: If not secured within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Follow the directions on the packaging. Failure to follow this procedure can cause future oil leakage.

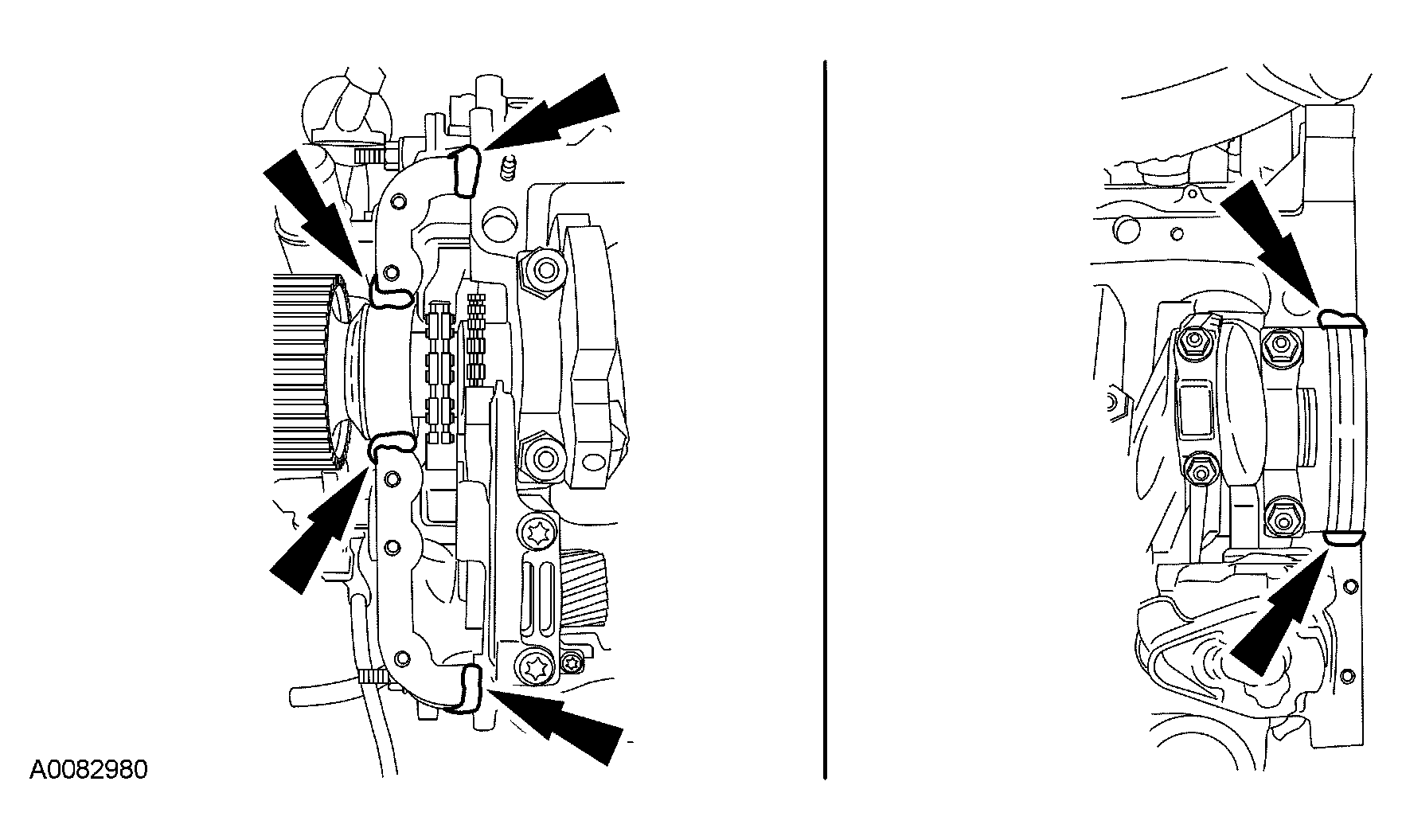

    Fig 3: Applying Silicone In Places
    G03947089Courtesy of FORD MOTOR CO.
  3. Apply silicone in the 6 places shown.
  4. Position a new gasket and the cylinder block cradle. Install the outer 20 bolts and 2 nuts finger tight.
  5. Install the 2 cylinder block cradle rear Torx bolts finger tight.
  6. Install the 2 bell housing-to-cylinder block cradle bolts.
    • Tighten to 47 Nm (35 lb-ft).
  7. Tighten the outer 20 bolts and 2 nuts.
    • Tighten to 10 Nm (89 lb-in).
  8. Tighten the 2 cylinder block cradle rear Torx bolts.
    • Tighten to 8 Nm (71 lb-in).
  9. Tighten the 8 inserts.
    • Tighten to 3 Nm (27 lb-in).

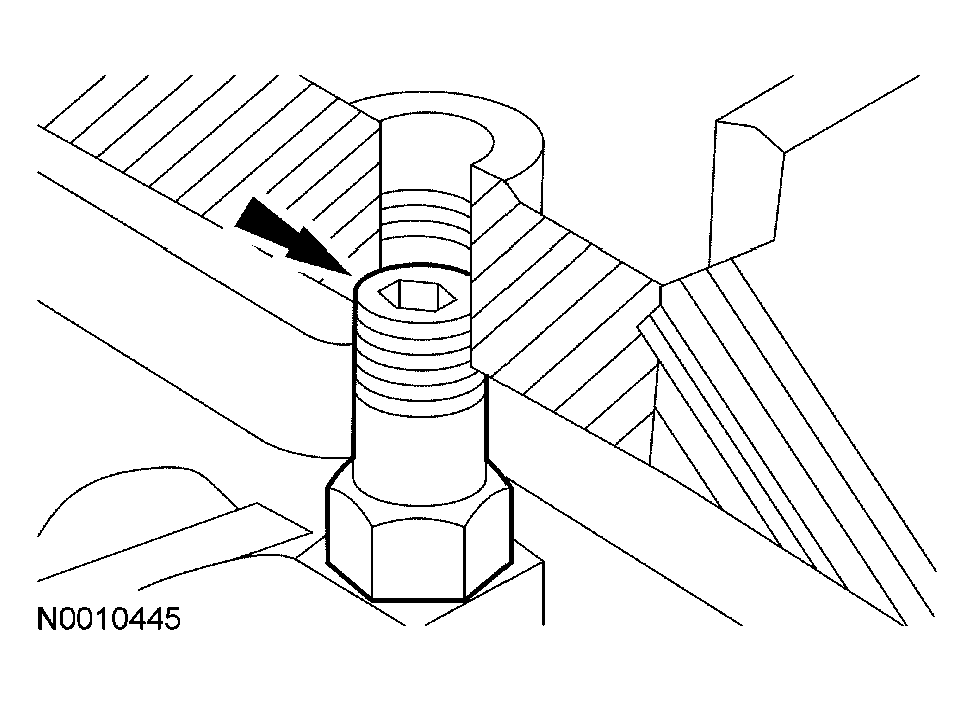

      Fig 4: Tightening Inserts
      G03947090Courtesy of FORD MOTOR CO.
  10. Install the 2 silver-colored bolts and new washer seals finger tight.

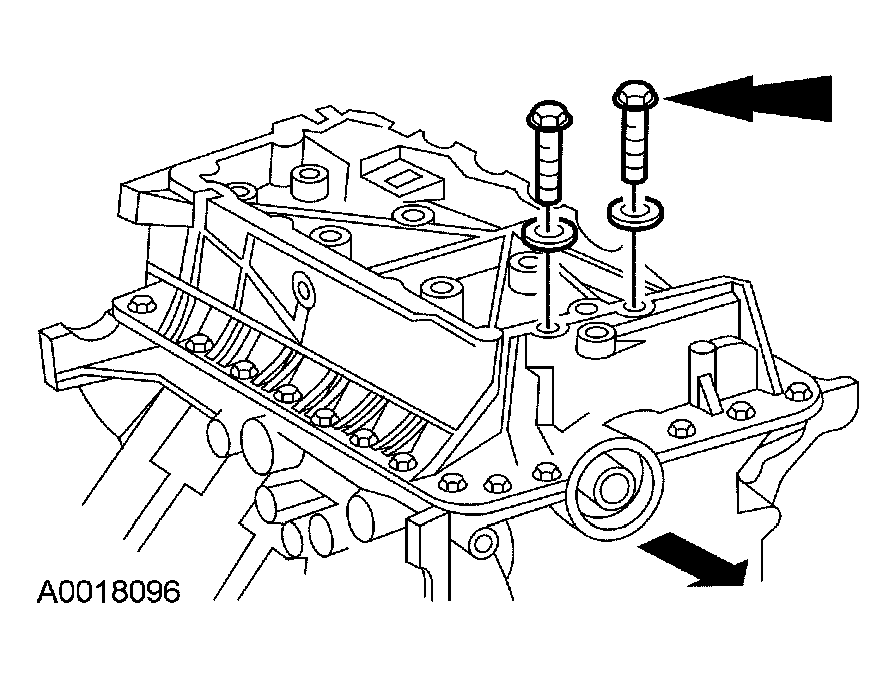

    Fig 5: Installing Bolts And New Washer Seals
    G03914049Courtesy of FORD MOTOR CO.
  11. Install the 6 remaining inner bolts finger tight.
  12. Tighten the 8 inner bolts in the sequence shown in 2 stages.
    • Stage 1: Tighten to 15 Nm (11 lb-ft).
    • Stage 2: Tighten to 34 Nm (25 lb-ft).

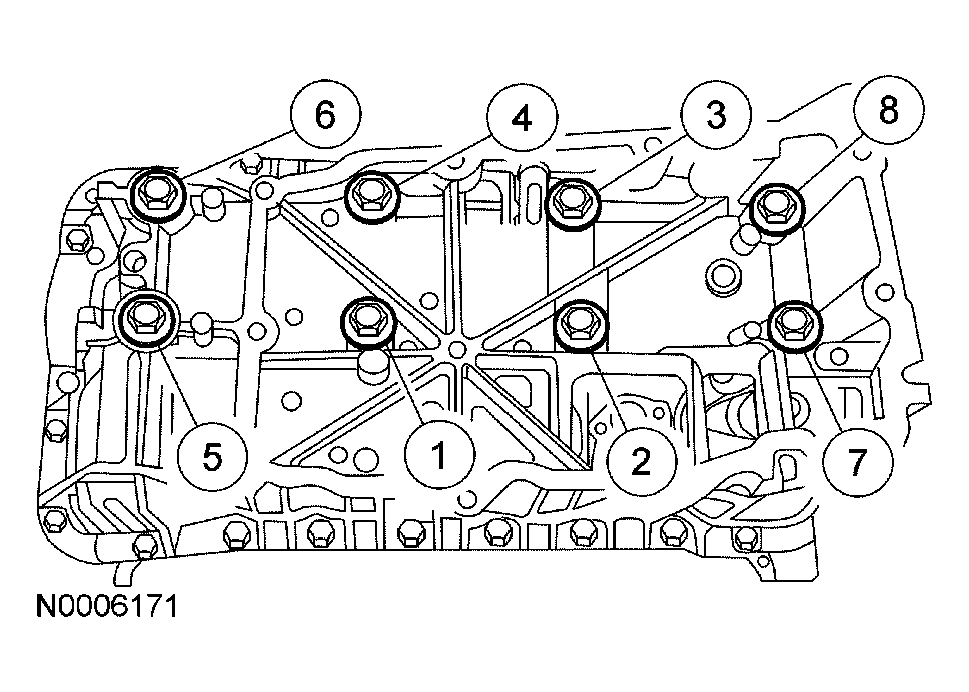

      Fig 6: Installing Remaining Inner Bolts
      G03947389Courtesy of FORD MOTOR CO.

    13. AWD vehicles

  13. Raise the axle into position and install new bolts and nuts.
    • Tighten to 66 Nm (49 lb-ft).
  14. Connect the vent hose to the differential housing vent tube.

    15. All vehicles

  15. Lower the engine and remove the special tools.

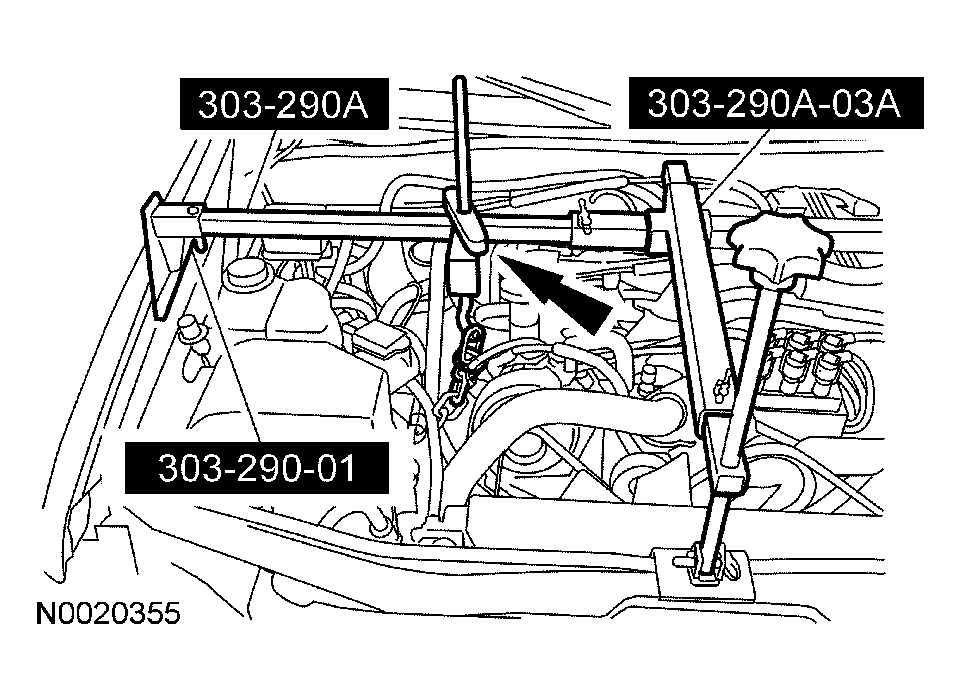

    Fig 7: Removing Special Tools
    G03947081Courtesy of FORD MOTOR CO.
  16. Install the LH engine support insulator through bolt and nut.
    • Tighten to 103 Nm (76 lb-ft).

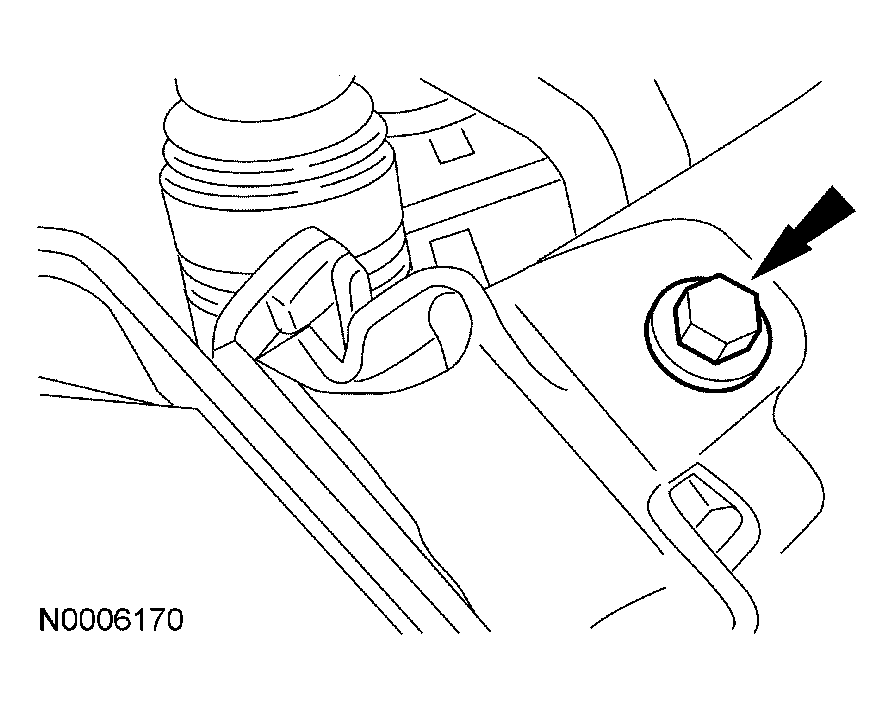

      Fig 8: Installing LH Engine Support Insulator Through Bolt And Nut
      G03947084Courtesy of FORD MOTOR CO.
  17. Install the RH engine support insulator nut.
    • Tighten to 90 Nm (66 lb-ft).

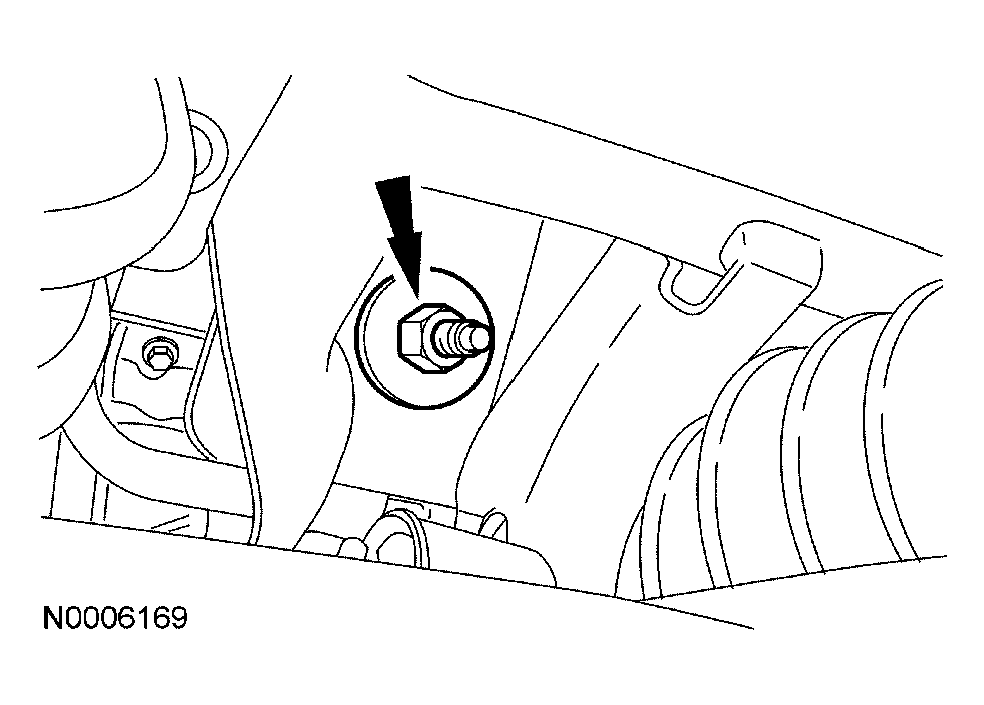

      Fig 9: Installing RH Engine Support Insulator Nut
      G03947083Courtesy of FORD MOTOR CO.

    18. AWD vehicles

  18. Position the crossmember and install the 4 bolts.
    • Tighten to 70 Nm (52 lb-ft).

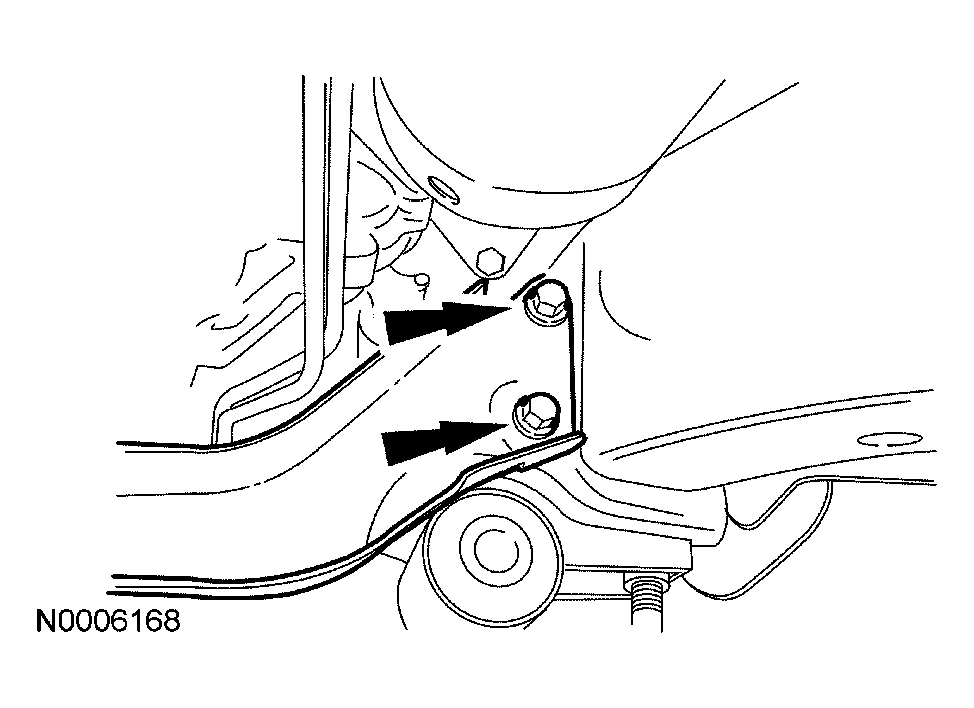

      Fig 10: Installing Bolts
      G03947082Courtesy of FORD MOTOR CO.

    19. All vehicles

  19. Install the pump screen and pickup tube. For additional information, refer to OIL PUMP SCREEN AND PICKUP TUBE .
  20. Install the starter. For additional information, refer to STARTING SYSTEM .
  21. Remove the special tool.

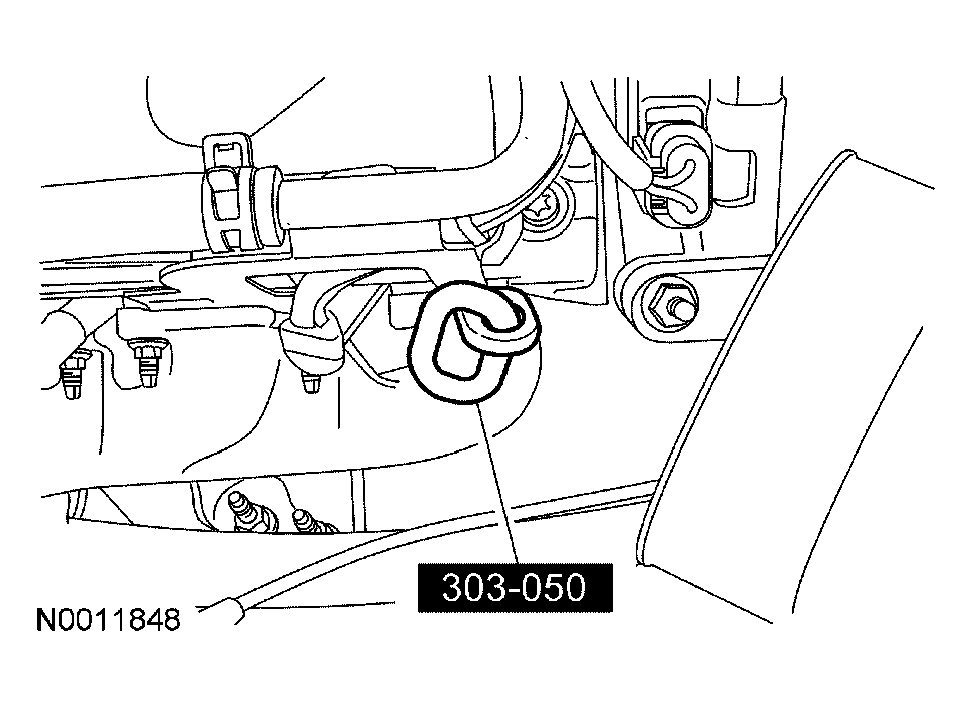

    Fig 11: Removing Special Tool
    G03947080Courtesy of FORD MOTOR CO.
  22. Install the bolt.
    • Tighten to 23 Nm (17 lb-ft).

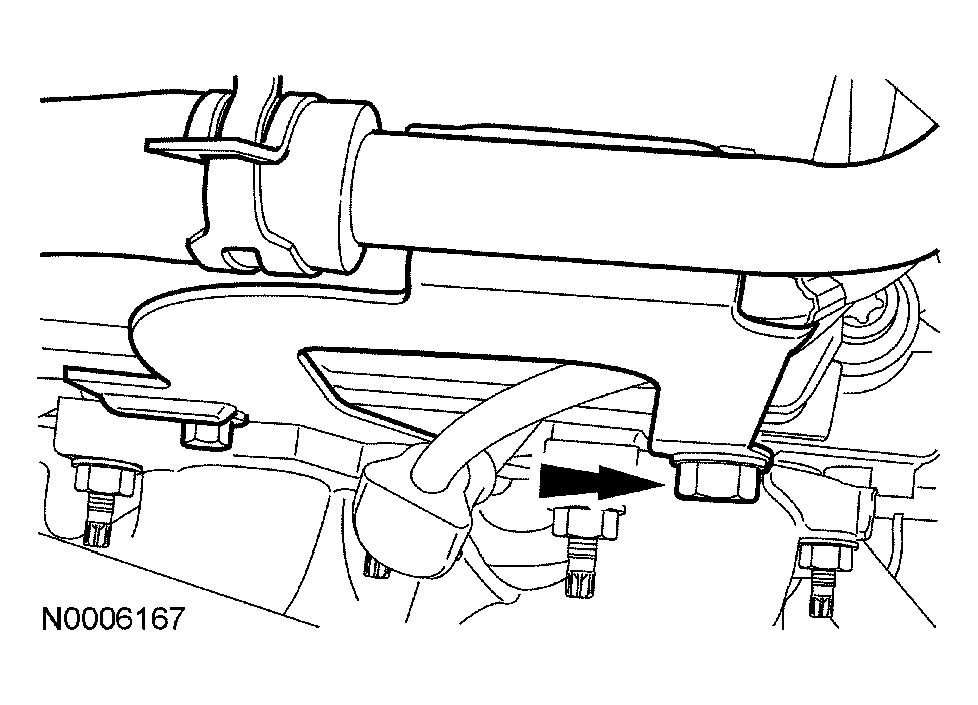

      Fig 12: Installing Bolt
      G03947079Courtesy of FORD MOTOR CO.
  23. Position the upper fan shroud and install the bolts.
    • Tighten to 7 Nm (62 lb-in).

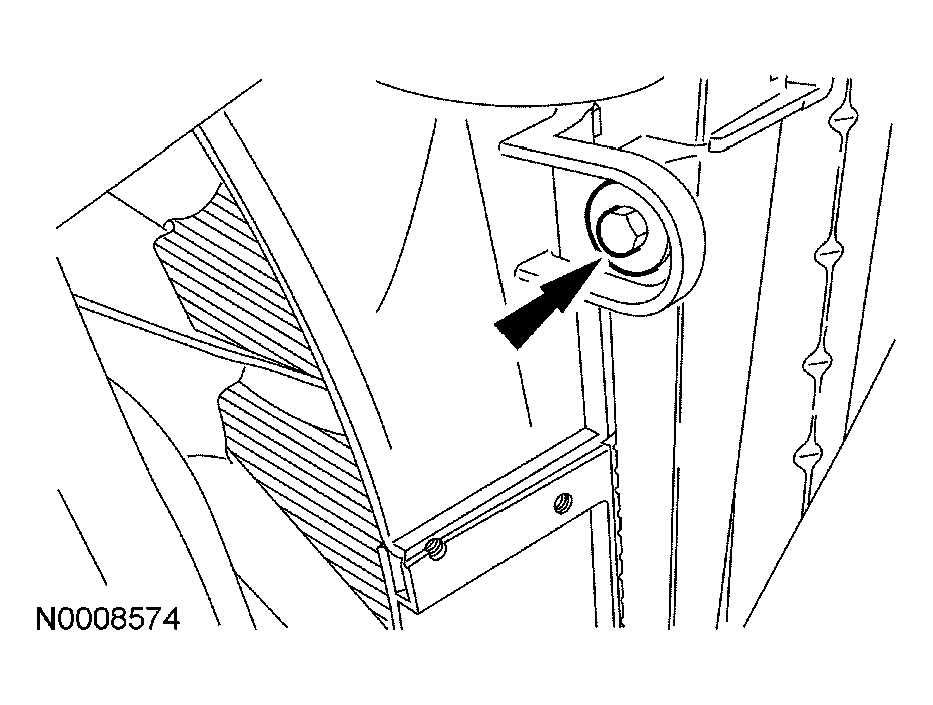

      Fig 13: Positioning Upper Fan Shroud
      G03947099Courtesy of FORD MOTOR CO.
  24. Install the weatherstrip.

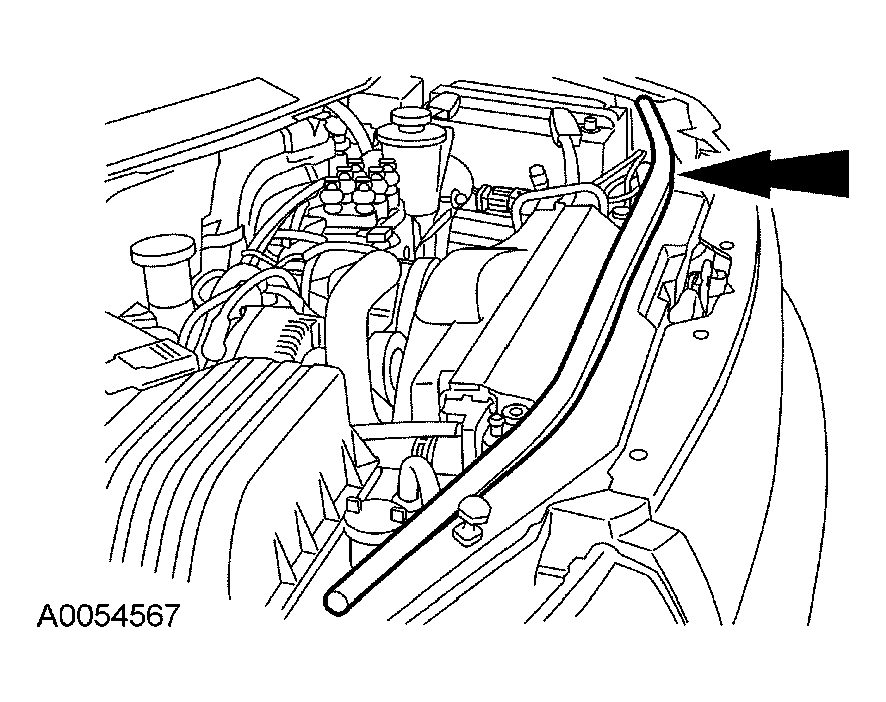

    Fig 14: Installing Weatherstrip
    G03947077Courtesy of FORD MOTOR CO.
  25. Install the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  26. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
