Camshaft Drive Cassette, LH: Notes

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL SPECIFICATIONS

G03983738Courtesy of FORD MOTOR CO.
 Holding Tool, Camshaft Sprocket 303-564 (T97T-6256)
G03913863Courtesy of FORD MOTOR CO.
 Adapter for 303-564 303-578 (T97T-6256-A)
G03983720Courtesy of FORD MOTOR CO.
 Holding Tool, Crankshaft 303-674

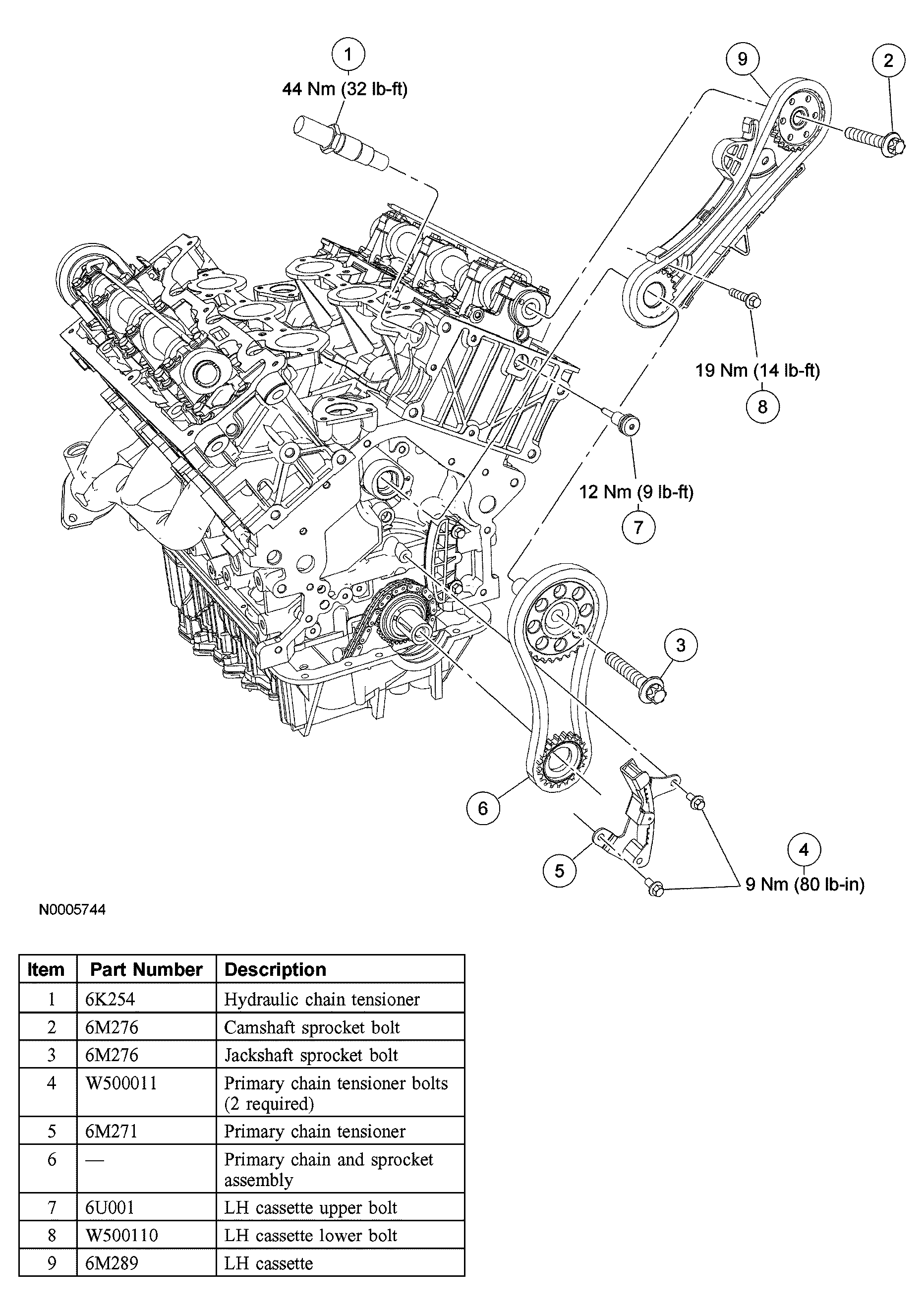

Fig 1: Timing Drive Replacement Components -- Camshaft Drive Cassette - LH With Torque Specifications
G03947029Courtesy of FORD MOTOR CO.
