Camshaft Drive Cassette, LH: Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The camshaft chain sprockets must be oriented correctly.

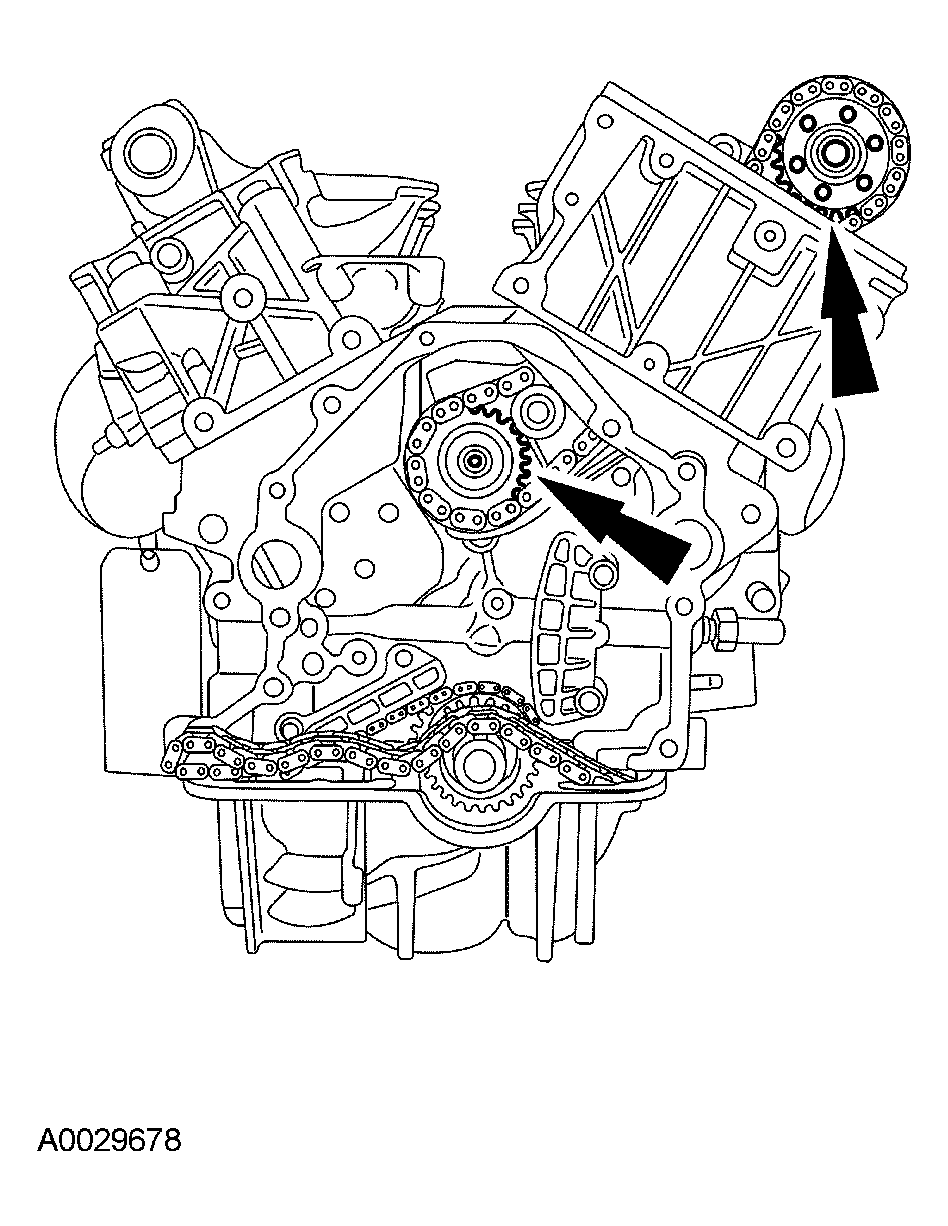

Fig 1: Positioning LH Cassette

Courtesy of FORD MOTOR CO.

Position the LH cassette.
Install the LH cassette lower bolt.
- Tighten to 19 Nm (14 lb-ft).

  Fig 2: Installing LH Cassette Lower Bolt
  Courtesy of FORD MOTOR CO.
Install the LH cassette upper bolt.
- Tighten to 12 Nm (9 lb-ft).

  Fig 3: Identifying LH Cassette Upper Bolt
  Courtesy of FORD MOTOR CO.
Install the primary chain and sprockets as an assembly.

Fig 4: Installing Primary Chain And Sprockets Assembly
Courtesy of FORD MOTOR CO.
Install the primary chain tensioner and the bolts.
- Tighten to 9 Nm (80 lb-in).

  Fig 5: Installing Primary Chain Tensioner And Bolts
  Courtesy of FORD MOTOR CO.
Using the special tool to prevent the crankshaft from turning, tighten the jackshaft sprocket bolt in 2 stages.
- Stage 1: Tighten to 45 Nm (33 lb-ft).
- Stage 2: Tighten an additional 90 degrees.

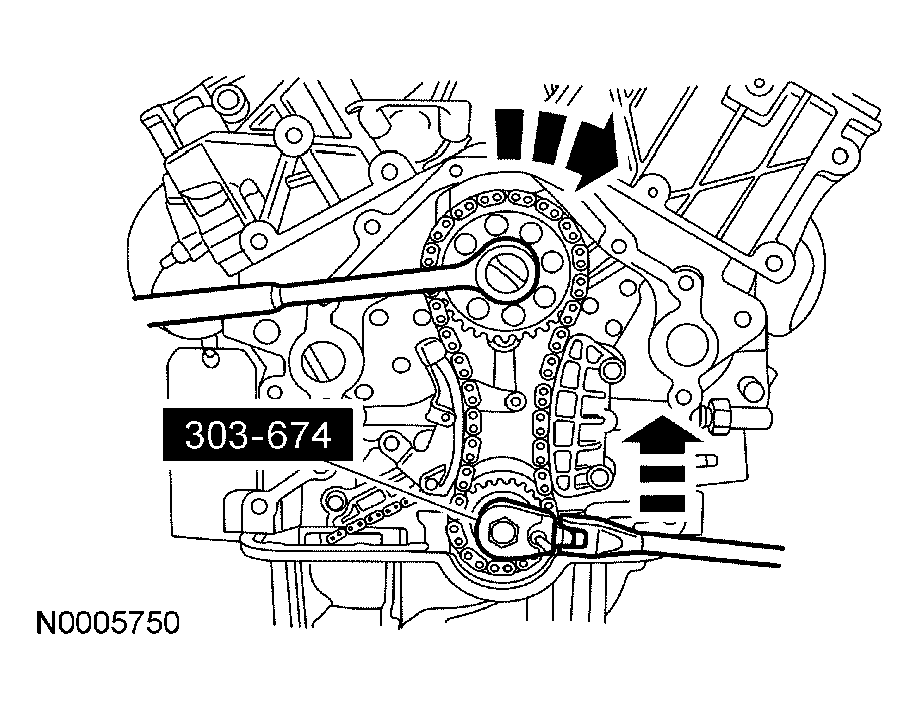

  Fig 6: Tightening Jackshaft Sprocket Bolt In 2 Stages
  Courtesy of FORD MOTOR CO.
Loosely install the camshaft sprocket bolt.

NOTE: You must retime the LH and RH camshafts when either camshaft is disturbed.

NOTE: Install the LH hydraulic chain tensioner during camshaft timing.

Retime the LH and RH camshafts. For additional information, refer to TIMING DRIVE COMPONENTS
Install the camshaft roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
Install the thermostat housing. For additional information, refer to ENGINE COOLING .
Install the engine front cover. For additional information, refer to ENGINE FRONT COVER .
Install the fuel rail. For additional information, refer to FUEL CHARGING AND CONTROLS - 4.0L SOHC .
Install the valve covers. For additional information, refer to VALVE COVER - RH and VALVE COVER - LH .
