Drive Pinion Flange and Seal: Notes

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS SPECIFICATIONS

G03878572
 Holding Fixture, Drive Pinion Flange
205-126 (T78P-4851-A)
G03878581
 2-Jaw Puller
205-D072 (D97L-4221-A) or equivalent
G03944581
 Remover, Torque Converter Fluid Seal
307-309 (T94P-77001-BH)
G03912945
 Installer, Drive Pinion Oil Seal
205-133 (T79P-4676-A)
G03960387
 Installer, Drive Pinion Flange
205-209 (T83T-4851-A)
MATERIAL SPECIFICATIONS

Item Specification
SAE 80W-90 Premium Rear Axle Lubricant XL-80W90-KL WSP-M2C197-A
Threadlock and Sealer TA-25 WSK-M2G351-A5

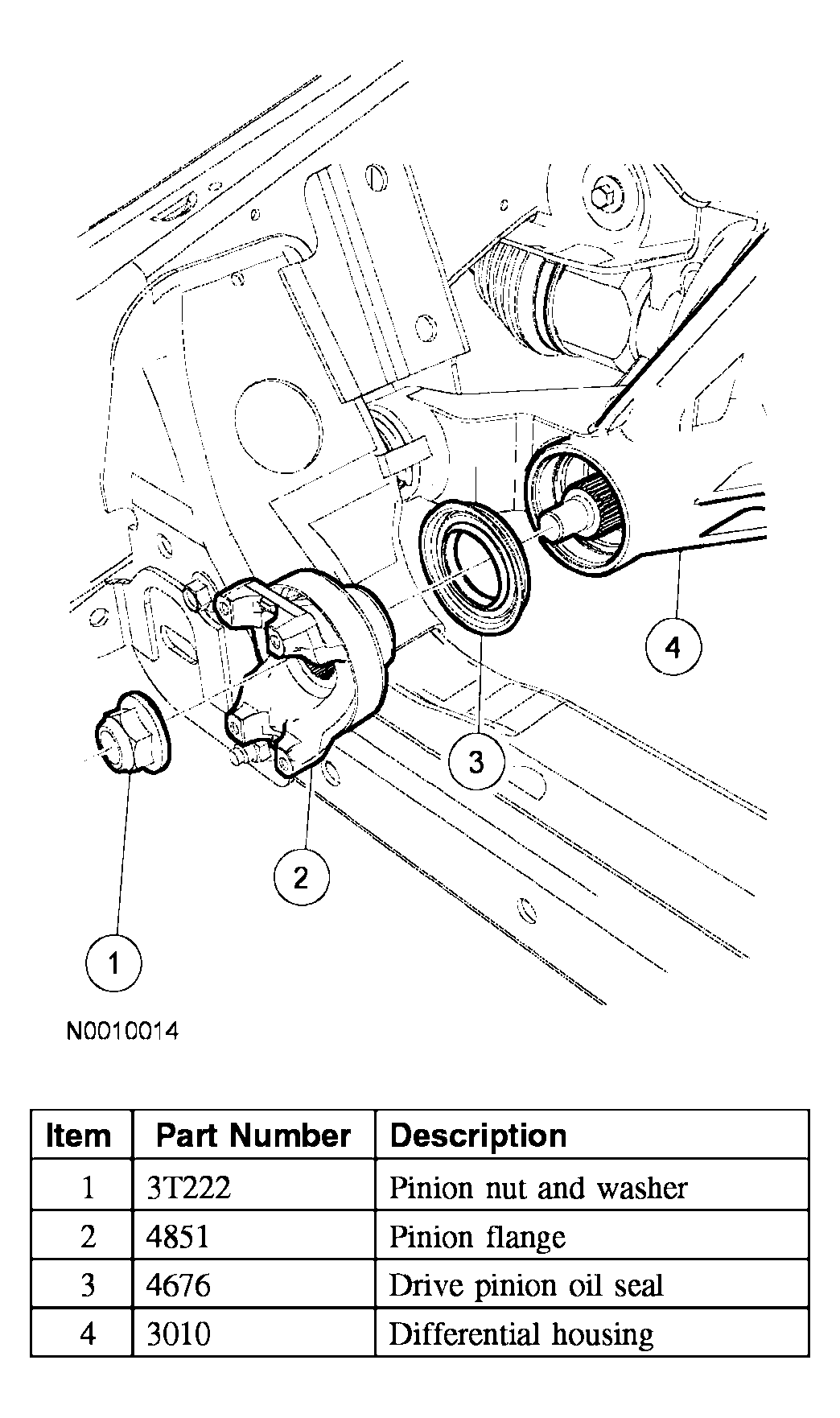

Fig 1: Identifying Drive Pinion Flange And Seal
G03944372Courtesy of FORD MOTOR CO.
