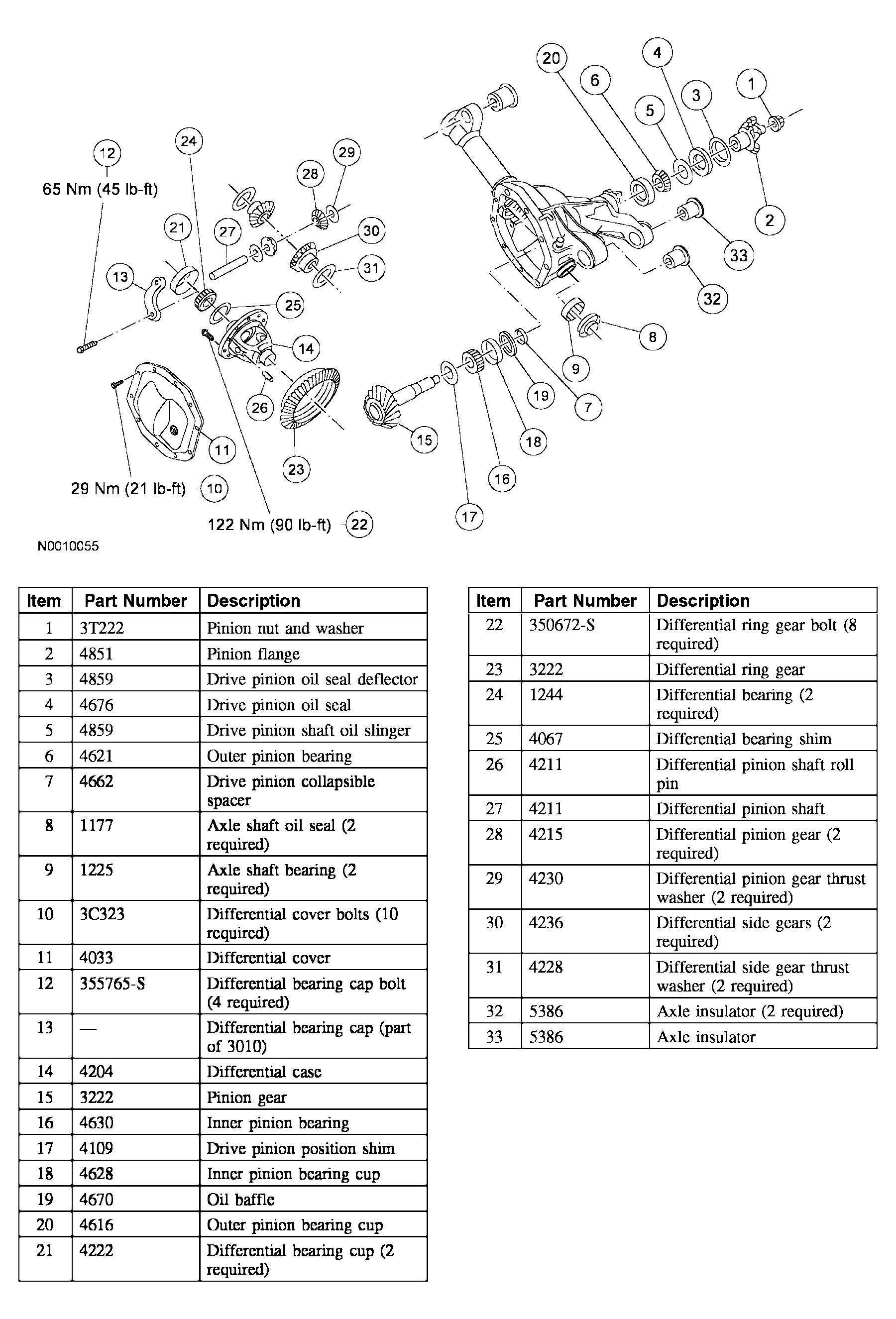

Disassembly And Assembly: Axle: Notes
WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS SPECIFICATIONS
| Remover, Torque Converter Fluid Seal 307-309 (T94P-77001-BH) |
|
| Remover, Bearing Cup 308-047 (T77F-1102-A) |
|
| Adapter for 205-001 205-001-01 | |
| Holding Fixture, Transmission 307-003 (T57L-500-B) |
|
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) |
|
| Gauge, Clutch Housing 308-021 (T75L-4201-A) |
|
| Spreader, Differential Carrier 205-001 (TOOL-4000-E) |
|
| Puller, Drive Pinion/Differential Carrier 205-D036 (D81L-4220-A) |
|
| Holding Fixture, Drive Pinion Flange 205-126 (T78P-4851-A) |
|
| 2-Jaw Puller 205-D072 (D97L-4221-A) or equivalent |
|
| Remover, Bearing 205-055 (T71P-4621-B) |
|
| Installer, Drive Pinion Bearing Cup 205-014 (T60K-4616-A) |
|
| Installer, Drive Pinion Bearing Cup 205-054 (T71P-4616-A) |
|
| Drawbar, Rear Axle 205-098 (T75T-1176-A) |
|
| Adapter for 205-S127 205-110 (T76P-4020-A10) | |
| Gauge Disc (0.4782 inch) 205-D029 (D80T-4020-F44) |
|
| Adapter for 205-S127 205-093 (T75P-4020-A2) | |
| Adapter for 205-S127 205-109 (T76P-4020-A9) | |
| Adapter for 205-S127 205-111 (T76P-4020-A11) | |
| Gauge Tube (2.892 inch) 205-D034 (D80T-4020-F49) or equivalent |
|
| Installer, Drive Pinion Bearing Cone 205-005 (T53T-4621-C) |
|
| Installer, Drive Pinion Oil Seal 205-133 (T79P-4676-A) |
|
| Installer, Drive Pinion Flange 205-209 (T83T-4851-A) |
|
| Gauge, Differential Dummy Bearing 205-247 (T86T-4222-AH) |
|
| Installer, Front Axle Bearing 205-345 (T95T-1175-B) |
|
| Adapter for 303-224 (Handle) 205-153 (T80T-4000-W) |
|
| Installer, Front Axle Bearing 205-347 (T95T-1175-D) |
|
| Installer, Front Axle Oil Seal 205-350 (T95T-3010-A) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| SAE 80W-90 Premium Rear Axle Lubricant XL-80W90-KL |
WSP-M2C197-A |
| Silicone Gasket and Sealant F7AZ-19554-EA |
WSE-M4G323-A4 |
