Drive Pinion Flange and Drive Pinion Seal: Installation

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. If removed, lubricate the lips of the new drive pinion seal.
    • Use long-life grease.
    2. CAUTION: If the drive pinion seal becomes misaligned during installation, remove the drive pinion seal and install a new drive pinion seal.
    NOTE: Always install a new drive pinion seal when removed.
    Fig 1: Installing Drive Pinion Seal
    G03944164Courtesy of FORD MOTOR CO.
  2. If the drive pinion seal was removed, use the special tool to install a new drive pinion seal.
  3. Inspect the pinion flange seal journal for rust, nicks and scratches prior to installing the pinion flange. Polish the seal journal with fine crocus cloth, if necessary.
  4. Lubricate the pinion flange splines.
    • Use long-life grease.
    5. NOTE: Disregard the index marks if installing a new pinion flange.
    Fig 2: Identifying Index-Mark On Pinion Flange And Drive Pinion Gear
    G03928220Courtesy of FORD MOTOR CO.
  5. Position the pinion flange.
  6. Using the special tools, install the pinion flange.

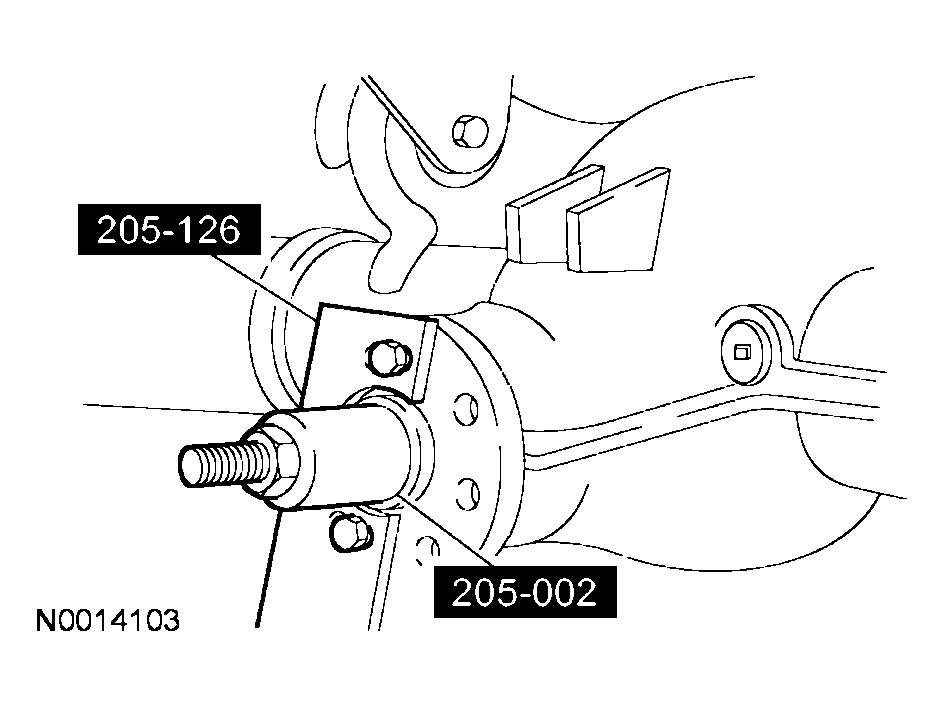

    Fig 3: Installing Pinion Flange
    G03944166Courtesy of FORD MOTOR CO.
    7. CAUTION: Do not under any circumstance loosen the pinion nut to reduce drive pinion bearing preload. If it is necessary to reduce drive pinion bearing preload, install a new differential drive pinion collapsible spacer and pinion nut.
  7. Tighten the pinion nut to set the drive pinion bearing preload.
    • Rotate the drive pinion gear occasionally to make sure the drive pinion bearings seat correctly. Take frequent drive pinion bearing preload readings by rotating the drive pinion gear with a Nm (lb-in) torque wrench.
    • Refer to the TORQUE SPECIFICATION  for used pinion bearings.

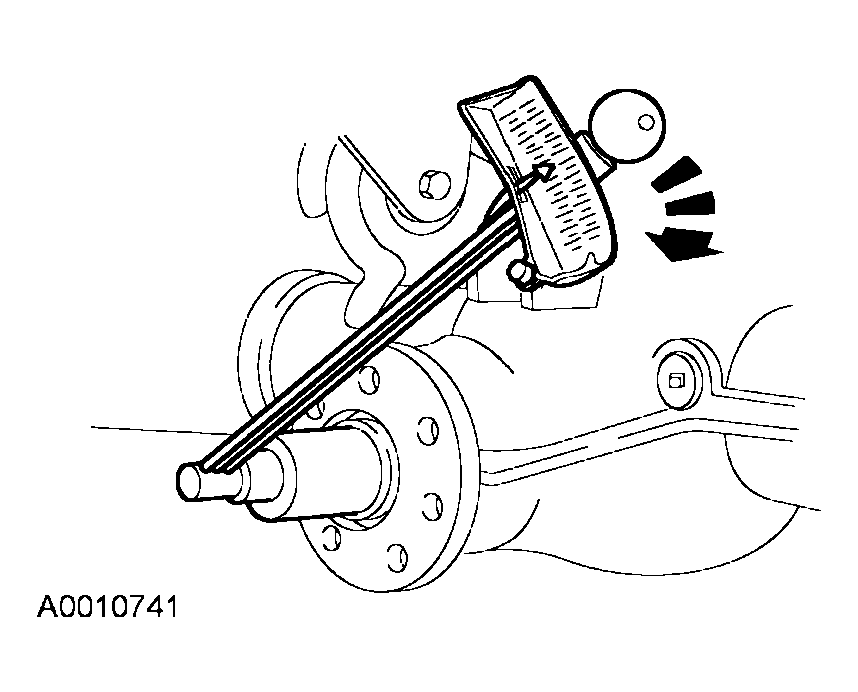

      Fig 4: Checking Drive Pinion Bearing Preload
      G03944159Courtesy of FORD MOTOR CO.
    8. CAUTION: To prevent interference with the rear disc brake caliper operation, install only the correct disc brake caliper bolt.
    NOTE: Make sure the stainless steel shoe slippers are correctly positioned. Install new slippers if worn or damaged.
    NOTE: Use the disc brake pad spreader to spread pads for reassembly.
  8. Install the brake disc caliper, then install the disc brake caliper bolts.
    • Tighten to 32 Nm (24 lb-ft).
      Fig 5: Identifying Disc Brake Caliper And Disc Brake Caliper Bolts
      G03944168Courtesy of FORD MOTOR CO.
    9. CAUTION: The driveshaft centering socket yoke fits tightly on the pinion flange pilot. To make sure that the yoke seats squarely on the pinion flange, tighten the driveshaft flange bolts evenly in a cross-pattern as shown in Fig 6.
    CAUTION: If new driveshaft flange bolts are not available, coat the threads of the original driveshaft flange bolts with threadlock and sealer.
  9. Install the driveshaft, then the driveshaft flange bolts.
    • Tighten to 112 Nm (83 lb-ft).
      Fig 6: Identifying Tightening Sequence Of Driveshaft Flange Bolts
      G03944169Courtesy of FORD MOTOR CO.
  10. Install the rear wheel and tire assemblies. For additional information, refer to WHEELS AND TIRES .
