Axle Shaft Oil Seals: Removal
WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

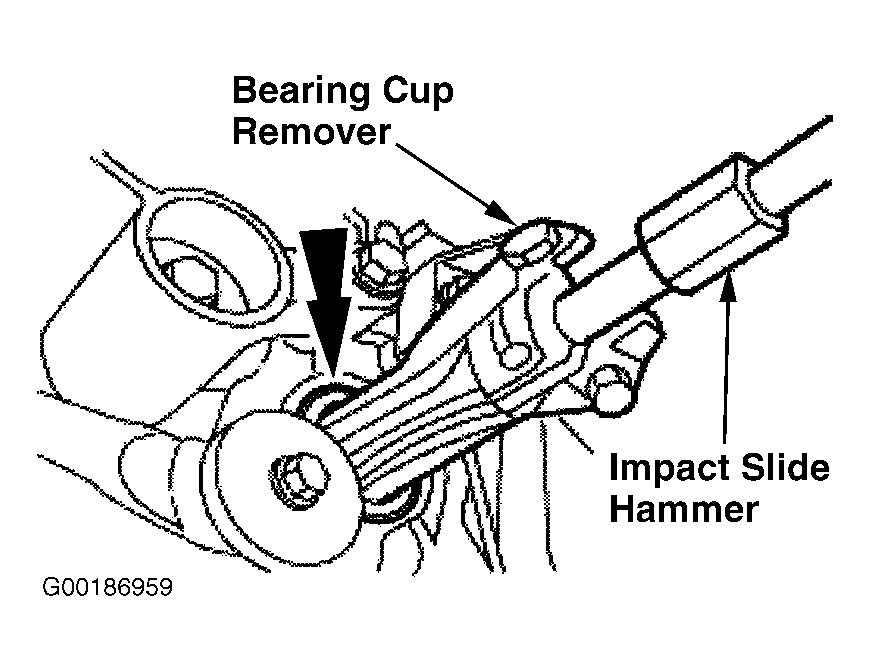

Remove axle shaft. See AXLE SHAFTS . Using Bearing Cup Remover (308-047, T77F-1102-A) and Impact Slide Hammer (100-001, T50T-100-A), remove the axle shaft oil seal. See Fig 1 .
