Rear Disc Brake Shield: Removal

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parking brake shoes. For additional information, refer to PARKING BRAKE AND ACTUATION .
  2. Remove the 3 brake disc shield bolts.
  3. Cut the shield at the perforations and remove the brake disc shield halves.

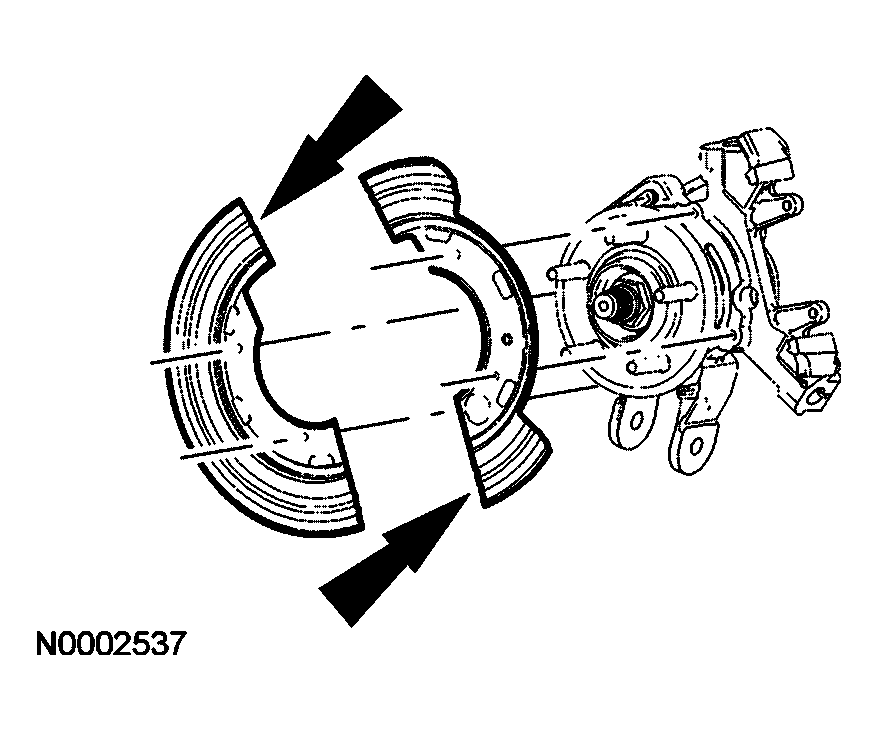

    Fig 1: Removing Brake Disc Shield Halves
    G03944778Courtesy of FORD MOTOR CO.
