Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 3 .

Fig 1: Test B (1 Of 3 - Step B1)

Courtesy of FORD MOTOR CO.

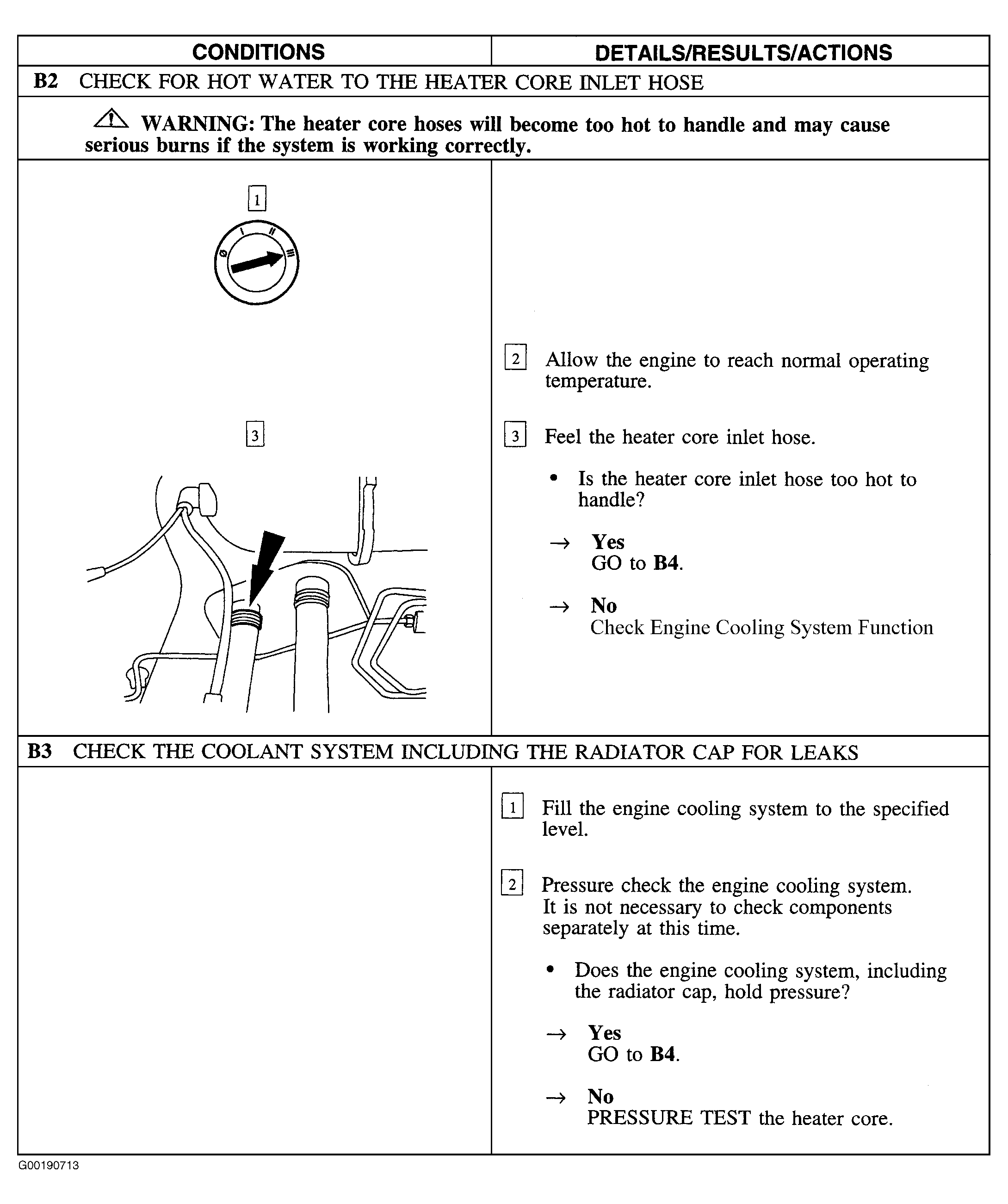

Fig 2: Test B (2 Of 3 - Steps B2-B3)

Courtesy of FORD MOTOR CO.

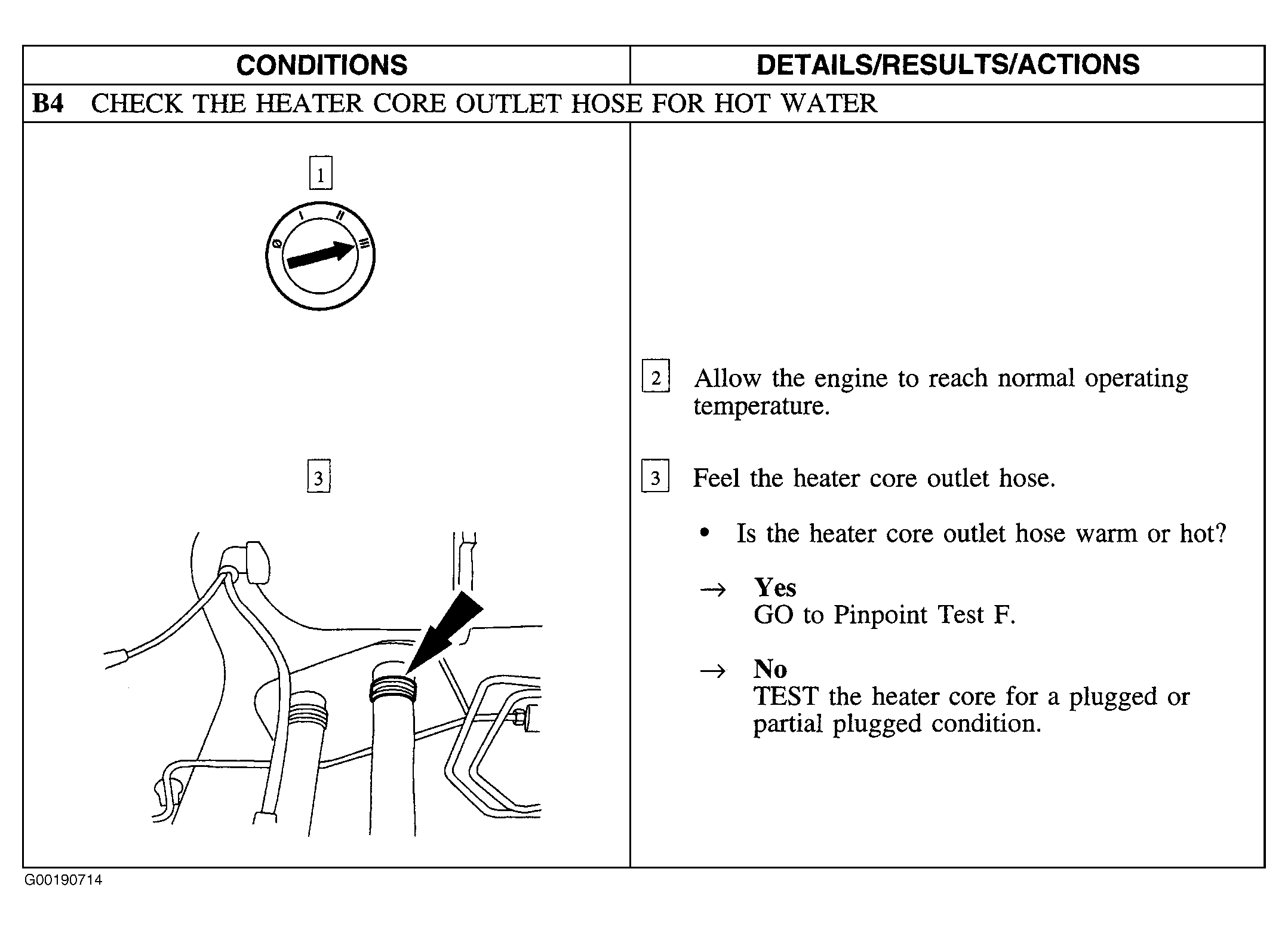

Fig 3: Test B (3 Of 3 - Step B4)

Courtesy of FORD MOTOR CO.
