Temperature Control Switch: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

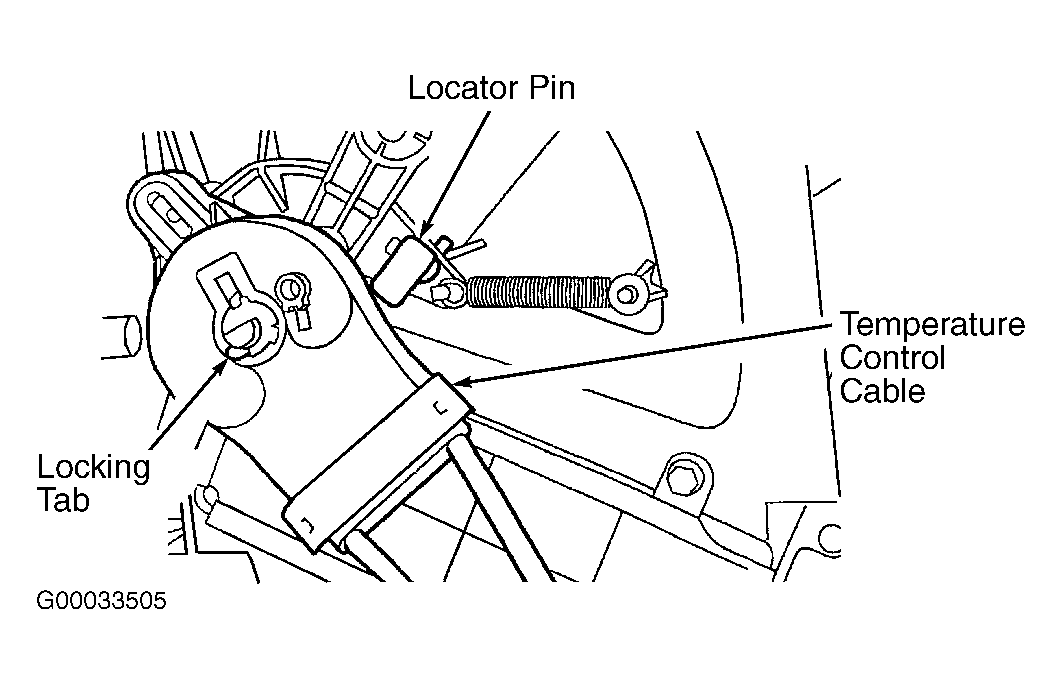

  1. Remove instrument panel center finish panel. See INSTRUMENT PANEL CENTER FINISH PANEL . Remove temperature control switch knob. Align locator holes and insert special tool. Release locking tab. Remove temperature blend door control cable from blend door shaft. See Figure.
  2. Depress three tabs and remove temperature blend door control cable. See Fig 1. Remove screw. See Fig 2. Depress tab and rotate temperature control switch counterclockwise and remove temperature control switch.
Fig 1: Removing & Installing Temperature Blend Door Cable
G00190736Courtesy of FORD MOTOR CO.
Fig 2: Removing & Installing Temperature Control Switch
G00190737Courtesy of FORD MOTOR CO.
