Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

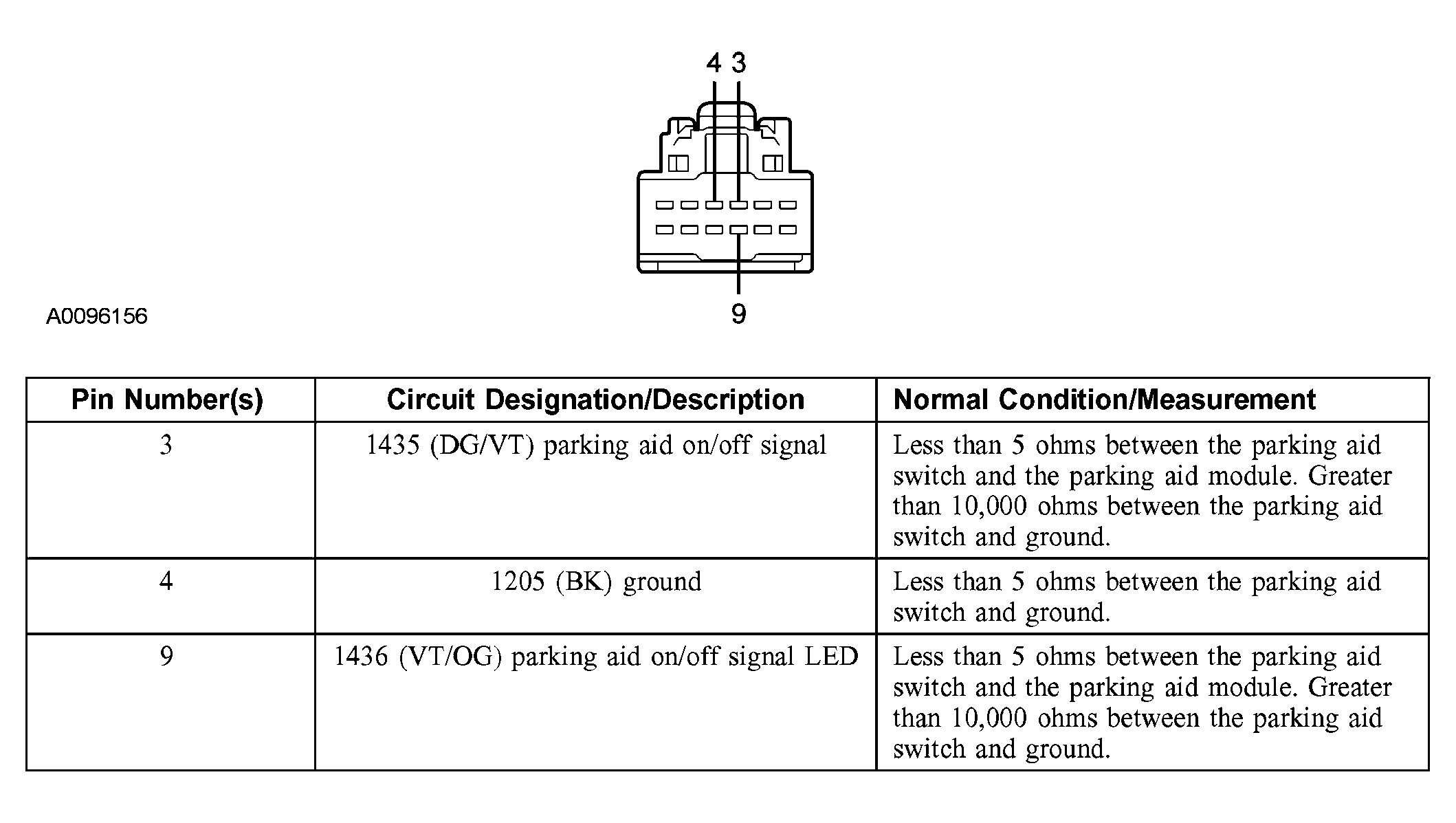

Fig 1: Connector Circuit Reference - Parking Aid Switch C2114

Courtesy of FORD MOTOR CO.

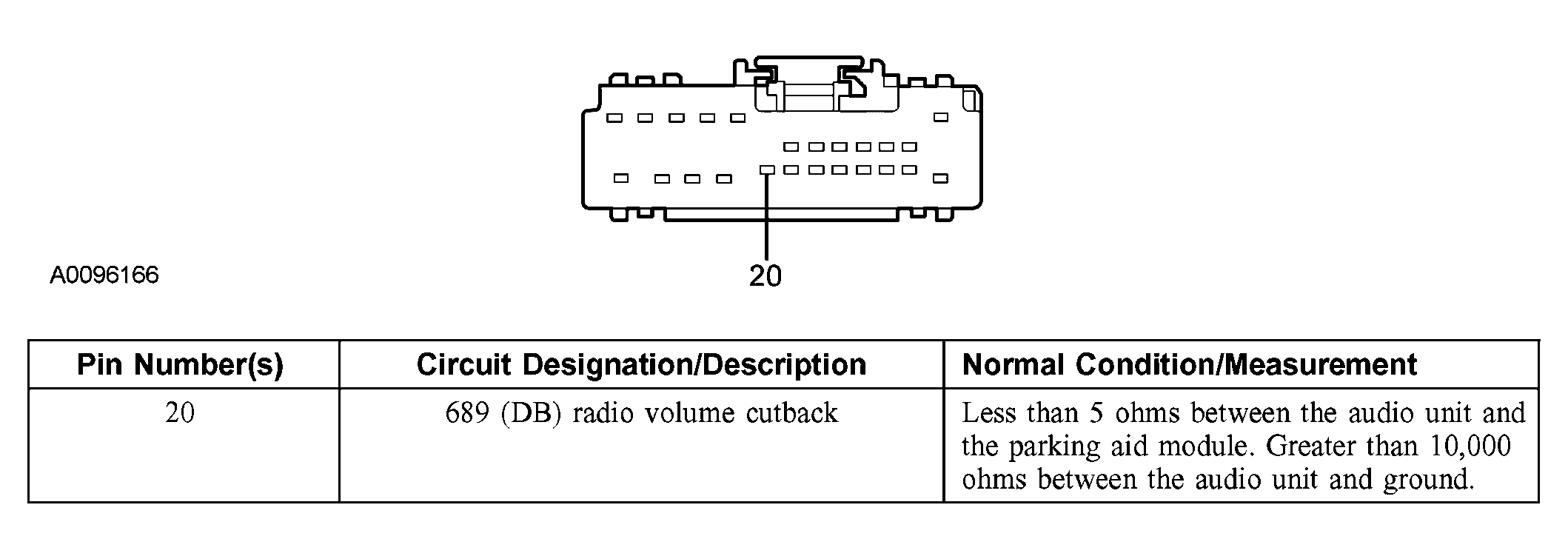

Fig 2: Connector Circuit Reference - Audio Unit C240A

Courtesy of FORD MOTOR CO.

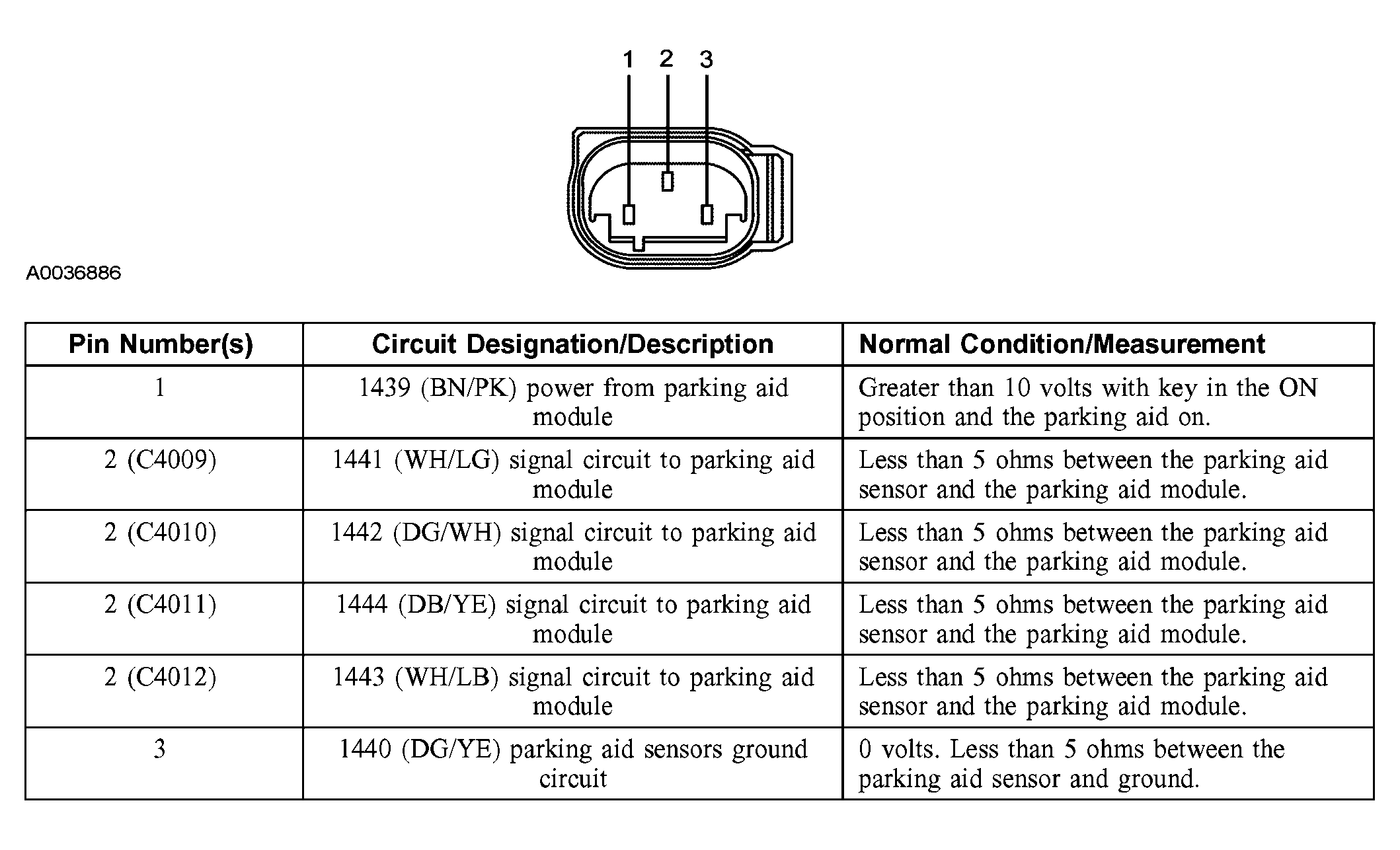

Fig 3: Connector Circuit Reference - Parking Aid Sensor LH Outer C4009

Courtesy of FORD MOTOR CO.

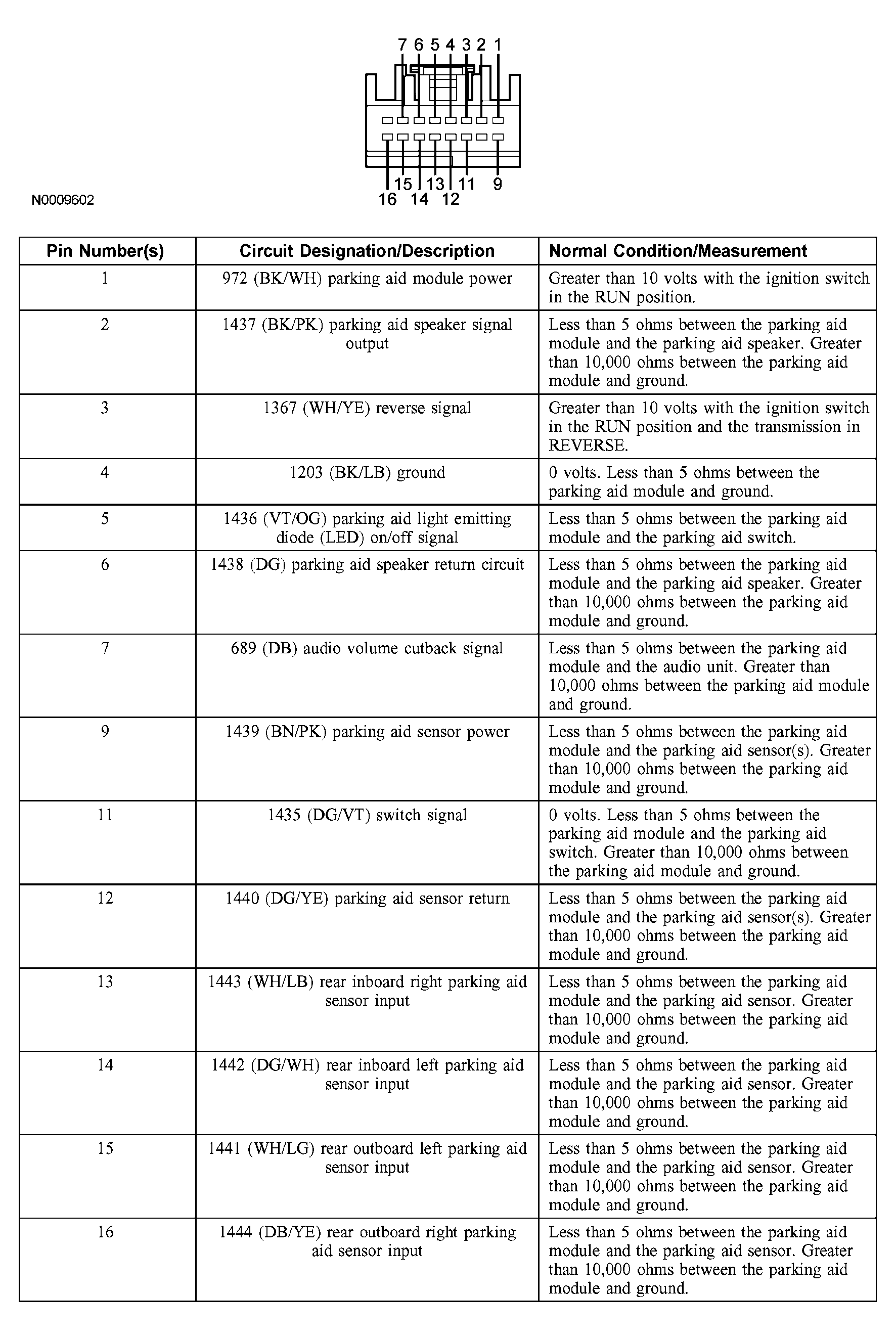

Fig 4: Connector Circuit Reference - Parking Aid Module C3267

Courtesy of FORD MOTOR CO.

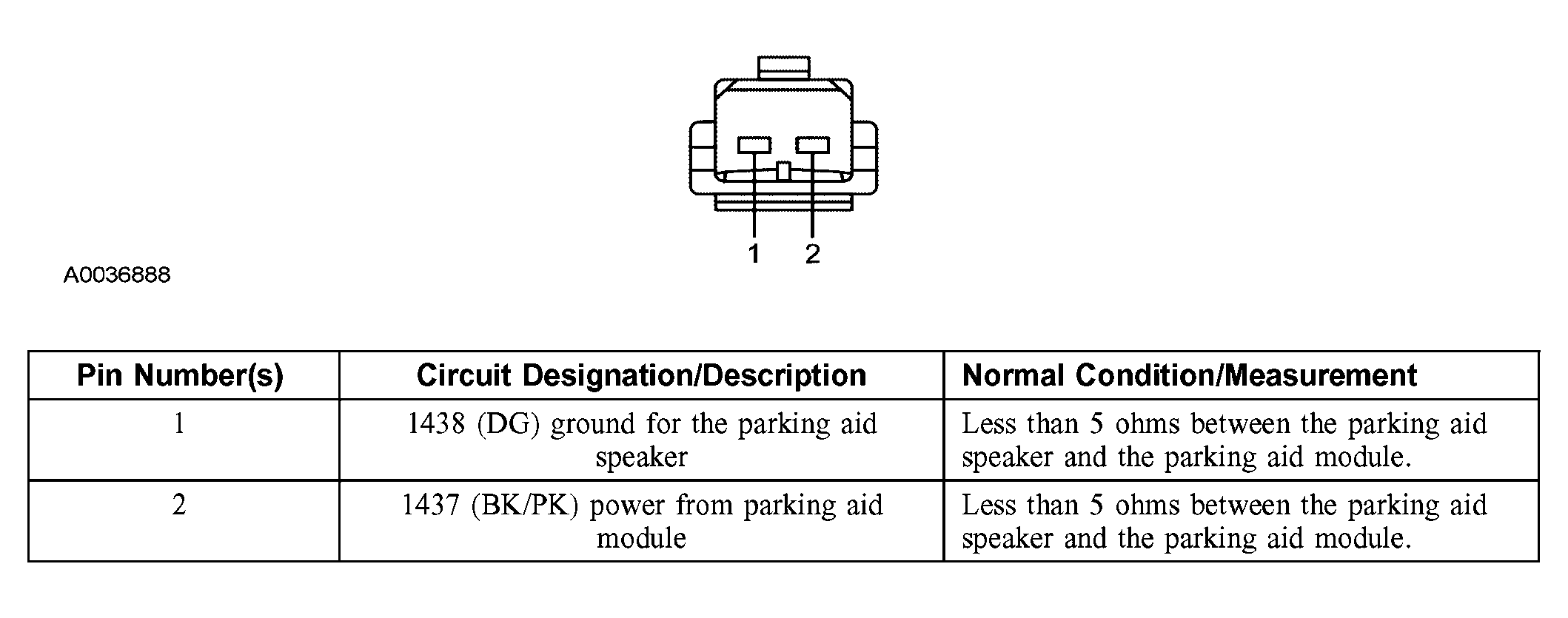

Fig 5: Connector Circuit Reference - Parking Aid Speaker C3268

Courtesy of FORD MOTOR CO.
