Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

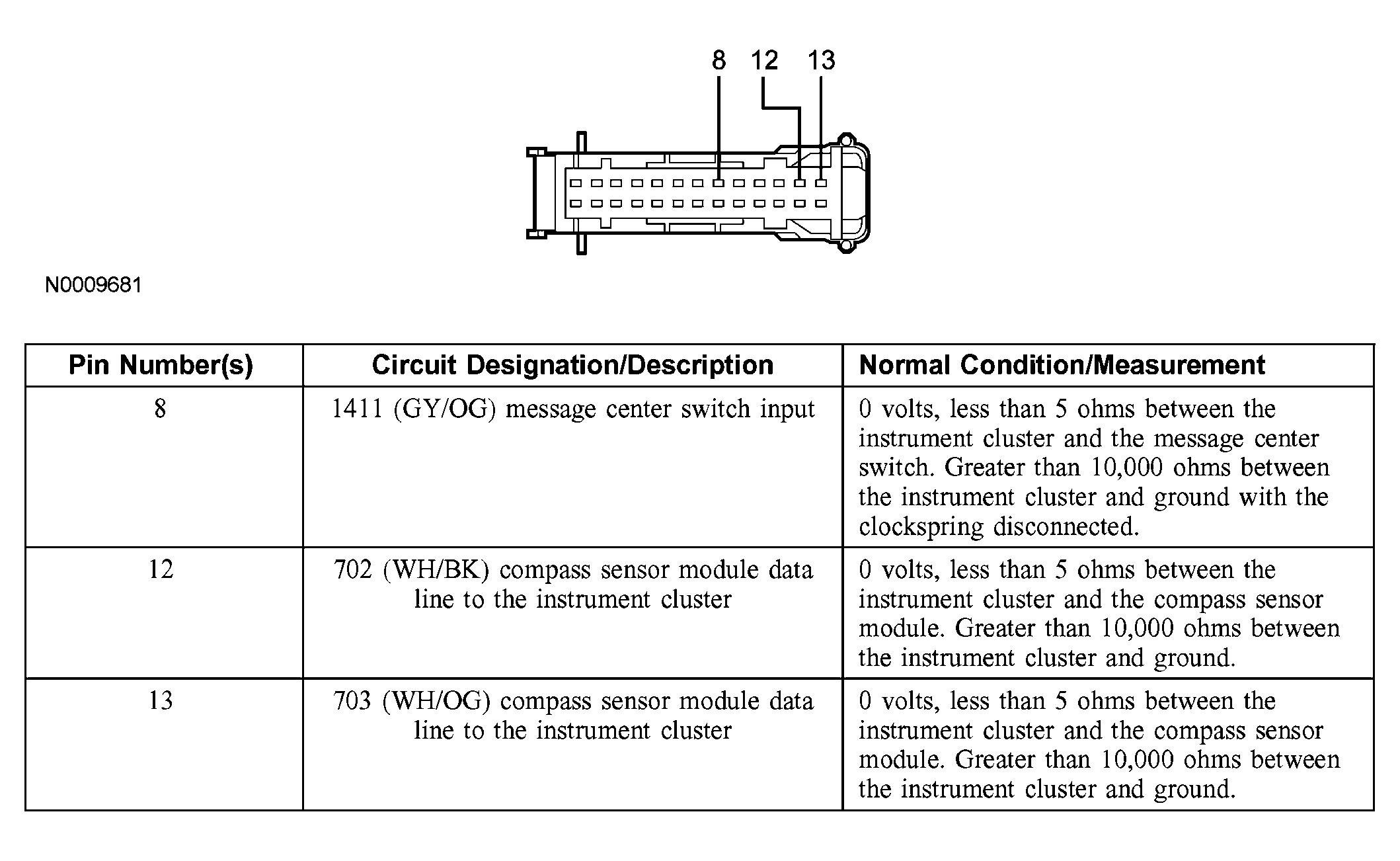

Fig 1: Connector Circuit Reference - Instrument Cluster C220
G03992601Courtesy of FORD MOTOR CO.

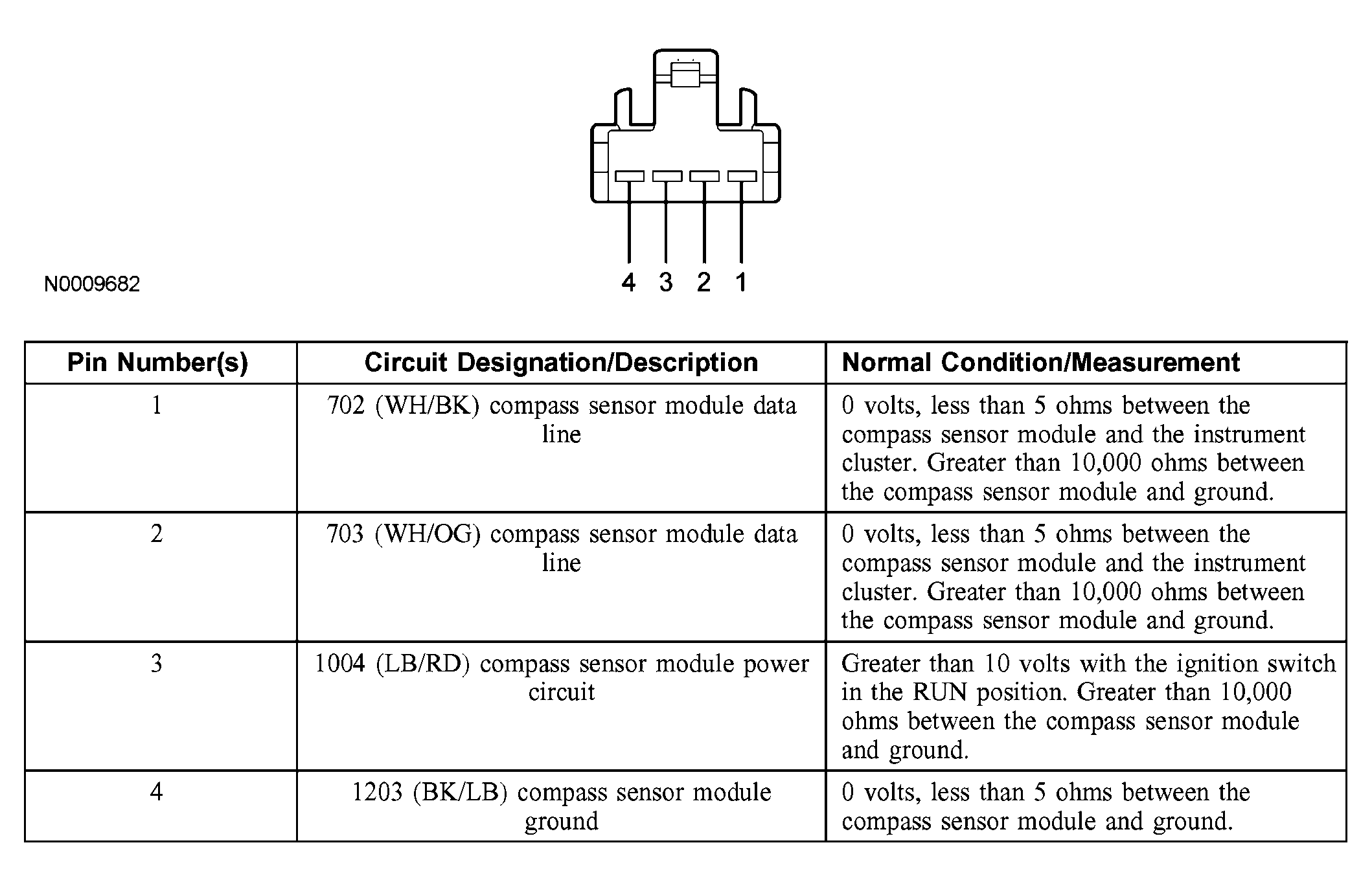

Fig 2: Connector Circuit Reference - Compass Sensor Module C909
G03992602Courtesy of FORD MOTOR CO.

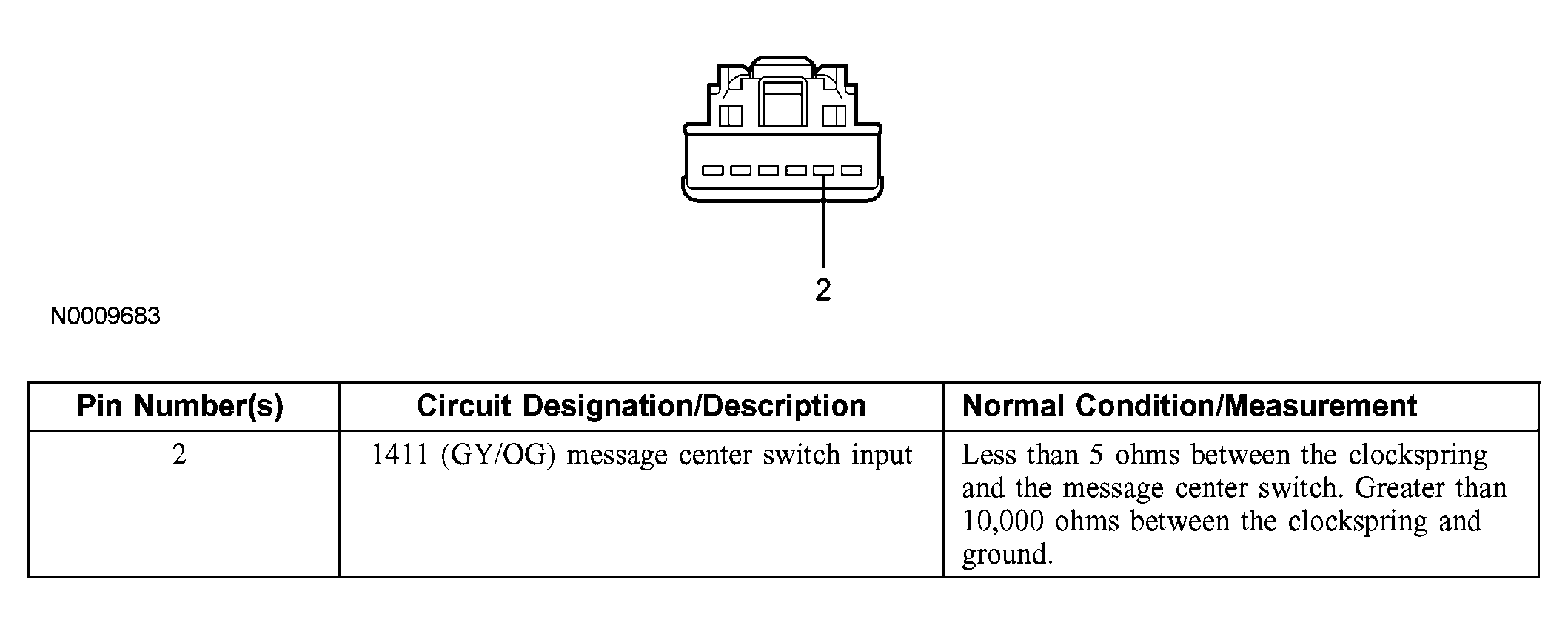

Fig 3: Connector Circuit Reference - Clockspring C2274B
G03992603Courtesy of FORD MOTOR CO.
