Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 5 .

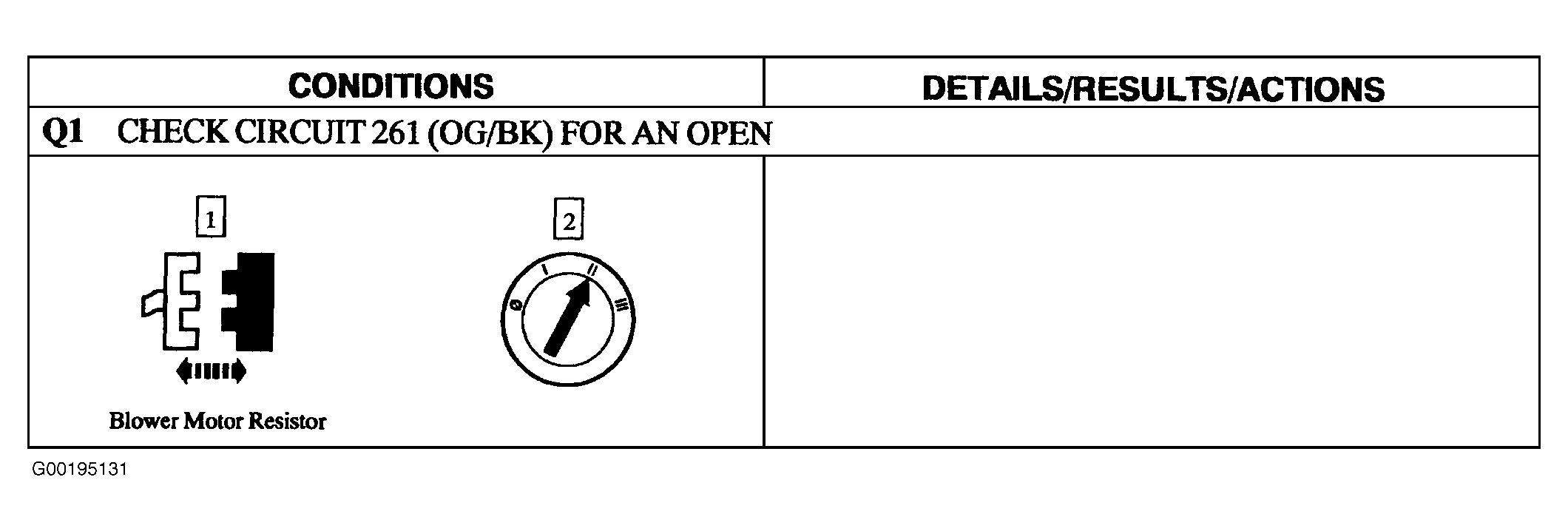

Fig 1: Test Q (1 Of 5 - Step Q1)

Courtesy of FORD MOTOR CO.

Fig 2: Test Q (2 Of 5 - Steps Q1 Cont.-Q2)

Courtesy of FORD MOTOR CO.

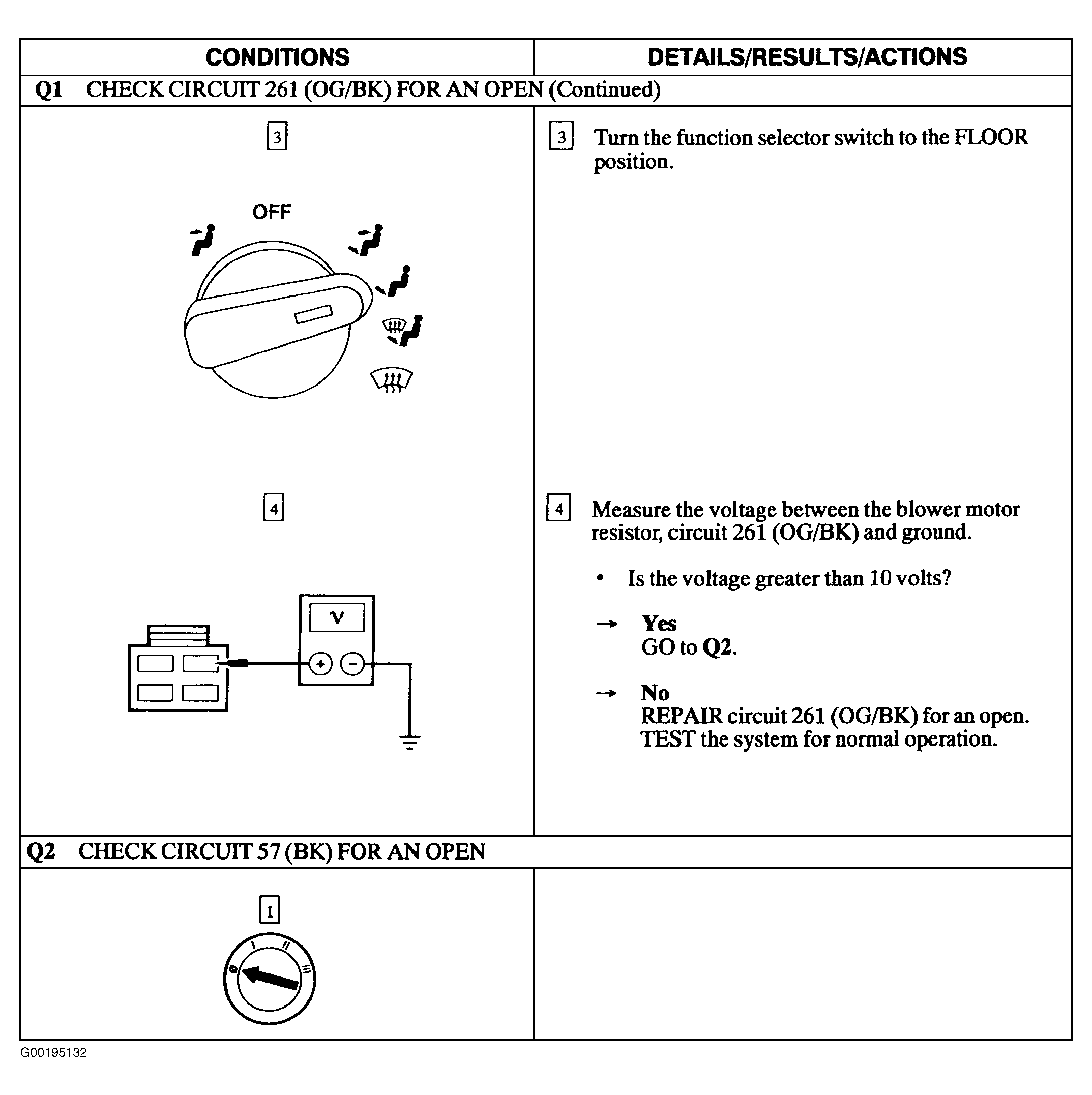

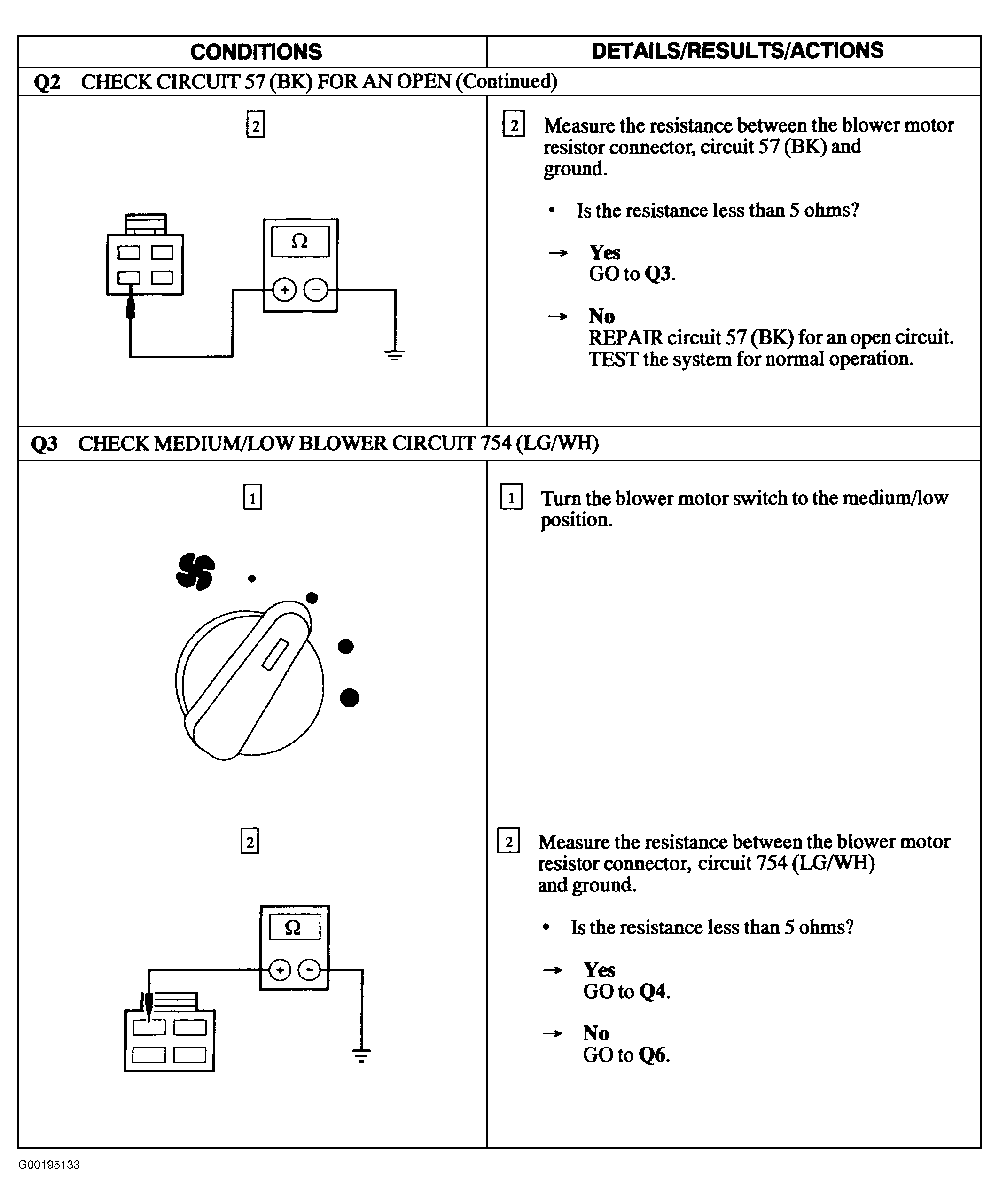

Fig 3: Test Q (3 Of 5 - Steps Q2 Cont.-Q3)

Courtesy of FORD MOTOR CO.

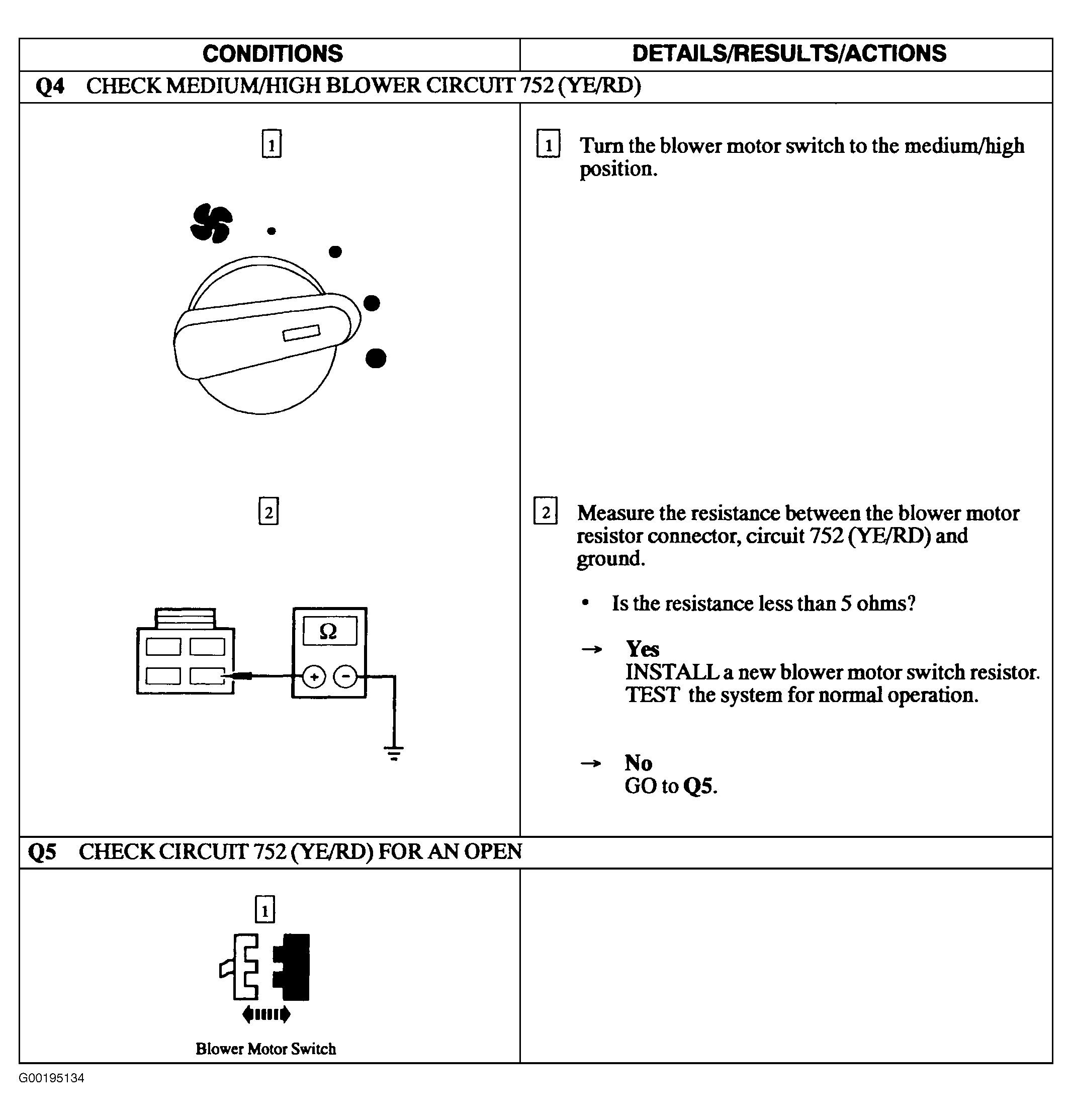

Fig 4: Test Q (4 Of 5 - Steps Q4-Q5)

Courtesy of FORD MOTOR CO.

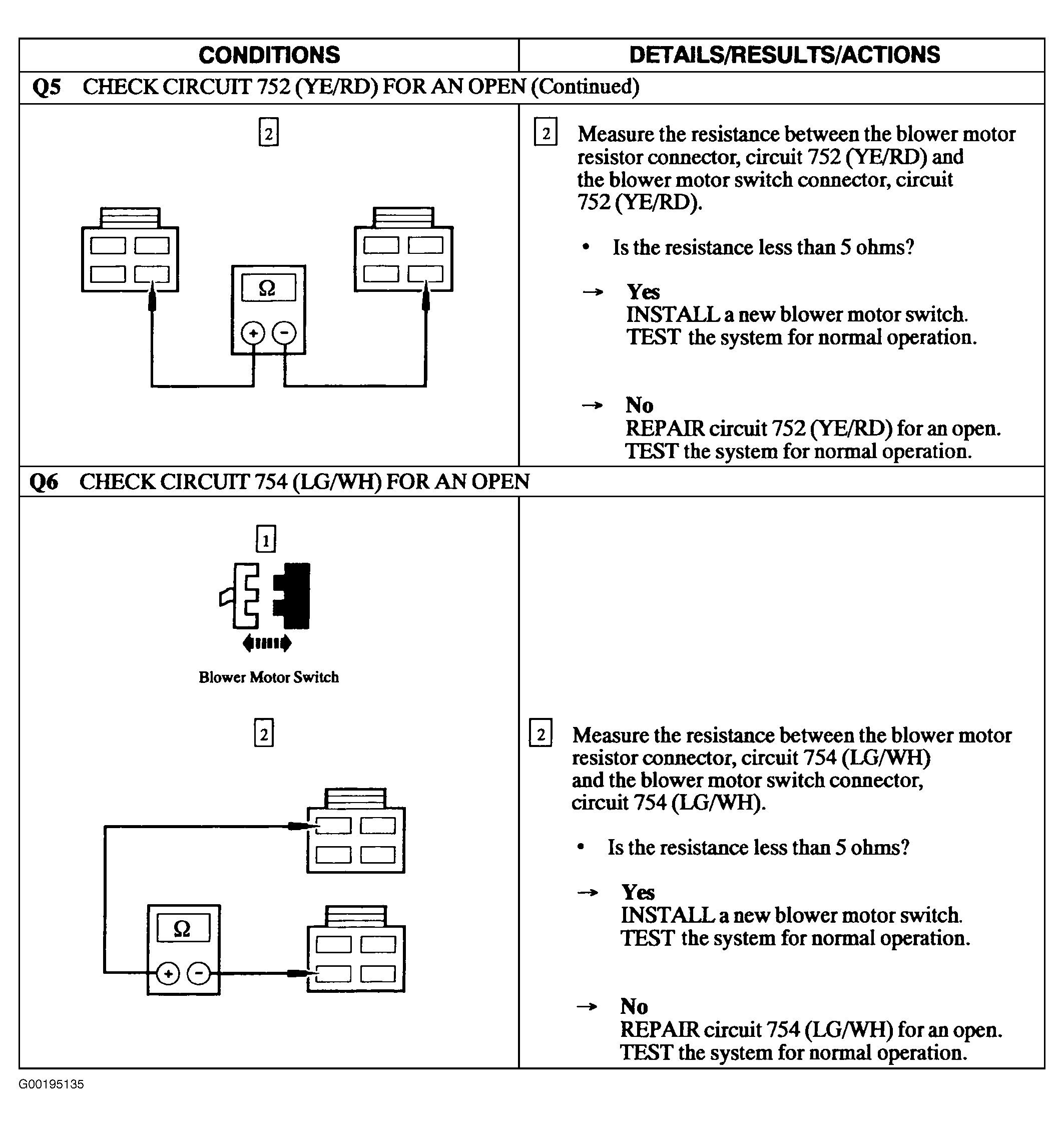

Fig 5: Test Q (5 Of 5 - Steps Q5 Cont.-Q6)

Courtesy of FORD MOTOR CO.
