Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 6 .

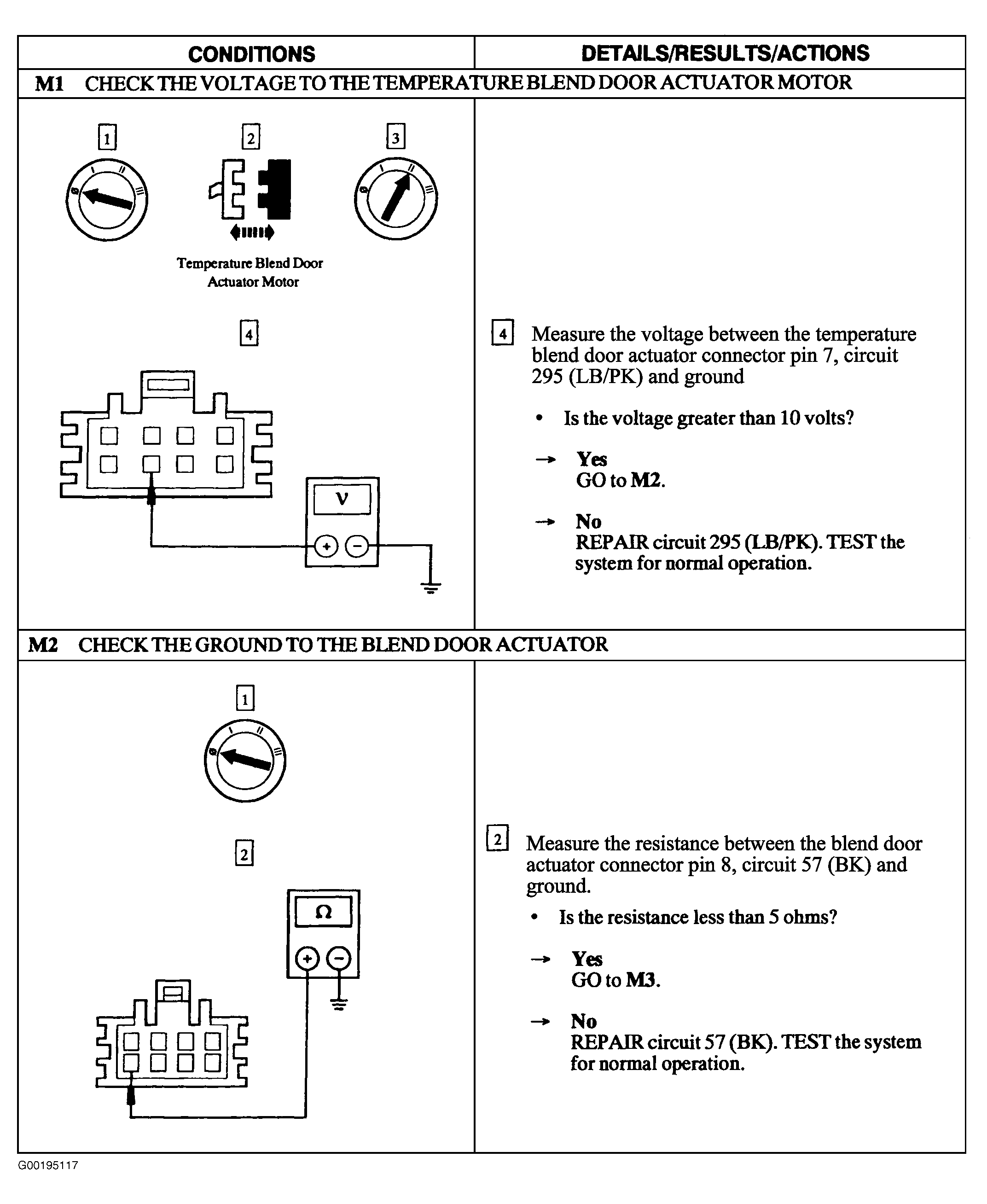

Fig 1: Test M (1 Of 6 - Steps M1-M2)

Courtesy of FORD MOTOR CO.

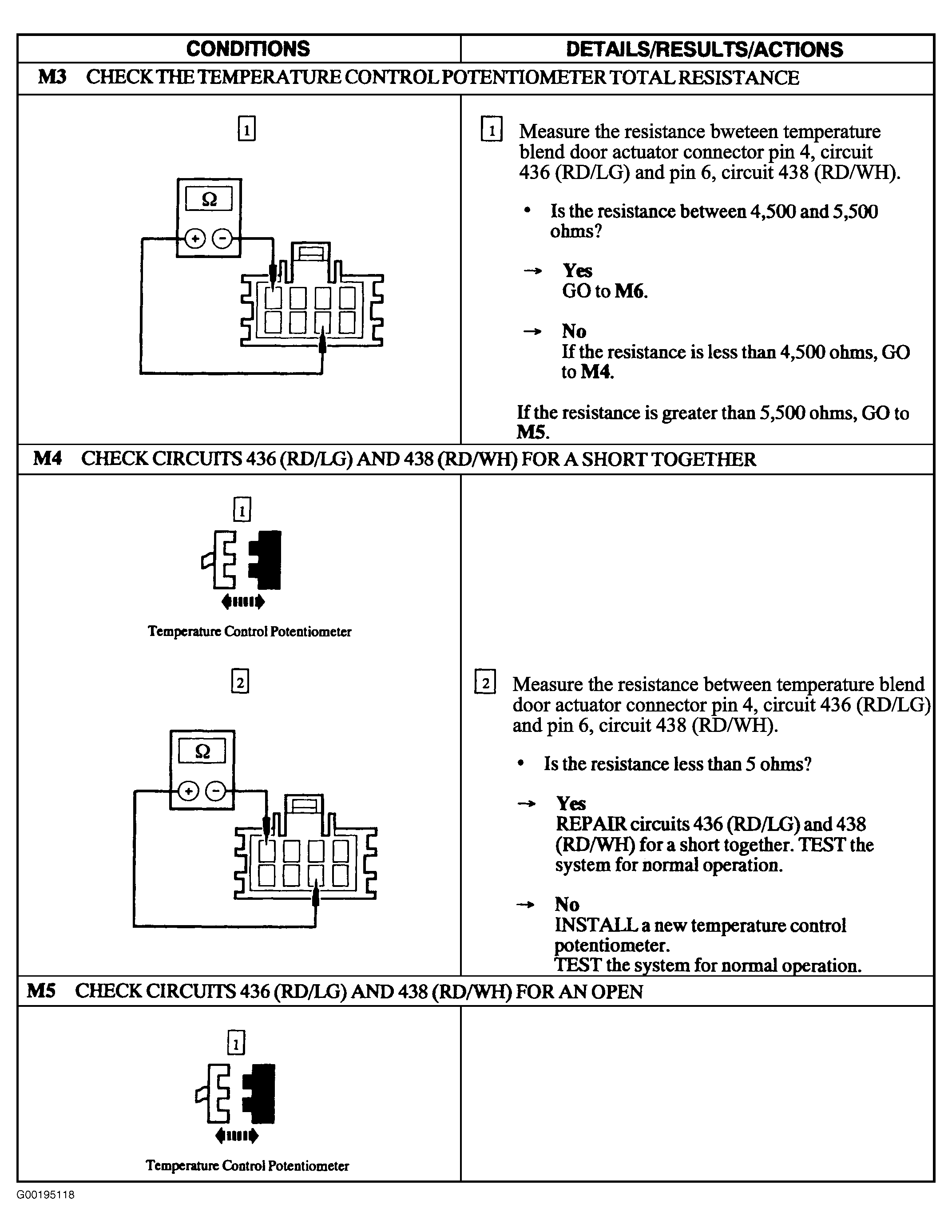

Fig 2: Test M (2 Of 6 - Steps M3-M5)

Courtesy of FORD MOTOR CO.

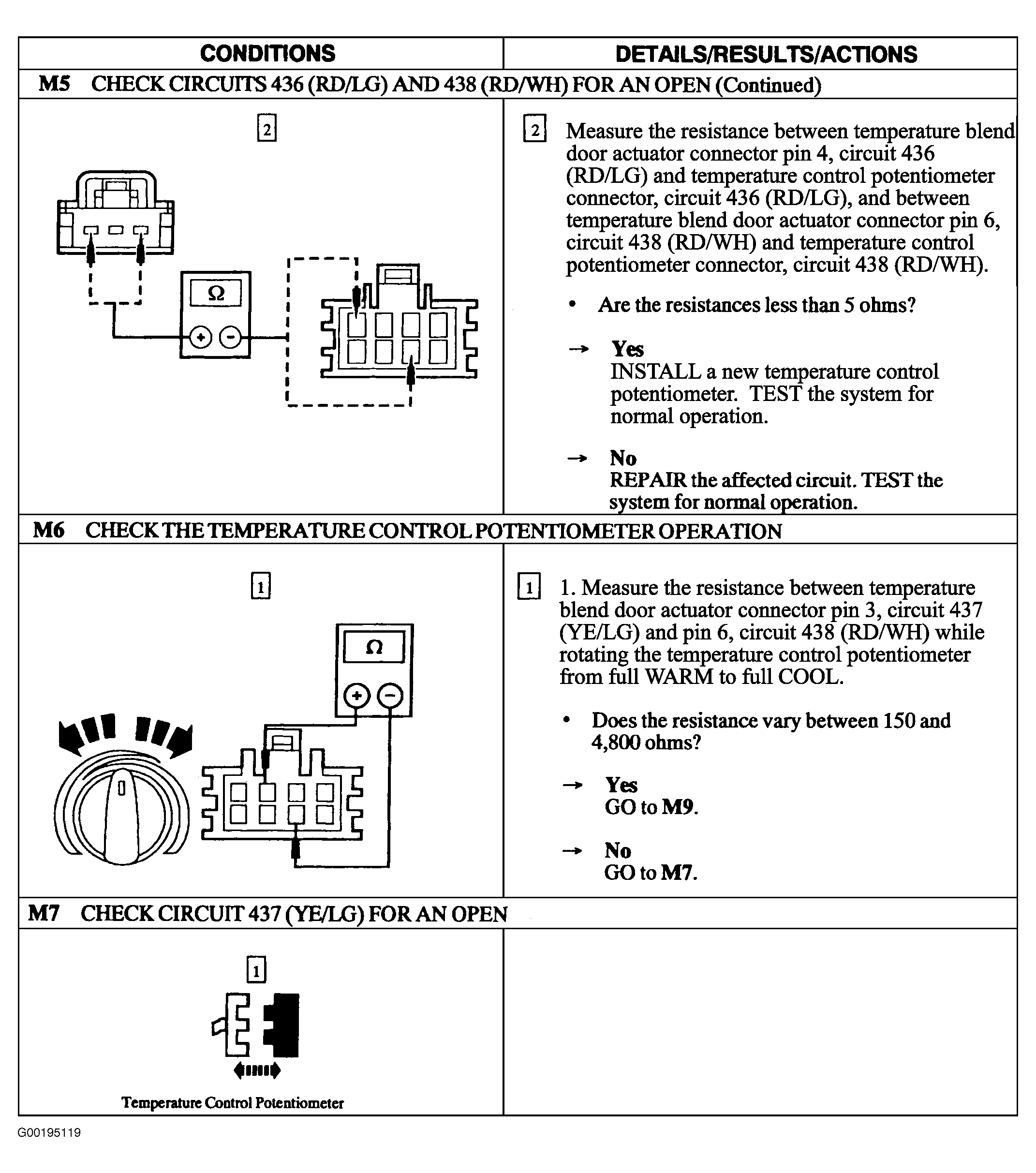

Fig 3: Test M (3 Of 6 - Steps M5 Cont.-M7)

Courtesy of FORD MOTOR CO.

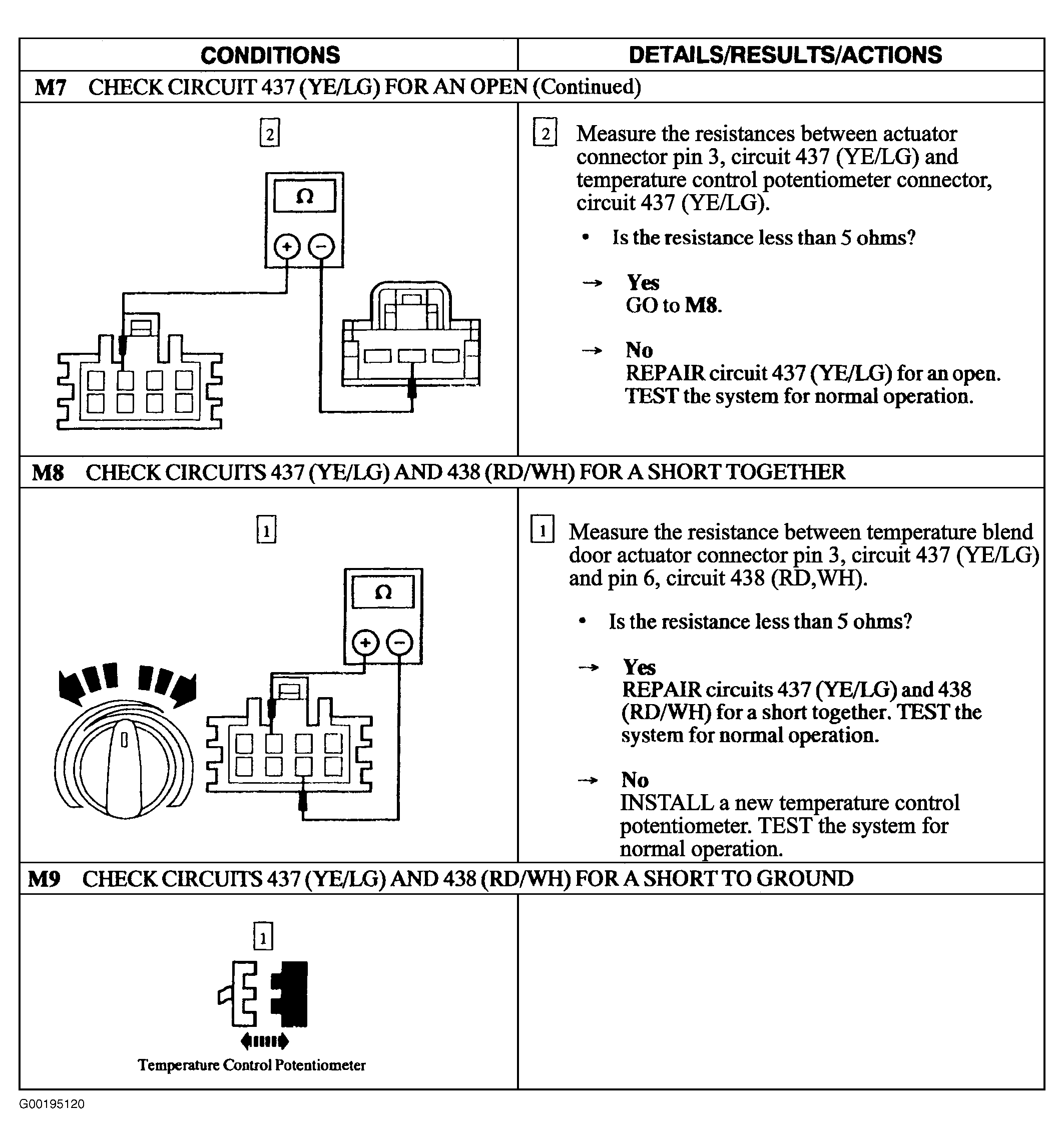

Fig 4: Test M (4 Of 6 - Steps M7 Cont.-M9)

Courtesy of FORD MOTOR CO.

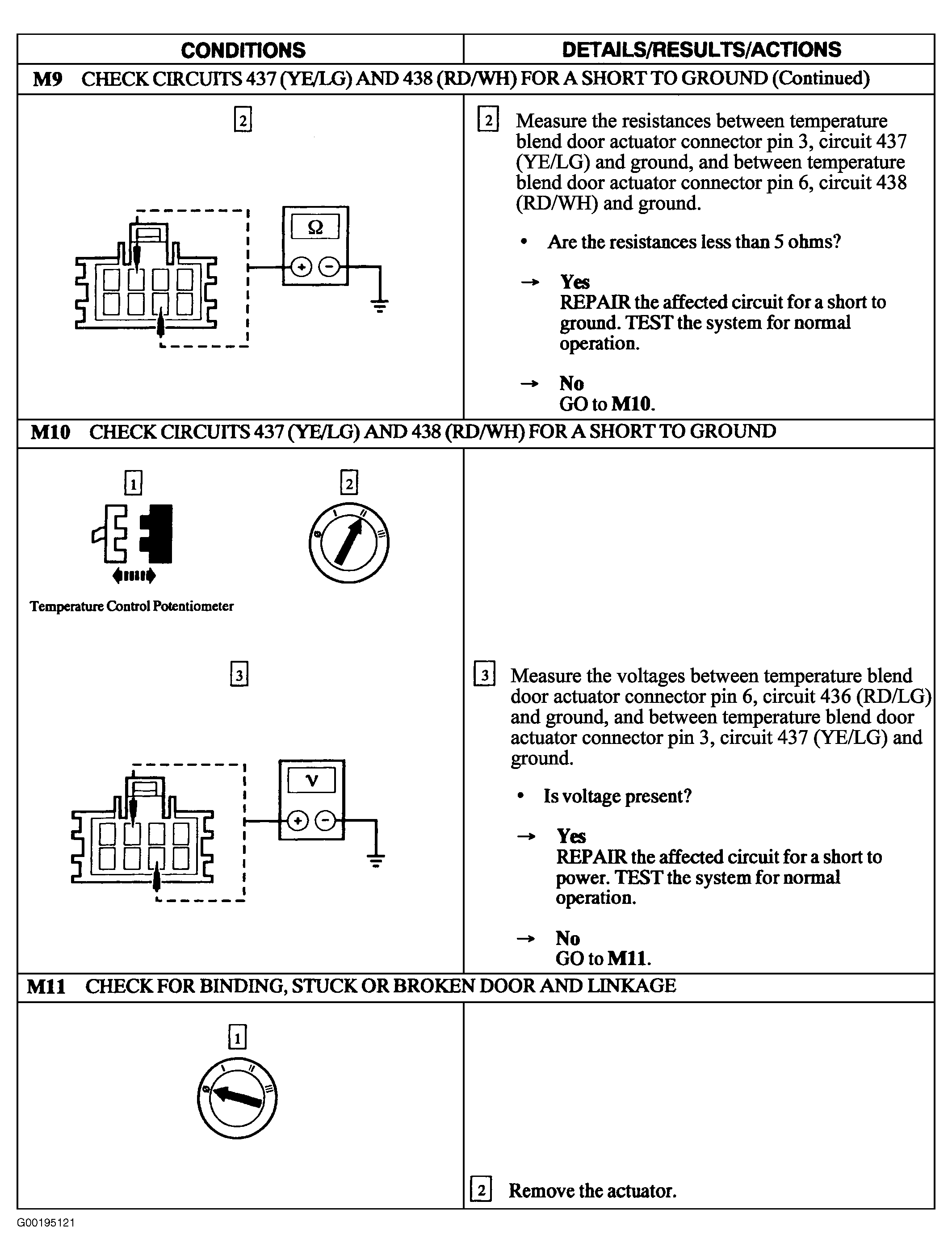

Fig 5: Test M (5 Of 6 - Steps M9 Cont.-M11)

Courtesy of FORD MOTOR CO.

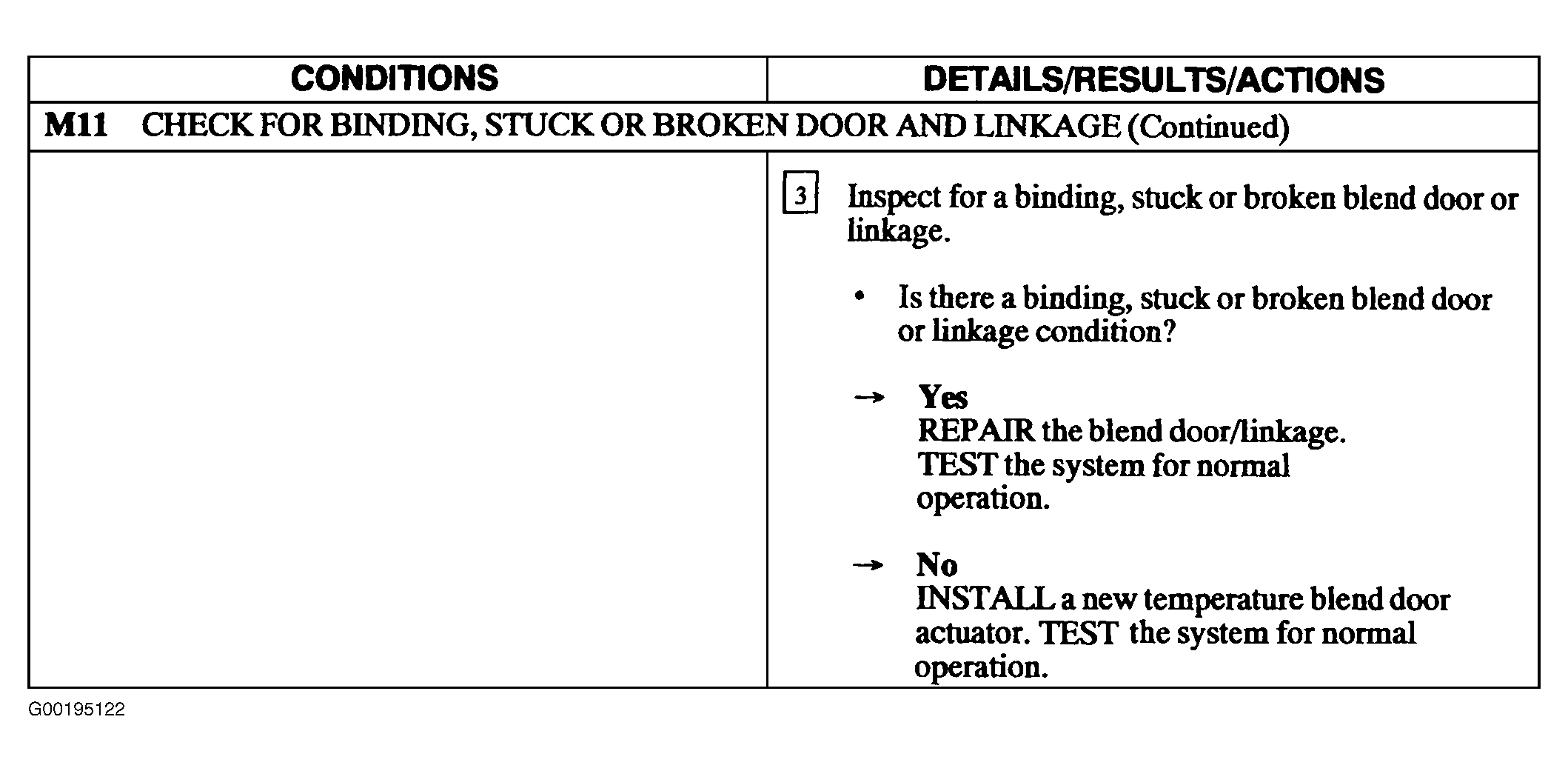

Fig 6: Test M (6 Of 6 - Step M11 Cont.)

Courtesy of FORD MOTOR CO.
