Floor Duct: Removal

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery ground cable and wait at least one minute. Remove floor console. See FLOOR CONSOLE .
  2. Remove pin-type retainers, release expander clip and remove floor duct panel. See Fig 1. Remove nut, bolt and remove right instrument panel brace. See Fig 2. Remove left instrument panel lower nut and position brace aside. See Fig 3.
  3. Disconnect Restraints Control Module (RCM) electrical connector. See Fig 4. Remove bracket retaining bolts. Remove RCM and bracket assembly. See Fig 5.
  4. On vehicles equipped with rear airflow duct, fold back carpet. Cut rear seat airflow duct along both sides. See Fig 6. Fold air duct rearwards. See Fig 7. On all vehicles, remove 2 screws (one each side). Remove floor duct. See Fig 8.
Fig 1: Removing & Installing Floor Duct Panel
G00192274Courtesy of FORD MOTOR CO.
Fig 2: Removing & Installing Right Instrument Panel Brace
G00192275Courtesy of FORD MOTOR CO.
Fig 3: Removing & Installing Left Instrument Panel Brace
G00192276Courtesy of FORD MOTOR CO.

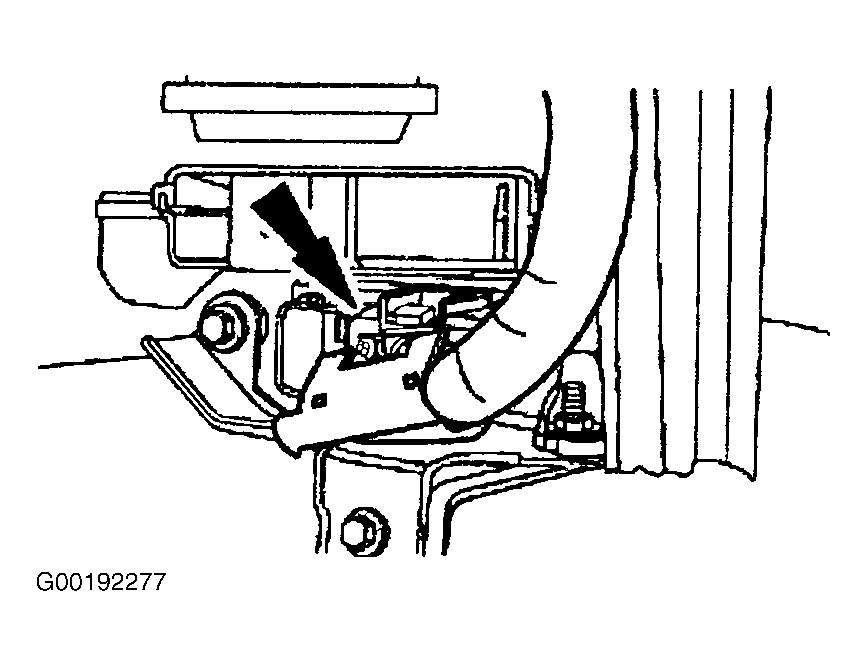

Fig 4: Identifying Restraints Control Module Connector
G00192277Courtesy of FORD MOTOR CO.
Fig 5: Removing & Installing Restraints Control Module Bracket Assembly
G00192278Courtesy of FORD MOTOR CO.

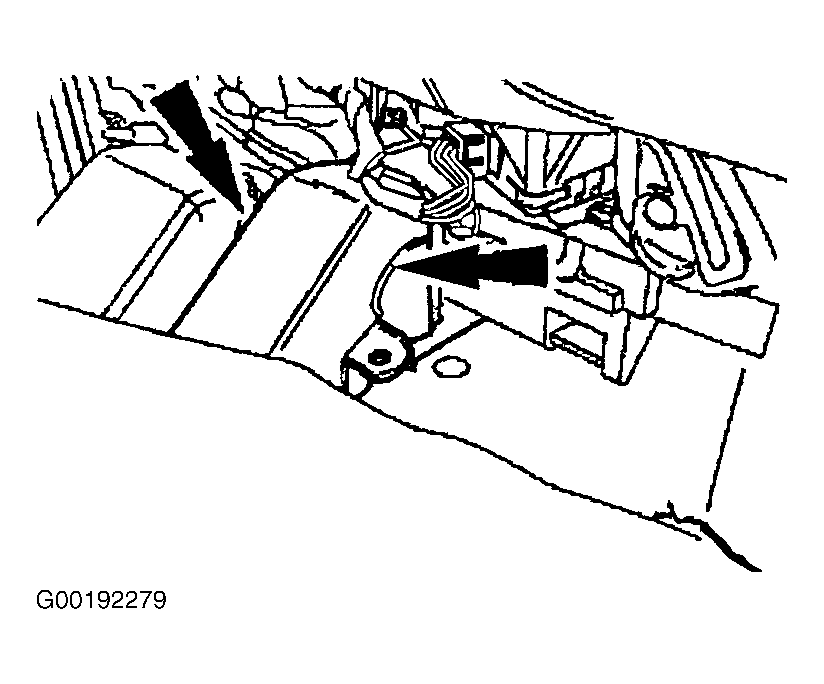

Fig 6: Identifying Rear Seat Airflow Duct Cutting Location
G00192279Courtesy of FORD MOTOR CO.

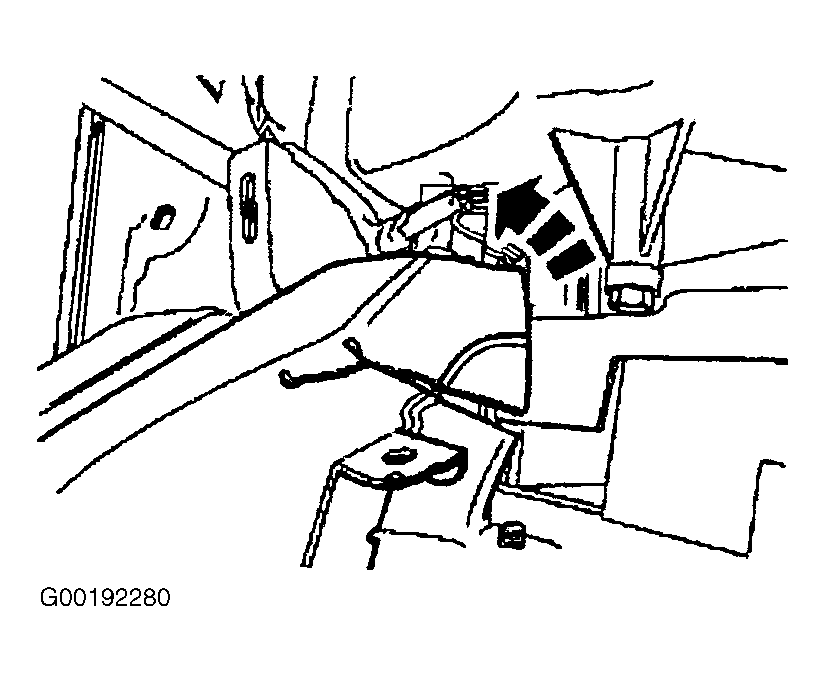

Fig 7: Removing & Installing Rear Seat Airflow Duct
G00192280Courtesy of FORD MOTOR CO.
Fig 8: Removing & Installing Floor Duct
G00192281Courtesy of FORD MOTOR CO.
Fig 9: Removing & Installing Temperature Blend Door Motor
G00192282Courtesy of FORD MOTOR CO.
