Floor Duct: Installation

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Tightening torque of RCM retaining bolts is critical for correct system operation. See Figure.
  1. Install electronic blend door motor. Connect motor shaft. Install screws. Connect connector. Install floor duct. Install floor duct. Install 2 screws (one each side). On vehicles equipped with rear airflow duct, zip-tie rear airflow duct to floor duct. See Fig 1. Reposition carpet.
  2. On all vehicles, install RCM and bracket assembly. Connect RCM electrical connector. Install left instrument panel lower nut. Install brace. Install nut. Install bolt. Install right instrument panel brace. See Fig 2.
  3. Install floor duct panel. Install pin-type retainers and release expander clip. On vehicles equipped with floor console, install floor console. On all vehicles, connect battery ground cable.

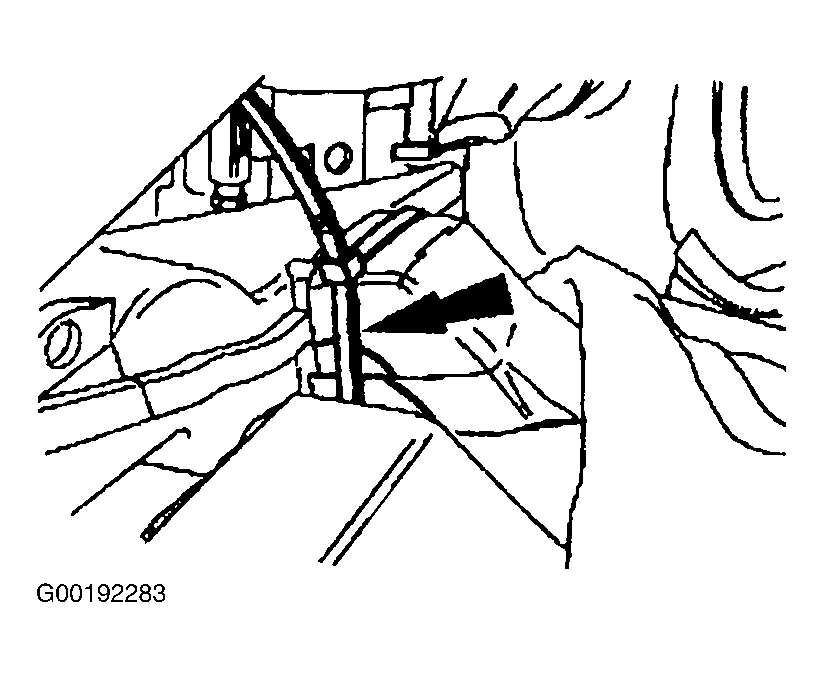

Fig 1: Reassembling Rear Airflow Duct
G00192283Courtesy of FORD MOTOR CO.

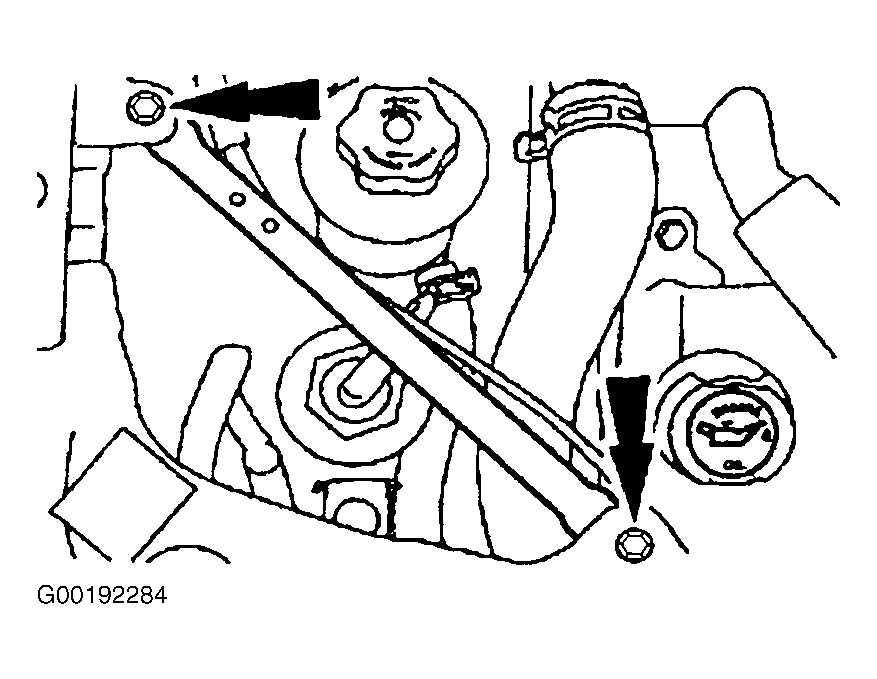

Fig 2: Installing Right Instrument Panel Brace
G00192284Courtesy of FORD MOTOR CO.
