Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

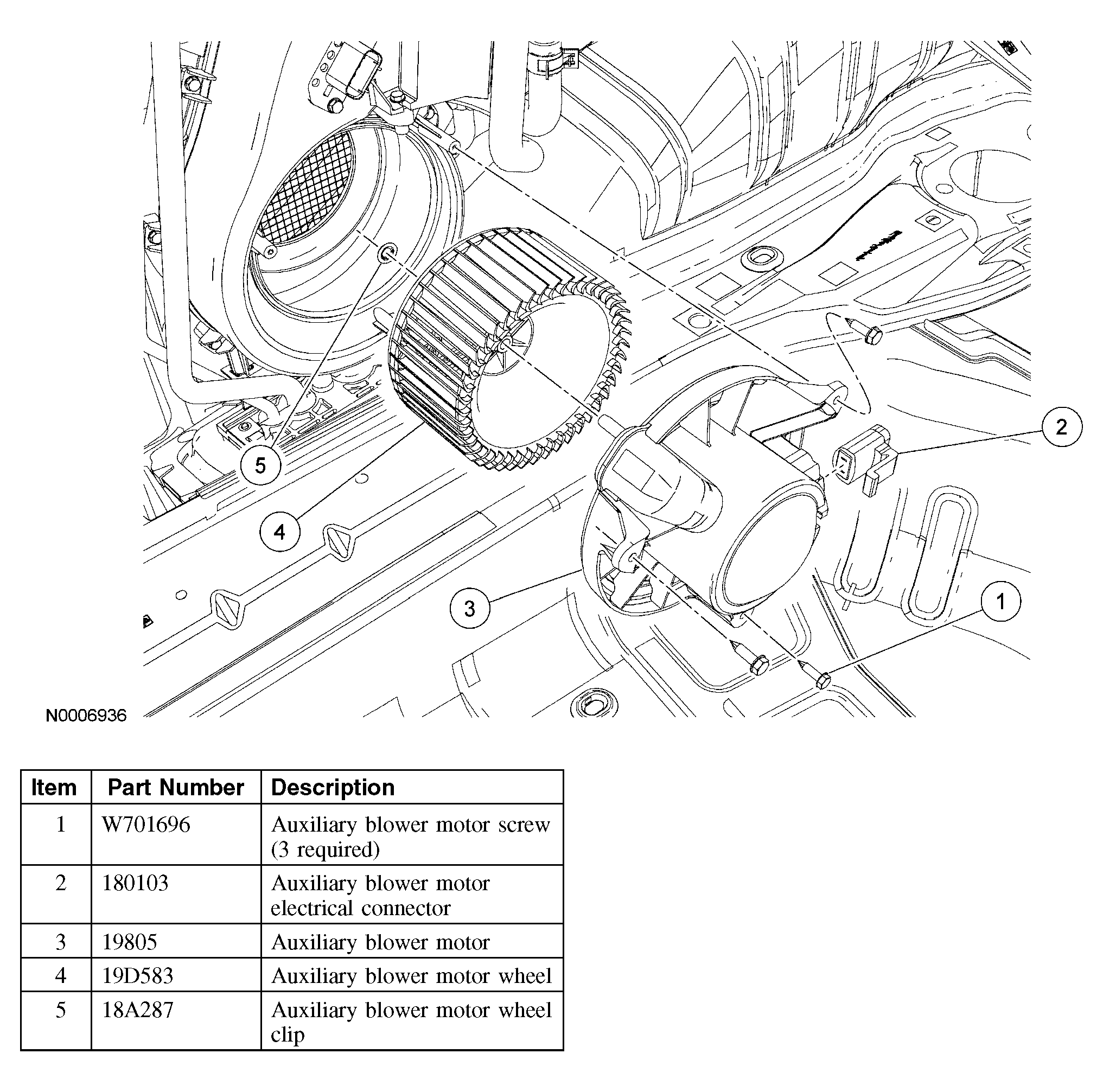

Fig 1: Removing/Installing Blower Motor
G03992467Courtesy of FORD MOTOR CO.
  1. Remove the LH quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Disconnect the auxiliary blower motor electrical connector.
  3. Remove the 3 auxiliary blower motor screws.
  4. Remove the auxiliary blower motor.
  5. Remove the auxiliary blower motor wheel clip.
  6. Remove the auxiliary blower motor wheel.
  7. To install, reverse the removal procedure.
