WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL CHART
Item
Specification
PAG Refrigerant Compressor Oil for R134-a Systems YN-12-D
WSH-M1C231-B

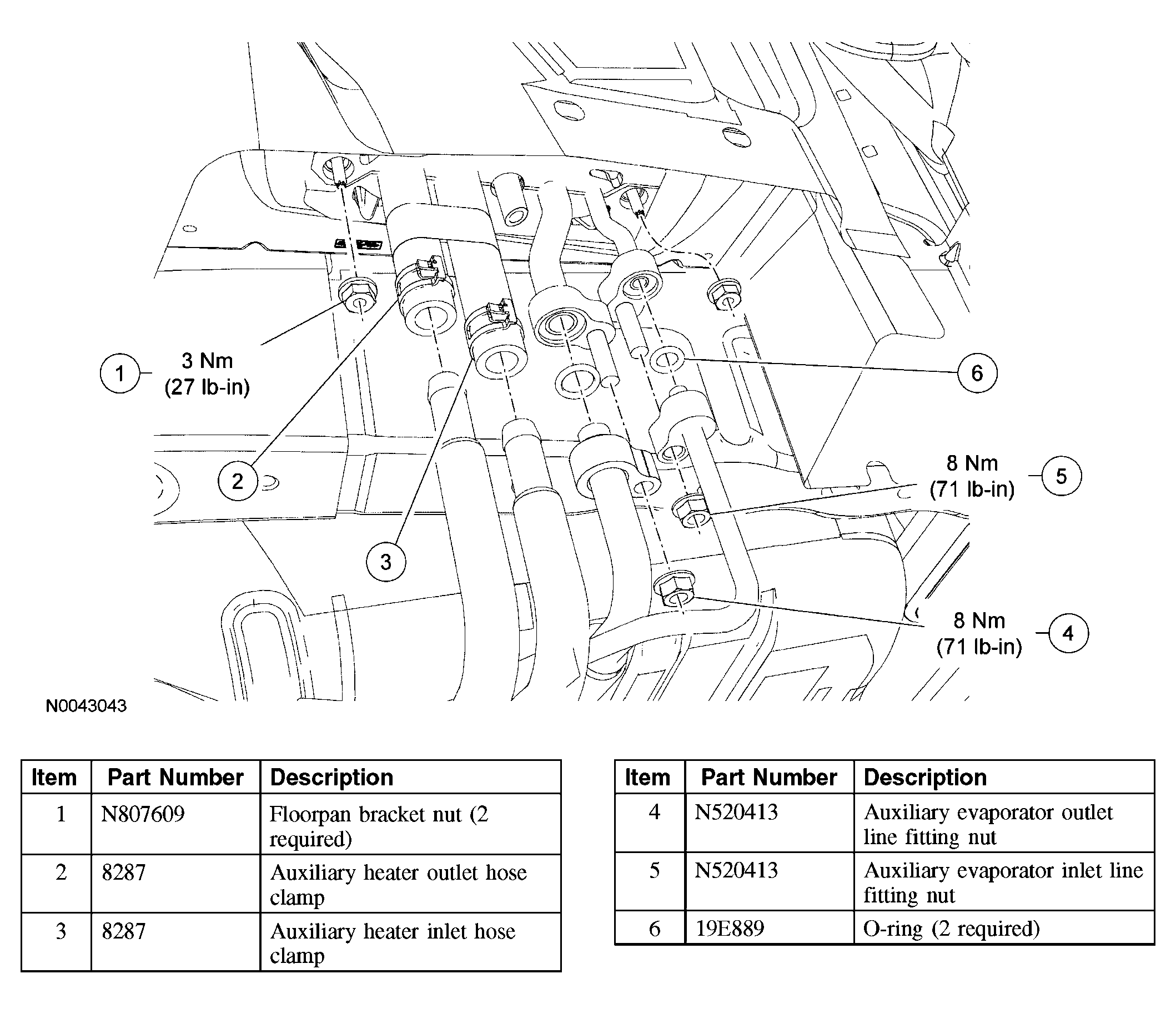

Fig 1: Identifying Auxiliary Climate Control Housing (1 Of 2)
Courtesy of FORD MOTOR CO.

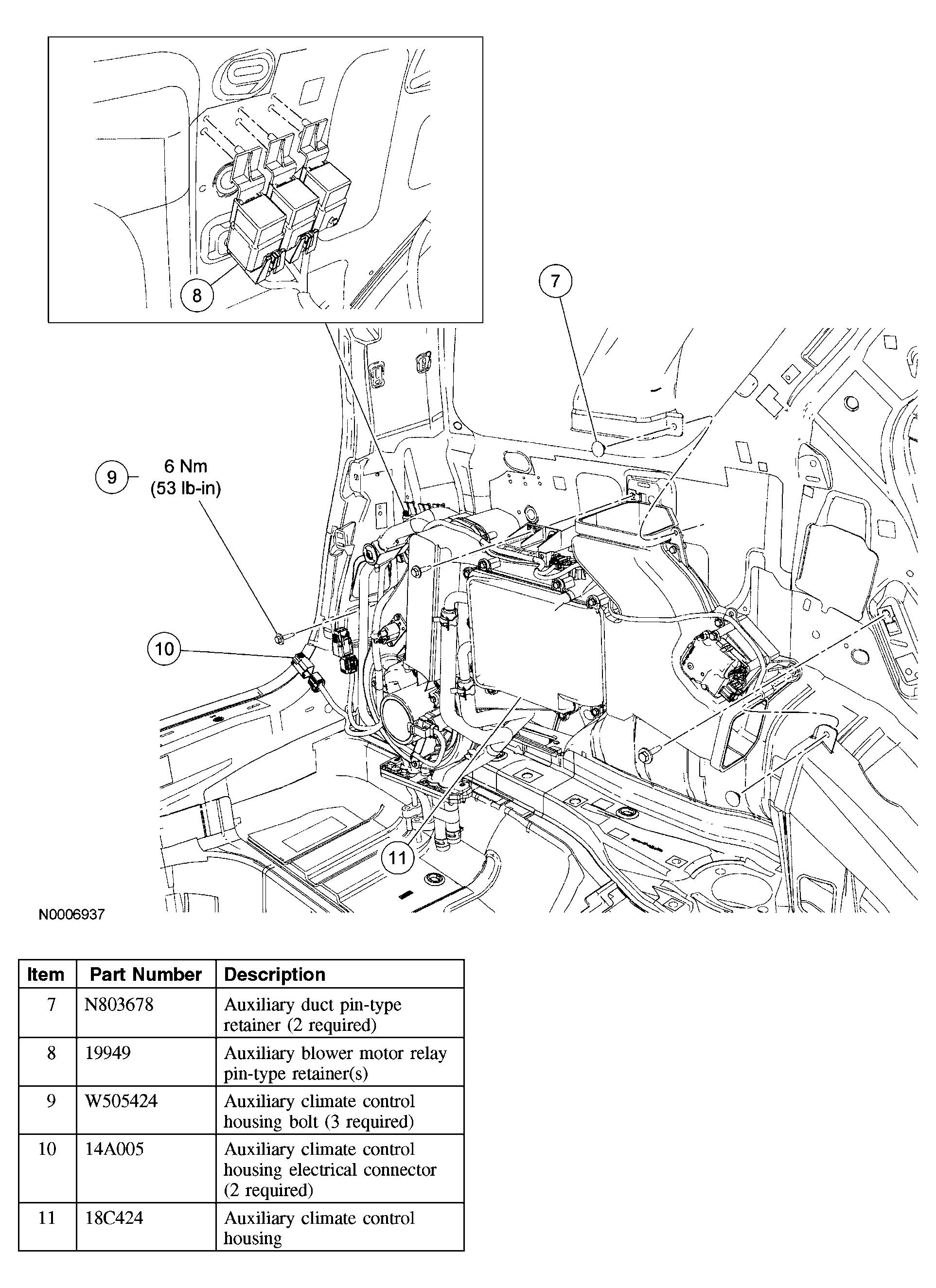

Fig 2: Identifying Auxiliary Climate Control Housing (2 Of 2)
