Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

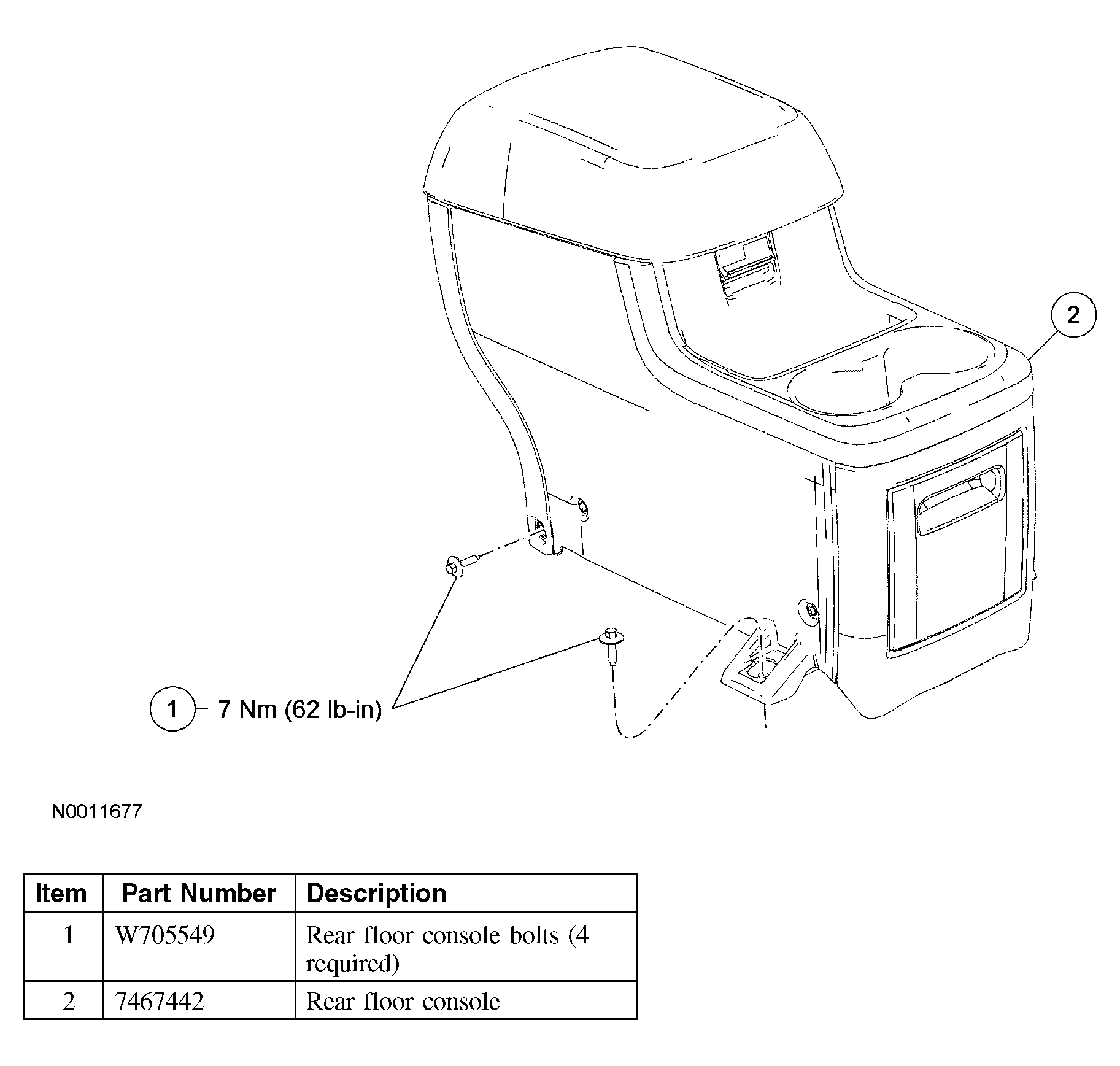

Fig 1: Removing/Installing Console - Rear, Floor
G03989209Courtesy of FORD MOTOR CO.
  1. Remove the 4 rear floor console bolts.
    • To install, tighten to 7 Nm (62 lb-in).
  2. Remove the rear floor console.
  3. To install, reverse the removal procedure.
