WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH shown, RH similar.

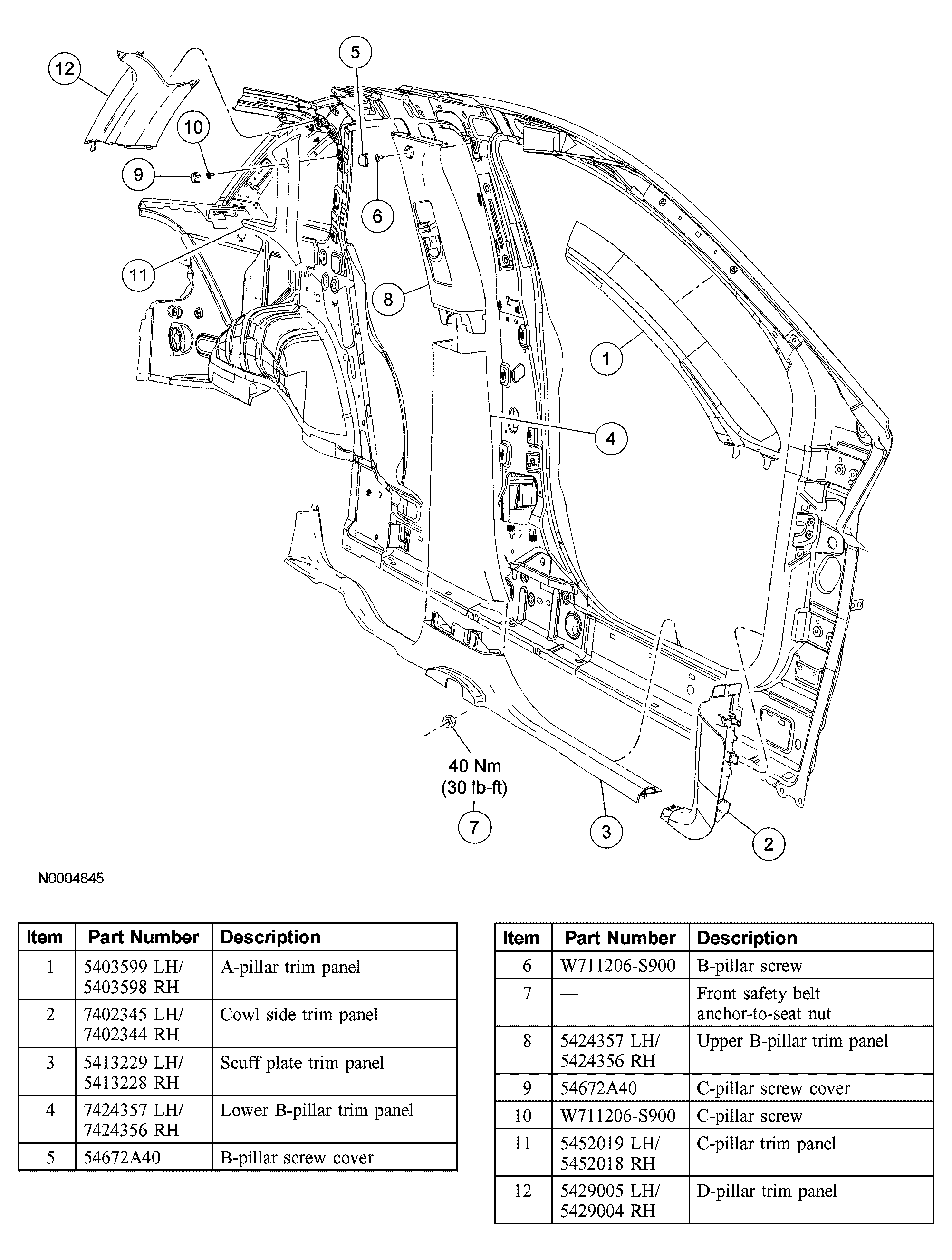

Fig 1: Exploded View Of Interior Trim (Five Hundred, Montego)
Courtesy of FORD MOTOR CO.
NOTE:
LH shown, RH similar.

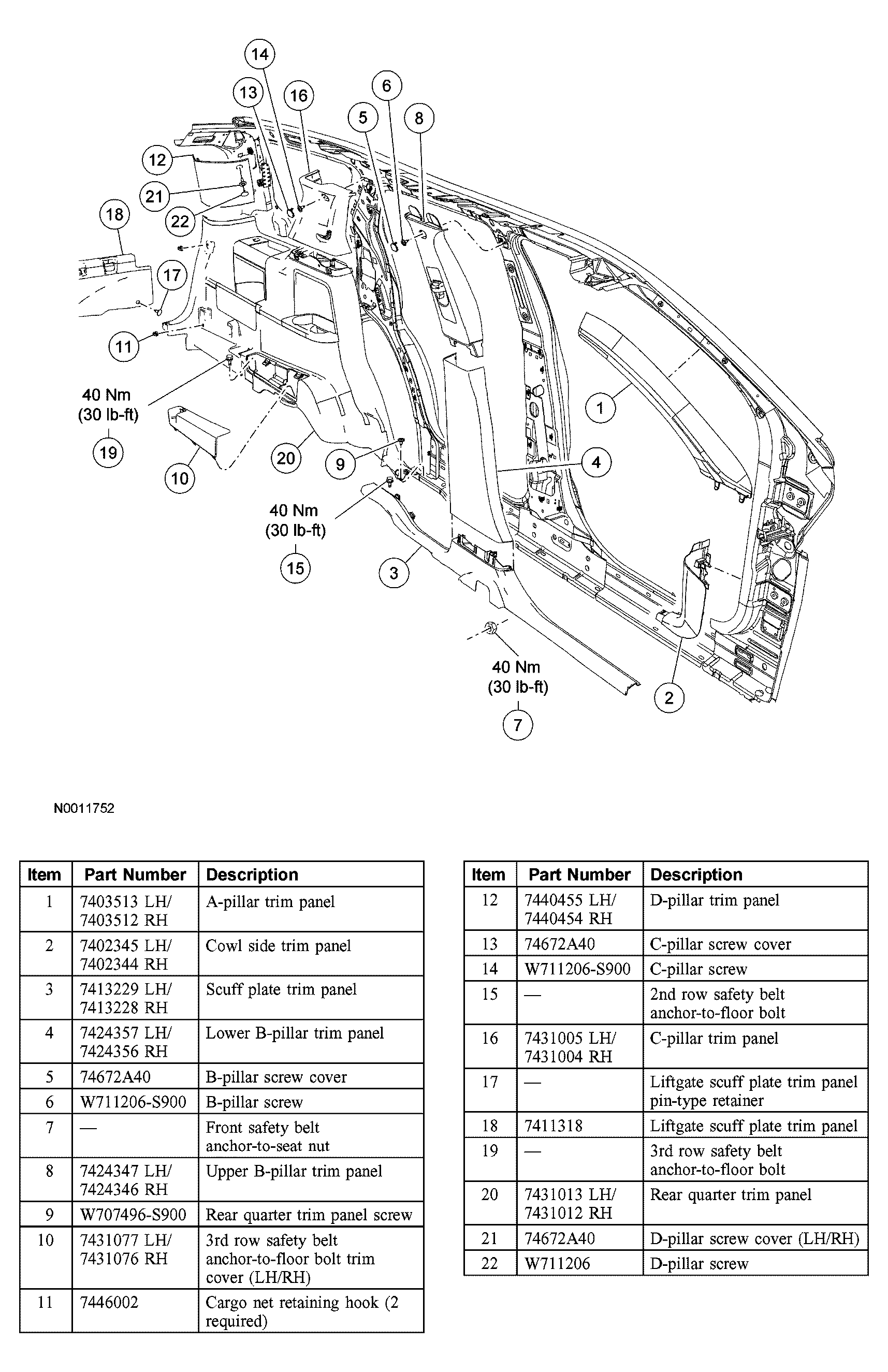

Fig 2: Locating Freestyle Components Location
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures below.
