Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 6 .

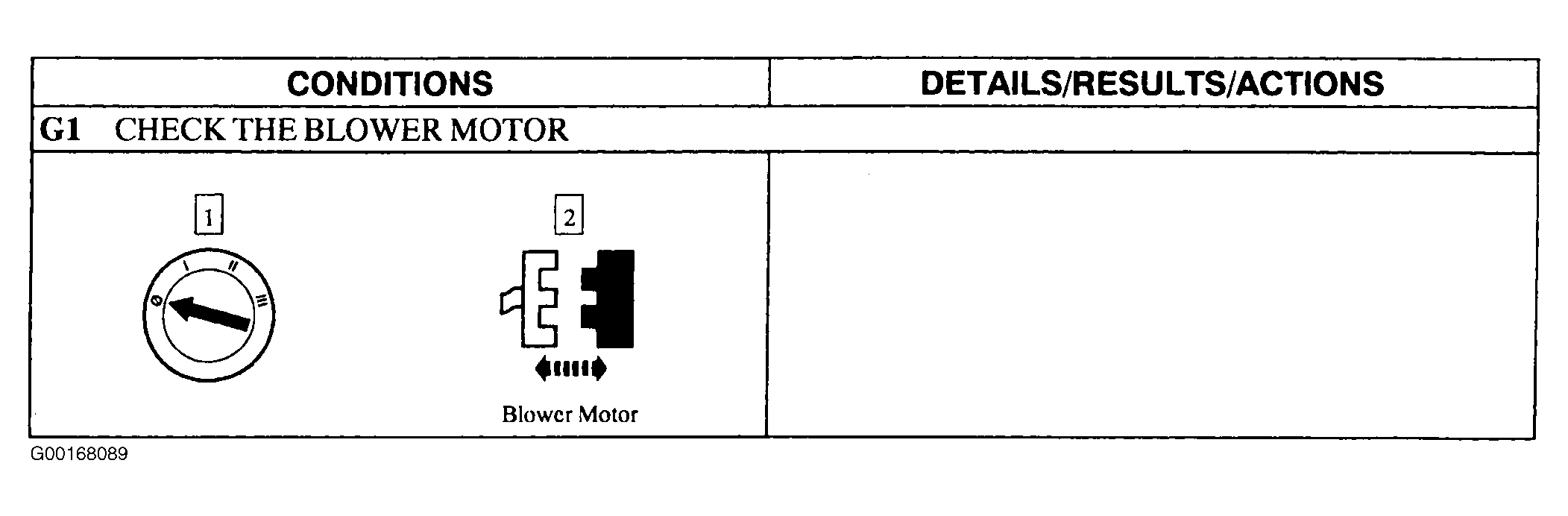

Fig 1: Test G (1 Of 6 - Step G1)

Courtesy of FORD MOTOR CO.

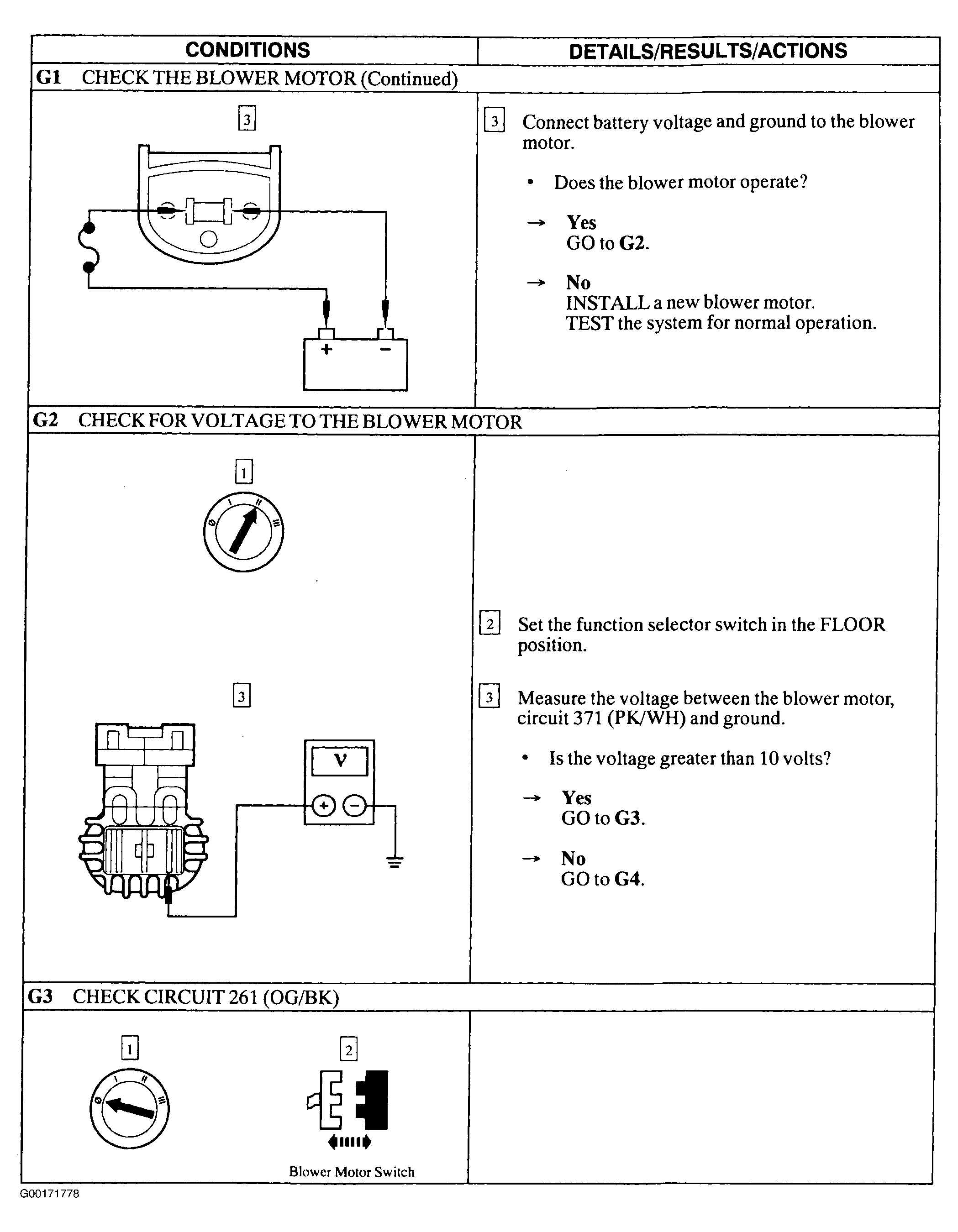

Fig 2: Test G (2 Of 6 - Steps G1 Cont.-G3)

Courtesy of FORD MOTOR CO.

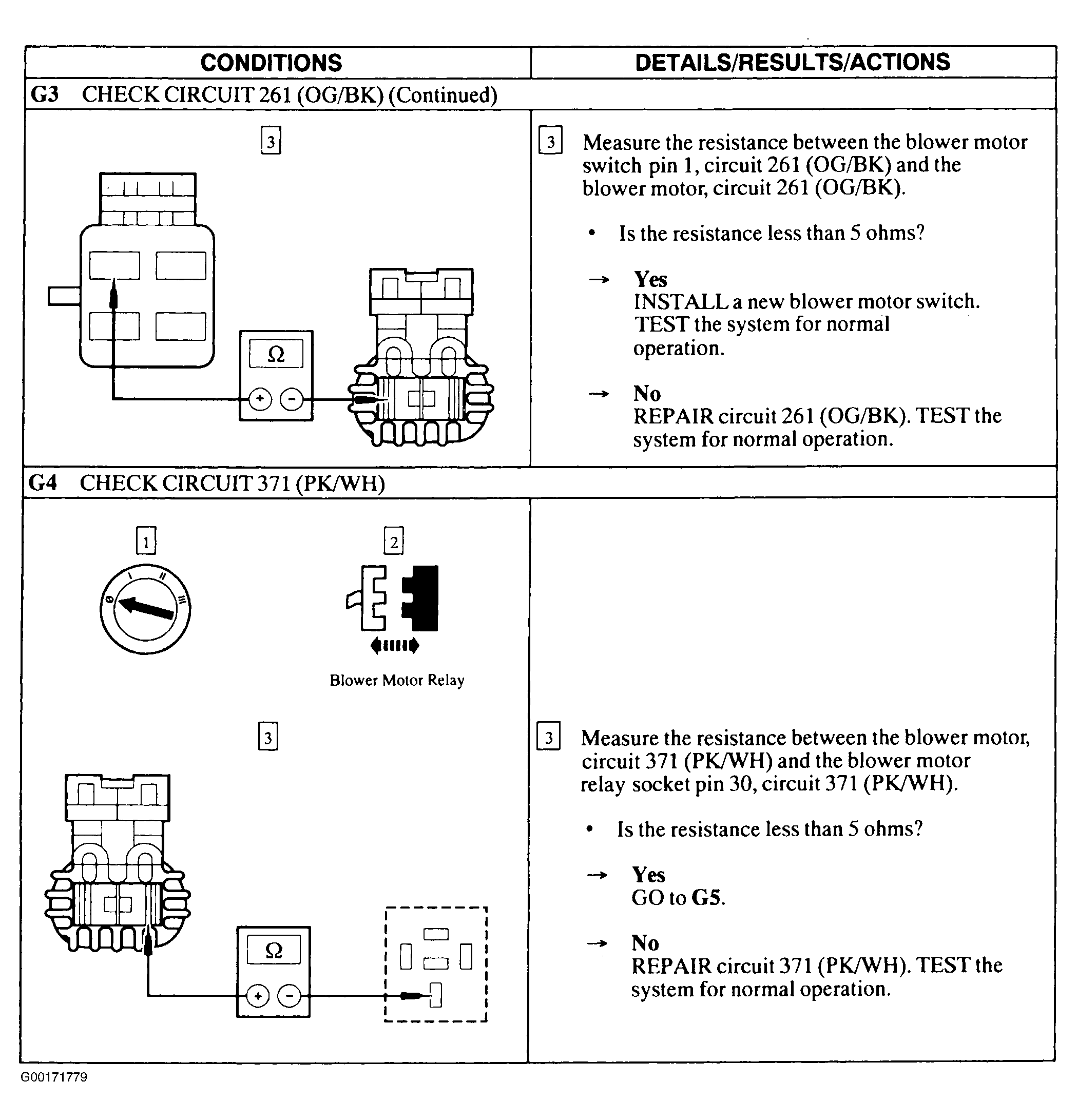

Fig 3: Test G (3 Of 6 - Steps G3 Cont.-G4)

Courtesy of FORD MOTOR CO.

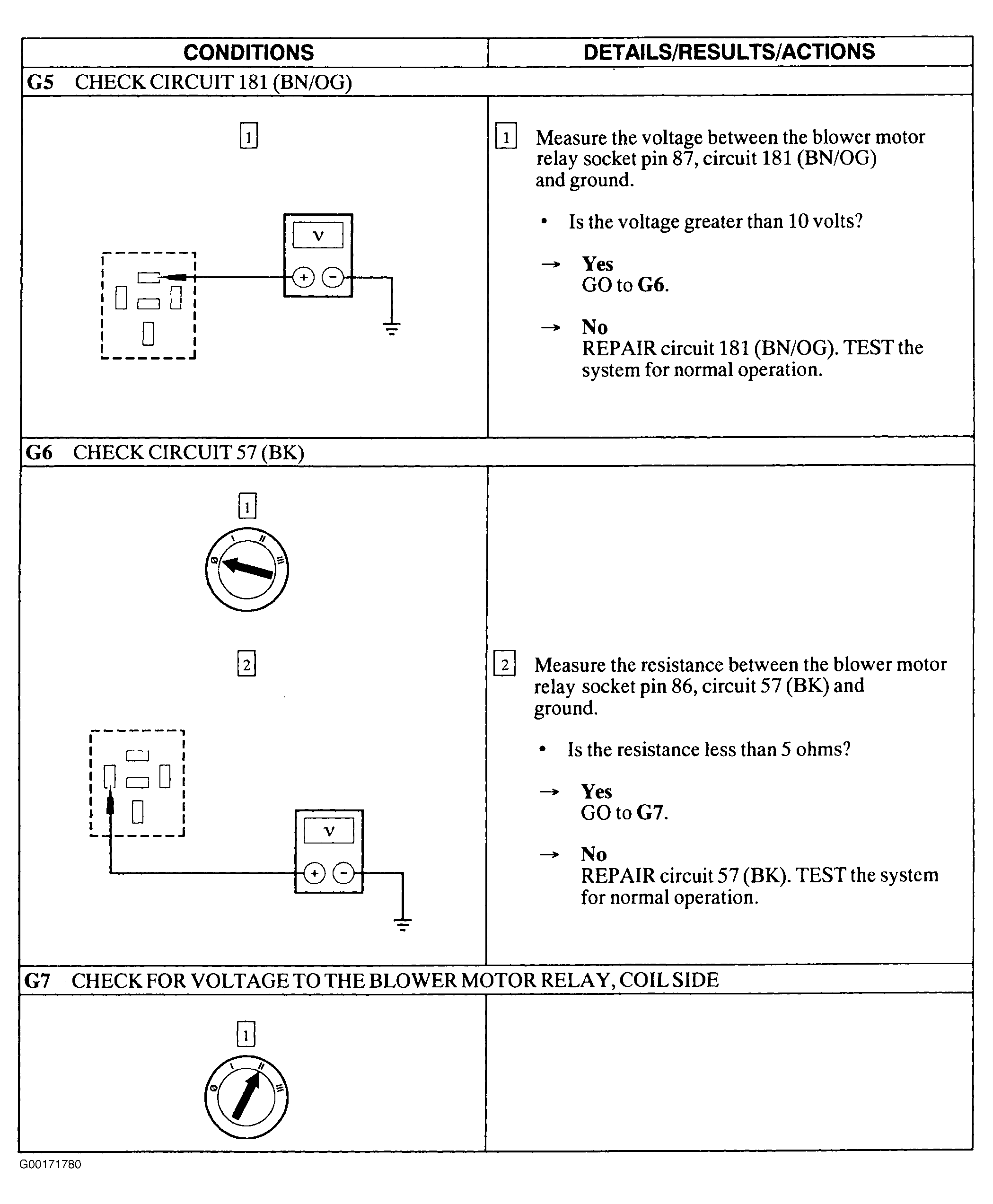

Fig 4: Test G (4 Of 6 - Steps G5-G7)

Courtesy of FORD MOTOR CO.

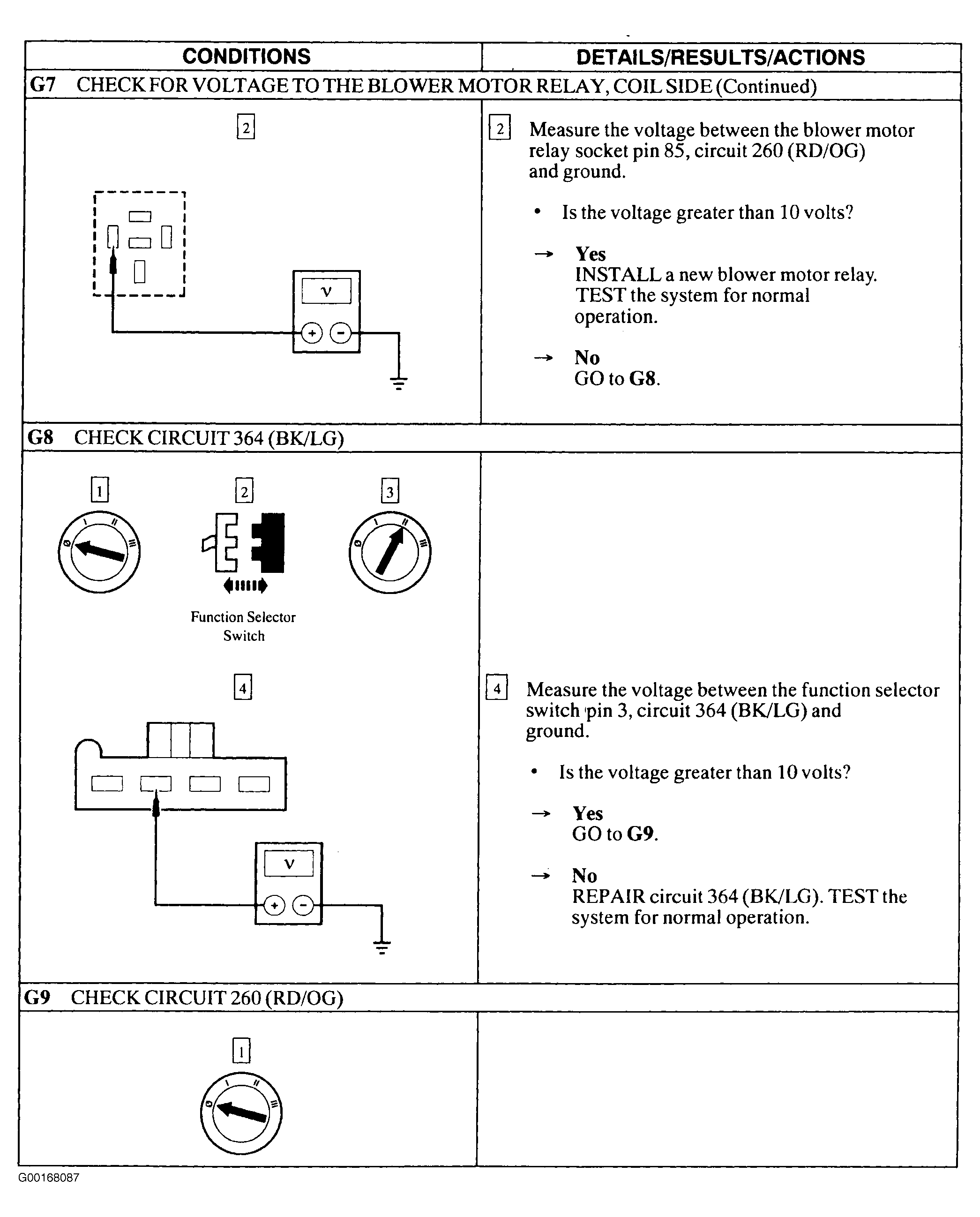

Fig 5: Test G (5 Of 6 - Steps G7 Cont.-G9)

Courtesy of FORD MOTOR CO.

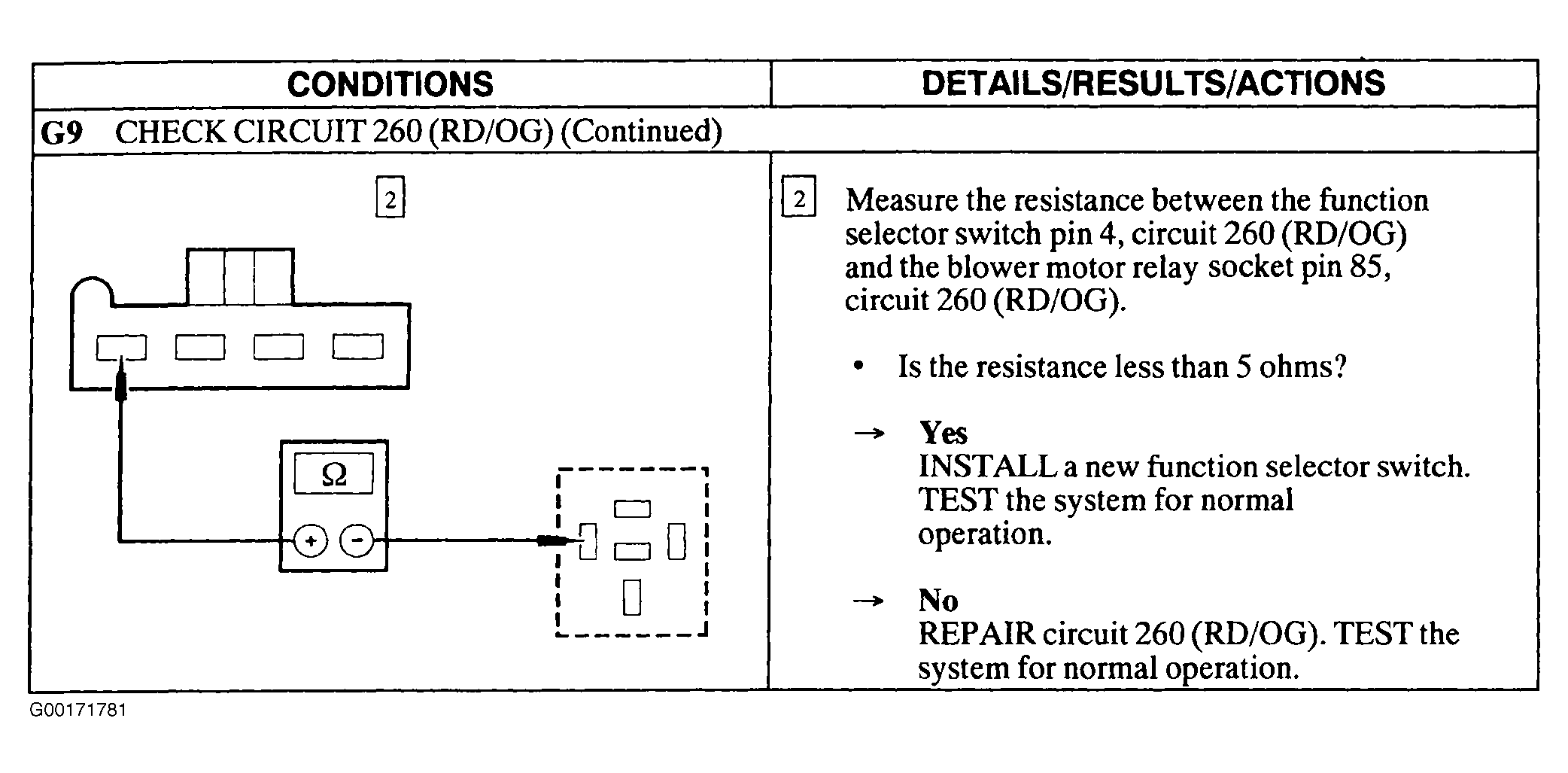

Fig 6: Test G (6 Of 6 - Step G9 Cont.)

Courtesy of FORD MOTOR CO.
