Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1 and Fig 2 .

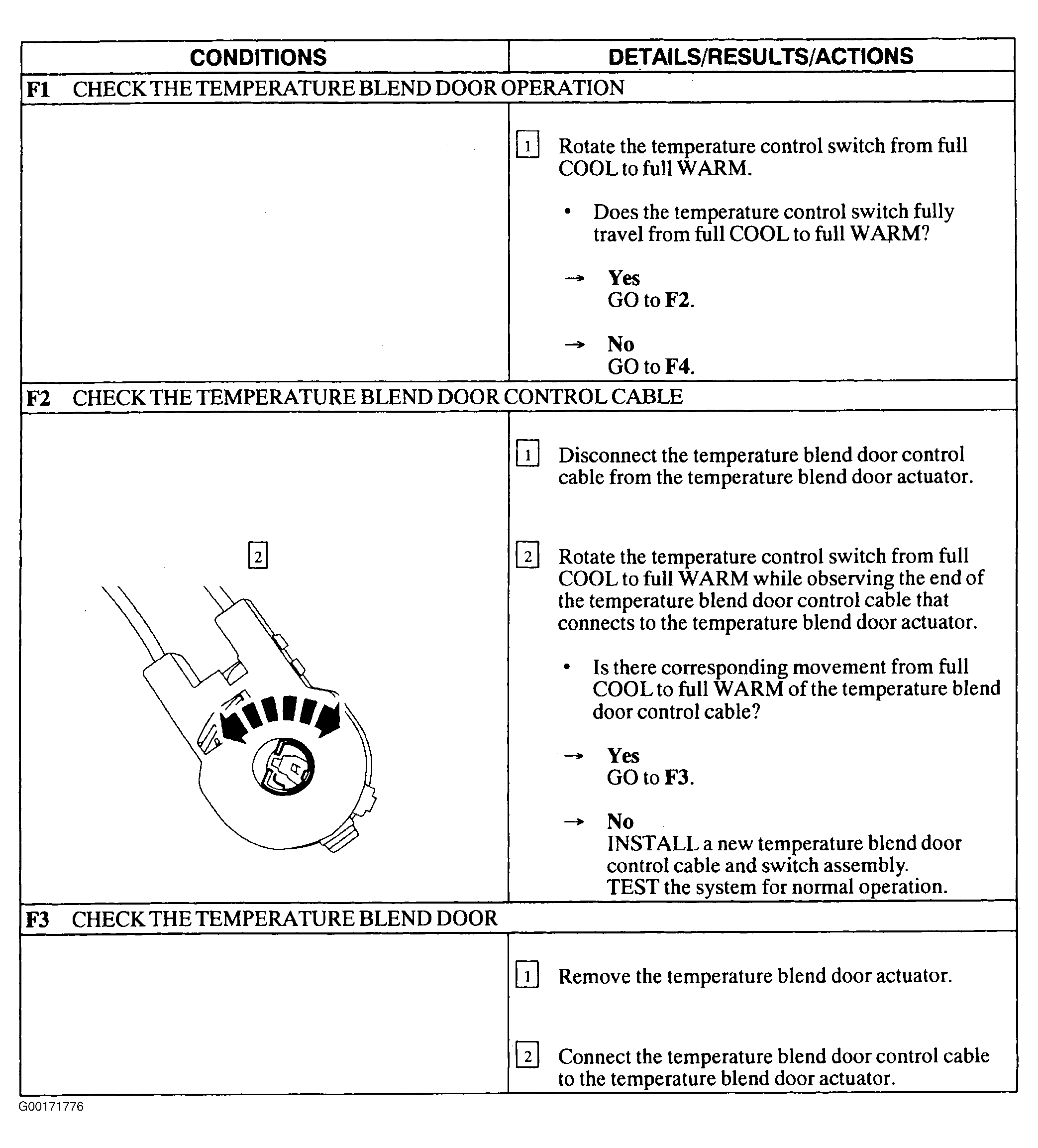

Fig 1: Test F (1 Of 2 - Steps F1-F3)
G00171776Courtesy of FORD MOTOR CO.

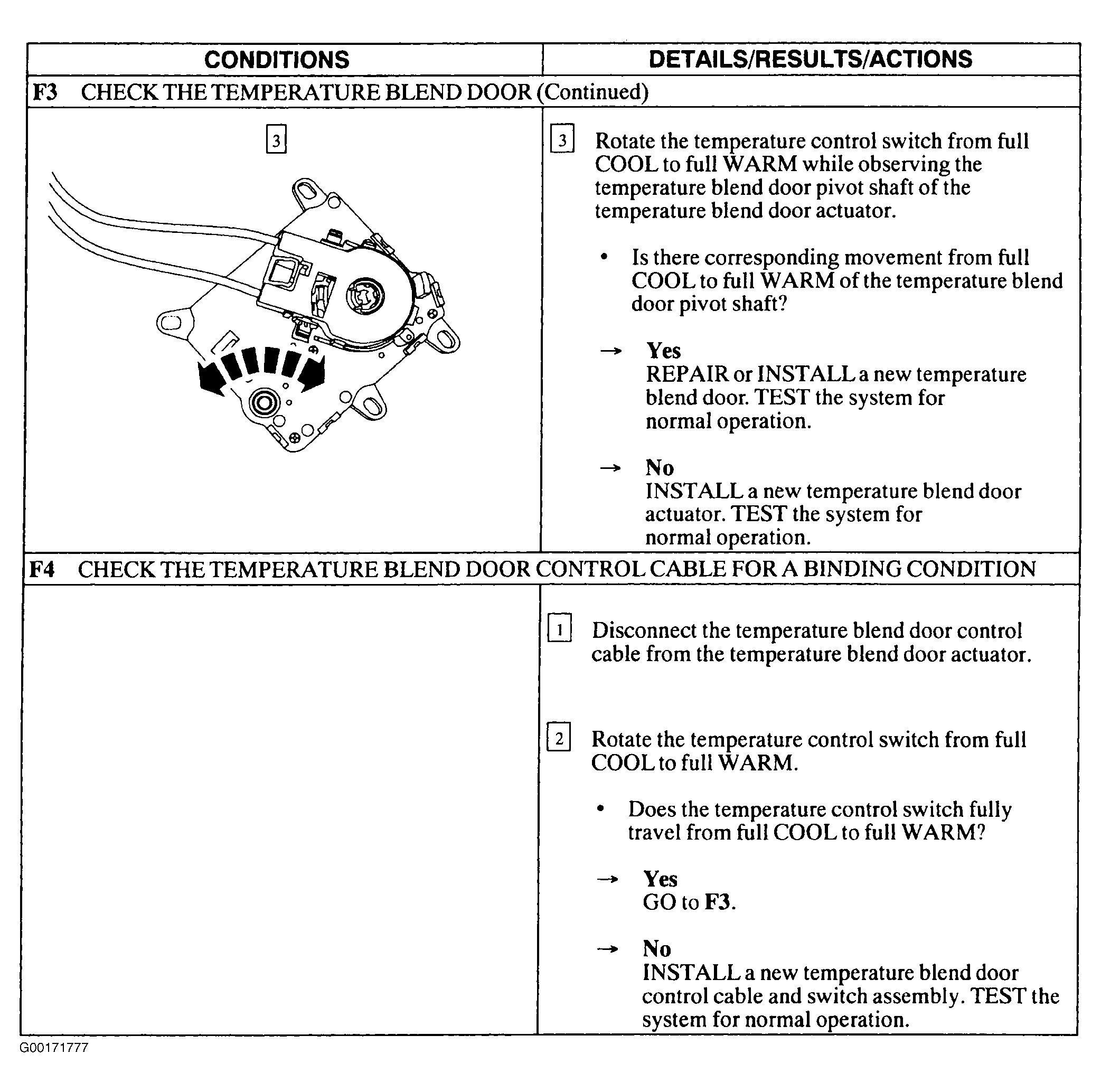

Fig 2: Test F (2 Of 2 - Steps F3 Cont.-F4)
G00171777Courtesy of FORD MOTOR CO.
