Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 12

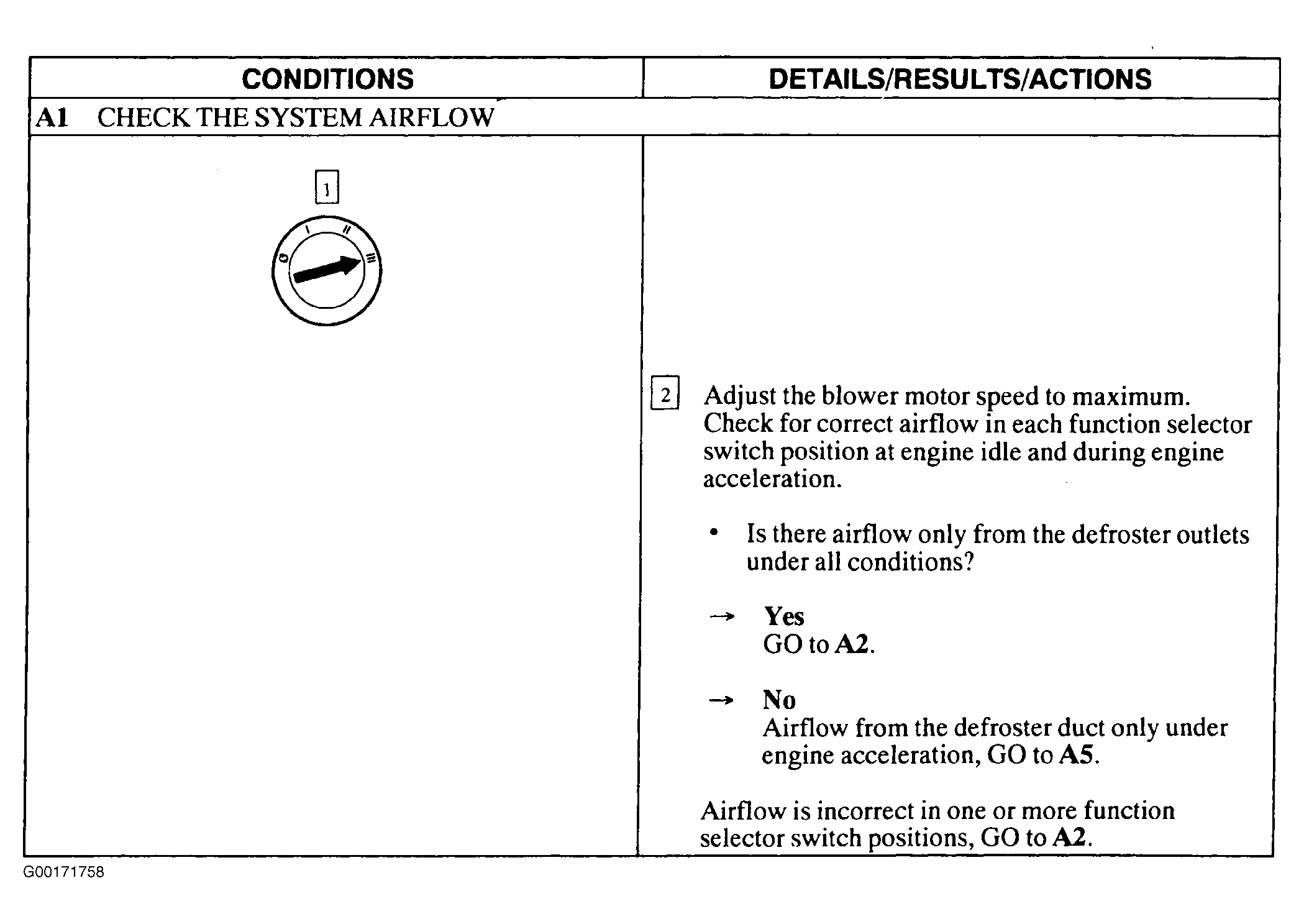

Fig 1: Test A (1 Of 12 - Step A1)

Courtesy of FORD MOTOR CO.

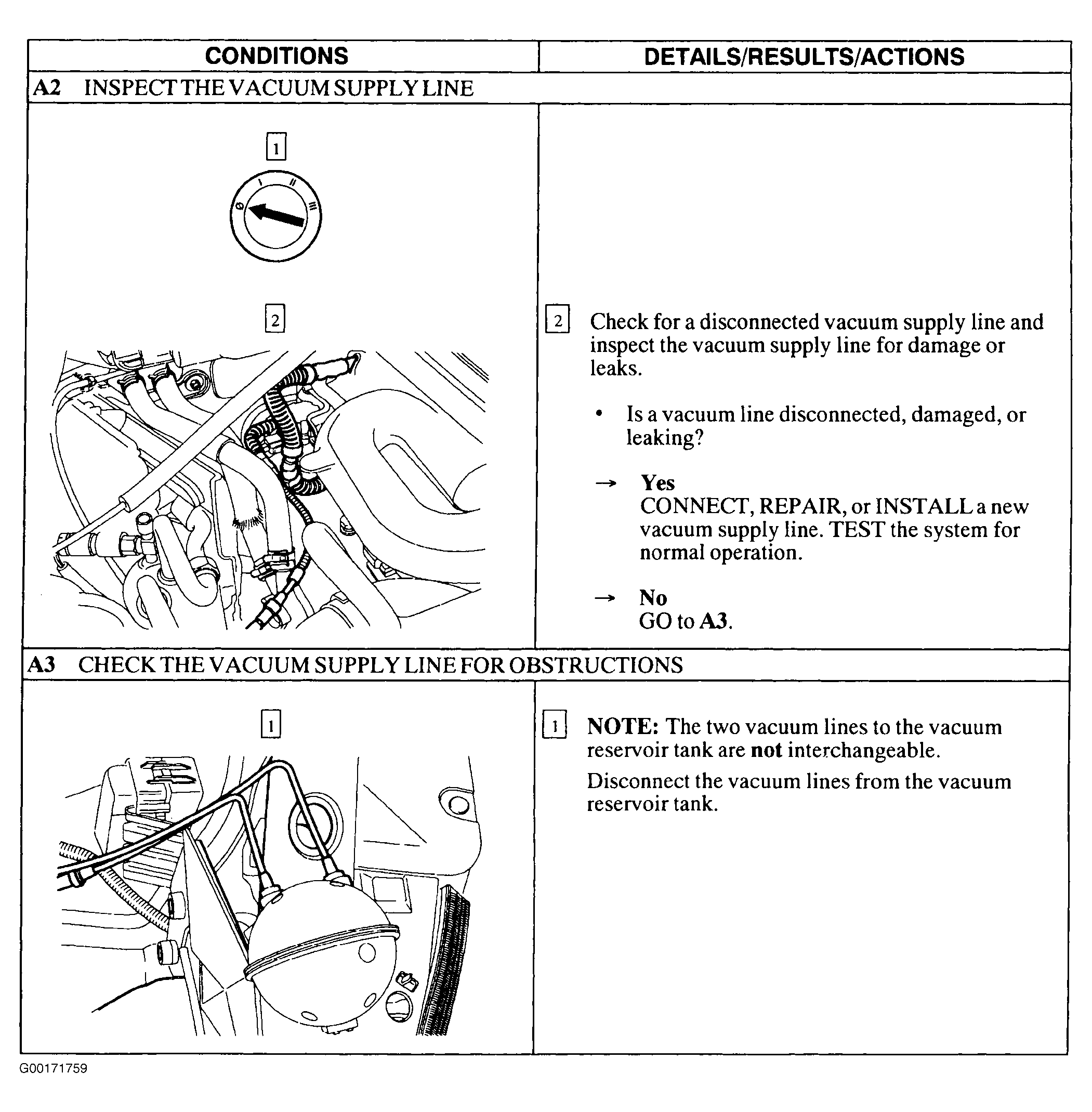

Fig 2: Test A (2 Of 12 - Steps A2-A3)

Courtesy of FORD MOTOR CO.

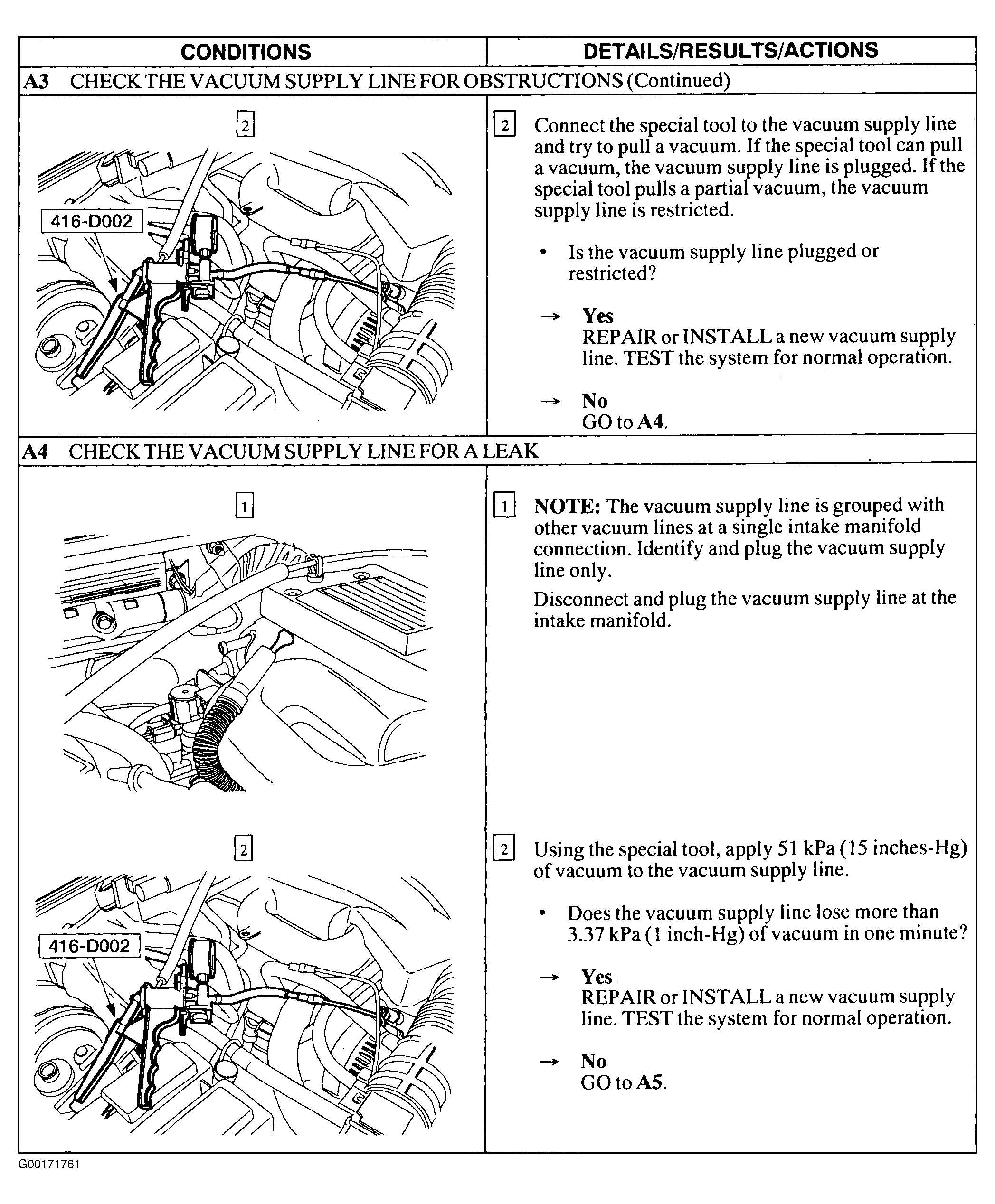

Fig 3: Test A (3 Of 12 - Steps A3 Cont.-A4)

Courtesy of FORD MOTOR CO.

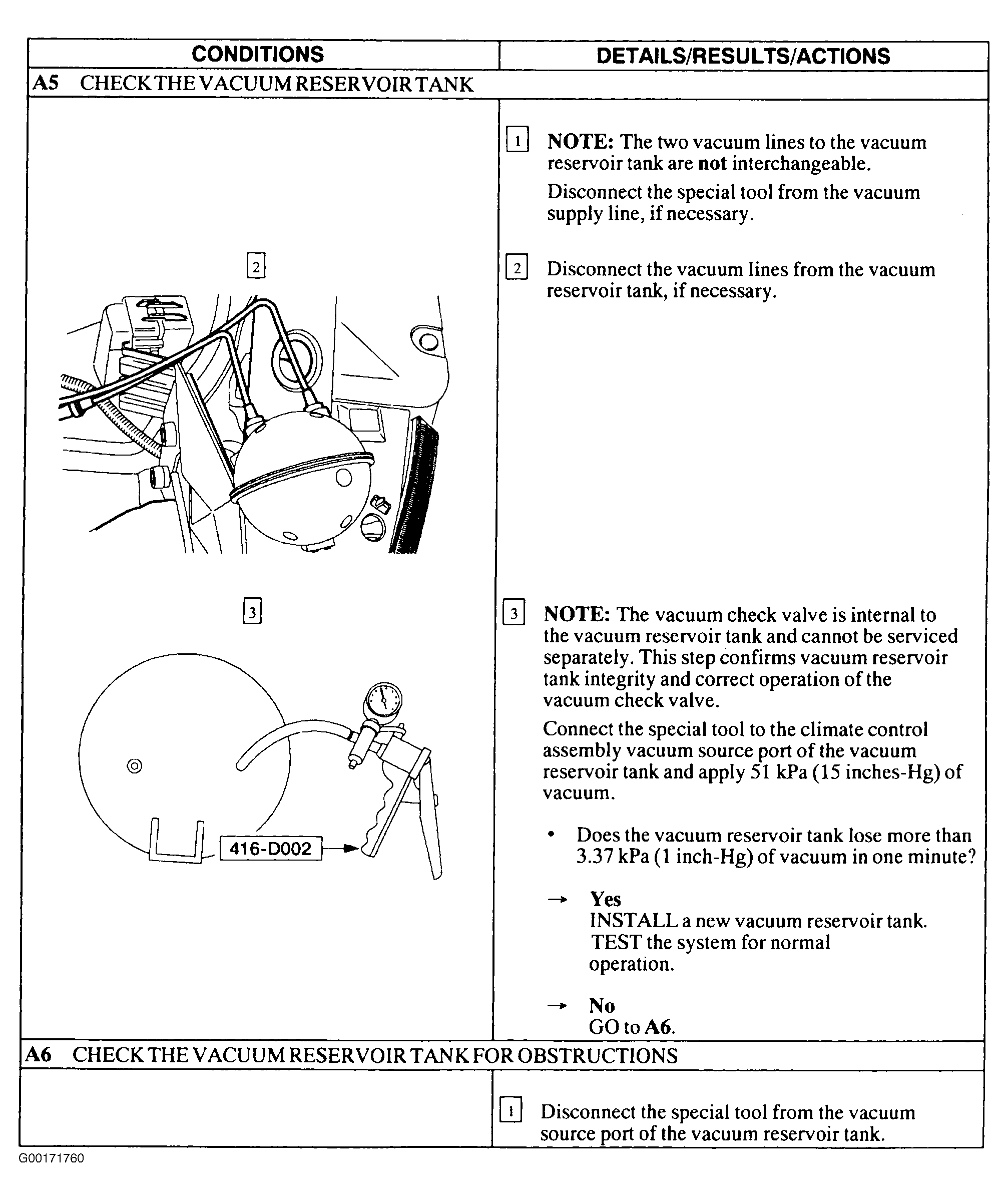

Fig 4: Test A (4 Of 12 - Steps A5-A6)

Courtesy of FORD MOTOR CO.

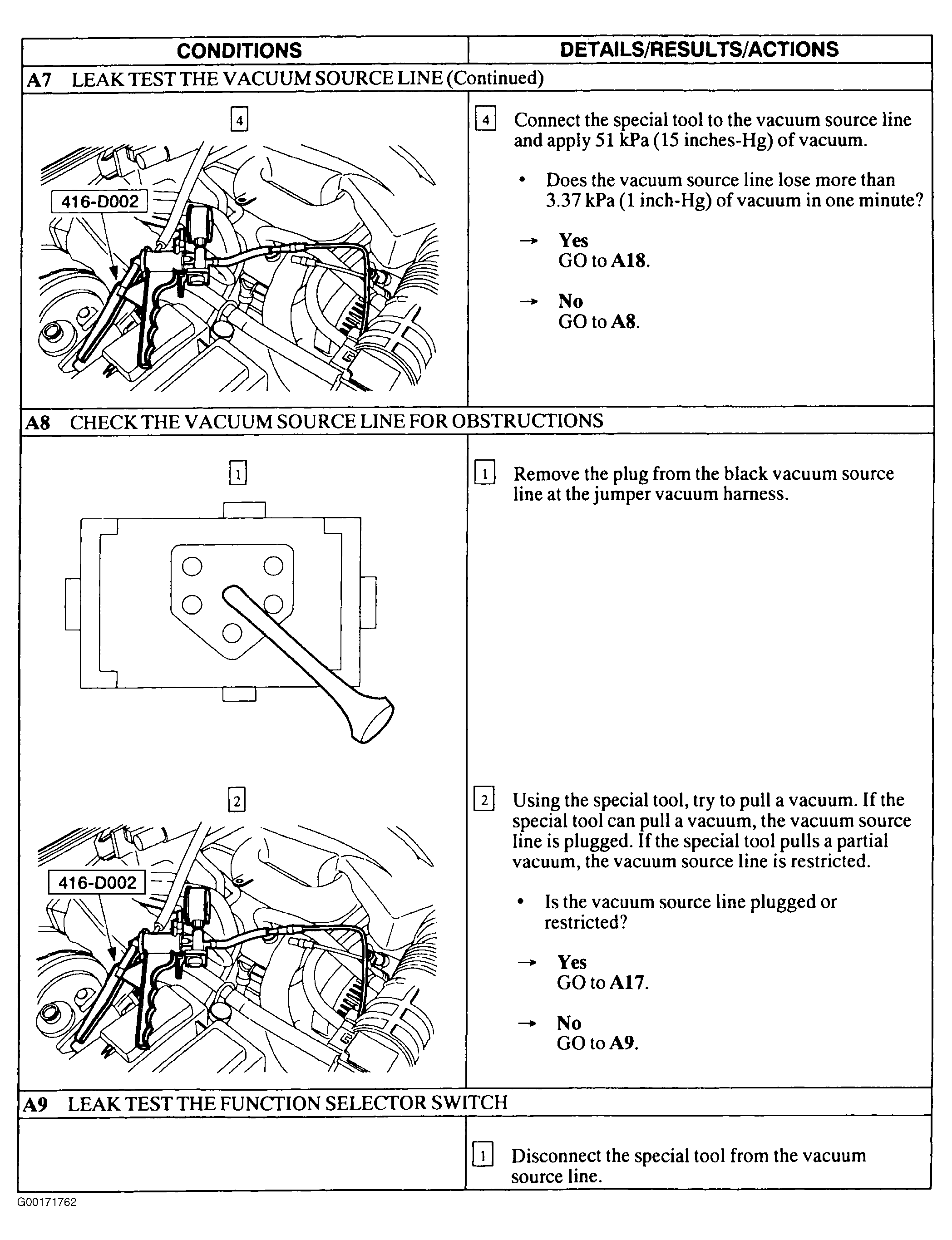

Fig 5: Test A (5 Of 12 - Steps A6 Cont.-A7)

Courtesy of FORD MOTOR CO.

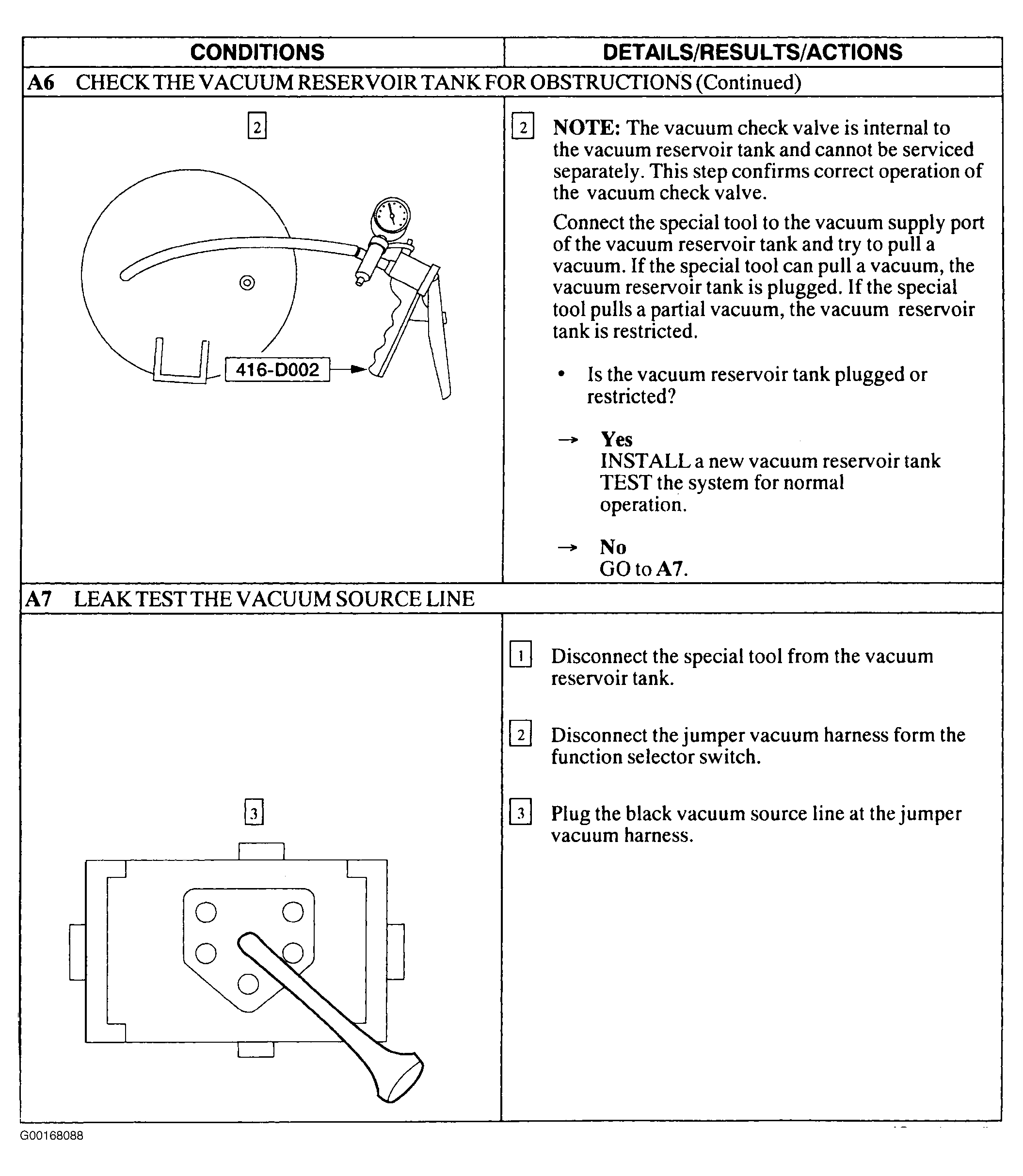

Fig 6: Test A (6 Of 12 - Steps A7 Cont.-A9)

Courtesy of FORD MOTOR CO.

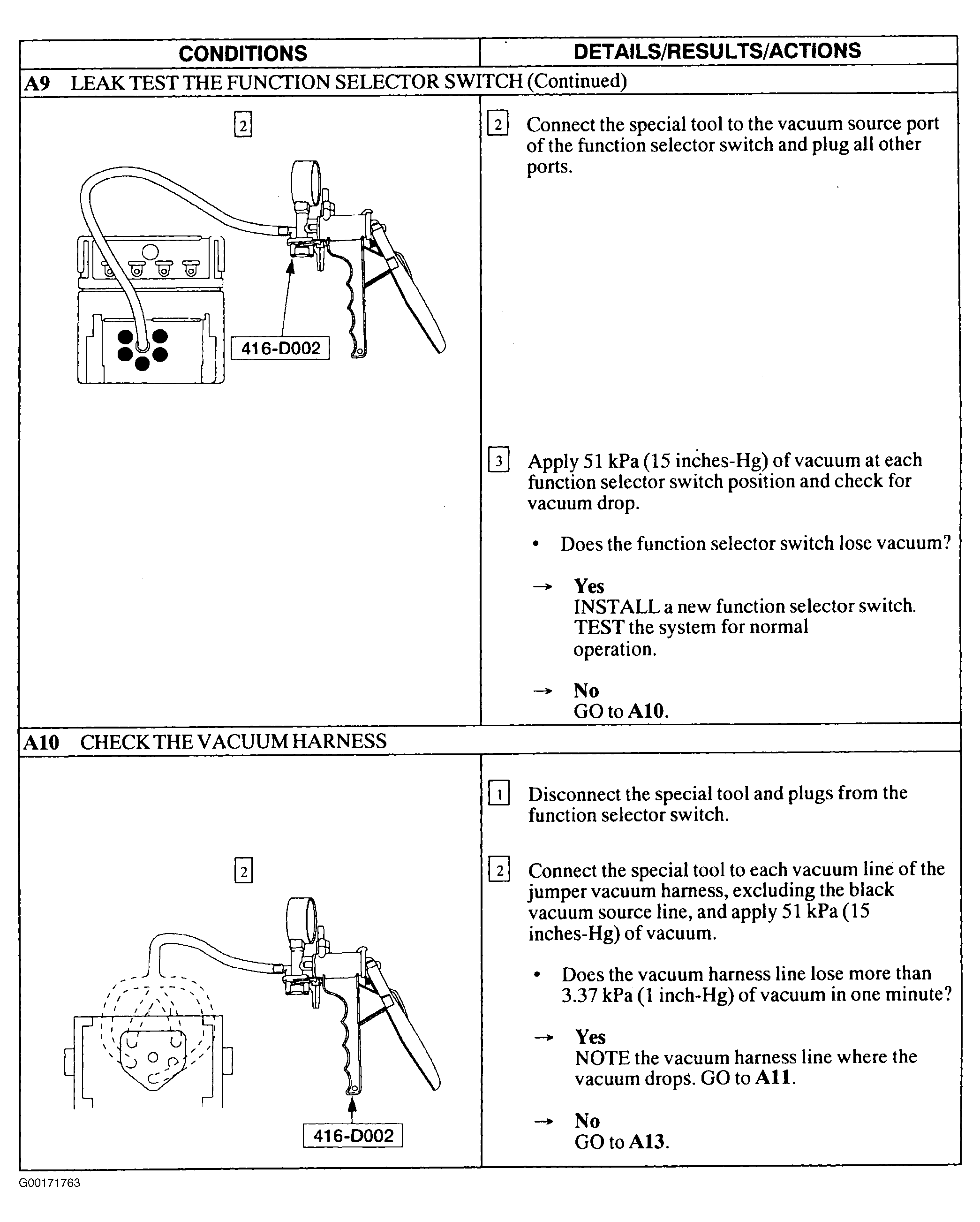

Fig 7: Test A (7 Of 12 - Steps A9 Cont.-A10)

Courtesy of FORD MOTOR CO.

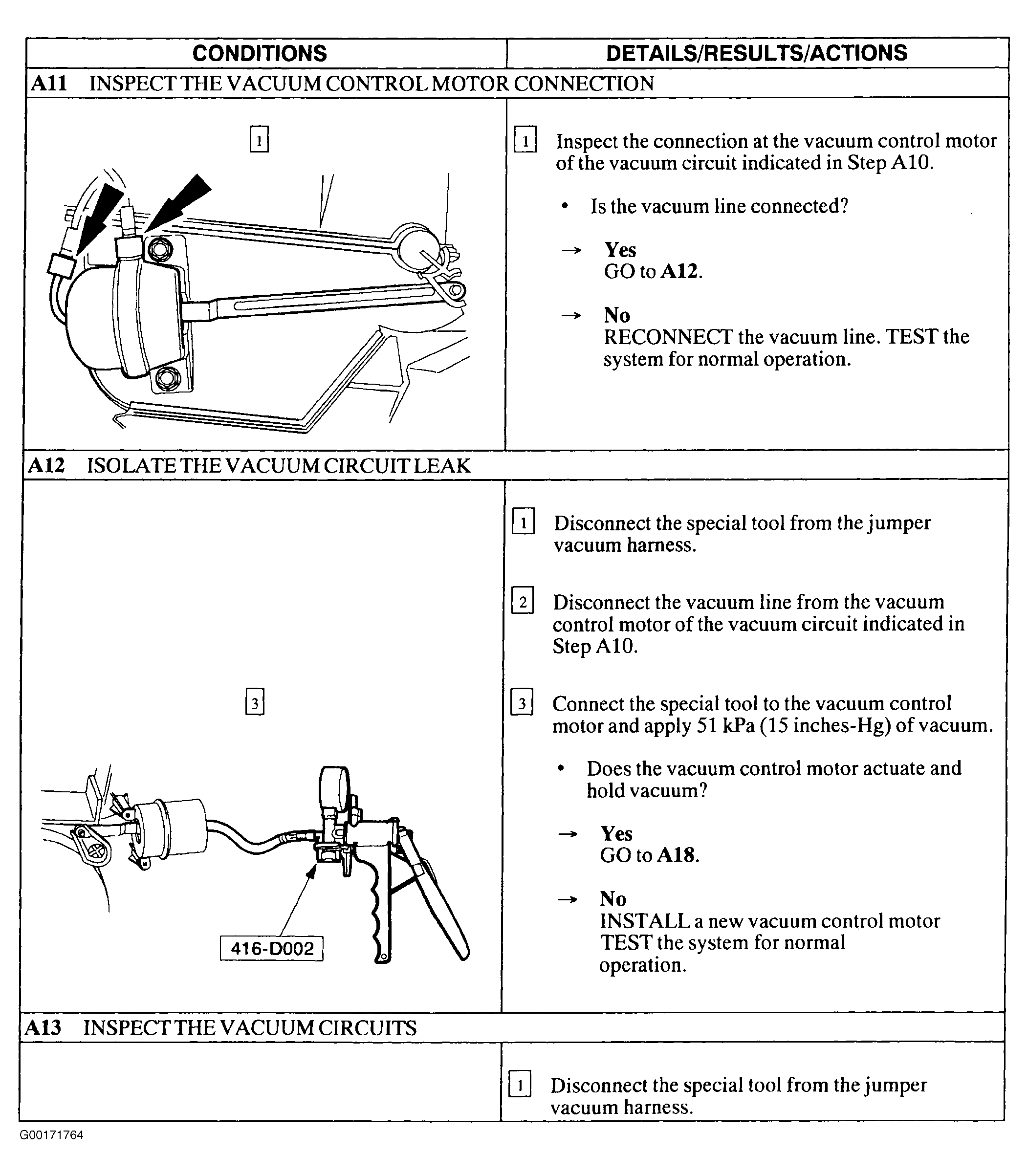

Fig 8: Test A (8 Of 12 - Steps A11- A13)

Courtesy of FORD MOTOR CO.

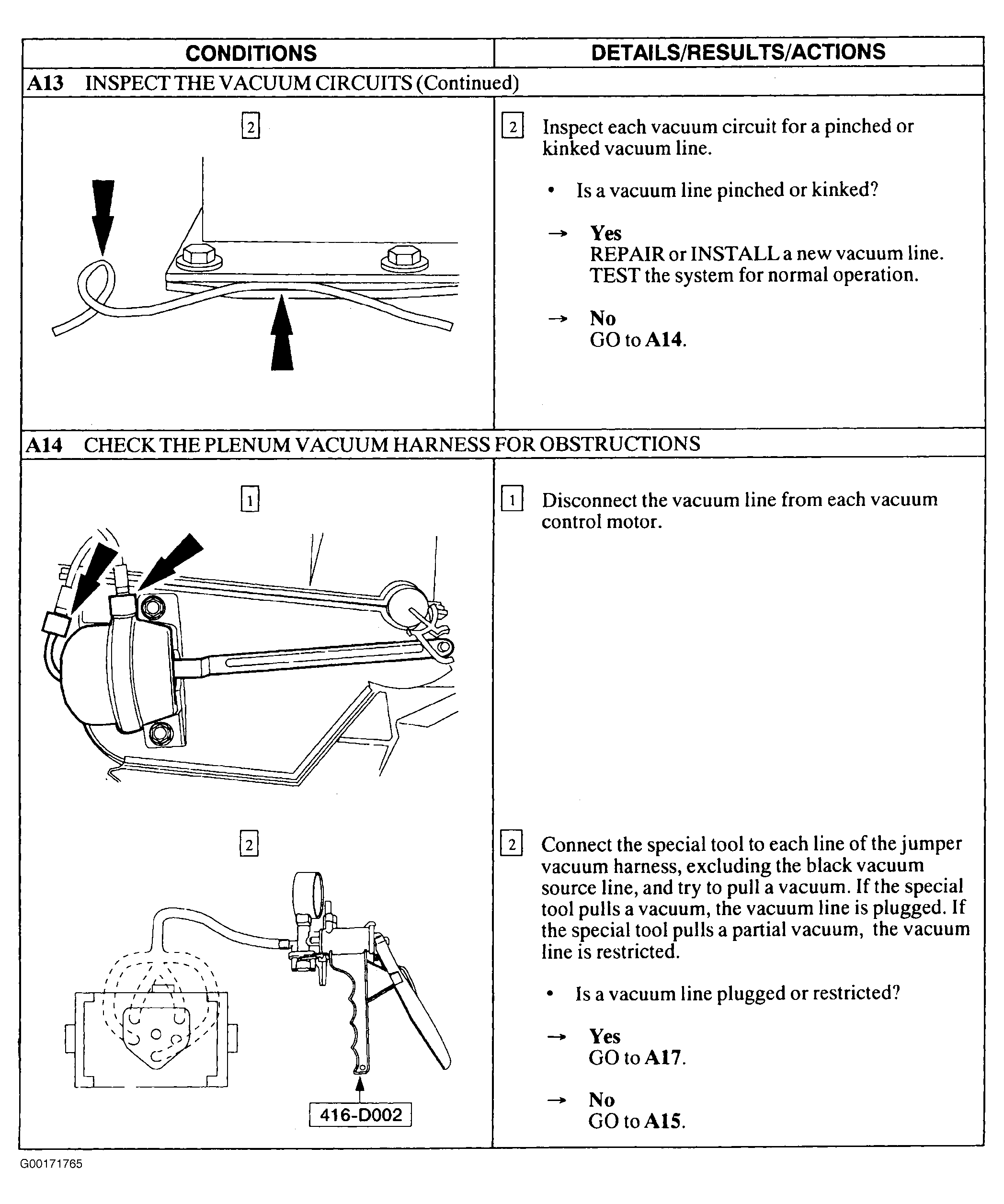

Fig 9: Test A (9 Of 12 - Steps A13 Cont.-A14)

Courtesy of FORD MOTOR CO.

Fig 10: Test A (10 Of 12 - Steps A15-17)

Courtesy of FORD MOTOR CO.

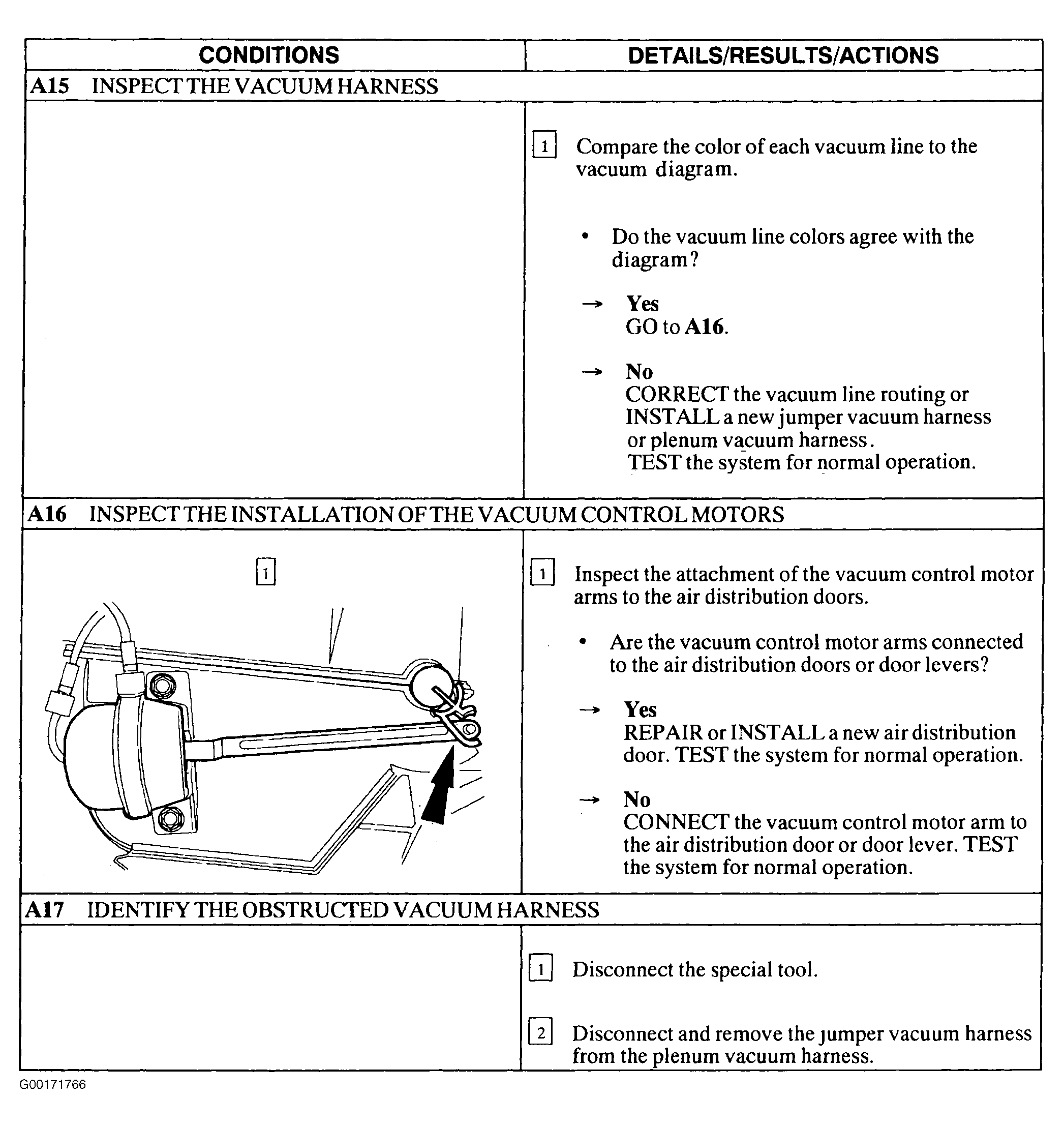

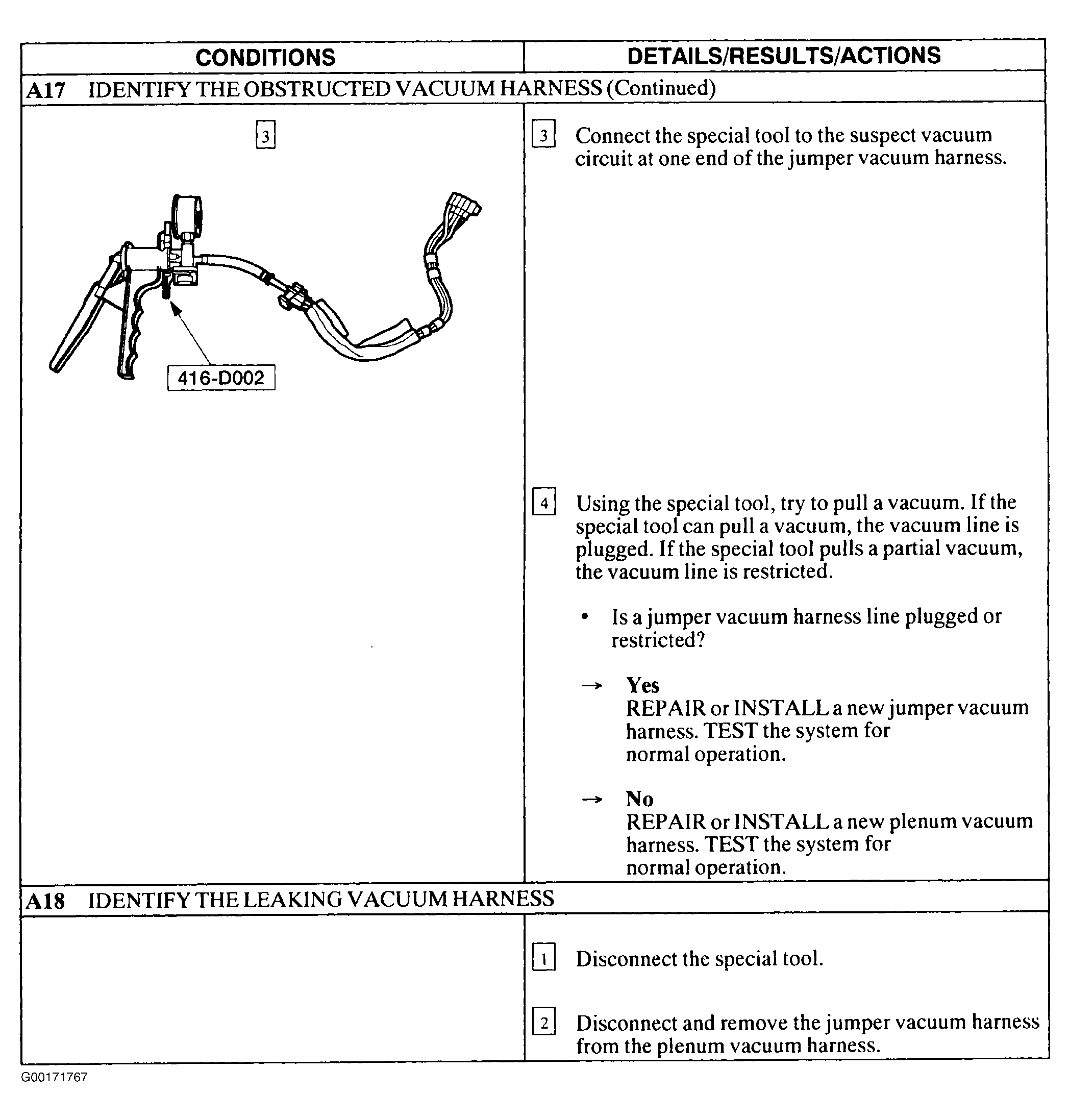

Fig 11: Test A (11 Of 12 - Steps A17 Cont.-A18)

Courtesy of FORD MOTOR CO.

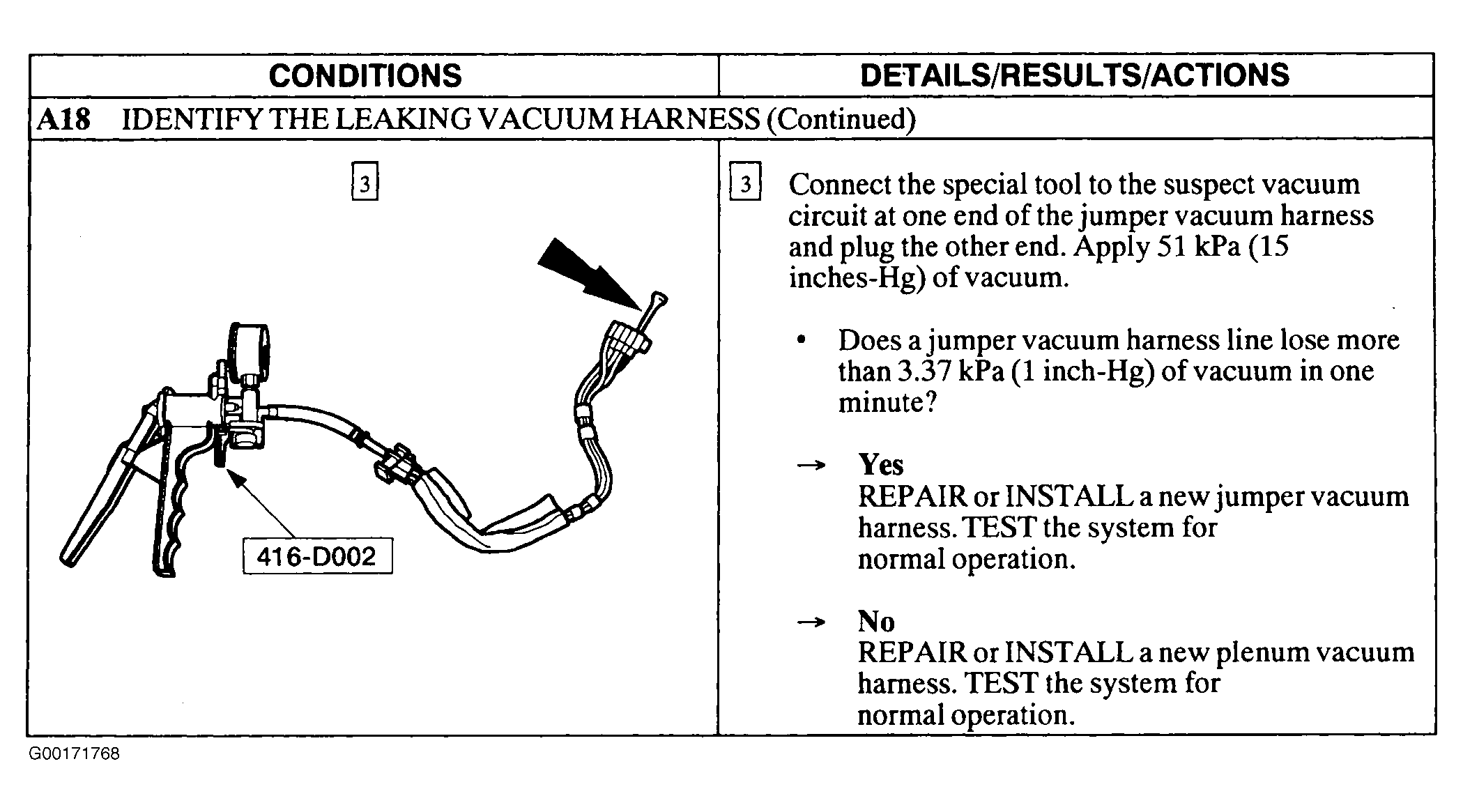

Fig 12: Test A (12 Of 1 - Steps A18 Cont.)

Courtesy of FORD MOTOR CO.
