Instrument Panel: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn steering wheel to straight-ahead position and turn ignition switch to off position. Disconnect negative battery cable then positive battery cable and wait at least one minute to allow for depletion of restraint system backup power supply. Disable air bag system. See FORD - AIR BAG RESTRAINT SYSTEMS article in RESTRAINTS. Remove clockspring. Remove bolt and disconnect ignition switch electrical connector. See Fig 1. Disconnect other electrical connectors at steering column. See Fig 2.
  2. On vehicles equipped with an automatic transmission, remove bolt, indicator cable and transmission range indicator (PRND21) from steering column. See Fig 3. Disconnect shift cable from steering column shift tube lever. Disconnect shift cable from steering column bracket. Disconnect shift cable from steering column. See Fig 4.
  3. On all vehicles, disconnect brake shift interlock solenoid electrical connector. See Fig 5. Remove pinch bolt and remove intermediate shaft from steering column. Discard bolt. See Fig 6. Remove steering column lower nuts. See Fig 7. Remove nuts and steering column. See Fig 8.
  4. Remove 2 screws and position parking brake release handle aside. See Fig 9. Disconnect brake pedal position switch connector. See Fig 10.
  5. If equipped, disconnect clutch pedal position switch electrical connector. See Fig 11. Remove 8 screws and remove left and right door sill scuff plates. See Fig 12. Remove left and right side outer kick panels (retained with push-pins). See Fig 13. Remove left and right windshield side garnish moldings. See Fig 14.
  6. Remove instrument panel fuse block door located at left end for instrument panel. See Fig 15. Disconnect power distribution box from engine compartment bracket and position aside. See Fig 16. Remove bolts and disconnect bulkhead wiring harness from inside engine compartment. See Fig 17. Remove bulkhead connector insulator. See Fig 18. Unclip bulkhead electrical connectors from dash panel. See Fig 19.
  7. Release locking tab, and disconnect restraint control module electrical connector. See Fig 20. Remove passenger-side air bag module. See FORD - AIR BAG RESTRAINT SYSTEMS article in RESTRAINTS. Disconnect blend door actuator connector. See Fig 21. Disconnect heater control panel vacuum harness connector. See Fig 22. Disconnect radio antenna cable in-line connector. See Fig 23. Press retaining tabs while raising glove box. See Fig 24. Remove glove box.
  8. Disconnect electrical connectors and ground wires on right side kick panel. See Fig 25. Remove defrost opening grille. See Fig 26. Remove 5 instrument panel-to-cowl top bolts. See Fig 27. Remove instrument panel brace bolt at steering column opening. See Fig 28. Remove one right instrument panel cowl side bolt and 2 left instrument panel cowl side bolts. See Fig 29 and Fig 30 .
  9. Position instrument panel away from cowl. Remove instrument panel-to-body wiring harness bolt and disconnect harness. See Fig 31. With an assistant, remove instrument panel. If necessary, transfer components to new instrument panel.

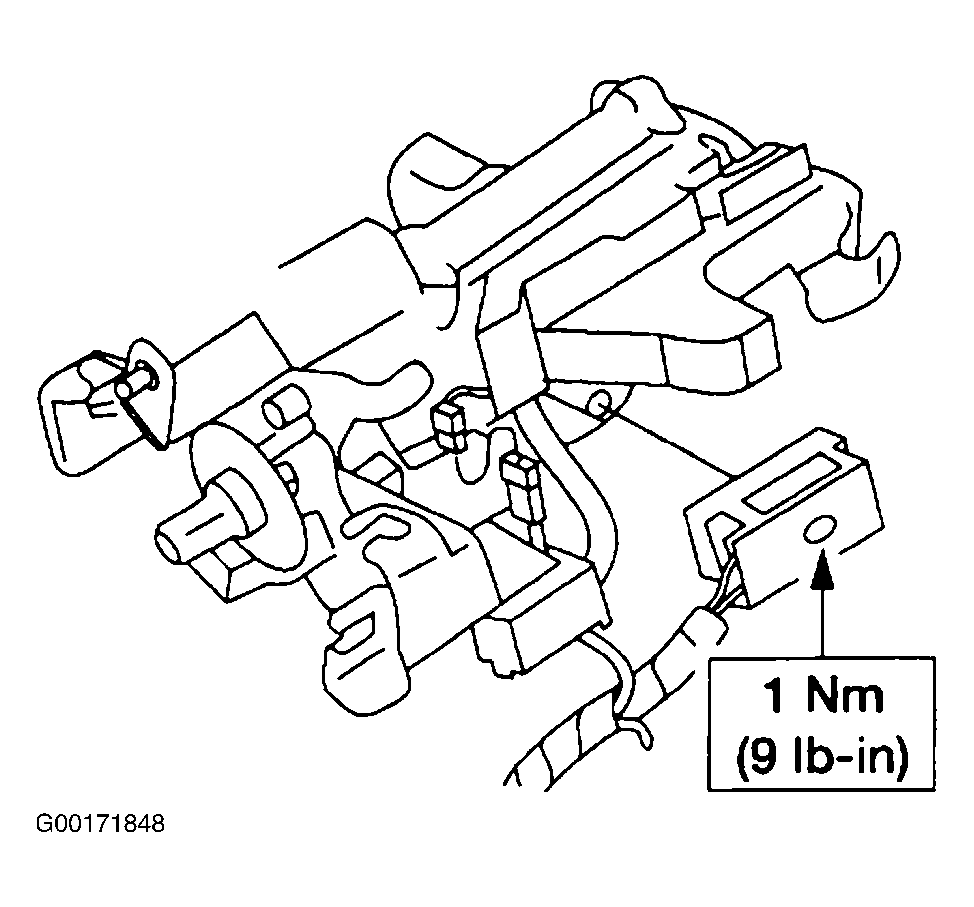

Fig 1: Identifying Ignition Switch Electrical Connector
G00171848Courtesy of FORD MOTOR CO.

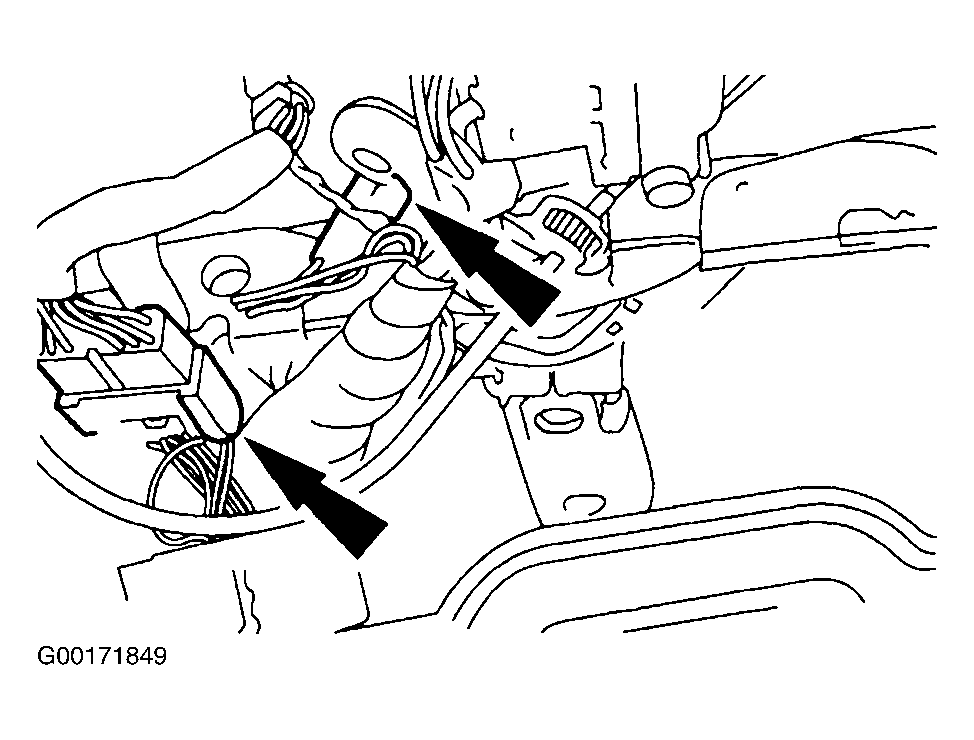

Fig 2: Identifying Steering Column Connectors
G00171849Courtesy of FORD MOTOR CO.

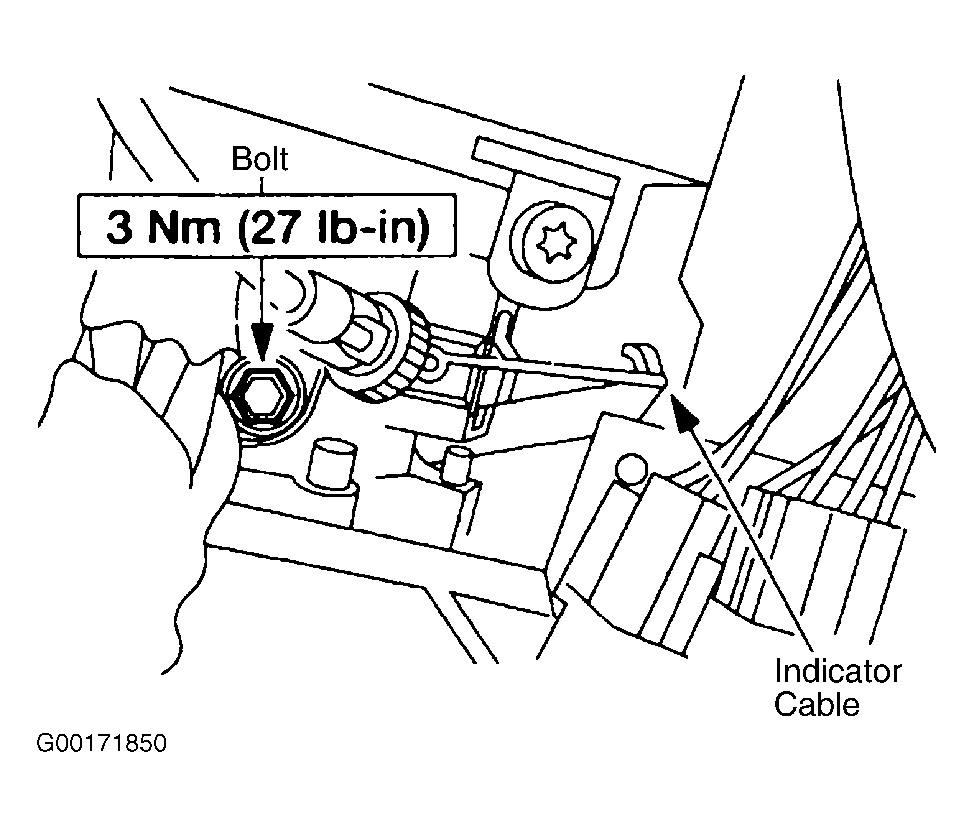

Fig 3: Removing Transmission Range Indicator
G00171850Courtesy of FORD MOTOR CO.
Fig 4: Removing Shift Cable
G00168076Courtesy of FORD MOTOR CO.

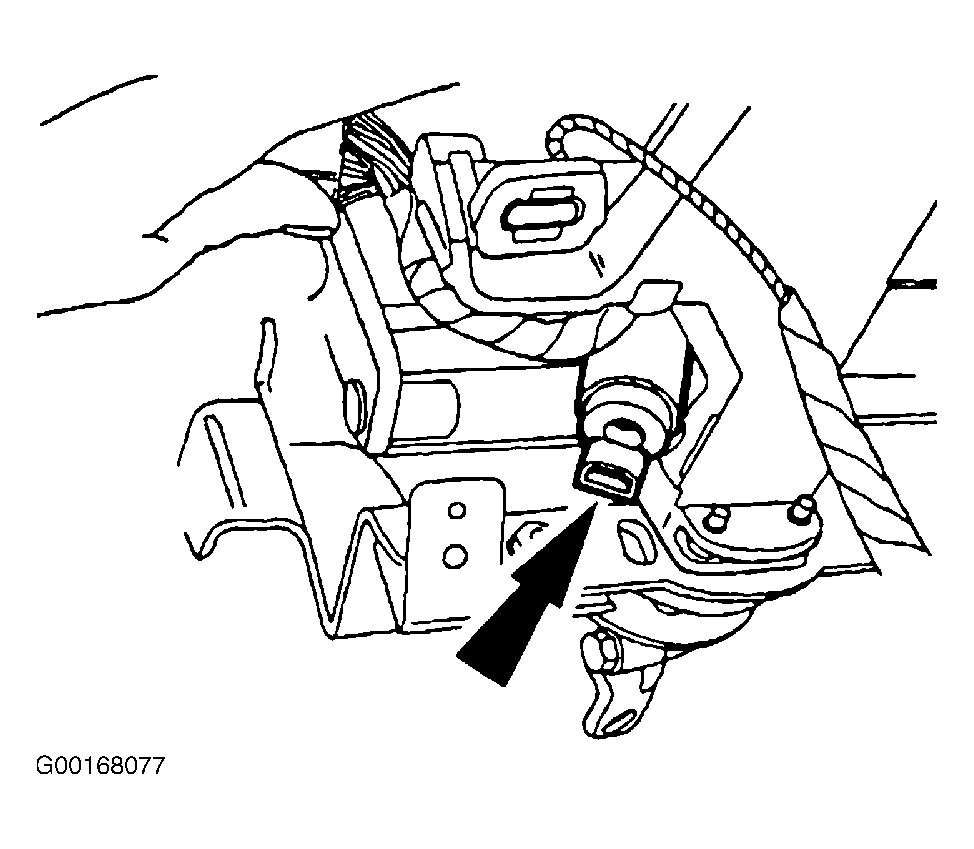

Fig 5: Identifying Brake Shift Interlock Solenoid Connector
G00168077Courtesy of FORD MOTOR CO.

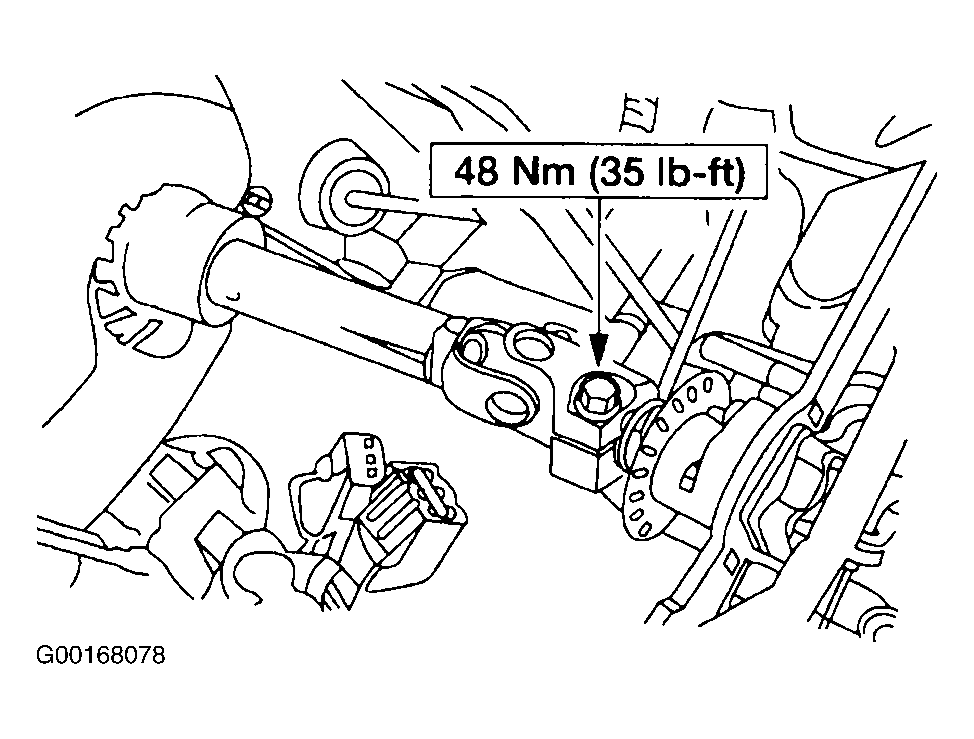

Fig 6: Identifying Steering Column Pinch Bolt
G00168078Courtesy of FORD MOTOR CO.

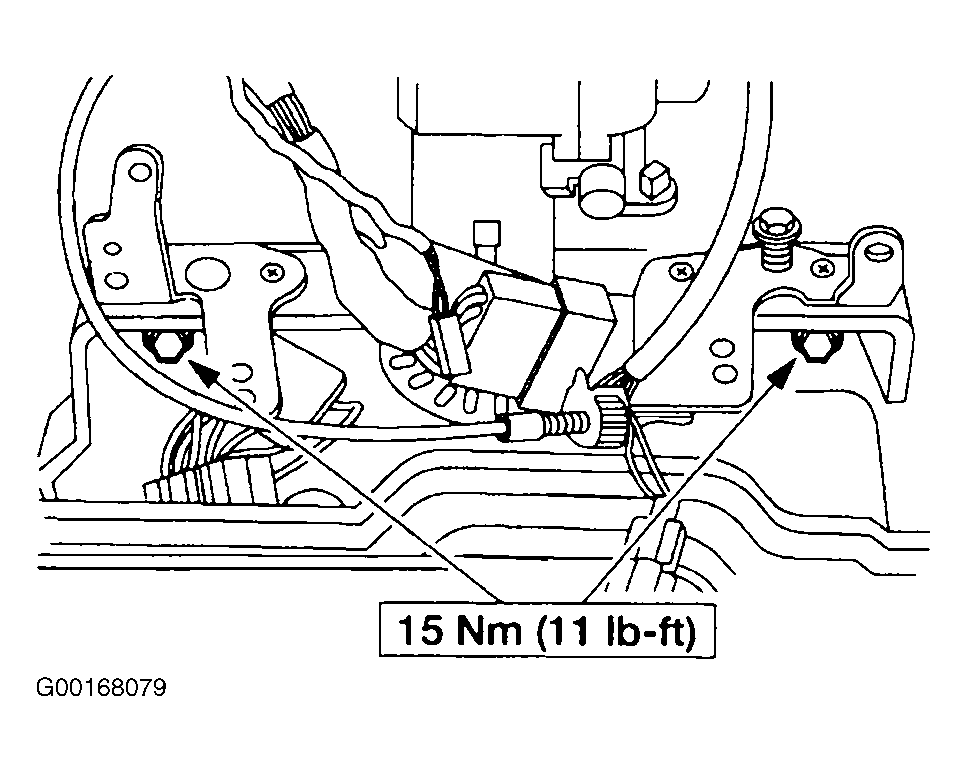

Fig 7: Identifying Steering Column Lower Nuts
G00168079Courtesy of FORD MOTOR CO.

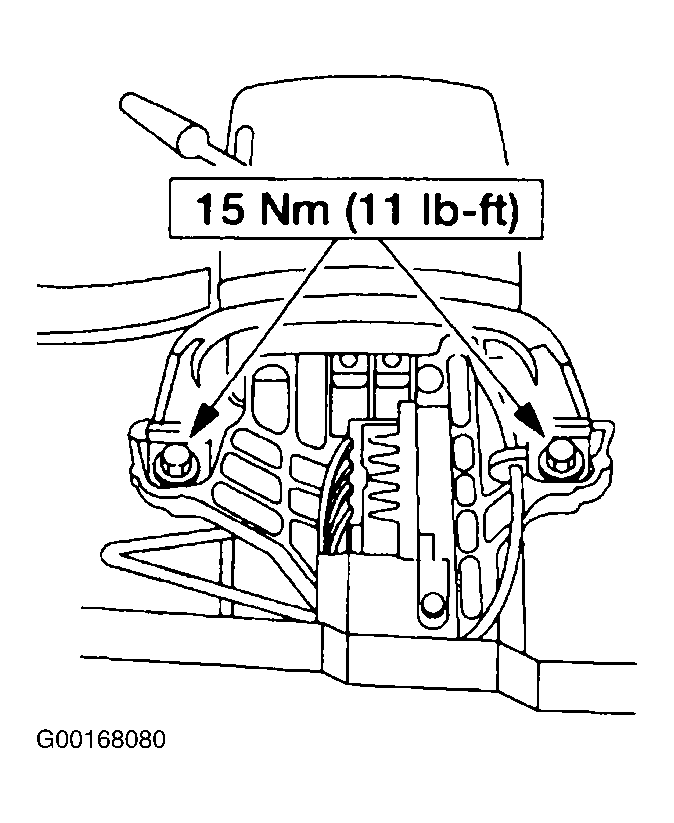

Fig 8: Removing Steering Column
G00168080Courtesy of FORD MOTOR CO.
Fig 9: Removing Parking Brake Release Handle
G00171825Courtesy of FORD MOTOR CO.

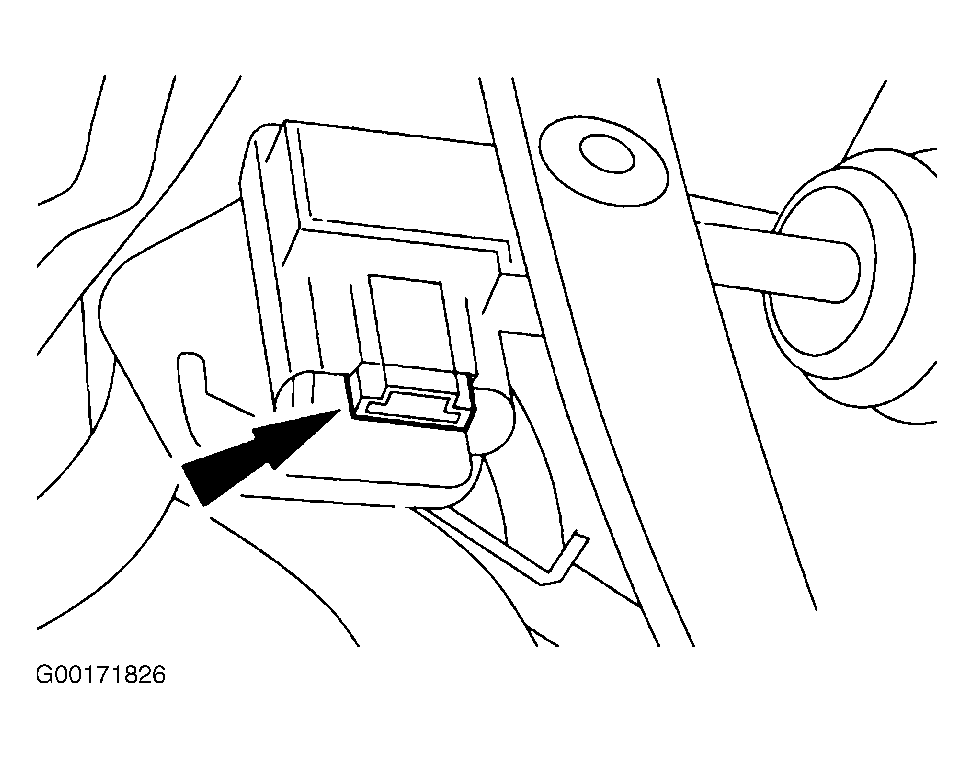

Fig 10: Identifying Brake Pedal Position Switch Connector
G00171826Courtesy of FORD MOTOR CO.

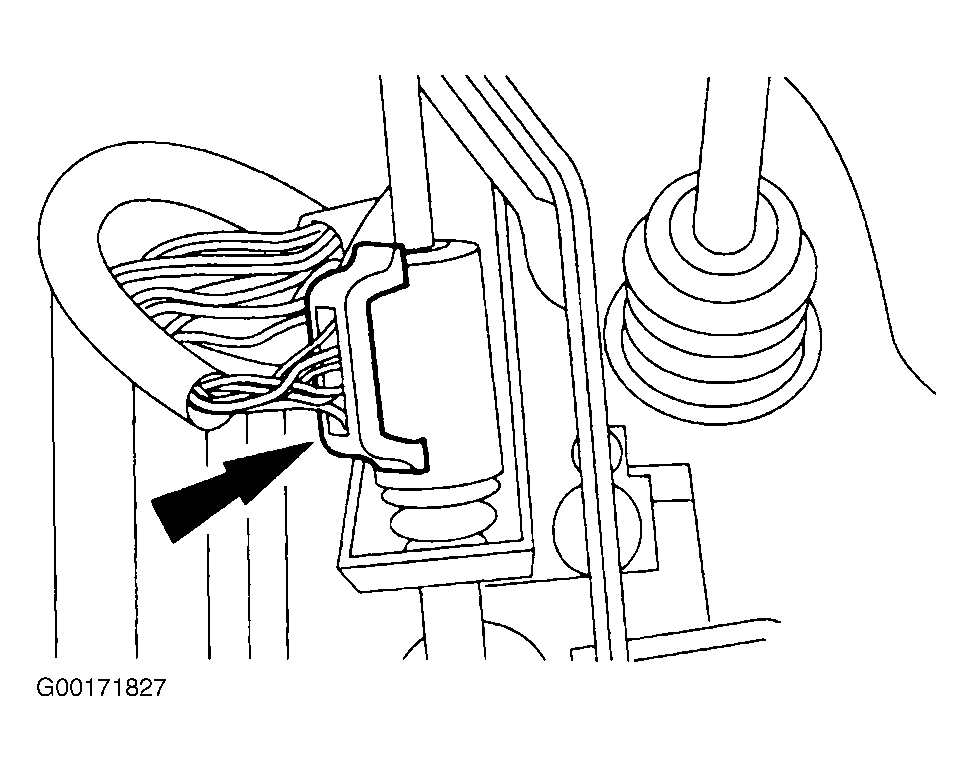

Fig 11: Identifying Clutch Pedal Position Switch Connector
G00171827Courtesy of FORD MOTOR CO.
Fig 12: Removing Scuff Plates
G00171828Courtesy of FORD MOTOR CO.

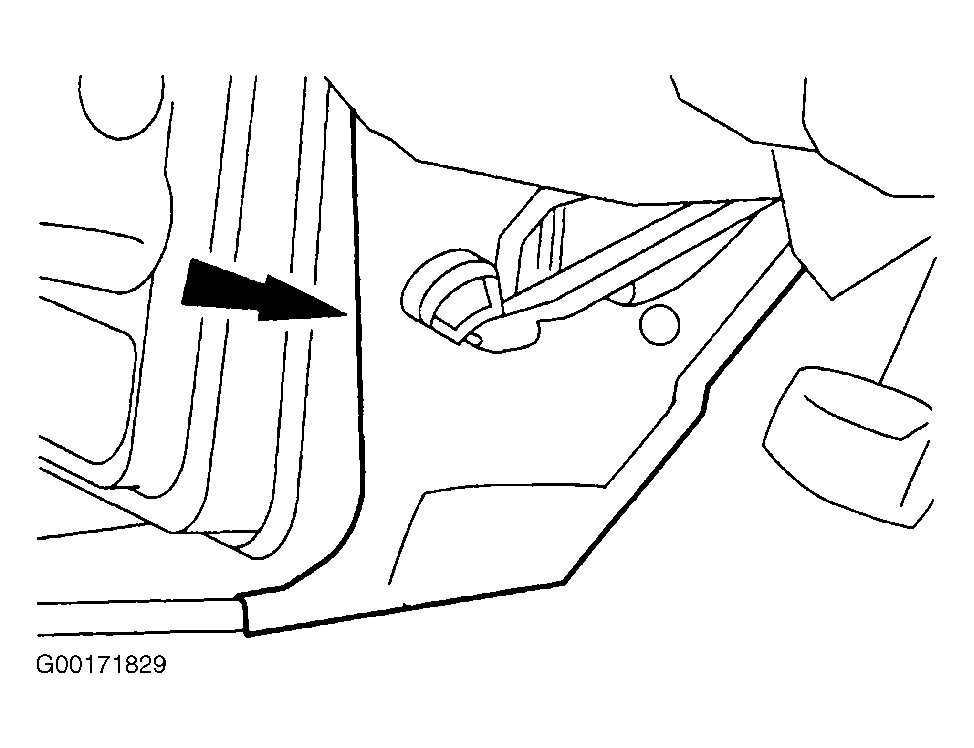

Fig 13: Removing Kick Panels
G00171829Courtesy of FORD MOTOR CO.
Fig 14: Removing Garnish Moldings
G00171830Courtesy of FORD MOTOR CO.
Fig 15: Identifying Instrument Panel Fuse Block Door
G00171831Courtesy of FORD MOTOR CO.

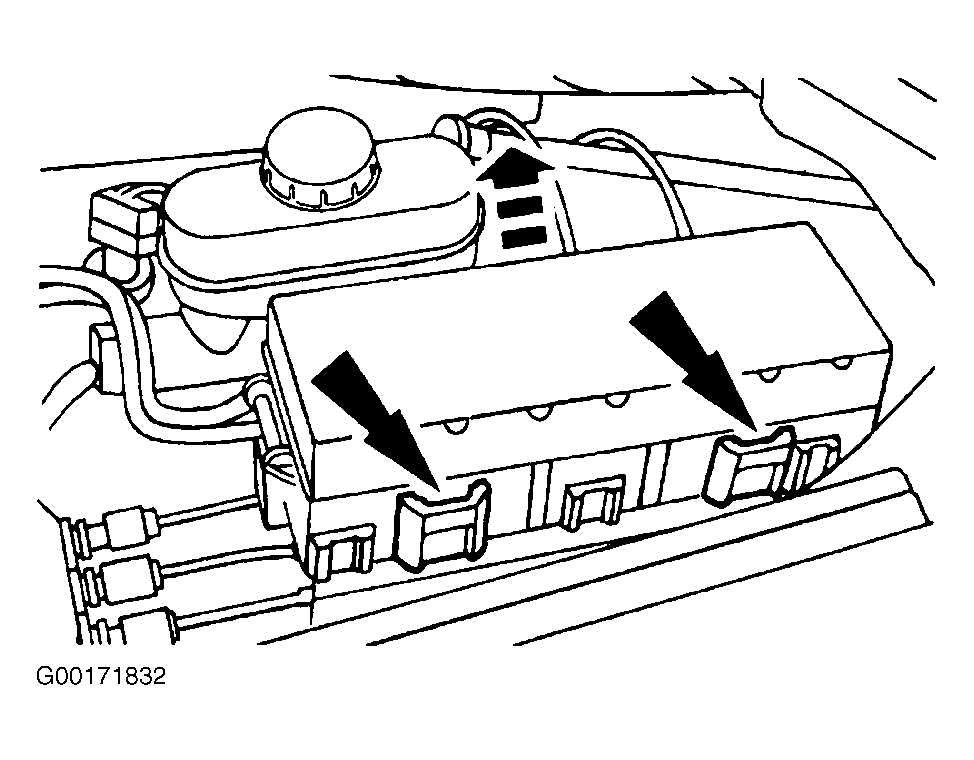

Fig 16: Removing Power Distribution Box
G00171832Courtesy of FORD MOTOR CO.

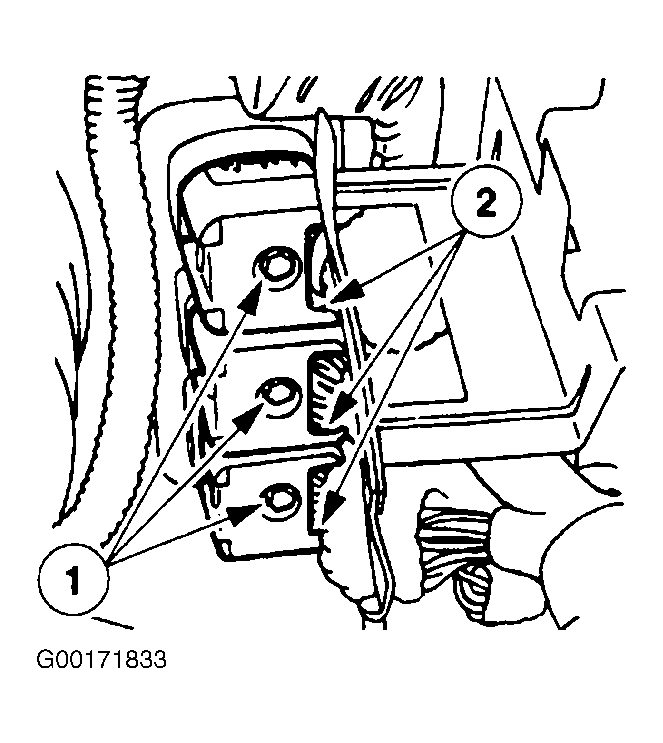

Fig 17: Removing Bulkhead Wiring Harness
G00171833Courtesy of FORD MOTOR CO.
Fig 18: Removing Bulkhead Wiring Harness Connector Insulator
G00171834Courtesy of FORD MOTOR CO.

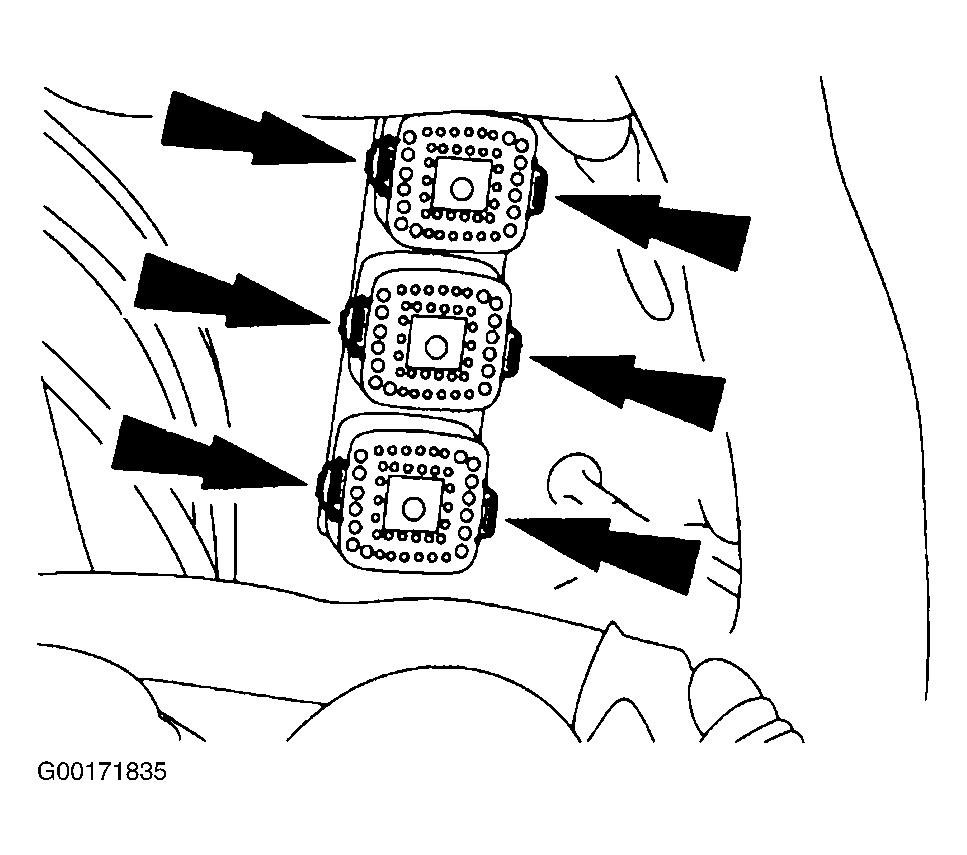

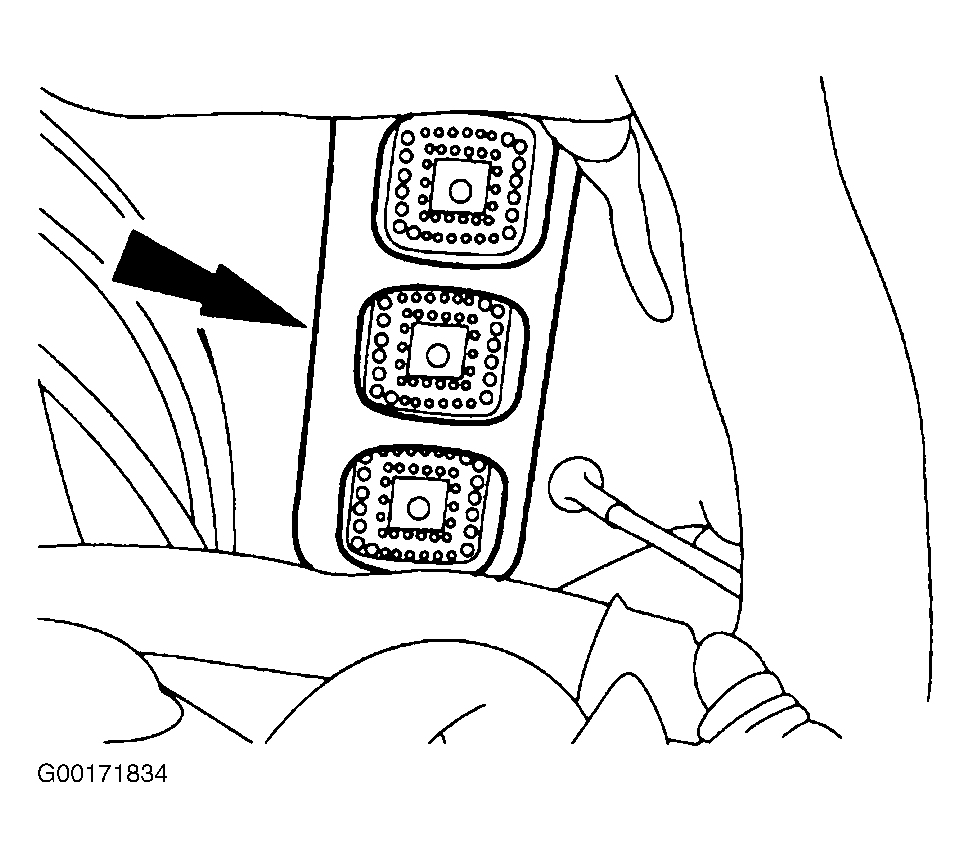

Fig 19: Removing Bulkhead Wiring Harness Connectors
G00171835Courtesy of FORD MOTOR CO.

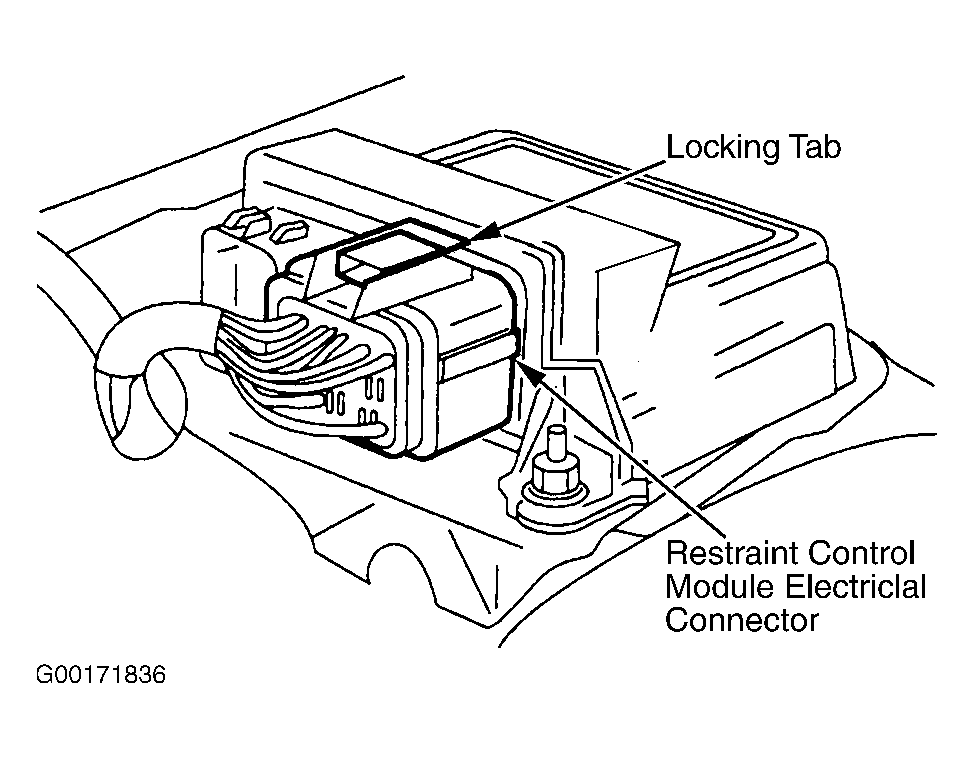

Fig 20: Identifying Restraint Control Module Connector
G00171836Courtesy of FORD MOTOR CO.

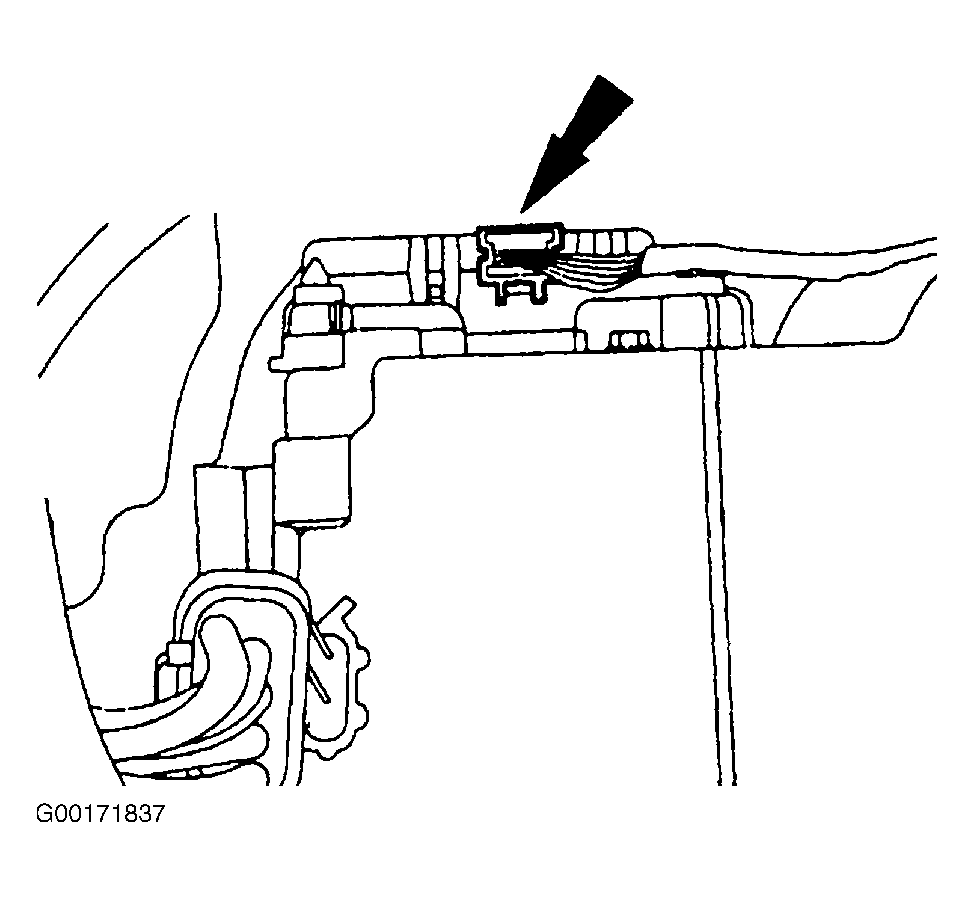

Fig 21: Identifying Blend Door Actuator Connector
G00171837Courtesy of FORD MOTOR CO.

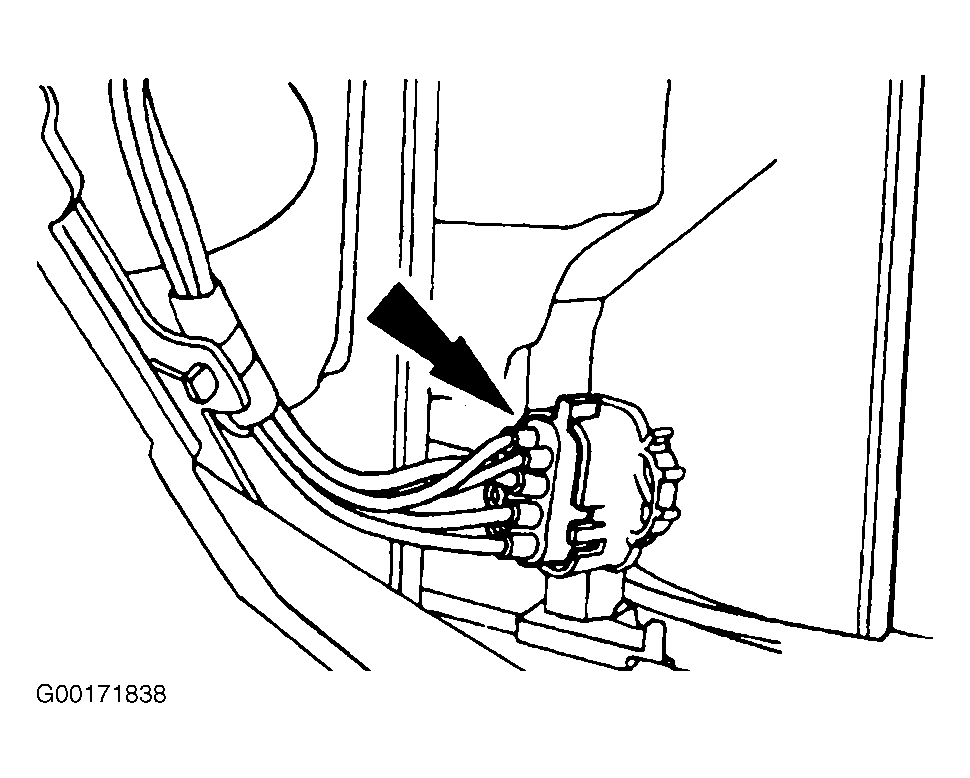

Fig 22: Identifying Vacuum Harness Connector
G00171838Courtesy of FORD MOTOR CO.
Fig 23: Identifying Radio Antenna Cable In-Line Connector
G00171839Courtesy of FORD MOTOR CO.
Fig 24: Removing Glove Box
G00171840Courtesy of FORD MOTOR CO.

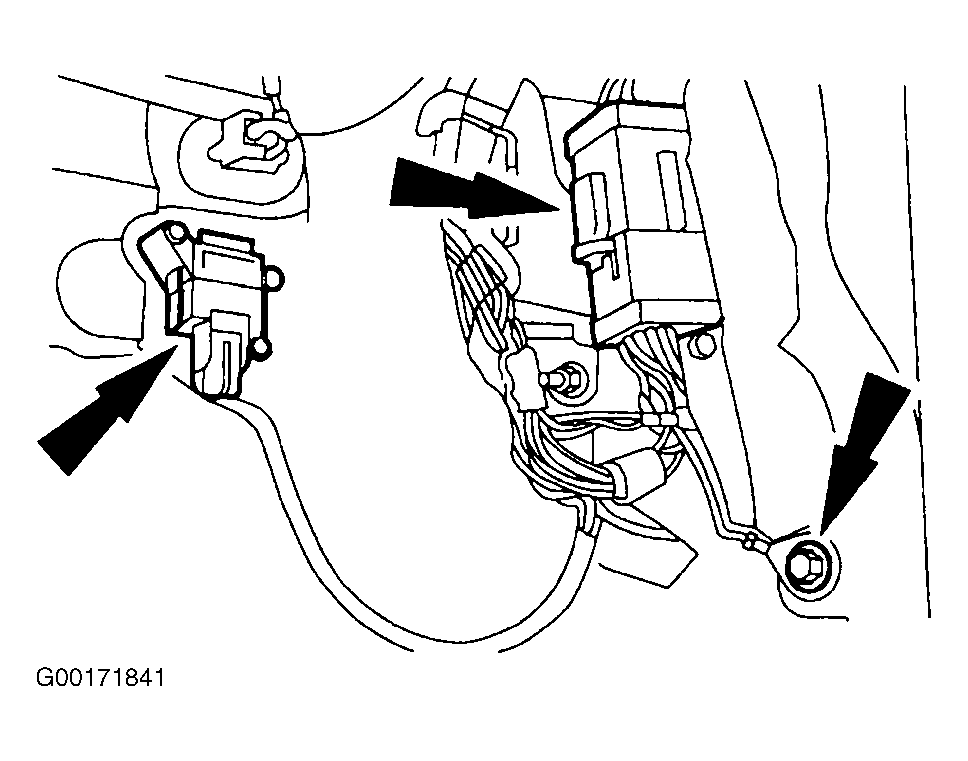

Fig 25: Identifying Connectors & Ground On Right Kick Panel
G00171841Courtesy of FORD MOTOR CO.

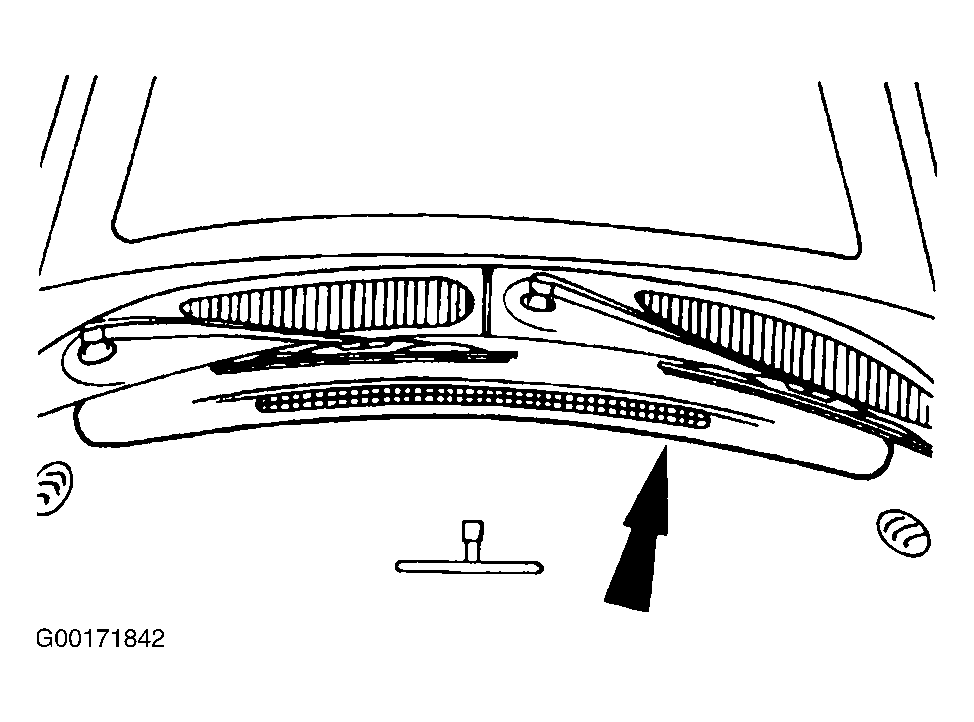

Fig 26: Identifying Defrost Opening Grille
G00171842Courtesy of FORD MOTOR CO.
Fig 27: Identifying Instrument Panel-To-Cowl Bolts
G00171843Courtesy of FORD MOTOR CO.

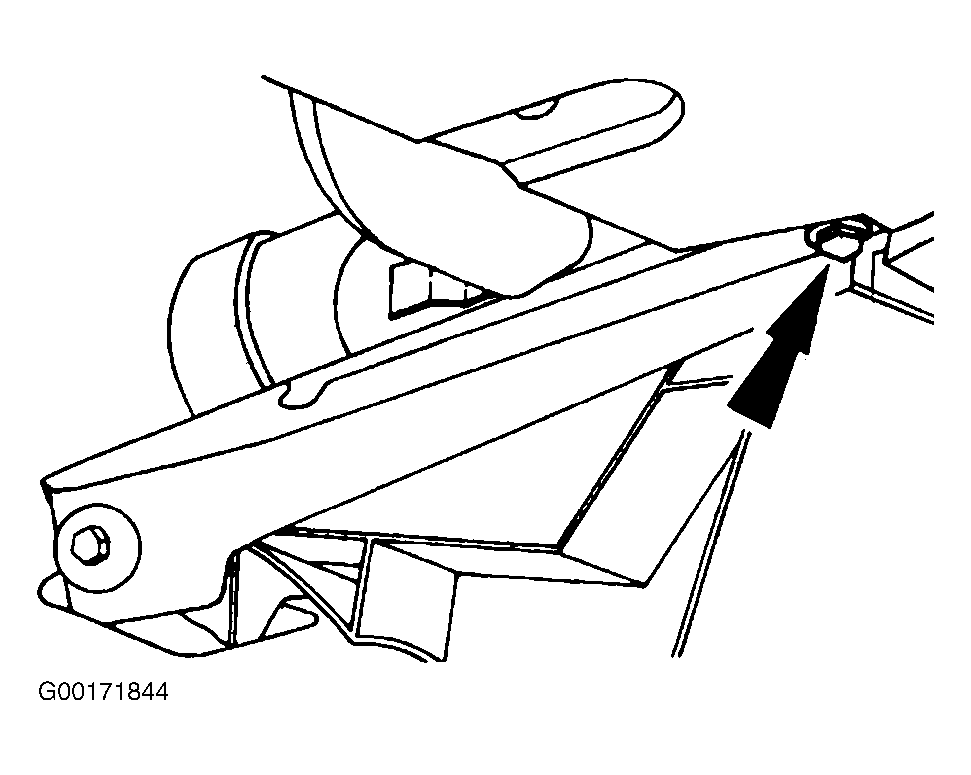

Fig 28: Identifying Instrument Panel Brace Bolt
G00171844Courtesy of FORD MOTOR CO.

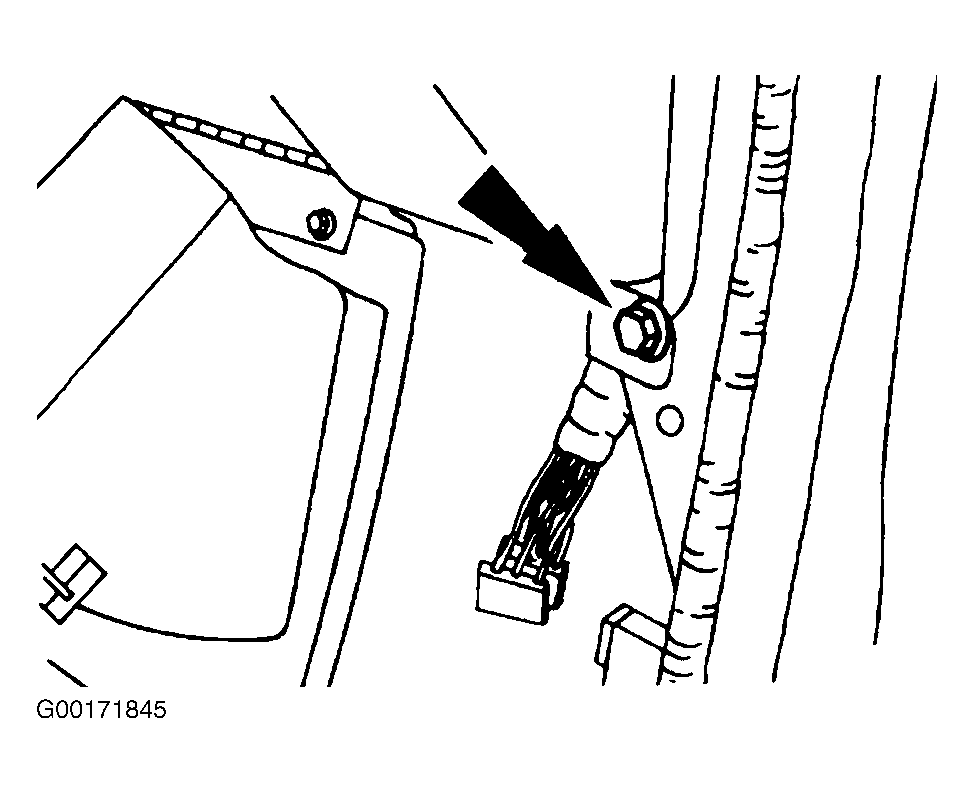

Fig 29: Identifying Right Instrument Panel Cowl Side Bolt
G00171845Courtesy of FORD MOTOR CO.

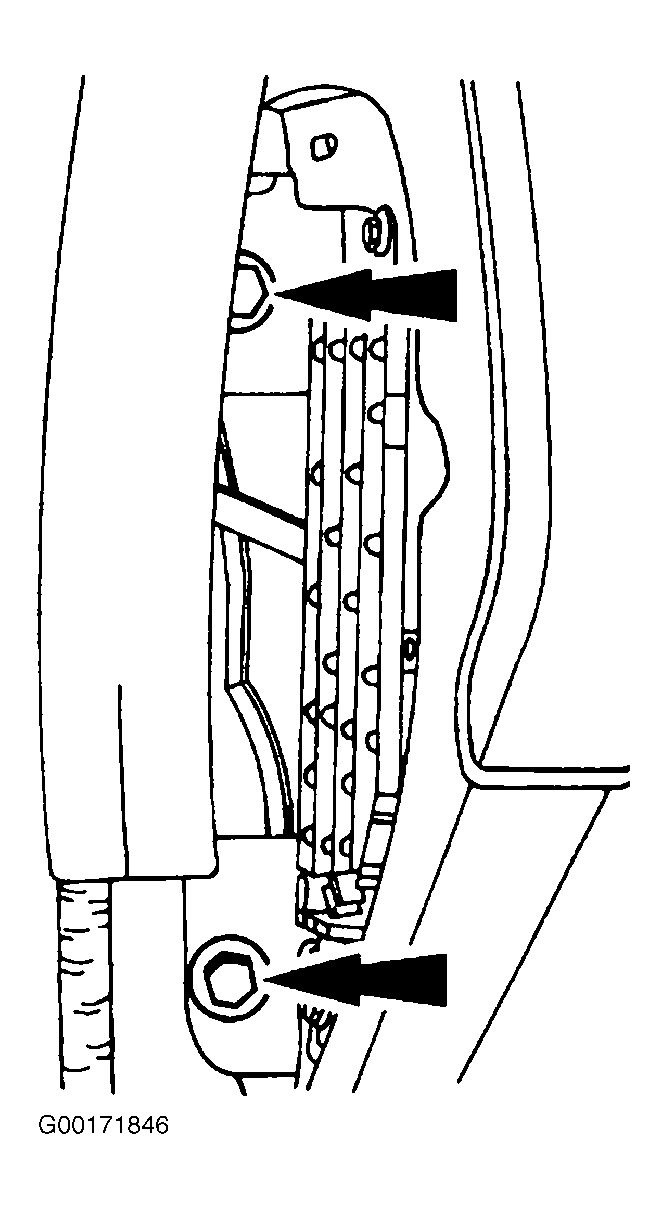

Fig 30: Identifying Left Instrument Panel Cowl Side Bolts
G00171846Courtesy of FORD MOTOR CO.

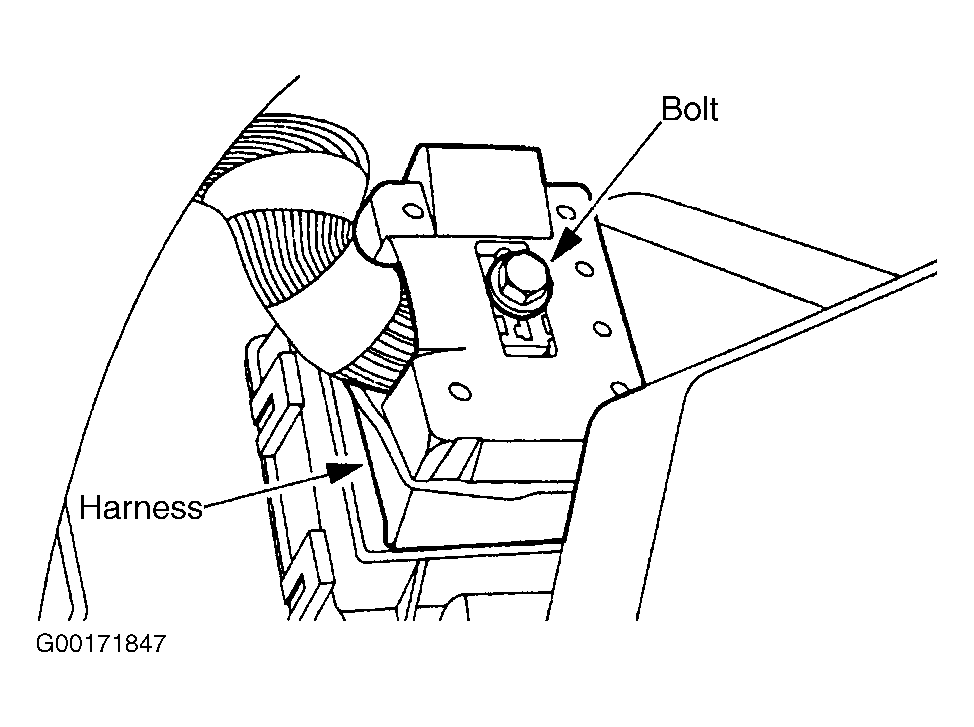

Fig 31: Removing Instrument Panel-To-Body Wiring Harness
