Removal & Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable. From engine compartment, disconnect speed control servo connector (if equipped). See Fig 1. Remove retaining screw and reposition speed control servo.
Disconnect blower motor wiring harness connector and cooling tube from blower motor. See Fig 2 and Fig 3 . Remove 4 blower motor mounting screws. Remove clip and remove wheel from blower motor. See Fig 4. To install, reverse removal procedure.

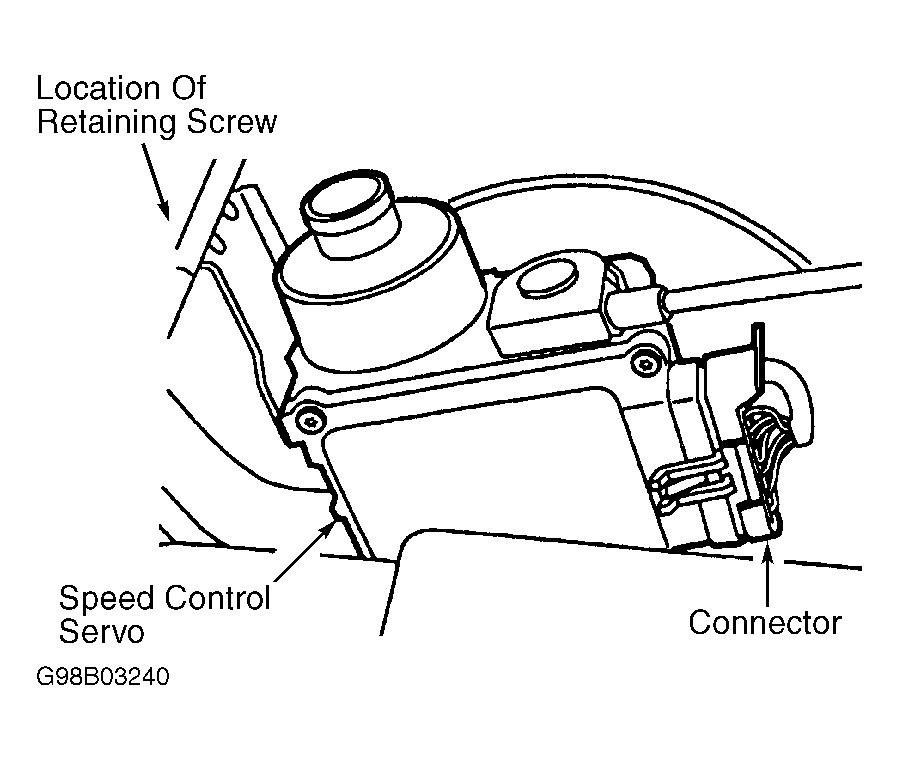

Fig 1: Removing Speed Control Servo For Blower Motor Removal

Courtesy of FORD MOTOR CO.

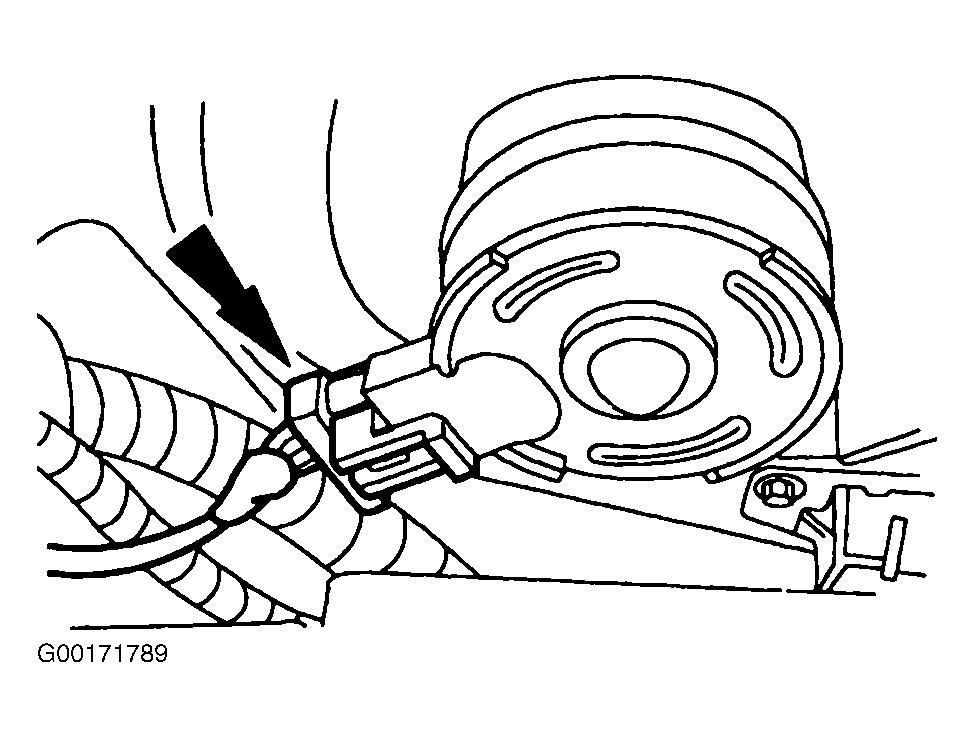

Fig 2: Identifying Blower Motor Connector

Courtesy of FORD MOTOR CO.

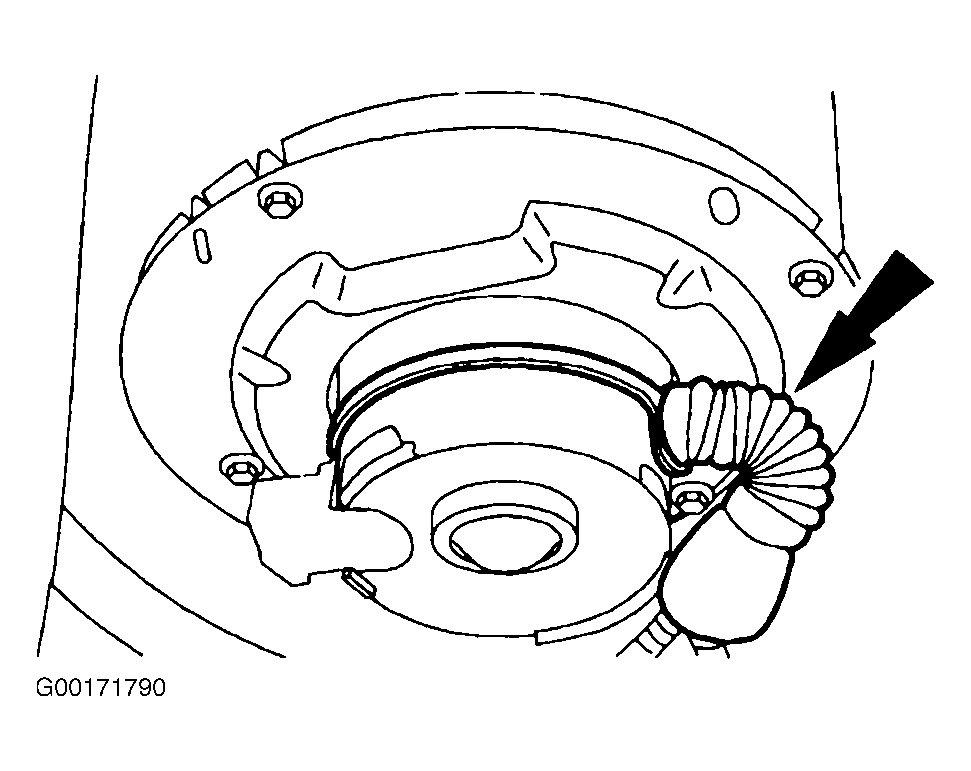

Fig 3: Identifying Blower Motor Cooling Tube

Courtesy of FORD MOTOR CO.

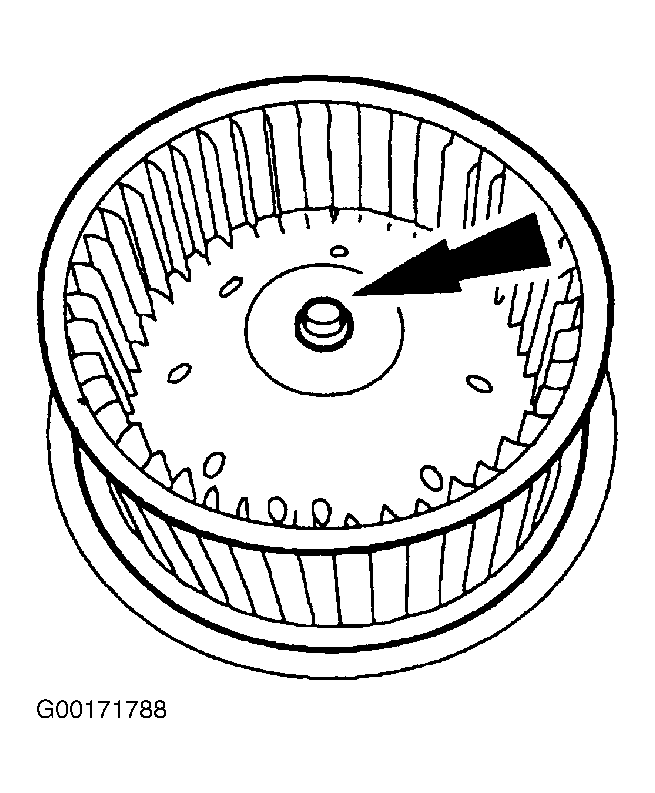

Fig 4: Identifying Blower Motor Wheel Clip

Courtesy of FORD MOTOR CO.
