Seat Track - Front: Removal

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: To reduce the risk of personal injury, do not use any memory saver devices.
CAUTION: It is necessary to rezero the occupant classification sensor (OCS) system when a front passenger seat cushion is disassembled, a new trim cover is installed, or an OCS service kit is installed. A diagnostic tool is used to trigger the active command to carry out rezeroing of the OCS system.
NOTE: If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the supplemental restraint system (SRS) must be depowered.
NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: The memory seat track position sensors are integral to the memory seat track motors. The memory seat track motor electrical connectors will connect to a seat track without the memory option. Make sure the correct seat track is being installed.

    All seats

  1. Position the seat to access all the seat track-to-floor pan bolts and the safety belt anchor.
  2. Depower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of SUPPLEMENTAL RESTRAINT SYSTEM .
  3. Remove the front seat. For additional information, refer to SEAT - FRONT .

    4. Seats with manual recline

  4. Pull out and remove the manual recline handle.

    5. Power seats

  5. Remove the seat control switch knob.

    6. Seats with power recline

  6. Remove the power backrest adjust knob.

    7. All seats

  7. Remove the rear screw, pull out on the side and front and separate the side shield.
    • Vehicles with manual seats, remove the side shield.

    8. Power seats

  8. Release the seat control switch wire harness pin-type retainer. Remove the seat control switch, disconnect it and remove the side shield.

    9. Heated Seats

  9. Disconnect the cushion heated seat element electrical connector.

    10. All seats

  10. Release all cushion trim cover-to-seat cushion pan J-clips.
  11. Separate the pin-type retainer and disconnect the buckle switch electrical connector.

    12. Passenger seats

  12. Separate the safety belt tension sensor electrical connector from the seat track.
  13. Remove the cushion pan-to-seat track bolt.
    • To install, tighten to 10 Nm (89 lb-in).
  14. Remove the safety belt buckle nut and safety belt buckle.
    • To install, tighten to 50 Nm (37 lb-ft).

    15. All seats

  15. Release the hook and loop strip at the rear of the cushion trim cover.
    • Driver seats and passenger seats equipped with an OEM OCS, remove the foam pad and trim cover.
    • When installing, make sure the safety belt buckle is positioned through the seat cushion trim cover opening.
  16. Disconnect and separate the under seat electrical connectors attached to the seat track bracket.
    1. Separate the 11-way electrical connector and wire harness.
    2. Vehicles equipped with power seats, separate the main power feed electrical connector.

    17. Driver seat

  17. Disconnect the SRS seat position sensor electrical connector.

    18. Power seats

    NOTE: Before disconnecting the power seat track motor electrical connectors, determine which connector goes to each motor and label to aid in installation.
  18. Disconnect all the power seat track motor electrical connectors.

    19. Passenger seat

    NOTE: Make sure the pressure sensor is correctly installed and retained to the seat track bracket and the pressure sensor hose is not kinked during installation.
  19. Bend the tab and slide the pressure sensor off the seat track bracket.
    • When installing, bend the tab back before sliding the pressure sensor onto the bracket.

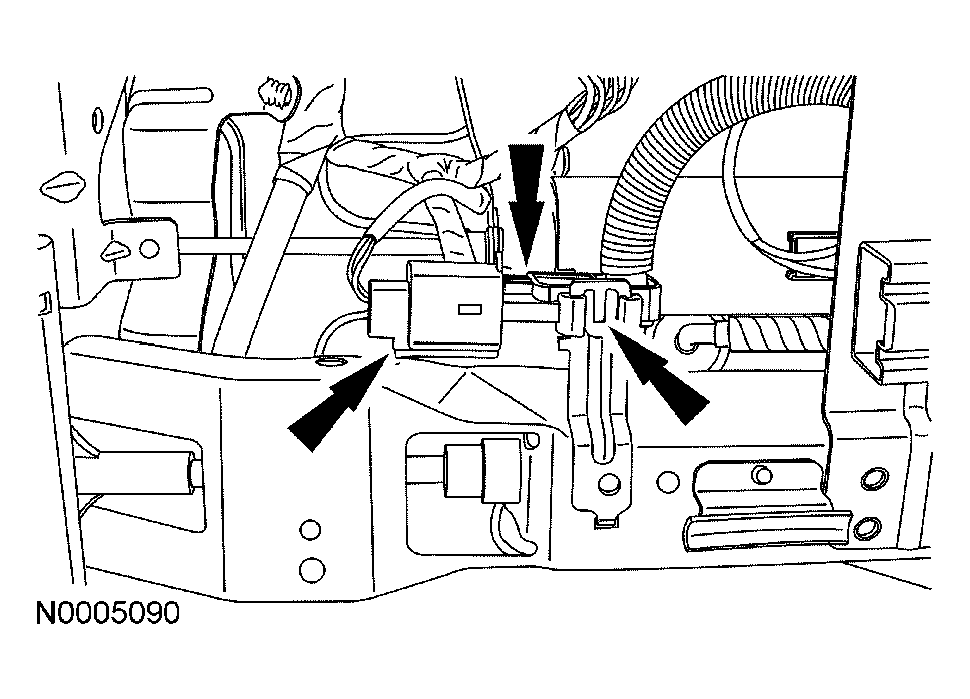

      Fig 1: Installing Pressure Sensor
      G03988909Courtesy of FORD MOTOR CO.

    20. Power passenger seat with a service kit OCS

  20. Detach the OCS service kit electrical connector from the seat track.

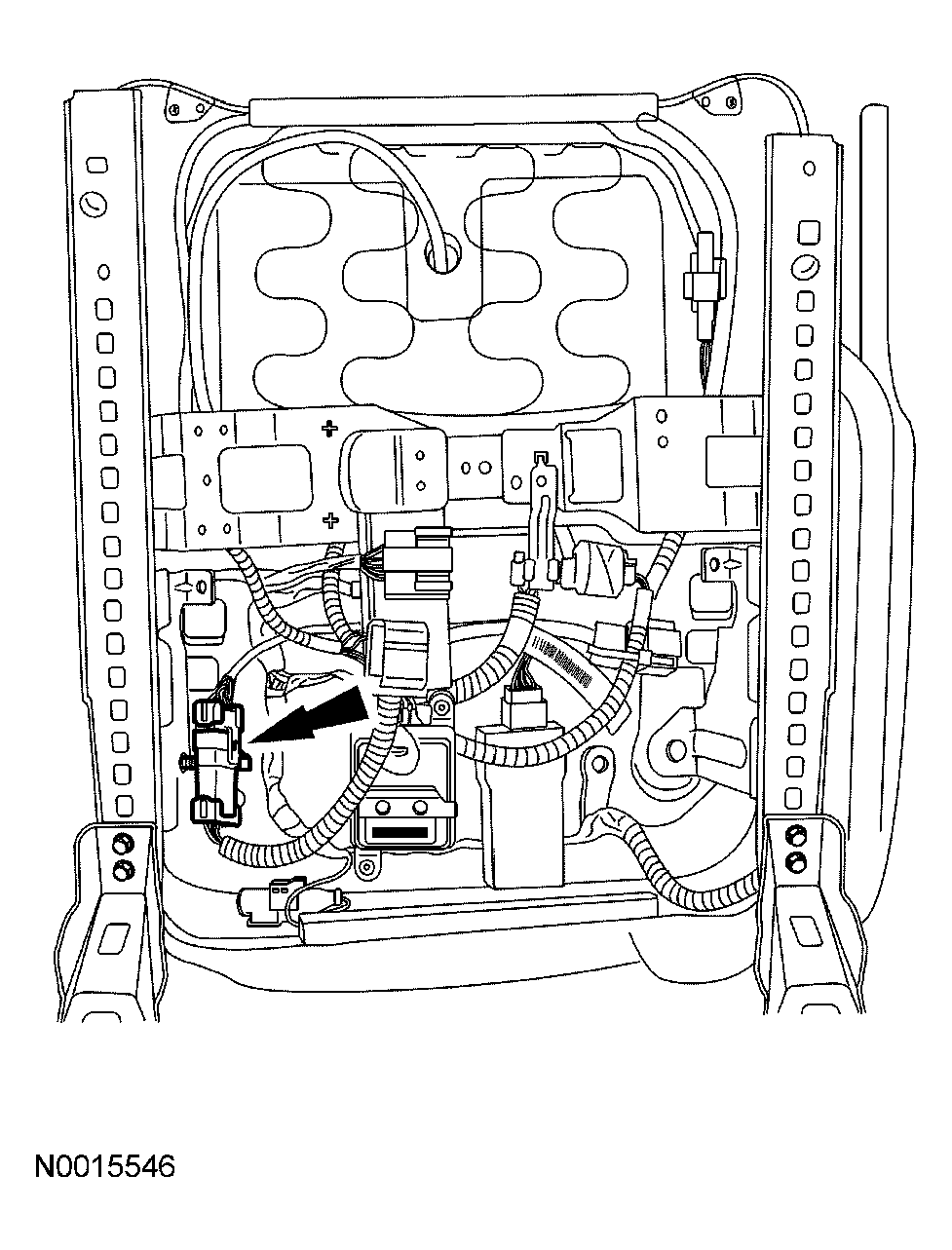

    Fig 2: Detaching OCS Service Kit Electrical Connector From Seat Track
    G03988910Courtesy of FORD MOTOR CO.

    21. Manual passenger seat with a service kit OCS

  21. Detach the OCS service kit ECU and seat wiring harness electrical connector.
    1. Detach the OCS service kit electrical connector from the seat track.
    2. Remove the tie strap retaining the unused pressure sensor electrical connector of the seat wiring harness.

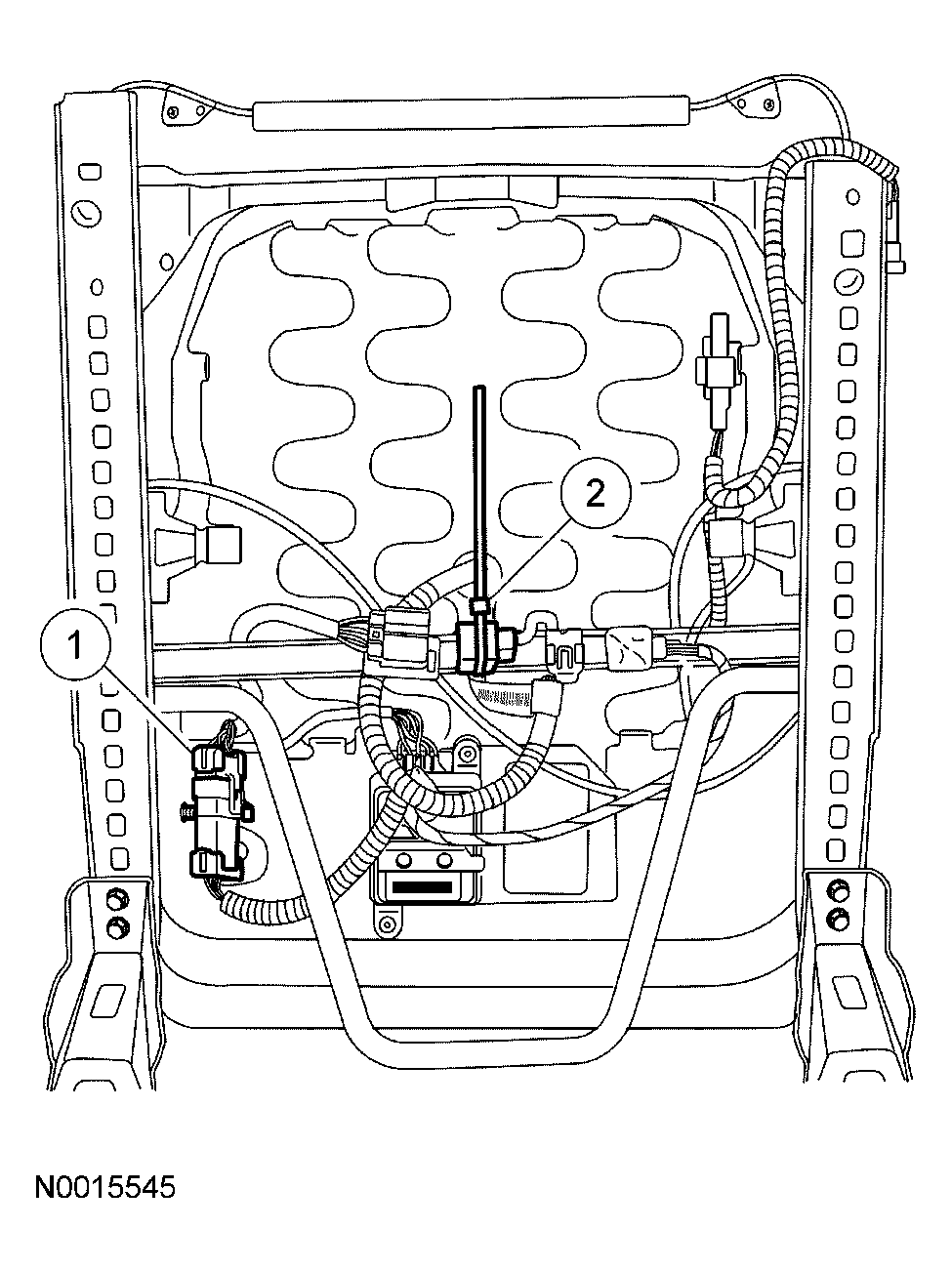

      Fig 3: Removing Tie Strap Retaining Unused Pressure Sensor Electrical Connector Of Seat Wiring Harness
      G03988911Courtesy of FORD MOTOR CO.
  22. Lift the foam pad, trim cover and bladder and move aside to access the seat track nuts.
    • When installing, make sure the safety belt buckle is positioned through the seat cushion trim cover opening.

    23. All seats

  23. Remove the 4 nuts and the seat track.
    • To install, tighten to 33 Nm (24 lb-ft).
    24. NOTE: The memory seat track position sensors are integral to the memory seat track motors. The memory seat track motor electrical connectors will connect to a seat track without the memory option. Make sure the correct seat track is being installed.
  24. To install, reverse the removal procedure.
  25. Install the seat. For additional information, refer to SEAT - FRONT .
  26. Repower the SRS. Do not prove out the SRS at this time.  For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of SUPPLEMENTAL RESTRAINT SYSTEM .

    27. Passenger seat

    WARNING: Do not separate components.
    CAUTION: It is necessary to rezero the OCS system when a front passenger seat cushion is disassembled, a new trim cover installed or an OCS service kit is installed. A diagnostic tool is used to trigger the active command to carry out rezeroing of the OCS system.
    CAUTION: Make sure the seat is completely assembled before rezeroing.
    CAUTION: The following precautions must be taken before rezeroing the OCS system.
    • Make sure the OCS system components are connected and no faults are present.
    • Make sure the OCS system is not at a temperature below 0°C (32°F) or above 45°C (113°F) when initiating the rezeroing process. If the vehicle has been exposed to extreme cold or hot temperatures, the vehicle must be exposed and kept at a temperature within the limits, 0°C to 45°C (32°F to 113°F) for a minimum of 30 minutes.
    • Make sure nothing is present on the passenger seat before rezeroing and nothing is placed on the seat during the rezeroing process.
    • Make sure a minimum 8-second time period has passed after cycling the ignition switch ON before the rezeroing process.
    NOTE: For best results in rezeroing, the OCS system should be at or near room temperature, 10°C to 29°C (50°F to 85°F).
    NOTE: If the first attempt to rezero the OCS system is unsuccessful, a second attempt must be made.
  27. Rezero the occupant classification sensor.
    • With the front passenger seat empty, use a diagnostic tool to trigger the active command and rezero the OCS.
    28. NOTE: The ignition switch must be cycled after rezeroing the OCS system.
  28. Cycle the ignition switch from ON to OFF.

    29. All seats

  29. Prove out the supplemental restraint system (SRS) as follows:

    Turn the ignition key from ON to OFF. Wait 10 seconds, then turn the key back to ON and visually monitor the air bag indicator with the air bag modules installed. The air bag indicator will light continuously for approximately 6 seconds and then turn off. If an air bag supplemental restraint system (SRS) fault is present, the air bag indicator will:

    • fail to light.
    • remain lit continuously.
    • flash.

    The flashing might not occur until approximately 30 seconds after the ignition switch has been turned from the OFF to the ON position. This is the time required for the restraints control module (RCM) to complete the testing of the SRS. If the air bag indicator is inoperative and a SRS fault exists, a chime will sound in a pattern of 5 sets of 5 beeps. If this occurs, the air bag indicator and any SRS fault discovered must be diagnosed and repaired.

    Clear all continuous DTCs from the restraints control module using a diagnostic tool.
