Seat - Exploded View, Second Row, Five Hundred, Montego

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

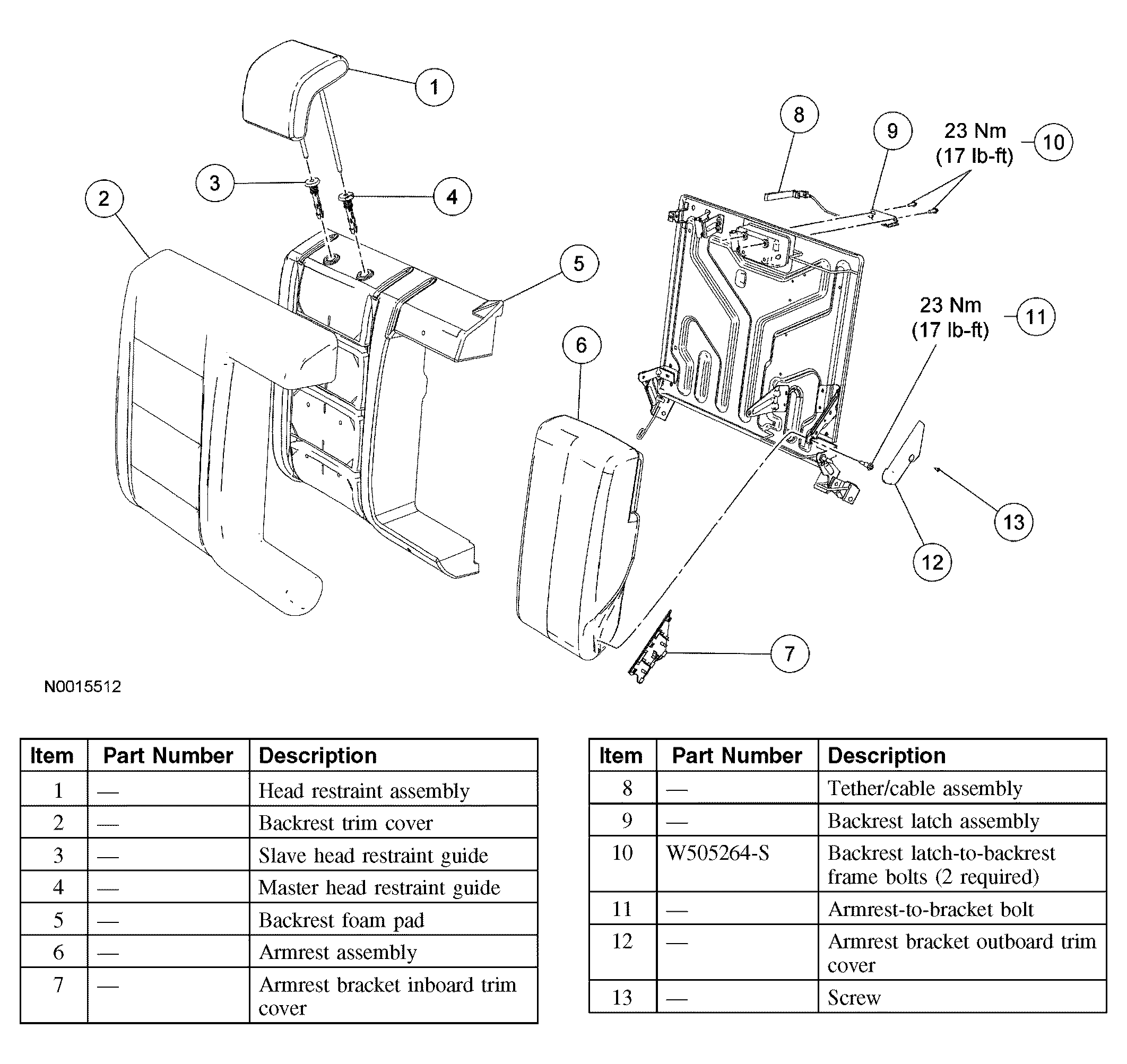

Five Hundred and Montego Rear Seat Backrest, Second Row, 60 Percent

Fig 1: Exploded View Hundred And Montego Rear Seat (1 Of 2)

Courtesy of FORD MOTOR CO.

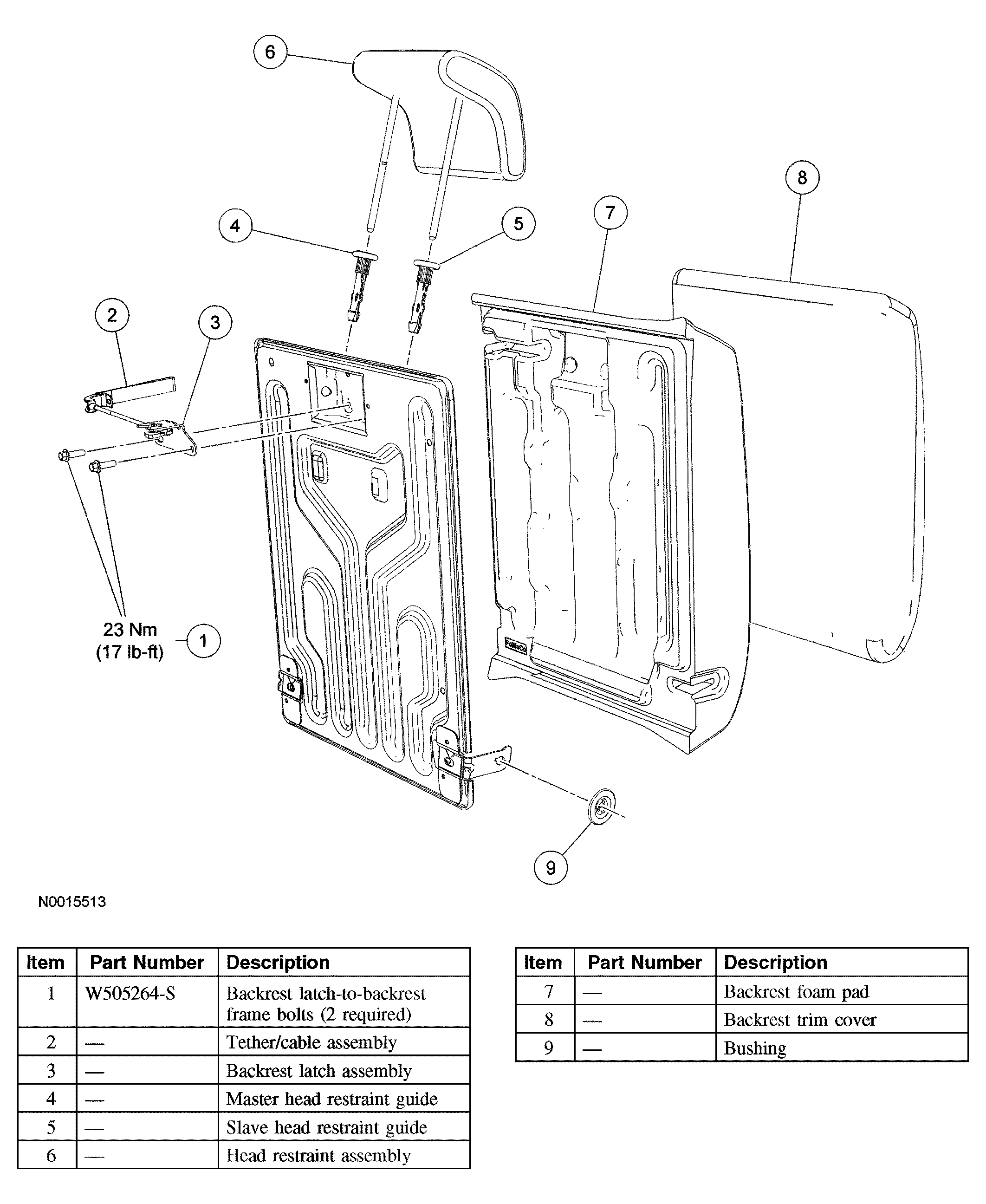

Five Hundred and Montego Rear Seat Backrest, Second Row, 40 Percent

Fig 2: Exploded View Hundred And Montego Rear Seat (2 Of 2)

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
